8mm to 8mm Shaft Coupling Flexible Coupler Motor Connector Joint L25xD20 Silver for Stepper Motor Nema 17
![RB-20x26(4～10)]()
![RB-20x26(4～10)]()
![RB-20x26(4～10)]()
![8mm to 8mm Shaft Coupling Flexible Coupler Motor Connector Joint L25xD20 Silver for Stepper Motor Nema 17]()
![RB-20x26(4～10)]()
![RB-20x26(4～10)]()
![RB-20x26(4～10)]()
![8mm to 8mm Shaft Coupling Flexible Coupler Motor Connector Joint L25xD20 Silver for Stepper Motor Nema 17]()
High Torque Transmission: Can handle up to 1.5 Nm torque, making it suitable for medium-duty applications.
Lightweight and Durable: Aluminum alloy construction ensures strength without adding excessive weight.
Easy Installation: Set screws provide a secure fit between the motor and the shaft, preventing slippage.
Versatile Compatibility: Suitable for Nema 17 stepper motors and any other systems with 8mm diameter shafts.
CNC Machines: Provides flexible connection between stepper motors and lead screws or other drive mechanisms.
Robotics: Ideal for precision robotic joints and mechanisms that require slight flexibility in shaft alignment.
Laser Cutters: Used in mechanical transmission systems where stepper motors drive belts or screws.
DIY Projects: Applicable in various hobbyist applications requiring precise motor control and alignment.
-33%
8mm to 8mm Shaft Coupling Flexible Coupler Motor Connector Joint L25xD20 Silver for Stepper Motor Nema 17
Available:In Stock
- Product SKU: LGSTM039
₹ 365
₹ 549
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description

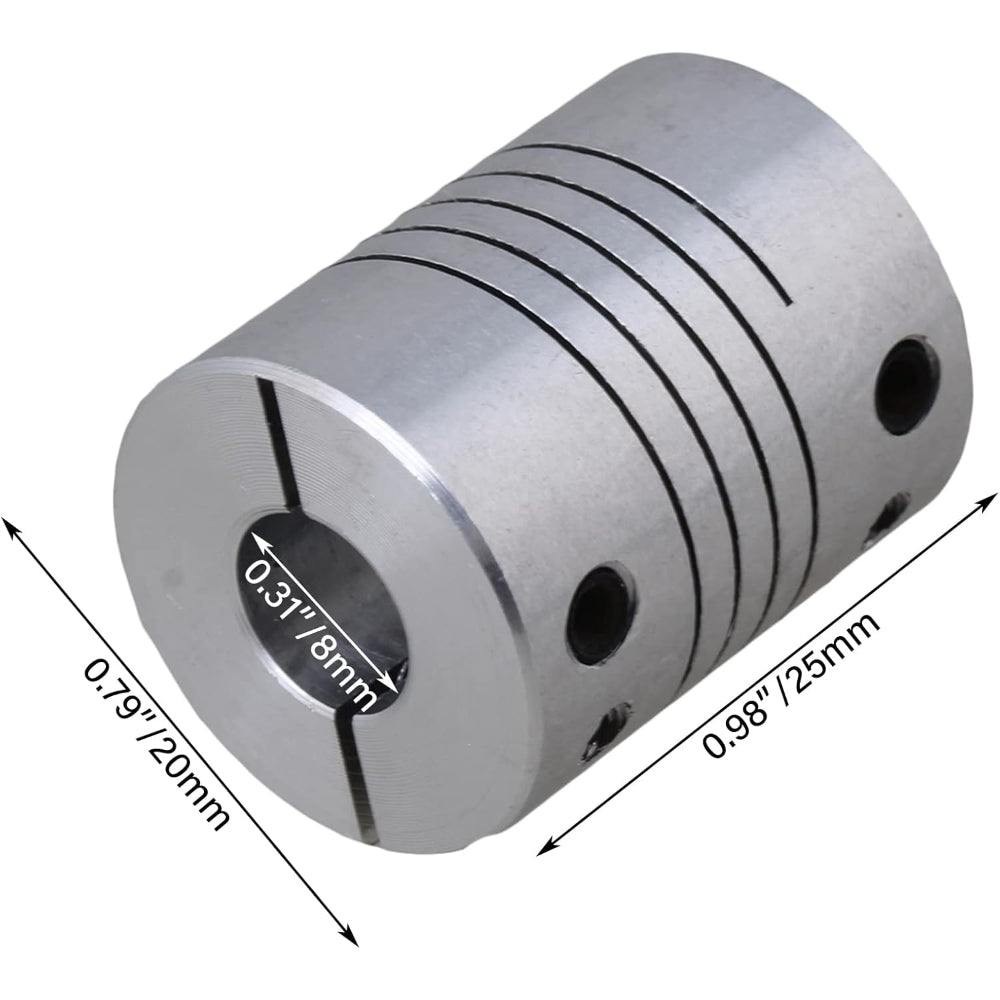

This 8mm to 8mm flexible shaft coupling is designed to connect two shafts while compensating for minor misalignments. Made from durable aluminum alloy, this coupling ensures high torque transmission and reliability. Its flexibility allows for axial, radial, and angular misalignment, making it ideal for stepper motors like Nema 17 in precision mechanical applications. The coupler’s silver finish and compact size (25mm length, 20mm diameter) make it easy to install in tight spaces.Features:
Flexible Design: Absorbs small misalignments between motor shafts, reducing wear and extending the life of connected components.High Torque Transmission: Can handle up to 1.5 Nm torque, making it suitable for medium-duty applications.
Lightweight and Durable: Aluminum alloy construction ensures strength without adding excessive weight.
Easy Installation: Set screws provide a secure fit between the motor and the shaft, preventing slippage.
Versatile Compatibility: Suitable for Nema 17 stepper motors and any other systems with 8mm diameter shafts.
Applications:
3D Printers: Perfect for coupling Nema 17 stepper motors used in the movement axes of 3D printers.CNC Machines: Provides flexible connection between stepper motors and lead screws or other drive mechanisms.
Robotics: Ideal for precision robotic joints and mechanisms that require slight flexibility in shaft alignment.
Laser Cutters: Used in mechanical transmission systems where stepper motors drive belts or screws.
DIY Projects: Applicable in various hobbyist applications requiring precise motor control and alignment.
Technical Details
- Type: Flexible Shaft Coupling
- Bore Diameter (d1-d2): 8mm to 8mm
- Outer Diameter: 20mm
- Length: 25mm
- Material: Aluminum alloy
- Rated Torque: 1.5 Nm
- Max. Speed: 5,000 rpm
- Operating Temperature: -40°C to 100°C
- Color: Silver
- Compatible Motors: Nema 17 stepper motors, other motors with 8mm shafts Screw Type: Set screw for secure fitting
Compatibility
- LGSTM005 : Industrial Grade NEMA17 2.6kg-cm 1.8 Degree 2 Phase hybrid Stepper Motor
- LGSTM006 : Industrial Grade NEMA17 4.0kg-cm 1.8 Degree 2 Phase hybrid Stepper Motor
- LGSTM007 : Industrial Grade NEMA17 3.3kg-cm 0.9 Degree 2 Phase hybrid Stepper Motor
- LGSTM008 : Industrial Grade NEMA17 4.4kg-cm 0.9 Degree 2 Phase hybrid Stepper Motor
- LGSTM009 : Industrial Grade NEMA17 5.0kg-cm 1.8 Degree 2 Phase hybrid Stepper Motor
- LGSTM010 : Industrial Grade NEMA17 7.3kg-cm 1.8 Degree 2 Phase hybrid Stepper Motor
- LGSTM011 : Industrial Grade NEMA17 7.3kg-cm 1.8 Degree 2 Phase hybrid Stepper Motor Dual Shaft
Drawing
Documentation
Package Includes
- 1 x 8mm to 8mm Shaft Coupling Flexible Coupler Motor Connector Joint L25xD20 Silver for Stepper Motor Nema 17
