YF-S201 Water Flow Measurement Sensor with 1-30Liter/min Flow Rate
- Product SKU: KG104
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description
YF-S201 Water Flow Measurement Sensor with 1-30Liter/min Flow Rate

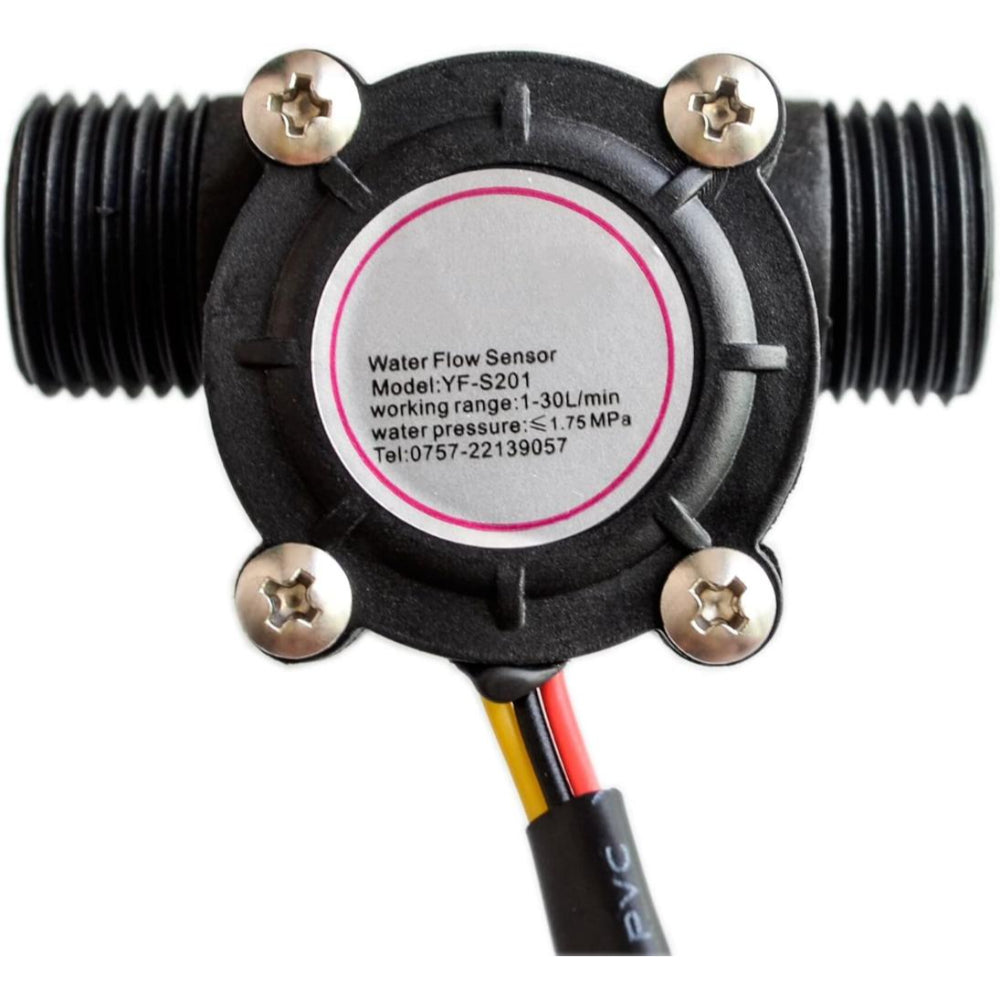

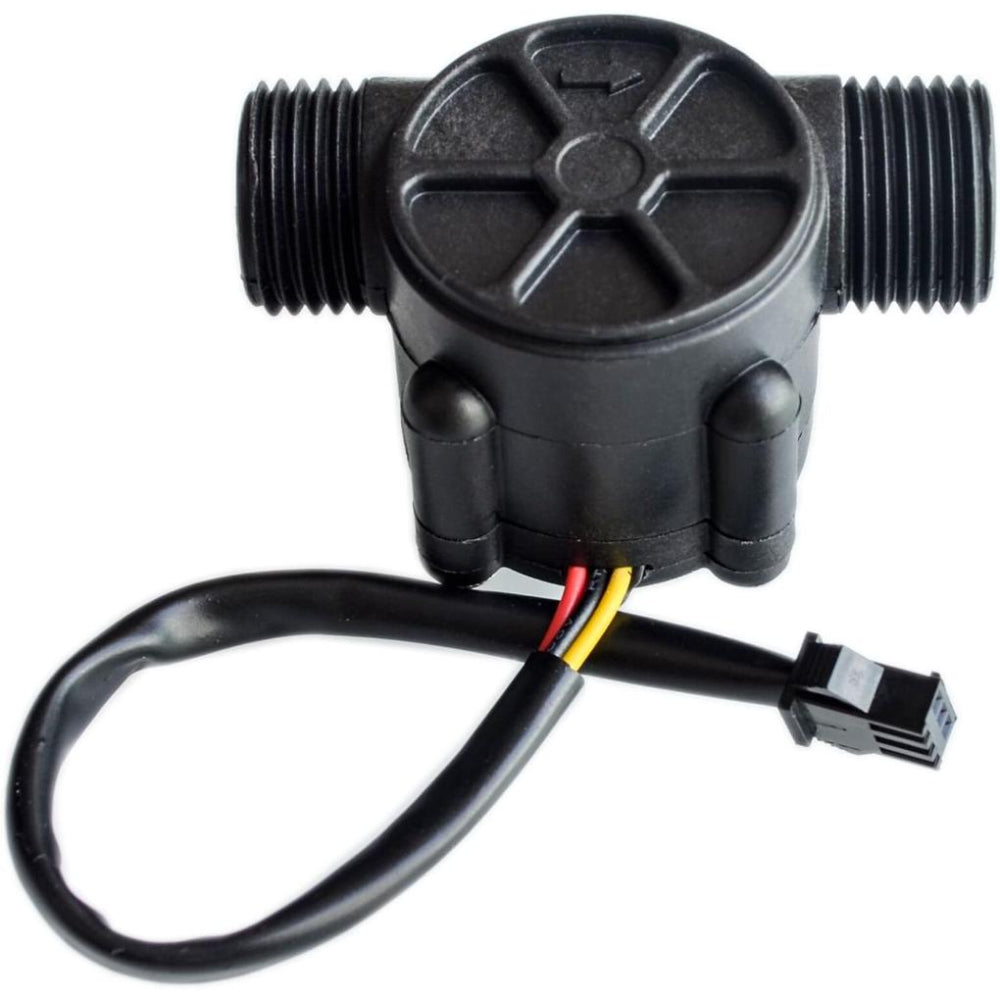

This is YF-S201 Water Flow Measurement Sensor with 1-30Liter/min Flow Rate – Black. This sensor sits in line with your water line and contains a pinwheel sensor to measure how much liquid has moved through it. There’s an integrated magnetic hall effect sensor that outputs an electrical pulse with every revolution. The hall effect sensor is sealed from the water pipe and allows the sensor to stay safe and dry.By counting the pulses from the output of the sensor, you can easily calculate water flow. Each pulse is approximately 2.25 millilitres.
Note: this isn’t a precision sensor, and the pulse rate does vary a bit depending on the flow rate, fluid pressure, and sensor orientation. It will need careful calibration if better than 10% precision is required. However, it’s great for basic measurement tasks!
Technical Details
- Model Type: Water Flow Sensor
- Max Water Flow (L/min): 1 to 30
- Working Water Pressure (MPa): ≤1.75
- Operating Temperature (°C): -25 ~ +80
- Operating Humidity: 35% – 80% RH
- Accuracy: ±10%
- Duty Cycle: 50% ±10% output
- Rise Time: 0.04µsec (output)
- Pulse: 450 per liter
- Output Fall Time (µsec): 0.18
- Outer Diameter [OD] (mm): 20
- Length (mm): 62.5
- Width (mm): 36
- Height (mm): 35
- Weight (g): 50
Features
- The simple and compact module.
- Easy to install.
- High sealing performance.
- High-quality Hall effect sensor.
Connection
- Red wire: +5V
- Black wire: GND
- Yellow wire: PWM output
Applications :
- Water Flow Monitoring in Plumbing Systems: Monitors water flow rate to detect leaks or irregularities in residential and industrial plumbing systems.
- Aquarium Systems: Used to measure water flow in aquariums, ensuring proper circulation for aquatic life.
- Agriculture & Irrigation Systems: Monitors water usage in irrigation systems, helping optimize water consumption and prevent wastage.
- Water Treatment Plants: Measures water flow in treatment plants to ensure consistent operation and monitor filtration processes.
- Water Conservation Systems: Used in systems designed to conserve water, helping to track usage and optimize water distribution.
Integration with Arduino
Sample Code
Physical Attributes
- Length (mm): 62.5
- Width (mm): 36
- Height (mm): 35
- Weight (g): 50
Package Includes
- 1 x YF-S201 Water Flow Measurement Sensor with 1-30Liter/min Flow Rate
Customer Reviews

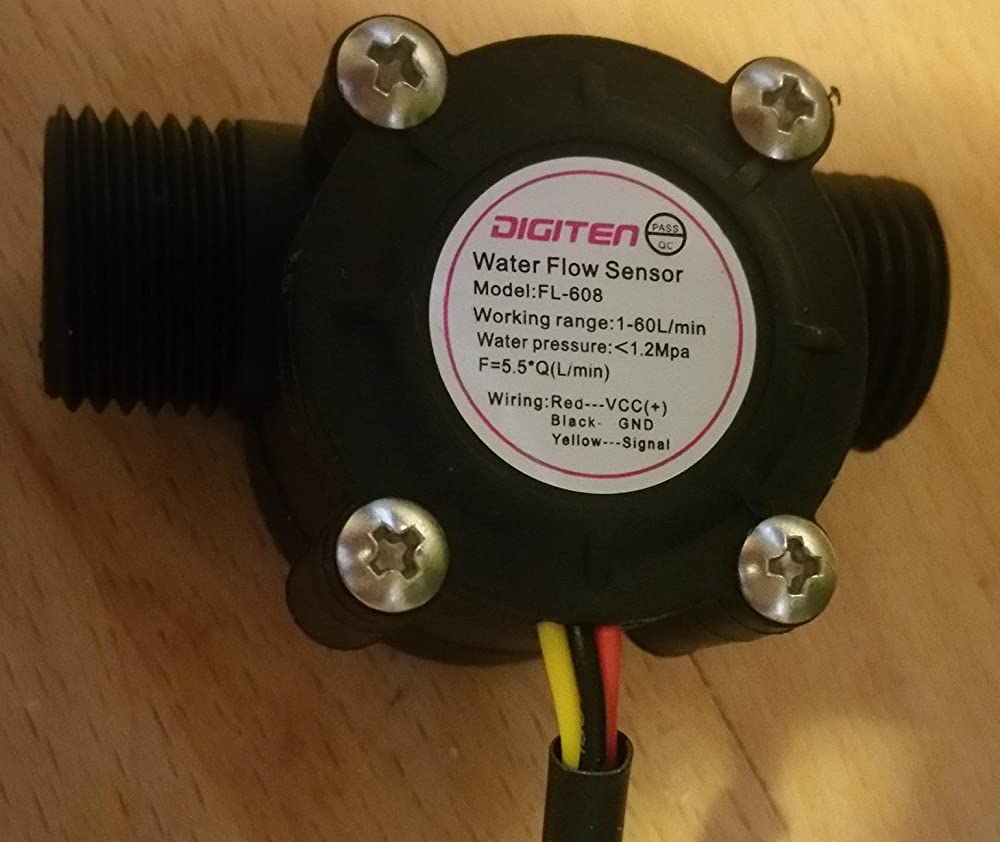

The product I received was actually the FL-608 and not the FL-408 as specified in the product information here. It has slightly different stats but so far I am able to read the pulses in my test setup. I have not hooked it up to actual liquid flow yet to calibrate it but I believe it will work well for my situation.
