Specification

Description

XKC-001A NC Diffuse Reflection Infrared Sensor – DC 5-12V

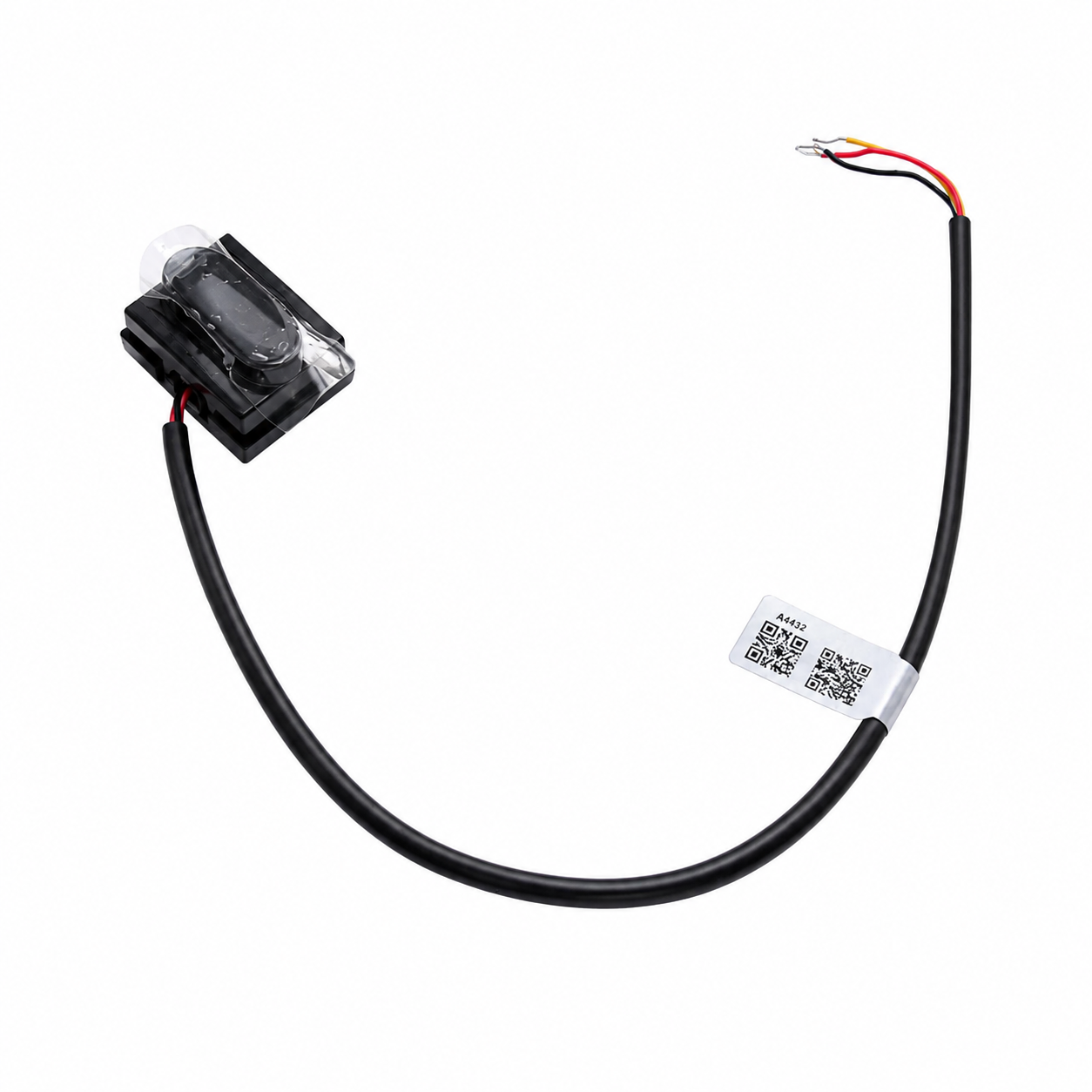

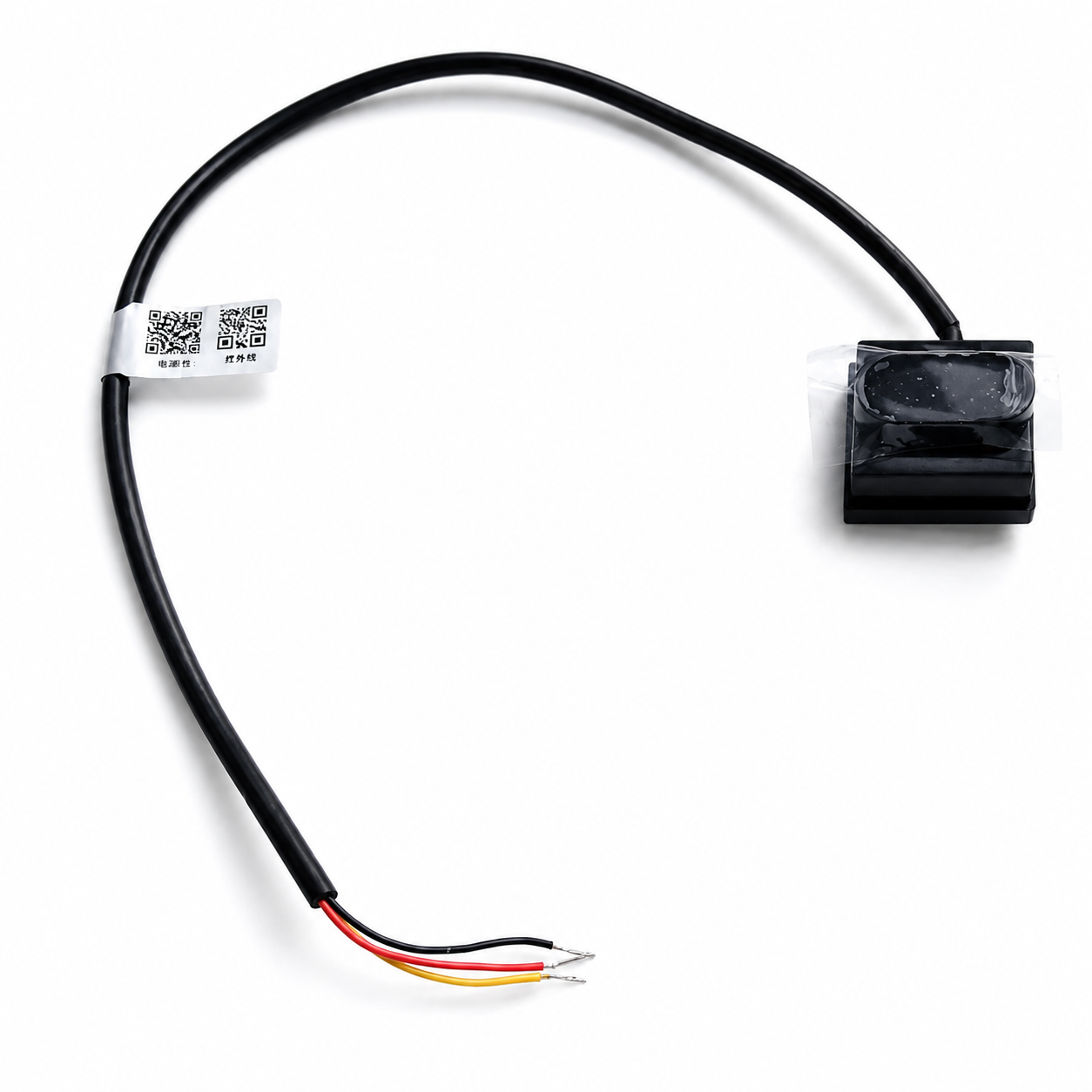

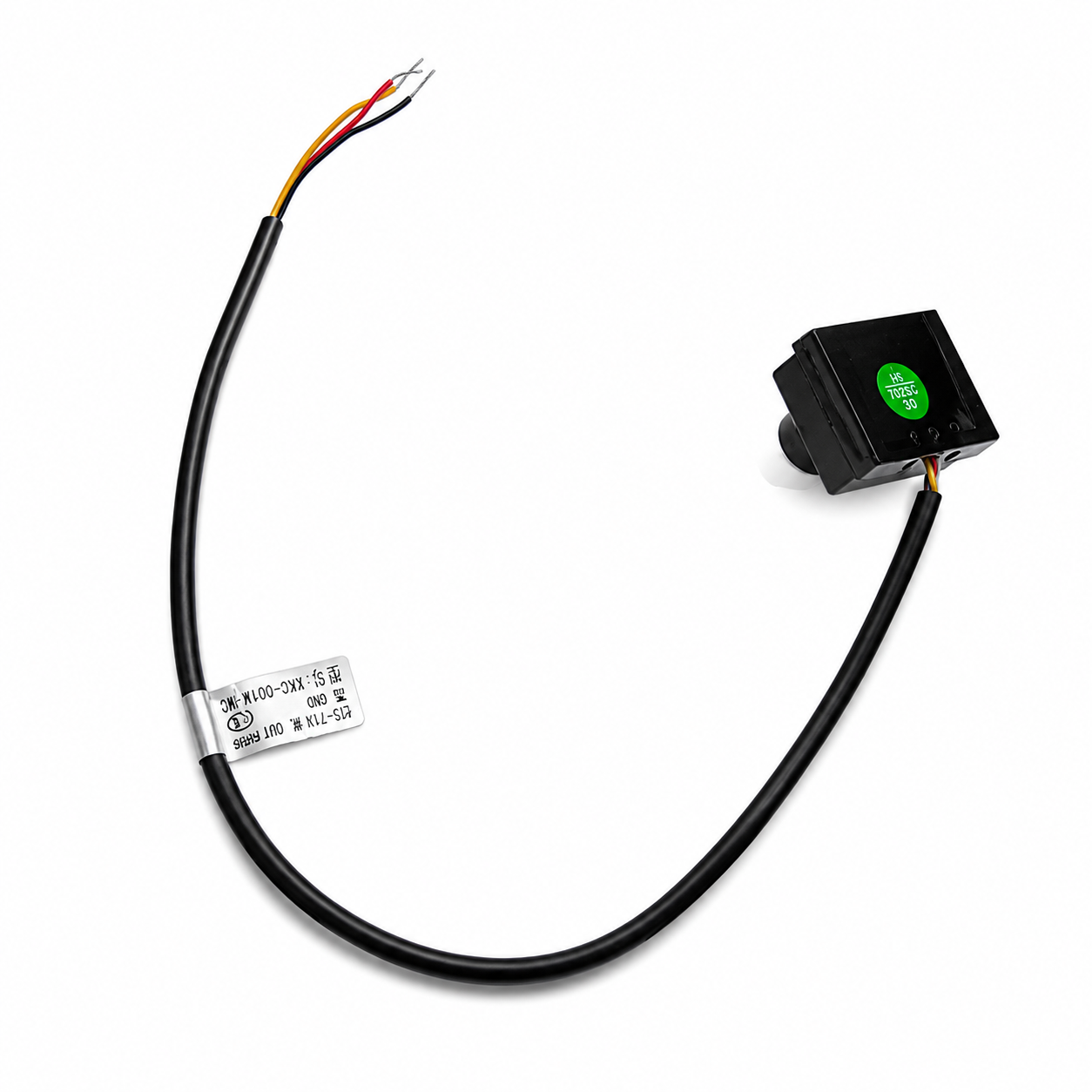

The XKC-001A NC Diffuse Reflection Infrared Sensor provides non-contact detection of nearby objects using reflected infrared light. Its compact housing and adjustable sensing distance support installation in automation equipment, conveyor systems and electronic detection projects without a separate reflector.

Operating on a DC 5-12V power supply, the sensor offers an adjustable 0-100cm sensing range and a specified 10-15° cone-shaped sensing angle. This Normally Closed (NC) version is designed for applications that require an NC switching state. Verify the electrical interface and detection-state polarity of the supplied NC unit before connecting it to a controller, relay or other load.

The sensor has a quiescent current below 3.5mA, a red detection indicator and an operating temperature range of -20°C to 85°C. Actual detection distance depends on the target surface, size, reflectivity and ambient lighting.

Features

  • Infrared diffuse-reflection object detection without a separate reflector
  • Adjustable sensing distance of 0-100cm
  • DC 5-12V operating voltage
  • Normally Closed (NC) switching configuration
  • 10-15° cone-shaped sensing angle
  • Compact sensor housing with 300mm cable shown in the drawing
  • Quiescent current below 3.5mA
  • Red indicator illuminates when an object is detected
  • Specified ambient-light level: 10,000lx
  • Suitable for compatible controllers and automation projects

Technical Details

  • Item Type: Diffuse Reflection Infrared Photoelectric Sensor
  • Model No.: XKC-001A NC
  • Operating Voltage: DC 5-12V
  • Output Type: Normally Closed (NC) switching output; confirm output transistor type for this variant
  • Sensing Distance: 0-100cm (Adjustable)
  • Sensing Angle: 10-15° Cone Angle
  • Sensing Method: Active Infrared Diffuse Reflection
  • Quiescent Current: <3.5mA
  • External Load Current: <100mA (supplied specification; confirm for selected variant)
  • Ambient Light Specification: 10,000lx
  • Detection Indicator: Red LED, illuminated on detection
  • Operating Temperature: -20°C to 85°C
  • Cable Length Shown in Drawing: 300mm

Applications

  • Non-contact object presence detection
  • Conveyor object detection and counting
  • Packaging and material-handling equipment
  • Robotics and embedded electronics
  • Compact machine-position sensing
  • Control applications requiring Normally Closed (NC) switching

Drawing

Physical Attributes

  • Housing Type: Compact profile sensor with cable and plug
  • Overall Front-View Height: 30.7mm
  • Front-View Inner Feature Height: 28.3mm
  • Overall Front-View Width: 25.4mm
  • Inner Width Shown: 23.0mm
  • Overall Side-View Height: 17.4mm
  • Upper Section Height Shown: 4.9mm
  • Cable Length Shown: 300mm

Installation Notes

  • Install with the sensing face directed at the target and adjust the sensing distance for the actual material and ambient light.
  • No external reflector is required for diffuse-reflection detection.
  • The supplied information does not establish whether this NC stock variant uses an NPN output or provide its pinout; check the actual product label or variant datasheet before wiring.

Package Includes

  • 1 × XKC-001A NC Diffuse Reflection Infrared Sensor – DC 5-12V with Cable
