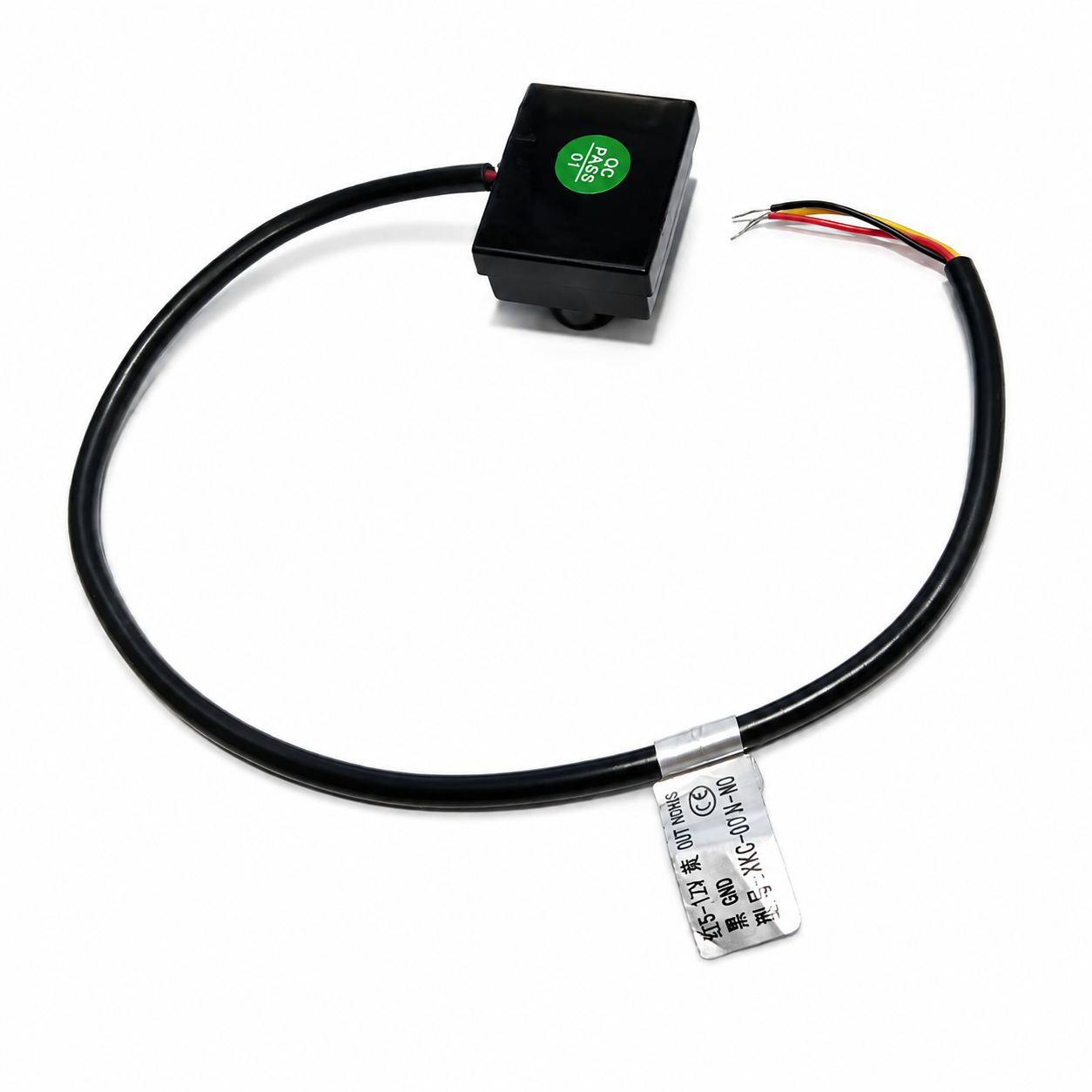

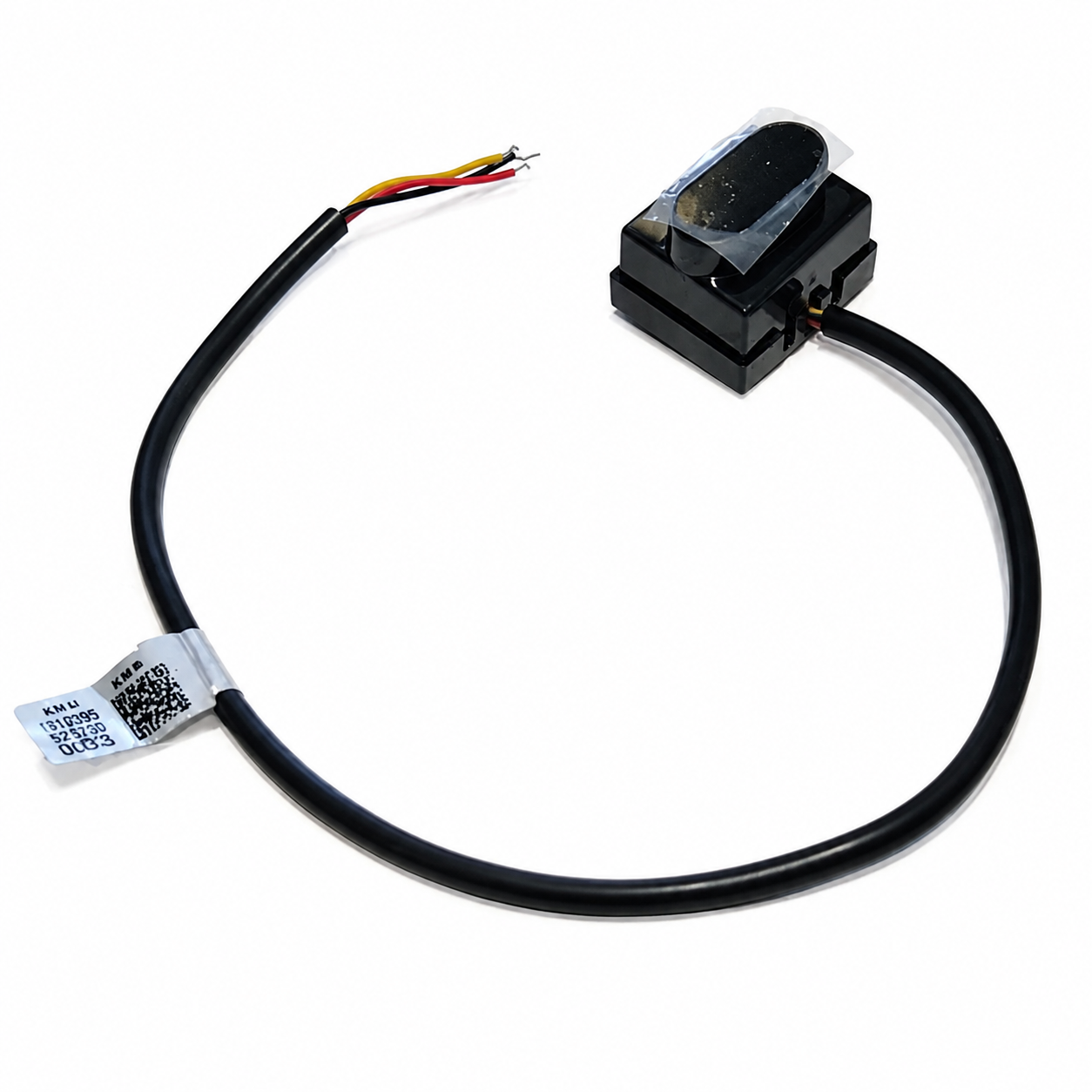

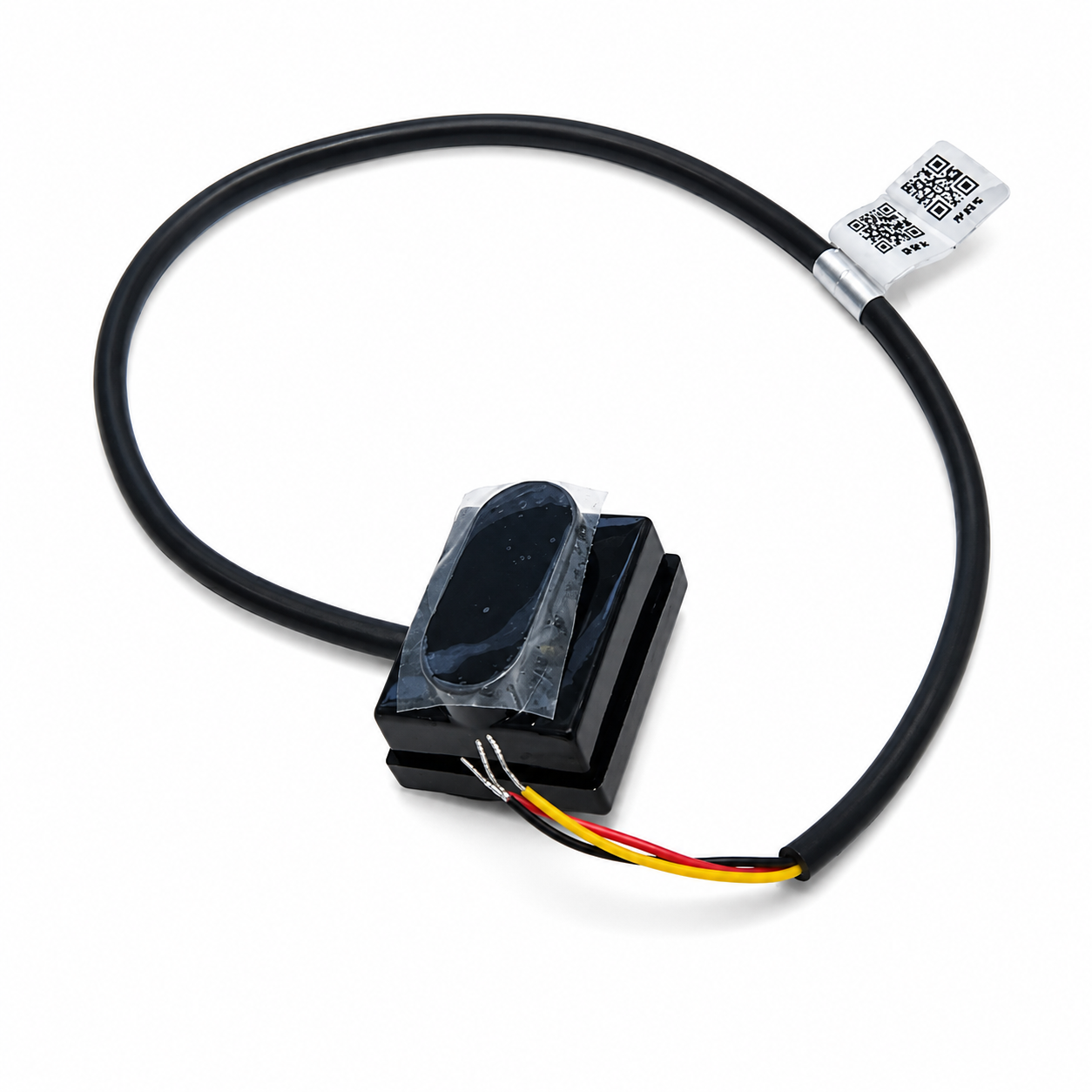

XKC-001A Diffuse Reflective Infrared Motion/Proximity Sensor – NPN Normally Open
Review: 5 - "A masterpiece of literature" by John Doe, written onMay 4, 20020
Great
-11%
NPN NO IR Sensor
Diffuse Proximity Sensor
Reflective Motion Sensor
NPN NO IR Sensor
Diffuse Proximity Sensor
Reflective Motion Sensor

XKC-001A Diffuse Reflective Infrared Motion/Proximity Sensor – NPN Normally Open

Available:In Stock
  • Product SKU: KG1442
Wishlist
₹ 1,099 ₹ 1,248
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
  • Diffuse reflection infrared detection
  • NPN Normally Open (NO) Output
  • Non-contact object detection
  • No separate reflector required
  • Ideal for industrial automation
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
How Fast We Ship
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

🏠 Warehouse Details:
24 F - 140 Q
Secure

Specification

Description

XKC-001A NPN NO Diffuse Reflection Infrared Sensor – DC 5-12V

The XKC-001A NPN NO Diffuse Reflection Infrared Sensor is a compact non-contact object detector that uses infrared light reflected from a target. Its diffuse-reflection design does not require a separate reflector, making it suitable for object sensing in compact machinery, conveyors and microcontroller-based projects.

Operating on a DC 5-12V power supply, the sensor offers an adjustable 0-100cm sensing range and a specified 10-15° cone-shaped sensing angle. The NPN open-collector Normally Open (NO) output is intended for compatible digital inputs and switching circuits. The switching output changes state when a suitable object is detected, according to the NO configuration.

The sensor has a quiescent current below 3.5mA, a red detection indicator and an operating temperature range of -20°C to 85°C. Actual detection distance depends on the target surface, size, reflectivity and ambient lighting.

Features

  • Infrared diffuse-reflection object detection without a separate reflector
  • Adjustable sensing distance of 0-100cm
  • DC 5-12V operating voltage
  • NPN open-collector output with Normally Open (NO) switching
  • 10-15° cone-shaped sensing angle
  • Compact sensor housing with 300mm cable shown in the drawing
  • Quiescent current below 3.5mA
  • Red indicator illuminates when an object is detected
  • Specified ambient-light level: 10,000lx
  • Suitable for compatible controllers and automation projects

Technical Details

  • Item Type: Diffuse Reflection Infrared Photoelectric Sensor
  • Model No.: XKC-001A NPN NO
  • Operating Voltage: DC 5-12V
  • Output Type: NPN Open-Collector, Normally Open (NO)
  • Sensing Distance: 0-100cm (Adjustable)
  • Sensing Angle: 10-15° Cone Angle
  • Sensing Method: Active Infrared Diffuse Reflection
  • Quiescent Current: <3.5mA
  • External Load Current: <100mA (supplied specification; confirm for selected variant)
  • Ambient Light Specification: 10,000lx
  • Detection Indicator: Red LED, illuminated on detection
  • Operating Temperature: -20°C to 85°C
  • Cable Length Shown in Drawing: 300mm

Applications

  • Non-contact object presence detection
  • Conveyor object detection and counting
  • Packaging and material-handling equipment
  • Robotics and embedded electronics
  • Compact machine-position sensing
  • NPN-compatible controller and switching applications

Drawing

Physical Attributes

  • Housing Type: Compact profile sensor with cable and plug
  • Overall Front-View Height: 30.7mm
  • Front-View Inner Feature Height: 28.3mm
  • Overall Front-View Width: 25.4mm
  • Inner Width Shown: 23.0mm
  • Overall Side-View Height: 17.4mm
  • Upper Section Height Shown: 4.9mm
  • Cable Length Shown: 300mm

Installation Notes

  • Install with the sensing face directed at the target and adjust the sensing distance for the actual material and ambient light.
  • No external reflector is required for diffuse-reflection detection.
  • Confirm the exact wire colours and pinout on the supplied unit before connecting power or a load.

Package Includes

  • 1 × XKC-001A NPN NO Diffuse Reflection Infrared Sensor – DC 5-12V with Cable
