Operating on a DC 4.5-20V power supply, this model provides an NPN transistor signal output for use with suitable controller inputs or switching interfaces. Its adjustable 5-300-second output delay and selectable L/H trigger modes allow flexible motion-control operation, with a specified 1-second lockout time.
The sensor family specifies up to 7m detection distance, a less than 110° detection angle and a low quiescent current of less than 200µA for the sensing circuit. Its compact housing suits a range of indoor motion-sensing projects. Optional light-sensitive control and temperature compensation depend on the supplied configuration.
-14%

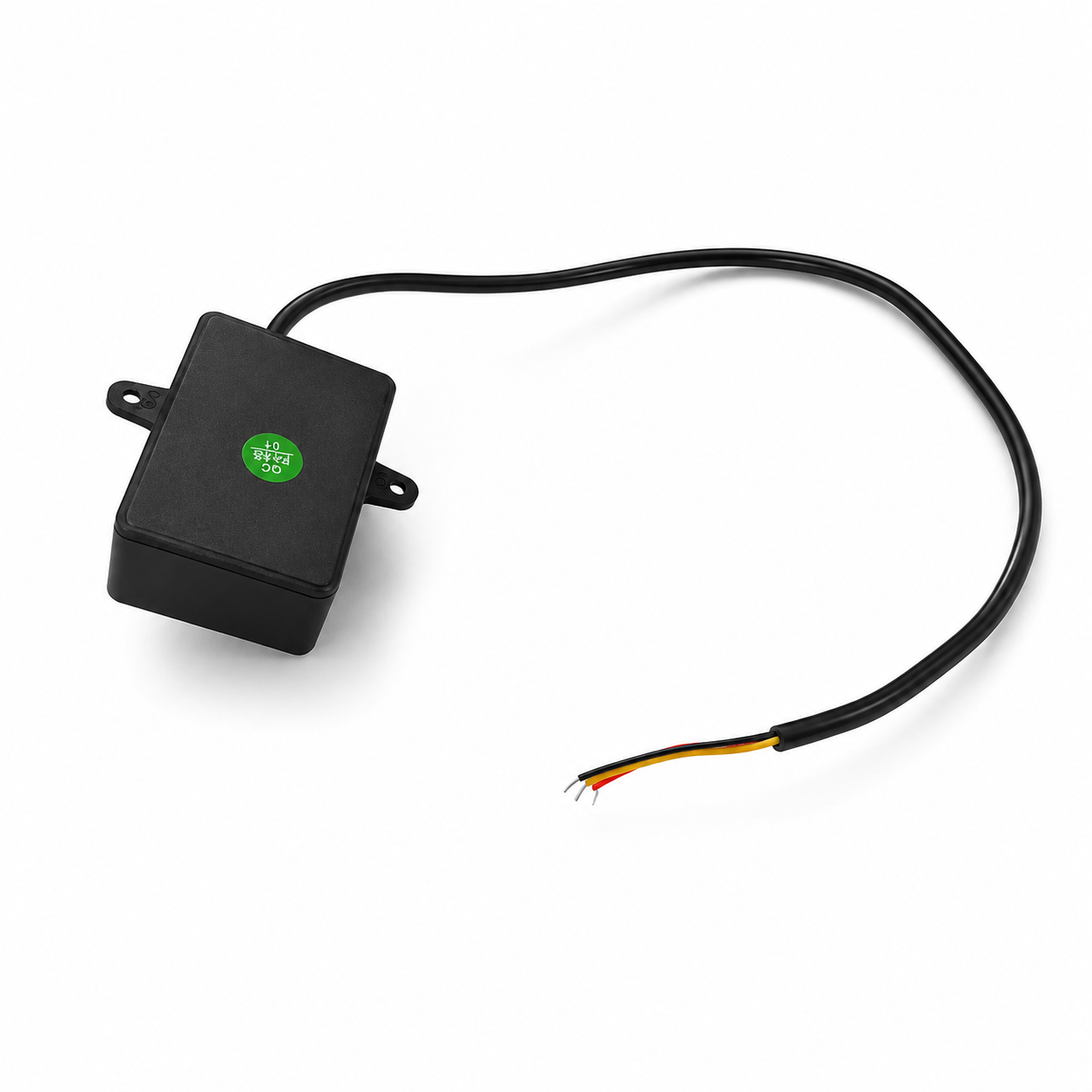

XKC-003K4 NPN PIR Human Body Motion Sensor – DC 4.5-20V
Available:In Stock
- Product SKU: KG1445
₹ 899
₹ 1,048
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description

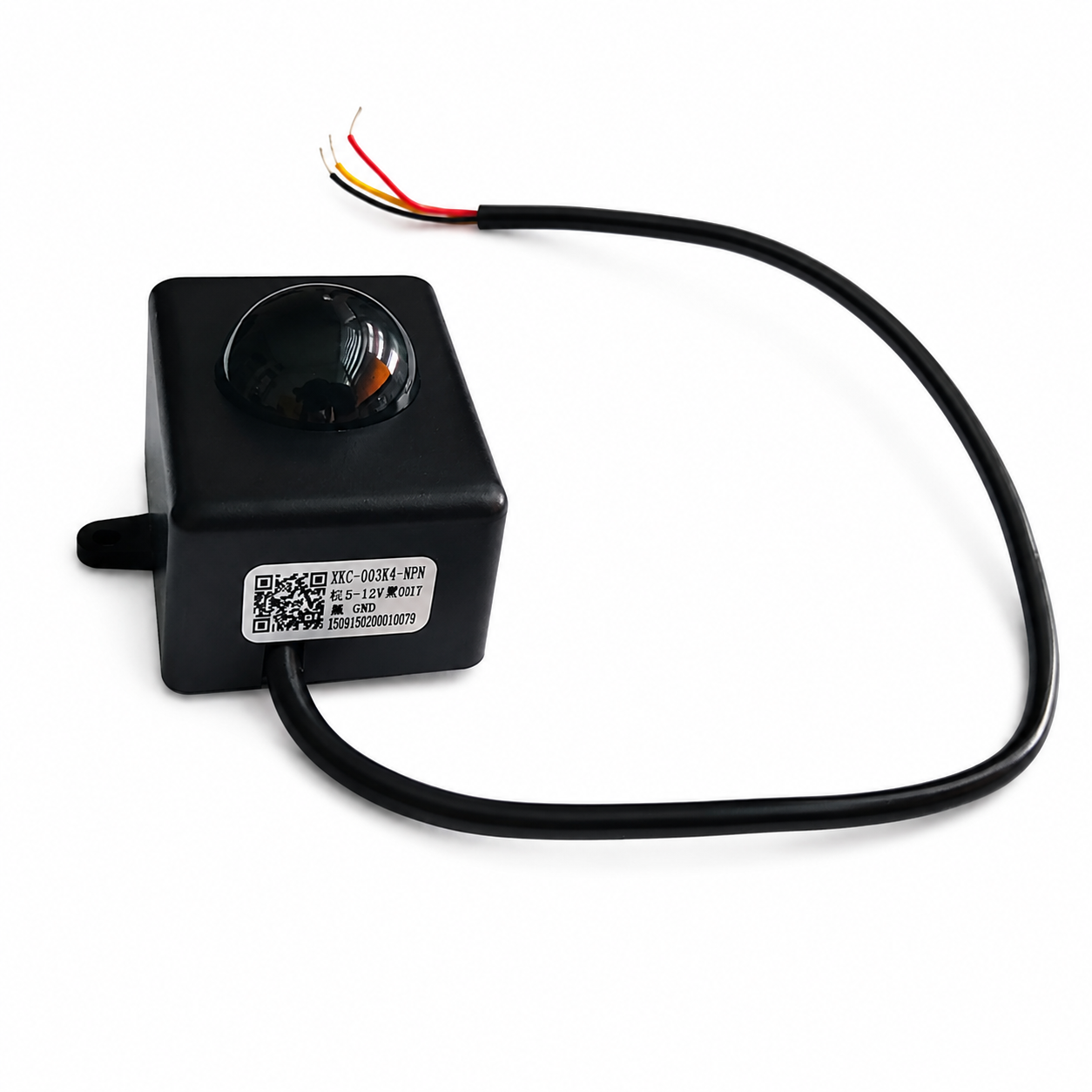

XKC-003K4-NPN DC 4.5V-20V Pyroelectric Body Sensor
The XKC-003K4-NPN Pyroelectric Body Sensor is a passive infrared (PIR) sensor designed to detect changes in infrared radiation caused by human movement. Its compact rectangular housing, integrated PIR lens and non-contact detection are suitable for motion-triggered lighting, alarm systems and electronic automation projects.Operating on a DC 4.5-20V power supply, this model provides an NPN transistor signal output for use with suitable controller inputs or switching interfaces. Its adjustable 5-300-second output delay and selectable L/H trigger modes allow flexible motion-control operation, with a specified 1-second lockout time.
The sensor family specifies up to 7m detection distance, a less than 110° detection angle and a low quiescent current of less than 200µA for the sensing circuit. Its compact housing suits a range of indoor motion-sensing projects. Optional light-sensitive control and temperature compensation depend on the supplied configuration.
Features
- Non-contact human motion detection using passive infrared sensing
- DC 4.5-20V operating voltage
- NPN transistor signal output
- High-sensitivity PIR sensing with integrated lens
- Selectable trigger mode: L (non-retriggerable) or H (retriggerable), where fitted
- Adjustable output delay of 5-300 seconds
- 1-second lockout time
- Specified detection distance of up to 7m
- Specified detection angle below 110°
- Quiescent sensing-circuit current below 200µA
- Compact housing with two mounting holes
- Optional photosensitive control and temperature compensation (configuration dependent)
Technical Details
- Item Type: PIR Human Motion Sensor
- Model No.: XKC-003K4-NPN
- Operating Voltage: DC 4.5-20V
- Output Type: NPN transistor output
- Quiescent Current (PIR Sensing Circuit): <200µA
- Trigger Modes: L – Non-Retriggerable; H – Retriggerable (where fitted)
- Adjustable Delay: 5-300 Seconds
- Lockout Time: 1 Second
- Maximum Specified Detection Distance: 7m
- Detection Angle: <110°
- Operating Temperature: -20°C to +80°C
- PIR Lens Outer Diameter: 23mm
- PCB Dimensions: 32 × 24mm
- Nominal Housing Dimensions: 52 × 36 × 23mm
- Approximate Cable Length: 280mm
Applications
- Motion-activated lighting
- Security and intrusion alarm systems
- Human movement detection in electronic equipment
- Smart-home and building automation
- Automatic occupancy-triggered controls
- NPN-compatible controller and microcontroller projects
- Energy-saving lighting control systems
Drawing
Wiring Diagram
Wire Connections
- Red: Positive power supply (VCC, DC 4.5-20V)
- Black: Power supply negative (GND)
- Yellow: NPN signal output (OUT); connect to a compatible input or suitable external circuit
- The V-output diagram shown above uses a different output stage; verify the specific NPN output state and current limit before connecting a load.

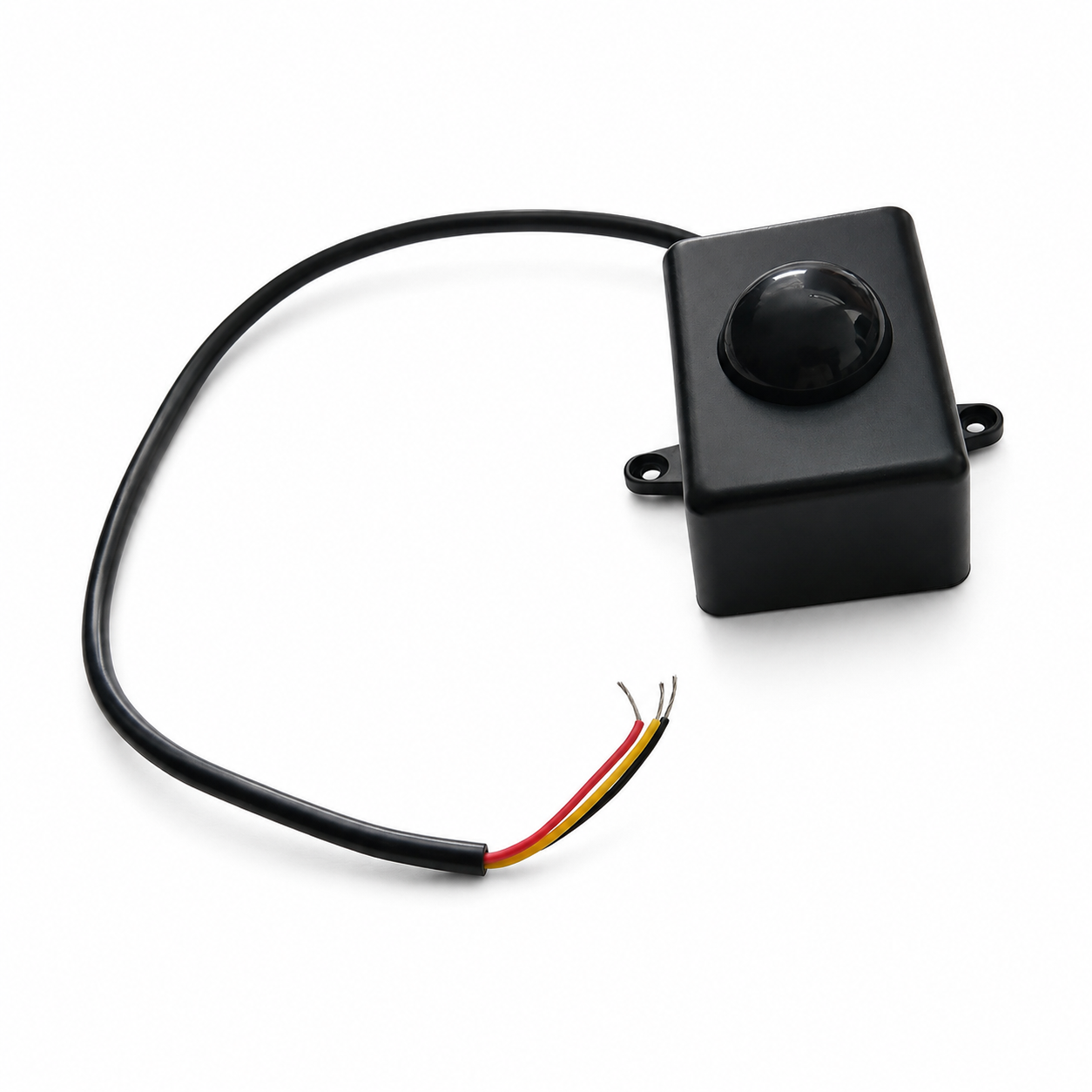

Physical Attributes
- Housing Type: Rectangular PIR Sensor Housing with Raised Lens
- Nominal Housing Dimensions: 52 × 36 × 23mm (L × W × H)
- Body Length Shown: 51.5mm
- Body Width Shown: 36mm
- Overall Width Including Mounting Tabs: 52.3mm
- Mounting Hole Centre Spacing: 44.5mm
- Mounting Hole Diameter: Ø2.5mm
- Body Height Shown: 23mm
- Overall Height Including Lens: 32.2mm
- PIR Lens Outer Diameter: 23mm
- PCB Dimensions: 32 × 24mm
- Approximate Cable Length: 280mm
Installation and Usage Notes
- Position the PIR lens to face the intended movement-detection area and leave the lens unobstructed.
- Secure the sensor using the two mounting holes.
- Set the L/H trigger mode and 5-300-second delay according to the supplied unit’s controls, if fitted.
- Avoid aiming the sensor directly at rapidly changing heat sources or strong airflow.
- The actual detection range depends on movement, ambient temperature and installation position.
- Confirm the NPN output state and current rating before attaching a relay, indicator or controller.
Package Includes
- 1 × XKC-003K4-NPN DC 4.5V-20V Pyroelectric Body Sensor with Cable
