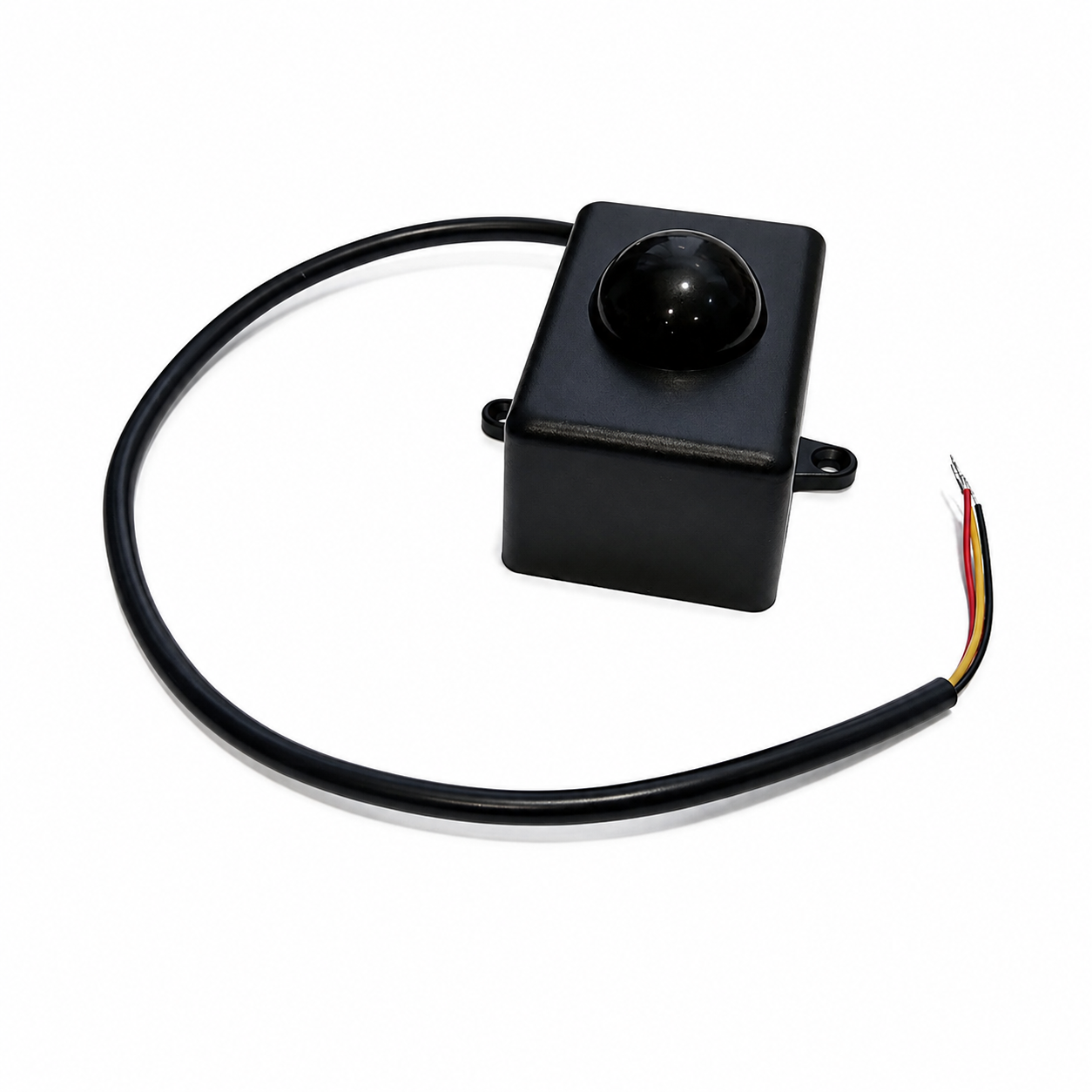

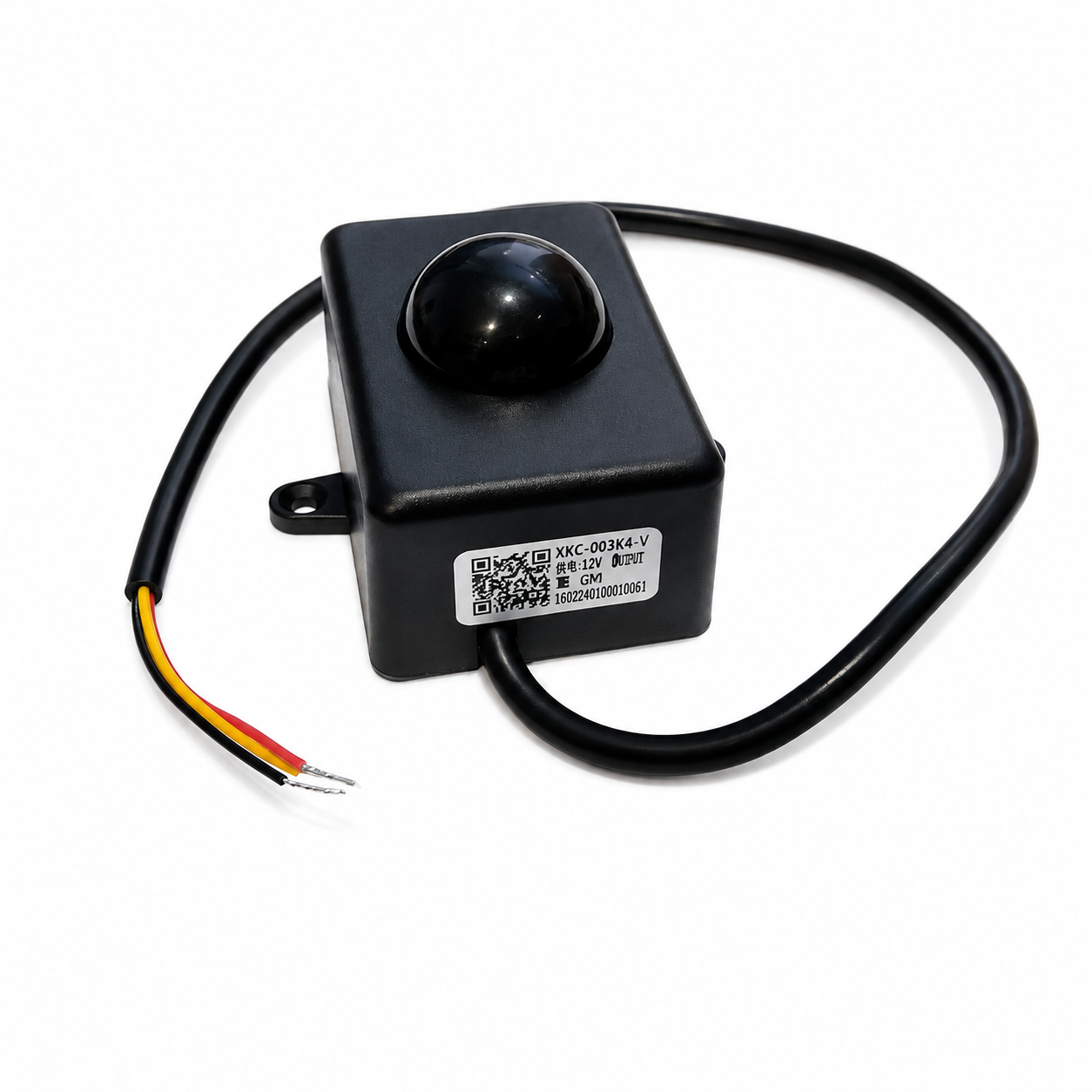

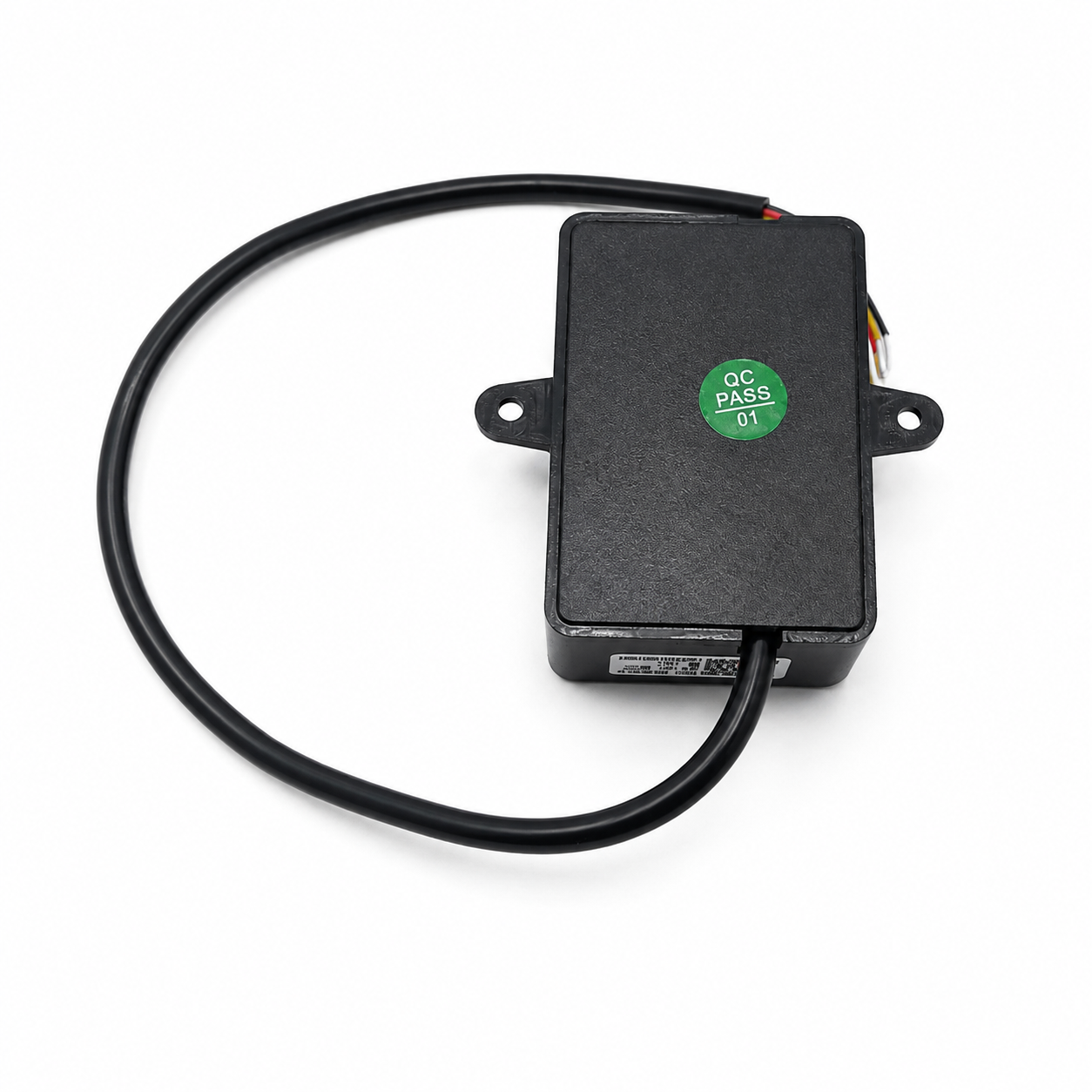

XKC-003K4-V DC 4.5-20V Pyroelectric Body Sensor – High/Low Signal Output

The XKC-003K4-V Pyroelectric Body Sensor is a passive infrared (PIR) motion-detection module designed to detect changes in infrared radiation associated with human movement. Its compact housing, integrated sensing lens and non-contact operation make it suitable for automatic lighting, security alarms and electronic automation projects.

Operating on a DC 4.5-20V power supply, this V-output model provides a high/low signal (3.3V HIGH, 0V LOW) for connection to compatible control circuits. It offers selectable retriggerable and non-retriggerable modes, an adjustable output delay of 5-300 seconds and a 1-second lockout time.

With a specified detection distance of up to 7m, detection angle of less than 110° and quiescent current of less than 200µA, the sensor is suitable for low-power indoor motion-activated applications. Photosensitive control and temperature-compensation options are available only when specified for the supplied version.

Features

  • Non-contact human motion detection using passive infrared sensing
  • DC 4.5-20V operating voltage
  • V-output model with 3.3V HIGH / 0V LOW signal
  • High sensitivity and reliable automatic detection
  • Selectable trigger mode: L (non-retriggerable) or H (retriggerable)
  • Adjustable output delay of 5-300 seconds
  • 1-second lockout time
  • Specified detection range of up to 7m
  • Specified detection angle of less than 110°
  • Low quiescent current of less than 200µA
  • Compact housing with two mounting holes
  • Optional photosensitive control and temperature compensation (variant dependent)

Technical Details

  • Item Type: PIR Human Motion Sensor
  • Model No.: XKC-003K4-V
  • Operating Voltage: DC 4.5-20V
  • Output Type: V (High and Low Level Signal)
  • High Output Level: 3.3V
  • Low Output Level: 0V
  • Quiescent Current: <200µA
  • Trigger Mode: L – Non-Retriggerable; H – Retriggerable
  • Adjustable Delay: 5-300 Seconds
  • Lockout Time: 1 Second
  • Maximum Specified Detection Distance: 7m
  • Detection Angle: <110°
  • Operating Temperature: -20°C to +80°C
  • PIR Lens Outer Diameter: 23mm
  • PCB Dimensions: 32 × 24mm
  • Nominal Housing Dimensions: 52 × 36 × 23mm
  • Approximate Cable Length: 280mm

Applications

  • Motion-activated lighting
  • Security and intrusion alarm projects
  • Human movement detection in electronic equipment
  • Smart-home automation
  • Automatic occupancy-triggered controls
  • Microcontroller-compatible motion detection projects
  • Energy-saving lighting control systems

Drawing

Wiring Diagram

Wire Connections

  • Red: Positive power supply (VCC, DC 4.5-20V)
  • Black: Power supply negative (GND)
  • Yellow: High and low level signal output (OUT)
  • Output voltage: 3.3V HIGH / 0V LOW; use a compatible controller input.
  • The supplied DC-load diagram is illustrative. Confirm the output-stage current rating and use a suitable driver before connecting an external relay or other high-current load.

Physical Attributes

  • Housing Type: Rectangular PIR Sensor Housing with Raised Lens
  • Nominal Housing Dimensions: 52 × 36 × 23mm (L × W × H)
  • Body Length Shown: 51.5mm
  • Body Width Shown: 36mm
  • Overall Width Including Mounting Tabs: 52.3mm
  • Mounting Hole Centre Spacing: 44.5mm
  • Mounting Hole Diameter: Ø2.5mm
  • Body Height Shown: 23mm
  • Overall Height Including Lens: 32.2mm
  • PIR Lens Outer Diameter: 23mm
  • PCB Dimensions: 32 × 24mm
  • Approximate Cable Length: 280mm

Installation and Usage Notes

  • Install the sensor so the PIR lens faces the area where movement is to be detected.
  • Use the mounting holes for secure installation and keep the lens unobstructed.
  • Select the L or H trigger mode and set the required output delay according to the application.
  • Avoid pointing the sensor directly at rapidly changing heat sources or strong airflow that may affect PIR detection.
  • Detection distance depends on movement, ambient conditions and installation position.

Package Includes

  • 1 × XKC-003K4-V DC 4.5-20V Pyroelectric Body Sensor with Cable
