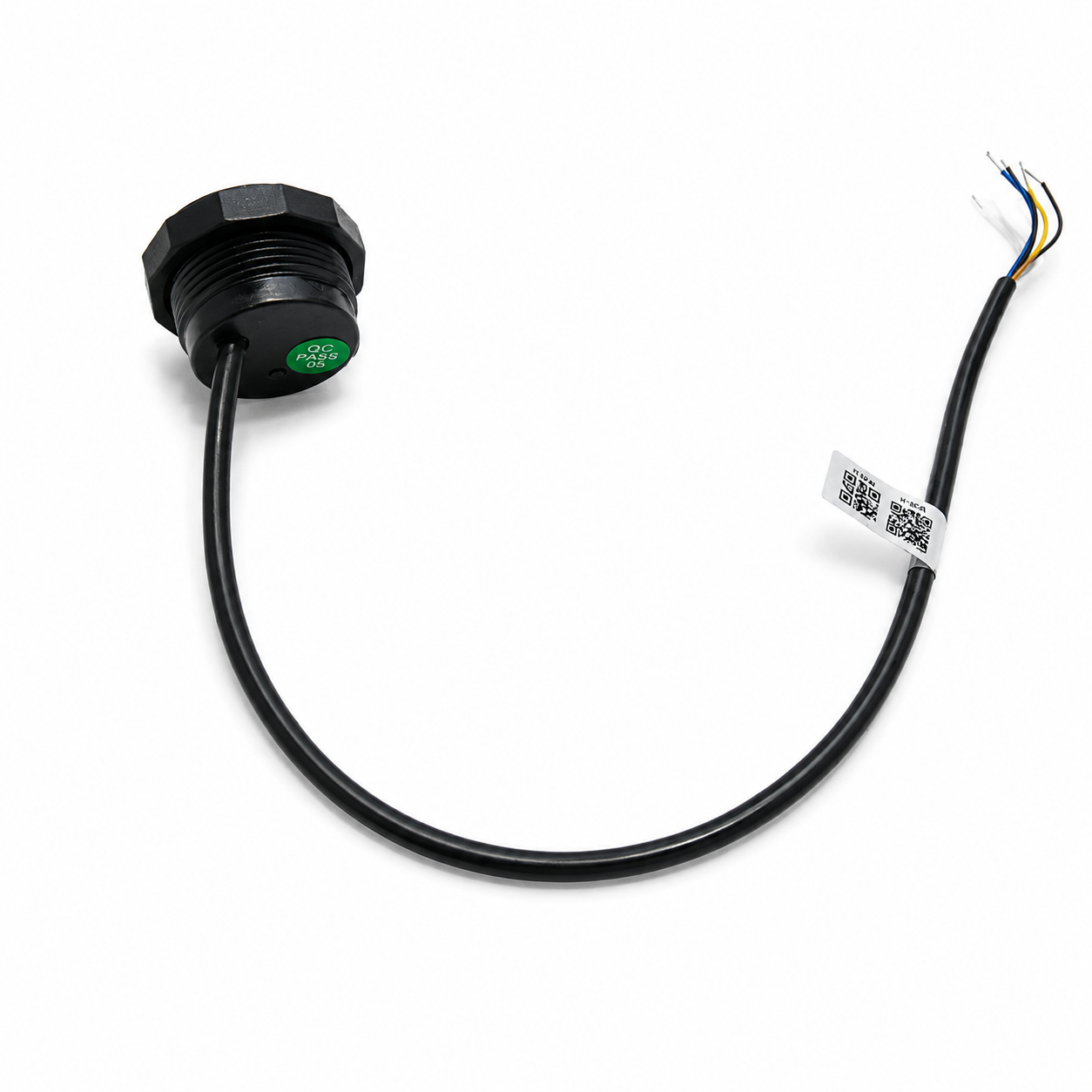

![KD200S-M-NC IR Sensor - Main]()

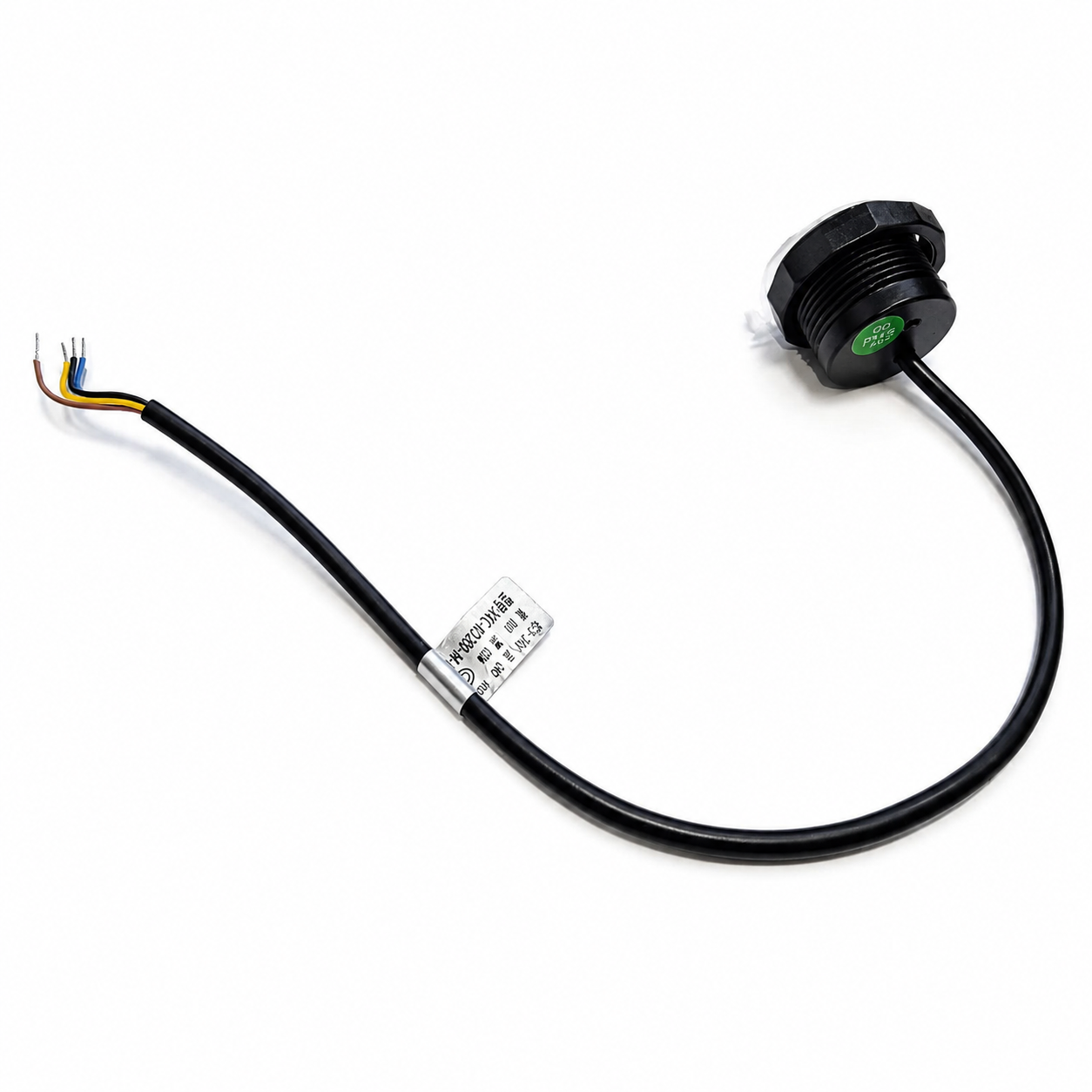

![KD200S-M-NC IR Sensor - Side]()

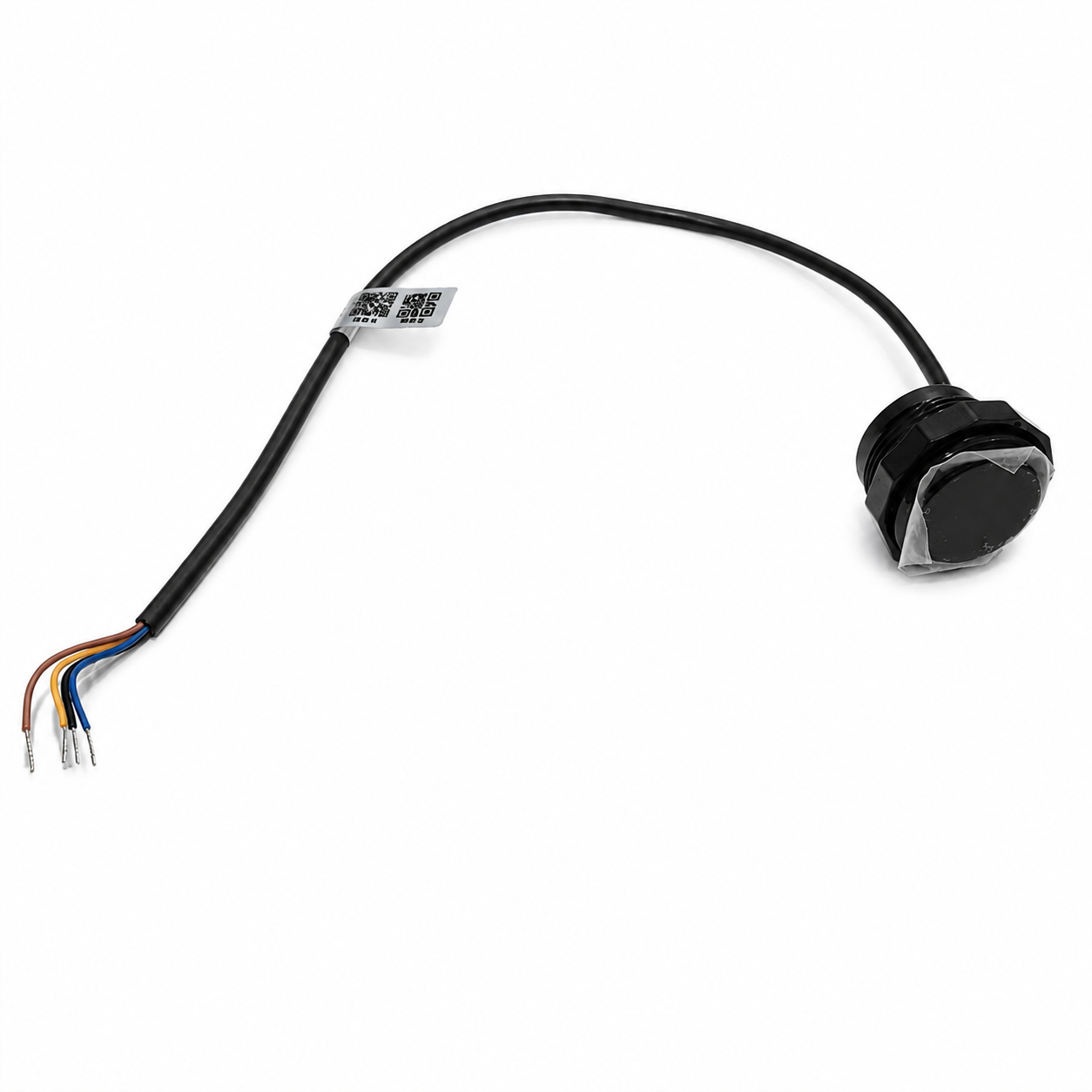

![KD200S-M-NC IR Sensor - Detail]()
![KD200S-M-NC IR Sensor - Main]()
![KD200S-M-NC IR Sensor - Side]()
![KD200S-M-NC IR Sensor - Detail]()
Operating on a DC 5-24V power supply, this sensor features a Normally Closed (NC) relay output for compatible switching and automation applications. Its adjustable sensing distance of 0.3-180cm allows convenient configuration for different detection requirements.
The sensor features an IP67-rated waterproof housing, PC-V0 flame-retardant construction, and a compact threaded mounting design. Its built-in adjustment button provides convenient sensing-distance configuration for smart appliances, security systems, touch-free control, and industrial automation.
-11%
XKC-KD200S-M-NC Infrared Detection Sensor – 5-24V DC, Relay Normally Closed
Available:In Stock
- Product SKU: KG1429
₹ 1,099
₹ 1,248
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
XKC-KD200-M-NC DC 5-24V Infrared Sensor
The XKC-KD200-M-NC Infrared Sensor is an intelligent non-contact sensing switch designed to detect people and objects using infrared diffuse reflection technology. The sensor detects objects entering or leaving its configured sensing area and controls its relay output accordingly.Operating on a DC 5-24V power supply, this sensor features a Normally Closed (NC) relay output for compatible switching and automation applications. Its adjustable sensing distance of 0.3-180cm allows convenient configuration for different detection requirements.
The sensor features an IP67-rated waterproof housing, PC-V0 flame-retardant construction, and a compact threaded mounting design. Its built-in adjustment button provides convenient sensing-distance configuration for smart appliances, security systems, touch-free control, and industrial automation.
Features
- Non-contact infrared object detection
- Diffuse reflection sensing technology
- Adjustable sensing distance from 0.3cm to 180cm
- Built-in sensing-distance adjustment button
- Normally Closed (NC) relay output
- Wide DC 5-24V operating voltage
- 30-40° cone-shaped sensing angle
- Low quiescent current of less than 3.5mA
- Relay load current of less than 1A
- IP67 waterproof protection
- PC-V0 flame-retardant housing
- Compact threaded panel-mount design
- Suitable for touch-free switching applications
Technical Details
- Item Type: Non-Contact Infrared Sensor
- Model No.: XKC-KD200-M-NC
- Operating Voltage: DC 5-24V
- Output Type: Normally Closed (NC) Relay
- Adjustable Sensing Distance: 0.3-180cm
- Detection Method: Infrared Diffuse Reflection
- Sensing Angle: 30-40° Cone Angle
- Quiescent Current: <3.5mA
- Load Current: <1A
- Operating Temperature: -20°C to 85°C
- Storage Temperature: -20°C to 85°C
- Standard Cable Length: 30cm (±10mm)
- Housing Material: PC-V0 Flame-Retardant
- Waterproof Rating: IP67
- Safety Certification: CE
- Environmental Compliance: RoHS 2.0
Applications
- Industrial automation and object detection
- Touch-free proximity sensing
- Automatic sensor lights
- Smart trash cans
- Security alarm systems
- Automatic water dispensers
- Automatic faucets and shower controls
- Vending machines and advertising equipment
- Normally Closed relay-based control systems
Drawing
Wiring Diagram
Note: The image illustrates V-output wiring. Use the M-NC model-specific relay wiring instructions for electrical connections.
Sensing Distance Adjustment
Physical Attributes
- Housing Type: Cylindrical Threaded Housing
- Housing Material: PC-V0 Flame-Retardant
- Front Face Diameter: Ø30mm
- Overall Mounting Width: 34.16mm
- Thread Size: M27.5 × 1.5mm
- Rear Section Diameter Shown: Ø25.4mm
- Overall Body Depth: 22mm
- Front Rim Thickness: 1.5mm
- Mounting Section Thickness: 6mm
- Recommended Panel Hole Diameter: 28mm
- Standard Cable Length: 300mm (±10mm)
- Mounting Type: Threaded Panel Mount
- Waterproof Rating: IP67
Package Includes
- 1 × XKC-KD200-M-NC DC 5-24V Infrared Sensor
