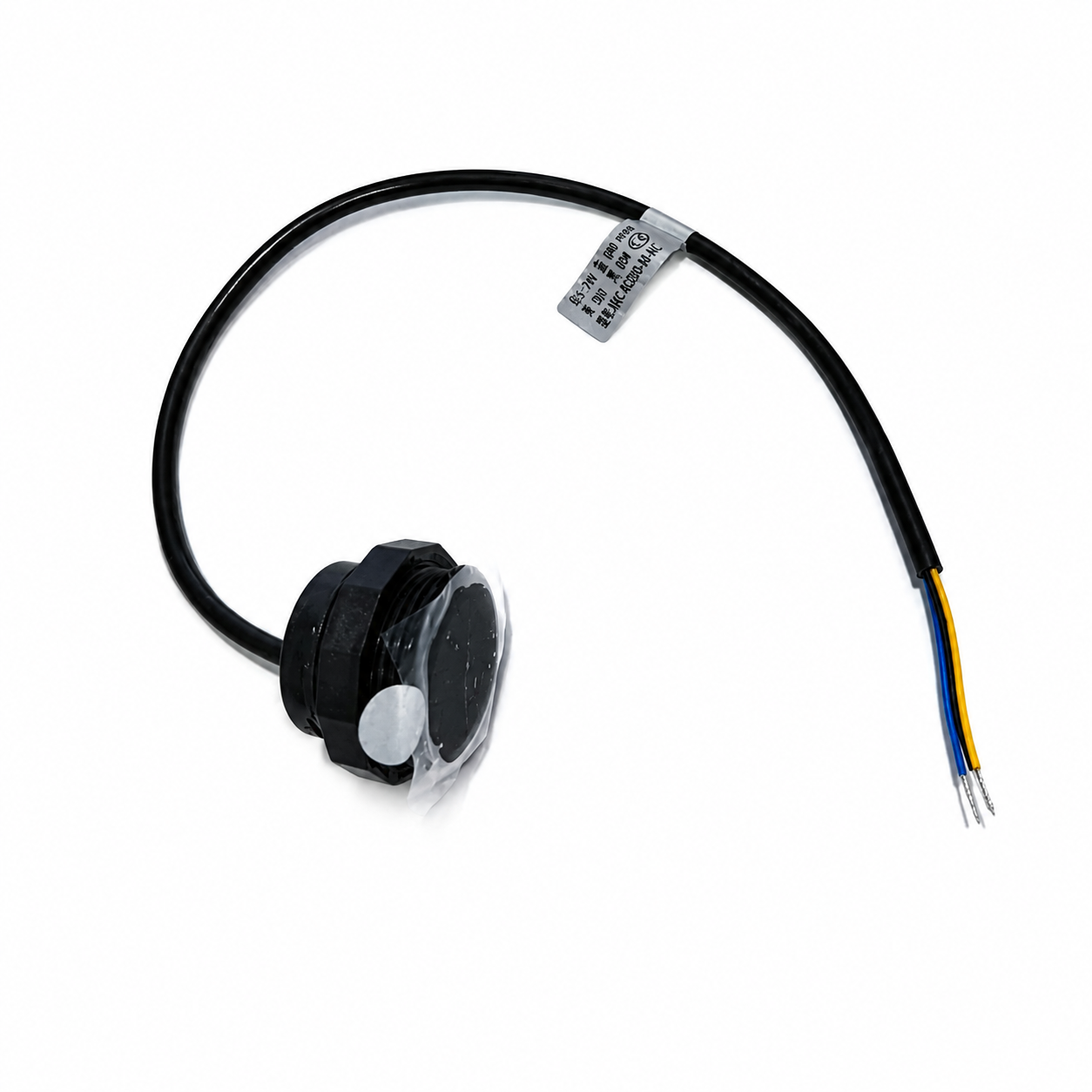

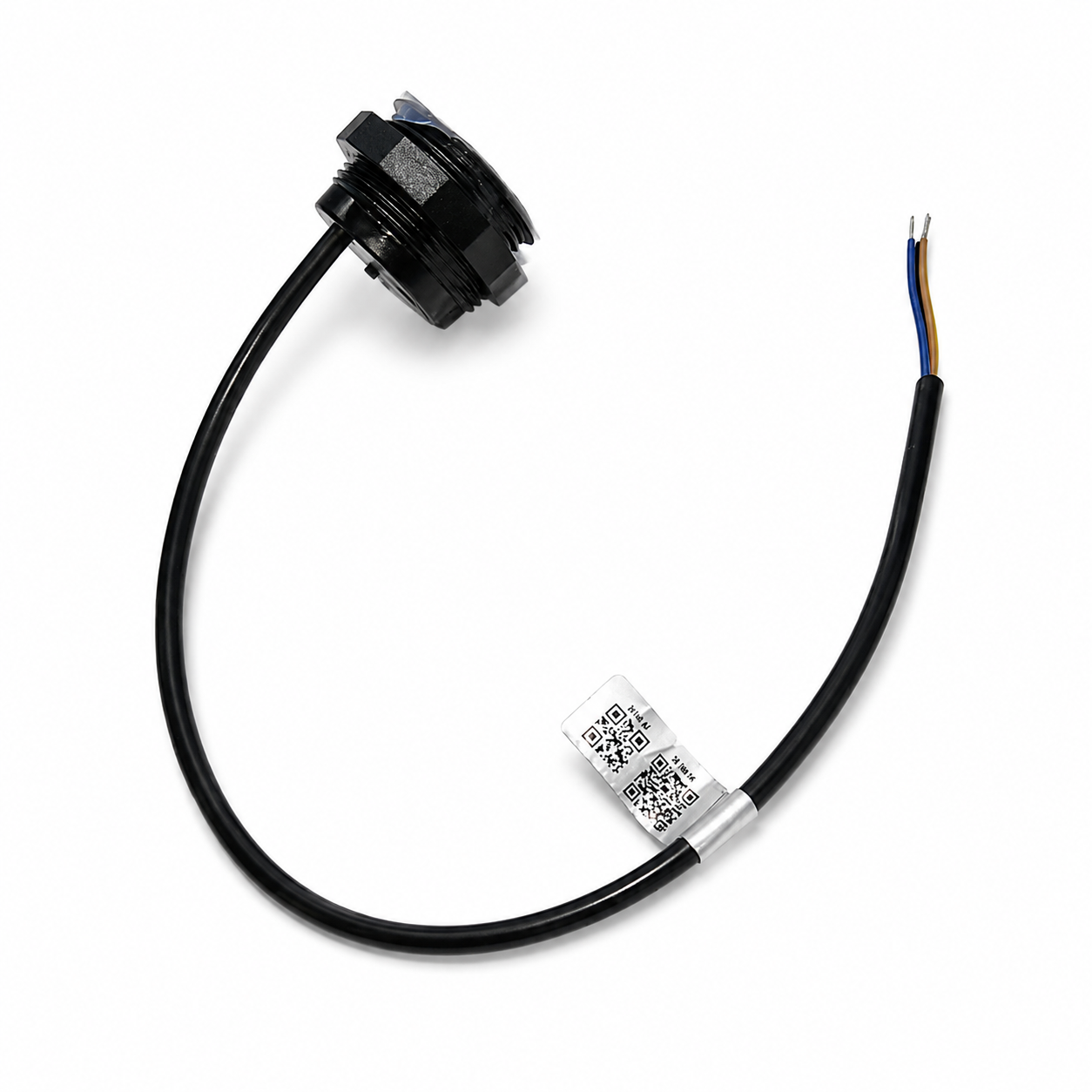

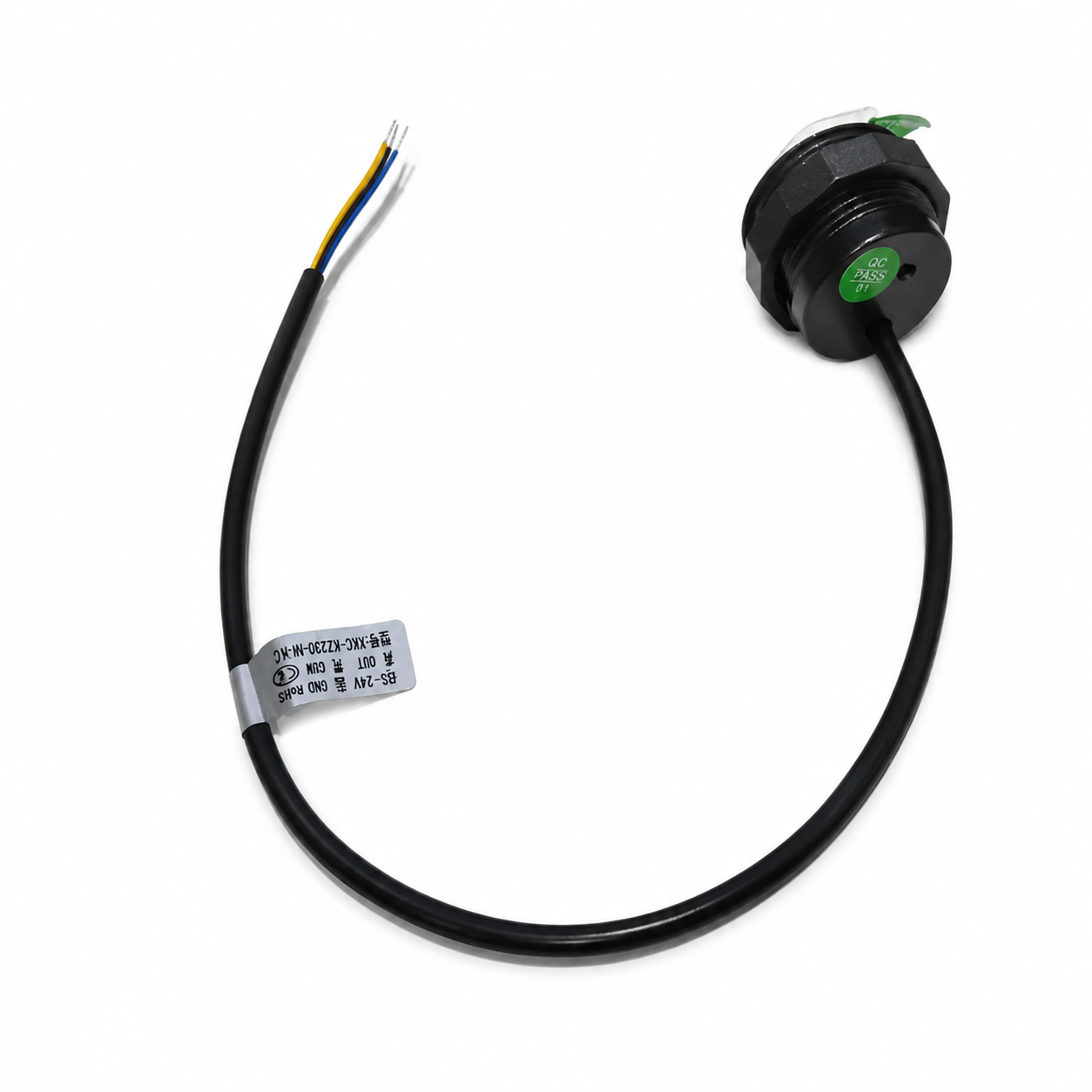

XKC-KE200-M-NC DC 5-24V Non-Contact Infrared Sensor

The XKC-KE200-M-NC Non-Contact Infrared Sensor is an intelligent infrared detection switch designed to sense people and objects without direct contact. Using infrared diffuse reflection technology, it operates a normally closed (NC) relay contact for compatible switching, alarm and touch-free equipment applications.

Operating on a DC 5-24V power supply, it includes sunlight-interference resistance for indoor and outdoor sensing. Its specified sensing ranges are 5-200cm indoors, 5-150cm outdoors and 5-100cm in direct sunlight; detection distance varies with object colour and surrounding light.

The sensor provides a normally closed relay output that opens when an object is detected and closes when the object is absent. It also features a rear sensing-distance adjustment button, a response time of 500ms or less, low quiescent current of less than 3.5mA, and a PC-V0 flame-retardant IP67 housing with threaded panel mounting.

Features

Non-contact infrared presence and object detection
Sunlight-interference-resistant design for indoor and outdoor use
Sensing distance: 5-200cm indoors, 5-150cm outdoors and 5-100cm in direct sunlight
Infrared diffuse reflection sensing technology
Adjustable detection distance using a rear button
Normally closed (NC) relay contact output
Wide DC 5-24V operating voltage
Response time of 500ms or less
30-40° cone-shaped sensing angle
Low quiescent current of less than 3.5mA
PC-V0 flame-retardant housing and IP67 protection
Compact threaded panel-mount construction

Technical Details

Item Type: Non-Contact Infrared Sensor / Detection Switch
Model No.: XKC-KE200-M-NC
Operating Voltage: DC 5-24V
Output Type: Relay Contact (Normally Closed, NC)
Indoor Sensing Distance: 5-200cm
Outdoor Sensing Distance: 5-150cm
Direct Sunlight Sensing Distance: 5-100cm
Indoor Detection Accuracy: ±5cm
Outdoor Detection Accuracy: ±10cm
Direct Sunlight Detection Accuracy: ±30cm
Response Time: ≤500ms
Sensing Angle: 30-40° Cone Angle
Sensing Method: Active Infrared Diffuse Reflection
Quiescent Current: <3.5mA
Load Current: <1A
Operating Temperature: -20°C to 85°C
Storage Temperature: -20°C to 85°C
Standard Cable Length: 300mm (±10mm)
Wire Connections: Brown - VCC; Yellow - OUT (NC contact); Blue - GND; Black - COM (relay common)
Housing Material: PC-V0 Flame-Retardant
Waterproof Rating: IP67
Safety Certification: CE
Environmental Compliance: RoHS 2.0

Applications

Touch-free presence and proximity detection
Automatic sensor lighting and mirror light boxes
Smart trash cans and security alarm systems
Automatic water dispensers and touch-free faucets
Vending machines and advertising equipment
Industrial object detection and automated equipment
Normally closed relay switching and compatible alarm circuits
Compatible controller-based automation projects
Indoor and suitable outdoor sensing installations

Drawing

XKC-KE200-M-NC Infrared Sensor Dimension Drawing

Wiring Diagram

XKC-KE200-V high and low level output reference wiring diagram, not M-NC relay-specific

Reference image only: This is the supplied KE200-V wiring image, not the M-NC relay wiring diagram. Use the four-wire NC relay connections listed below for this product.

Wire Connections

Brown: DC 5-24V positive supply (VCC)
Blue: Negative supply (GND)
Yellow: Normally closed relay output (OUT)
Black: Relay common terminal (COM); connect to VCC or GND according to the compatible input or load circuit.
With no object detected, COM and OUT are connected; on detection, the NC contact opens.
Do not use the KE200-V three-wire connection shown in the reference image for this four-wire relay model.

Sensing Distance Adjustment

XKC-KE200-M-NC Sensing Distance Adjustment

Sensing Distance Adjustment Instructions

Power the sensor and place an approximately 80 × 60cm cardboard target directly in front at the desired distance, within 80cm for the manual's adjustment procedure.
Open the rear cover and press and hold the adjustment button until the red LED begins flashing.
Wait for the automatic adjustment process to finish. Adjustment is complete when the LED stops flashing.
Detection distance may vary with the target colour and ambient light conditions.
