XKC-KL200-V Laser Distance Measuring Sensor – 2m Range, 5-24V DC Signal Output

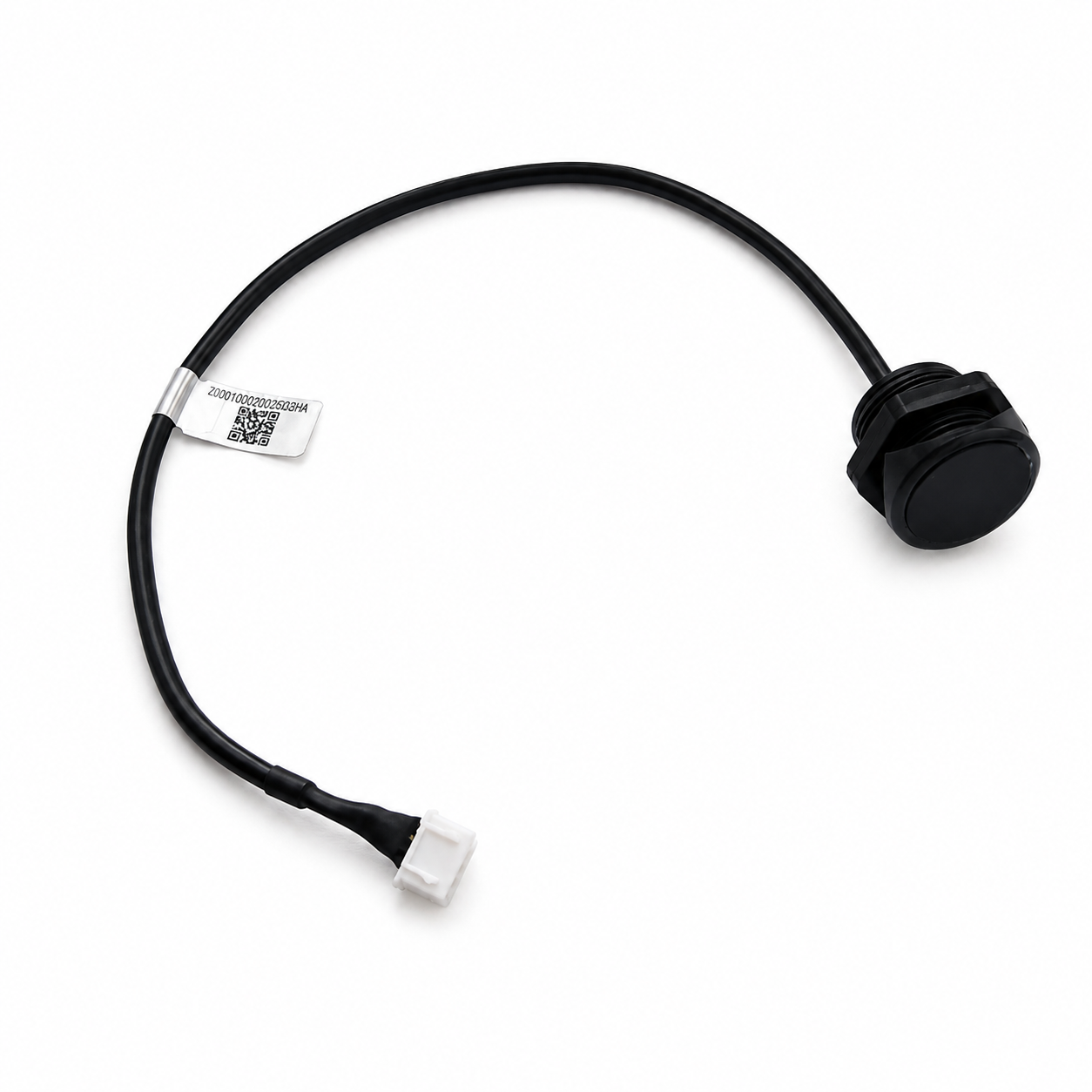

![KL200-V Laser Sensor - Main]()

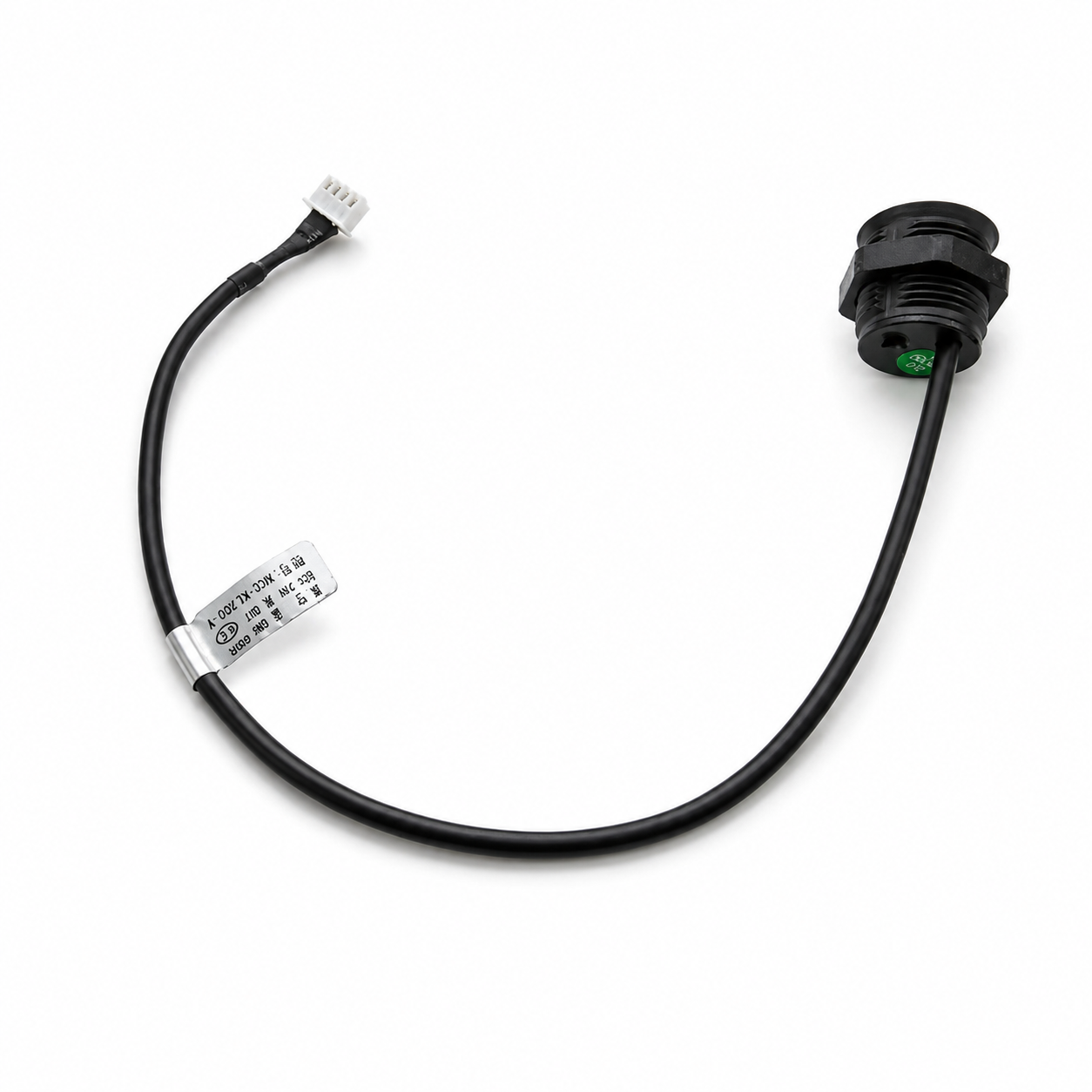

![KL200-V Laser Sensor - Side]()

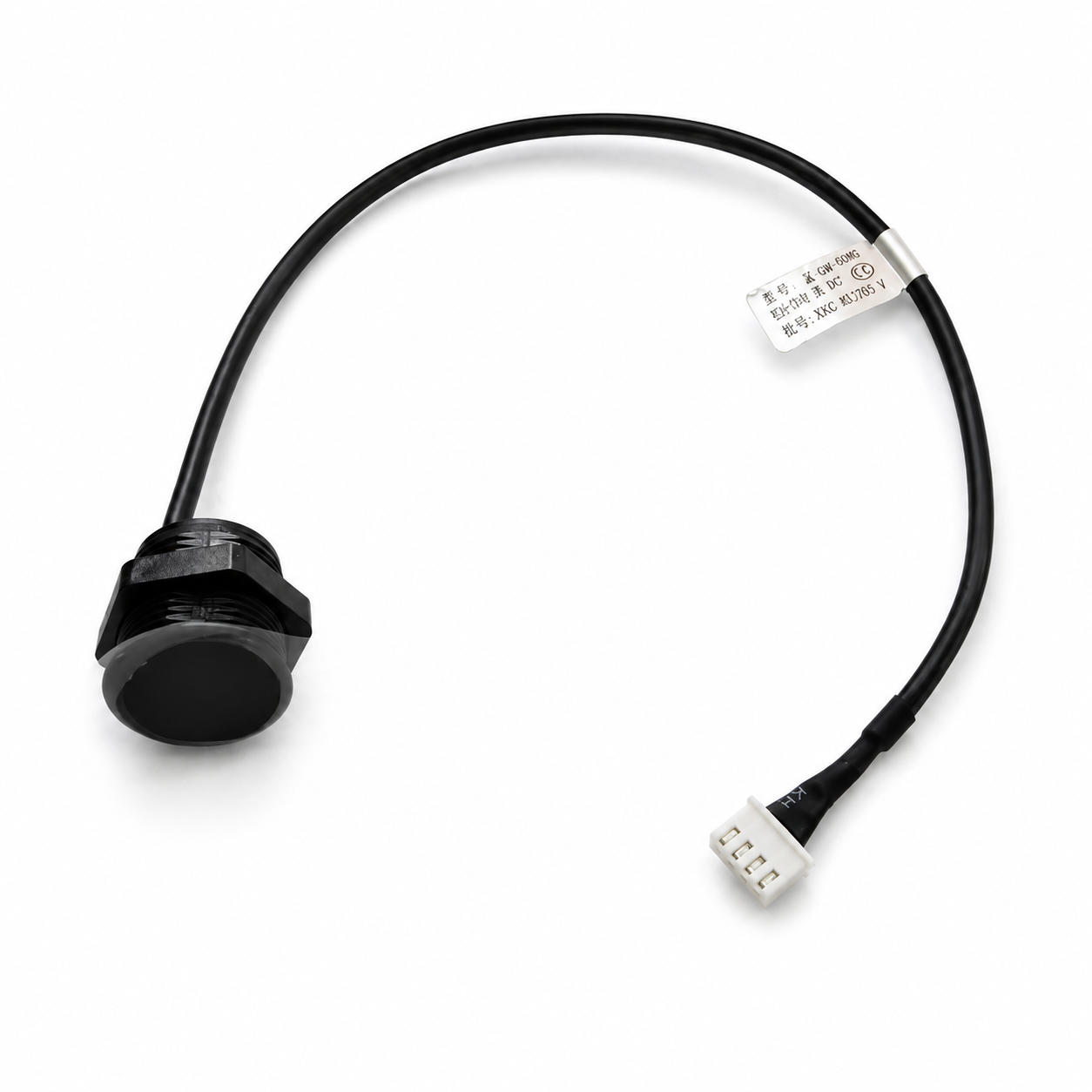

![KL200-V Laser Sensor - Detail]()
![KL200-V Laser Sensor - Main]()
![KL200-V Laser Sensor - Side]()
![KL200-V Laser Sensor - Detail]()
Operating on a DC 5-24V power supply, this sensor features a high and low voltage signal output for integration with compatible controllers. Its sensing distance can be adjusted using a built-in button, allowing flexible installation in different operating environments.
The sensor incorporates a 940nm infrared light source and a multi-layer optical filter design for stable detection. It provides reliable object detection over its specified measurement range. Its compact housing and low operating current make it suitable for applications where space and power consumption are important.
-8%
XKC-KL200-V Laser Distance Measuring Sensor – 2m Range, 5-24V DC Signal Output
Available:In Stock
- Product SKU: KG1420
₹ 1,679
₹ 1,828
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
XKC-KL200-V DC 5-24V Laser Ranging Sensor
The XKC-KL200-V Laser Ranging Sensor is designed for non-contact distance measurement and object detection using diffuse reflection technology. Its compact construction, adjustable detection distance, and strong anti-interference capability make it suitable for industrial automation, electronic control systems, and proximity sensing applications.Operating on a DC 5-24V power supply, this sensor features a high and low voltage signal output for integration with compatible controllers. Its sensing distance can be adjusted using a built-in button, allowing flexible installation in different operating environments.
The sensor incorporates a 940nm infrared light source and a multi-layer optical filter design for stable detection. It provides reliable object detection over its specified measurement range. Its compact housing and low operating current make it suitable for applications where space and power consumption are important.
Features
- Non-contact laser ranging and object detection
- Adjustable sensing distance using a built-in button
- Hidden-thread mounting design
- Diffuse reflection detection technology
- Strong anti-interference capability
- Multi-layer optical filter design
- Wide DC 5-24V operating voltage
- High and low voltage signal output
- 940nm infrared wavelength
- Measurement accuracy of ±4%
- Low operating current of 15mA
- Short-circuit protection with automatic output shutdown
- Compact and durable construction
Technical Details
- Item Type: Laser Ranging Sensor
- Model No.: XKC-KL200-V
- Operating Voltage: DC 5-24V
- Output Type: V (High and Low Level Signal)
- Sensing Distance: 10mm-3800mm
- Sensing Accuracy: ±4%
- Wavelength: 940nm
- Transmitting Angle: 35°
- Receiving Angle: 25°
- Load Current: 300mA
- Operating Current: 15mA
- Short-Circuit Protection: Output shuts down when current exceeds 1A
- Operating Temperature: -20°C to 70°C
- Storage Temperature: -20°C to 85°C
- Cable Length: 300mm
- Detection Method: Diffuse Reflection
- Distance Adjustment: Built-in Button
Applications
- Industrial automation and object detection
- Non-contact distance measurement
- Proximity sensing systems
- Automated machinery
- Object positioning and detection
- Electronic control systems
- Conveyor object detection
- Robotics and automation projects
Drawing
Wiring Diagram
Physical Attributes
- Compact cylindrical threaded sensor housing
- Thread Size: M26
- Outer Diameter: Ø24.0mm
- Hex Nut Width: 26mm
- Sensor Body Length: 23.3mm
- Standard Cable Length: 300mm
- Panel-mount threaded design for secure installation
Package Includes
- 1 × XKC-KL200-V DC 5-24V Laser Ranging Sensor
