XKC-KL800 NPN-NO Laser Distance Sensor – 5-24V DC, Normally Open Output

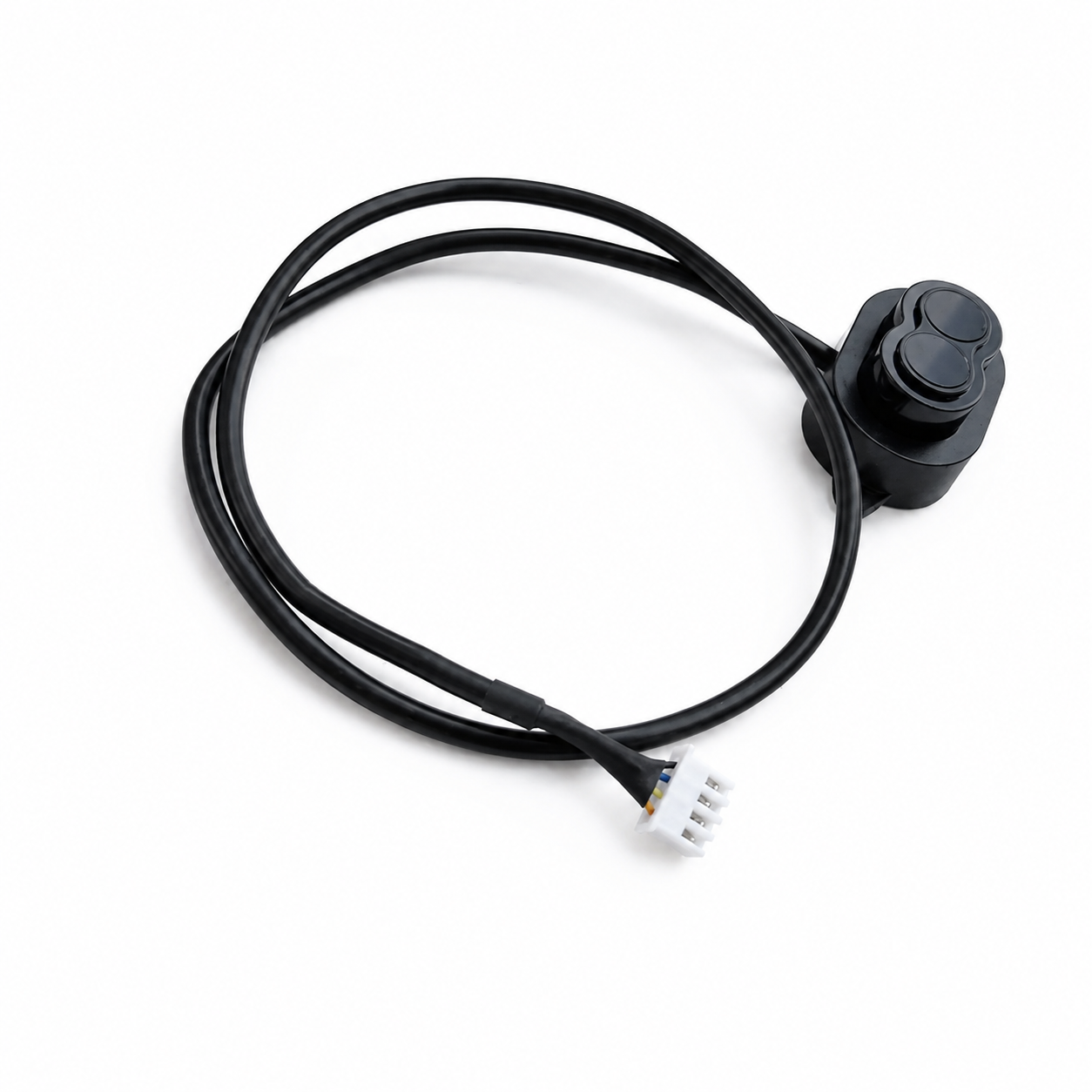

![KL800 Laser Sensor - Main]()

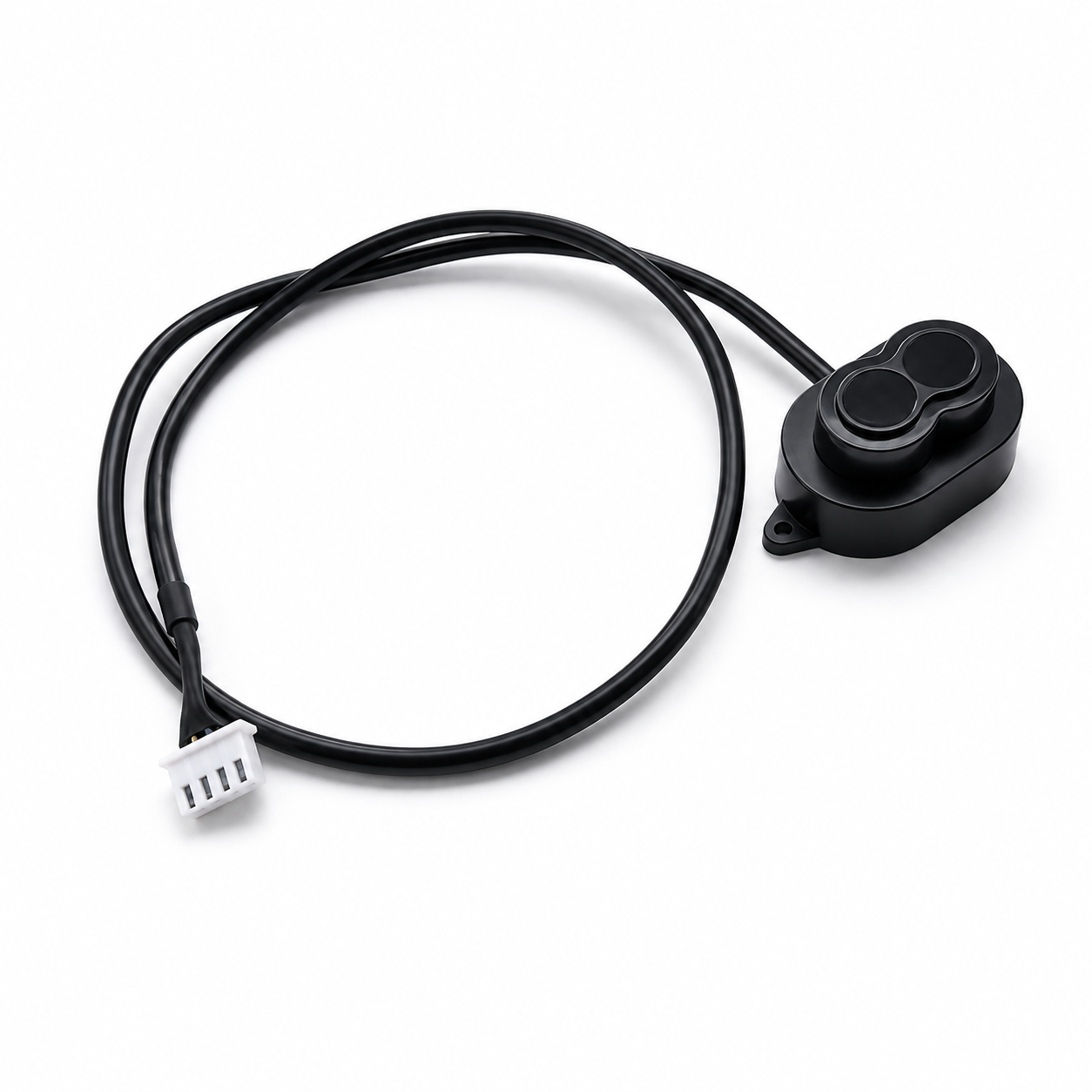

![KL800 Laser Sensor - Side]()

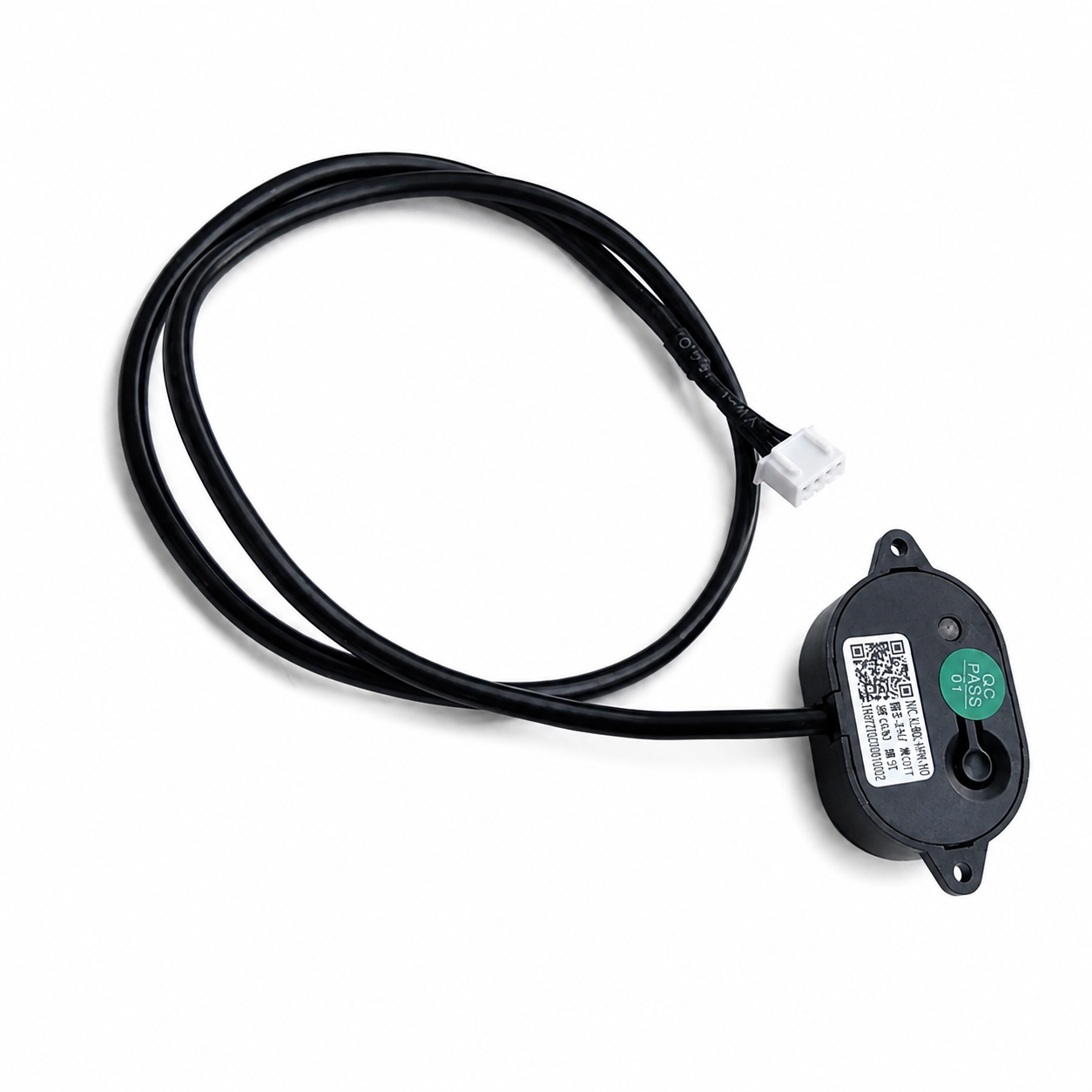

![KL800 Laser Sensor - Detail]()
![KL800 Laser Sensor - Main]()
![KL800 Laser Sensor - Side]()
![KL800 Laser Sensor - Detail]()
Operating on a DC 5-24V supply, its NPN output can be interfaced with compatible industrial controller inputs or an appropriately rated external relay circuit. Its IP67-rated, fire-resistant PC-V0 enclosure is intended for installations exposed to dust and moisture.
The sensor is specified with ±6cm accuracy from 0.2-3m and ±2% accuracy from 3-8m. It has a working current of less than 15mA, short-circuit protection and a 500mm standard cable.
-4%
XKC-KL800 NPN-NO Laser Distance Sensor – 5-24V DC, Normally Open Output
Available:In Stock
- Product SKU: KG1425
₹ 2,959
₹ 3,108
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
XKC-KL800 NPN-NO Laser Distance Sensor – 5-24V DC, Normally Open Output
The XKC-KL800 NPN-NO Laser Distance Sensor is designed for non-contact object detection with an NPN normally open output. Based on time-of-flight (TOF) sensing, it combines resistance to sunlight interference and multi-layer optical filtering with an indoor sensing distance of 20cm to 800cm (8m).Operating on a DC 5-24V supply, its NPN output can be interfaced with compatible industrial controller inputs or an appropriately rated external relay circuit. Its IP67-rated, fire-resistant PC-V0 enclosure is intended for installations exposed to dust and moisture.
The sensor is specified with ±6cm accuracy from 0.2-3m and ±2% accuracy from 3-8m. It has a working current of less than 15mA, short-circuit protection and a 500mm standard cable.
Features
- Non-contact TOF (time-of-flight) distance sensing
- Indoor sensing range: 20-800cm (up to 8m)
- Designed to resist false triggering from direct sunlight
- Strong anti-interference capability and multi-layer optical filtering
- 860nm laser transmitter
- Wide DC 5-24V operating voltage
- NPN normally open output for compatible industrial control inputs
- Specified sensing accuracy: ±6cm at 0.2-3m; ±2% at 3-8m
- Low working current: less than 15mA
- IP67-rated, waterproof and dustproof housing
- PC-V0 fire-resistant enclosure
- Integrated short-circuit protection
Technical Details
- Item Type: Laser Distance and Ranging Sensor
- Model No.: XKC-KL800-NPN-NO
- Operating Voltage: DC 5-24V
- Output Type: NPN, Normally Open (NO)
- Indoor Sensing Distance: 20-800cm (0.2-8m)
- Sensing Accuracy (0.2-3m): ±6cm
- Sensing Accuracy (3-8m): ±2%
- Wavelength: 860nm
- Specified Load Current: Less than 300mA
- Working Current: Less than 15mA
- Short-Circuit Protection: Threshold stated as current exceeding 1A
- Operating Temperature: -20°C to 70°C
- Storage Temperature: -20°C to 85°C
- Cable Length: 500mm (±10mm; customizable)
- Housing Material: PC-V0 Fire-Resistant Material
- Waterproof Rating: IP67
- Safety Certification: CE
- Environmental Compliance: RoHS 2.0
Applications
- NPN-compatible automation and detection inputs
- External relay control with an appropriately matched relay circuit
- Non-contact distance and proximity detection
- Indoor and outdoor automation installations
- Industrial object detection and positioning
- Conveyor and equipment monitoring
- Robotics and electronic control projects
Drawing
Wiring Diagram
Physical Attributes
- Dual-optical-window housing with mounting flanges
- Overall Length (including mounting ears): 50.46mm
- Overall Width: 27.58mm
- Overall Depth: 19.50mm
- Mounting Hole Diameter: Ø2.50mm
- Mounting Hole Centre Spacing: 44.83mm
- Standard Cable Length: 500mm (±10mm)
- Housing Material: PC-V0 Fire-Resistant Material
Package Includes
- 1 × XKC-KL800 NPN-NO Laser Distance Sensor – 5-24V DC, Normally Open Output
