XKC-KP200A NPN-NC Through-Beam Photoelectric Infrared Sensor – Normally Closed

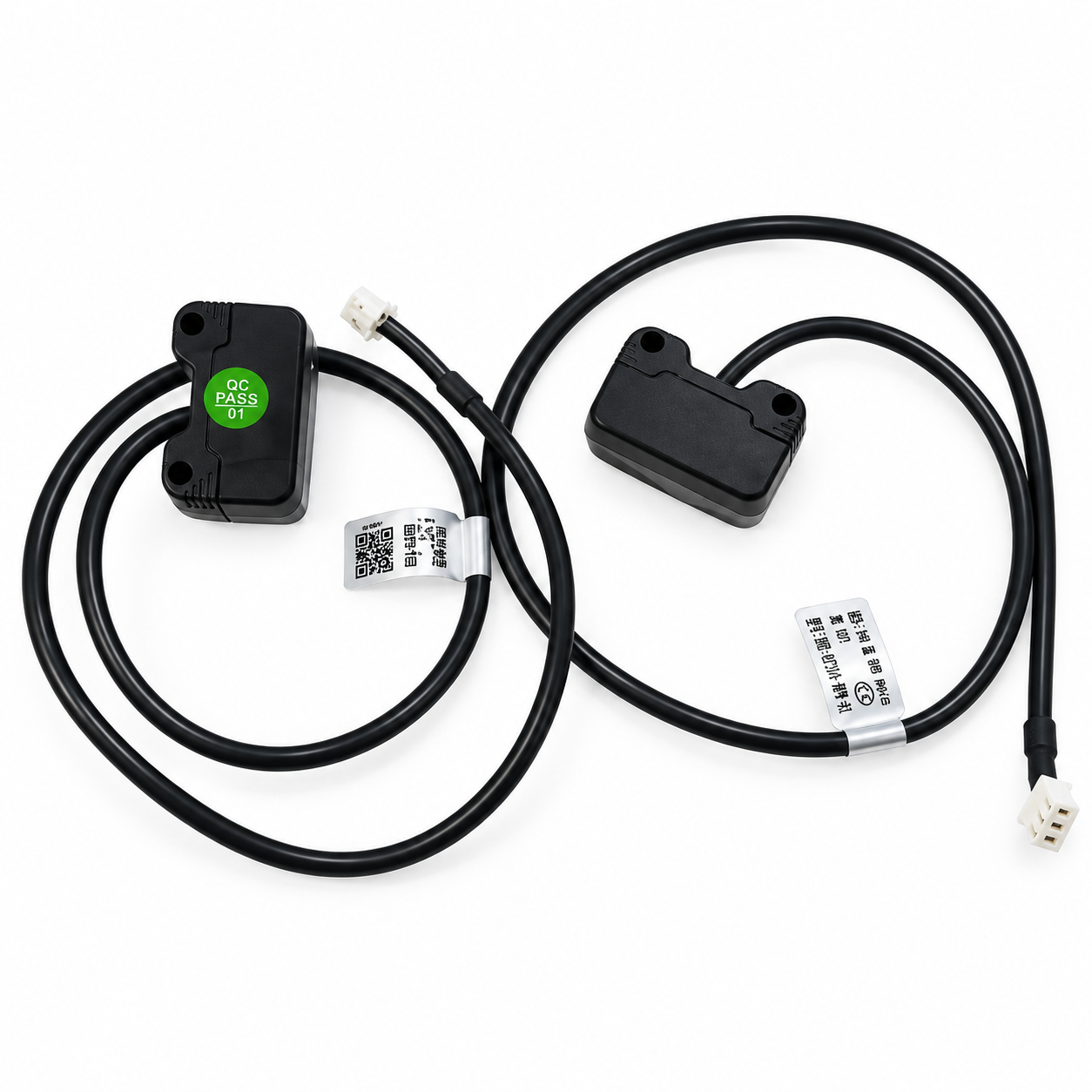

![Dual sensor front view]()

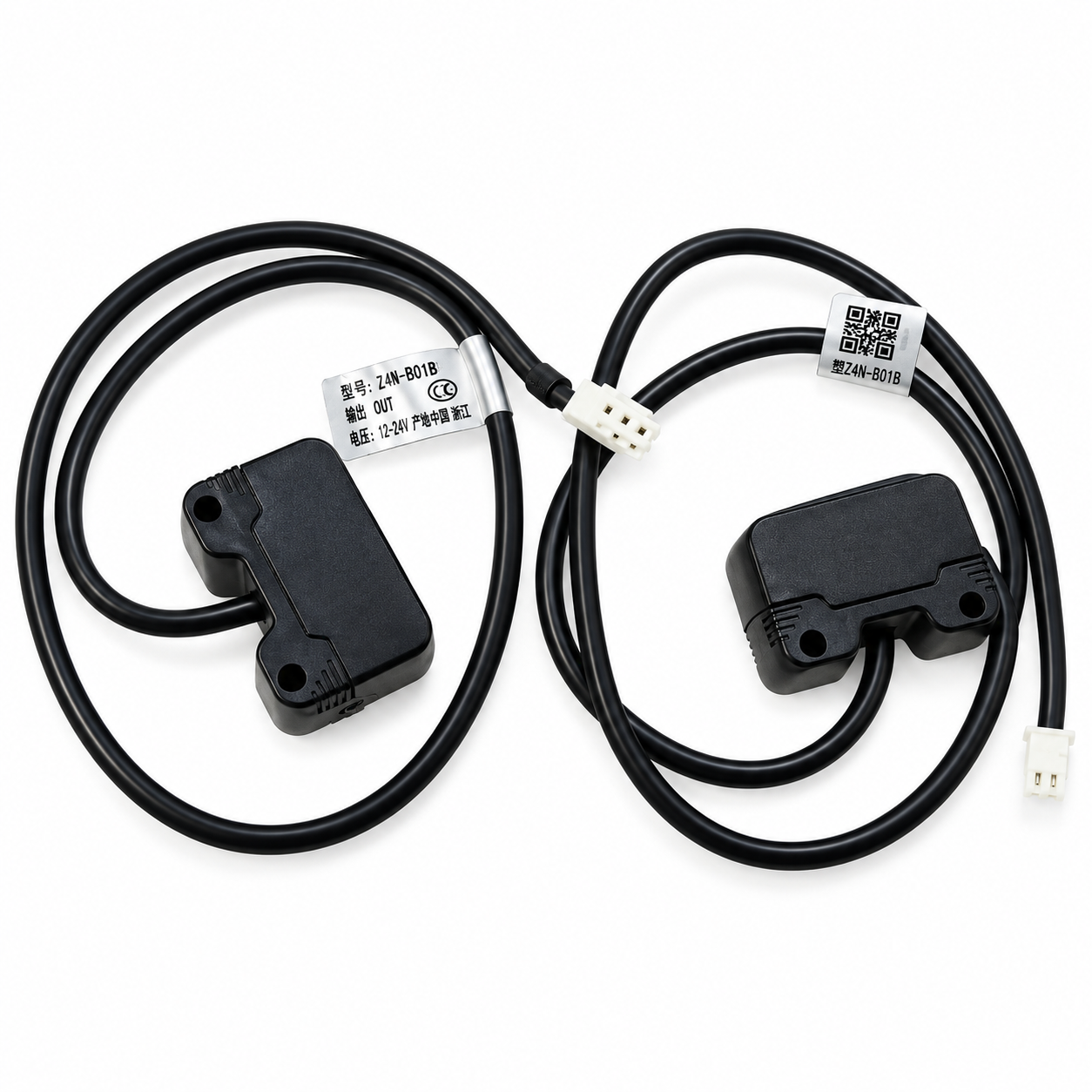

![Dual sensor back view]()

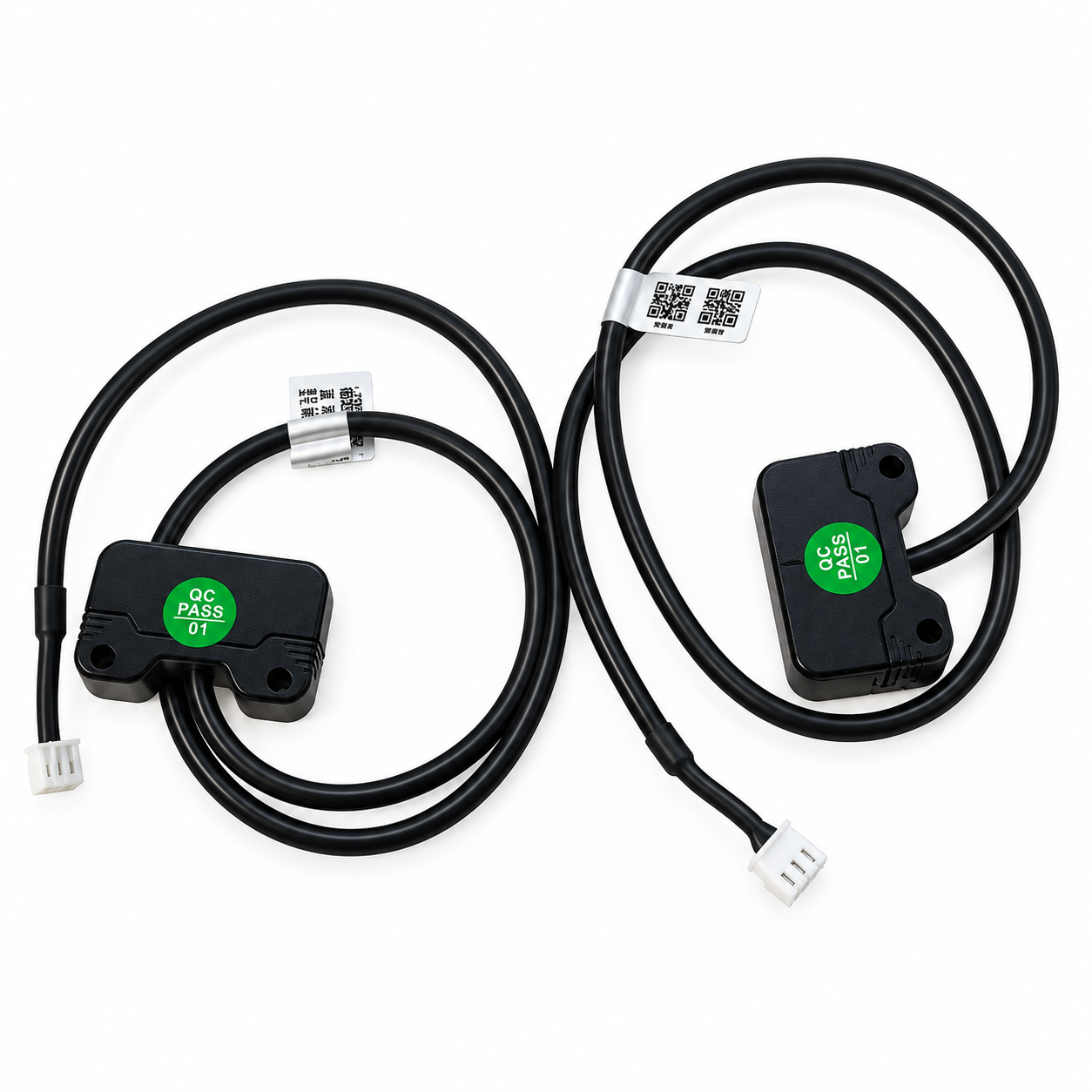

![Dual sensor with cable]()
![Dual sensor front view]()
![Dual sensor back view]()
![Dual sensor with cable]()
Operating on a DC 5-24V power supply, the sensor offers a specified 5-200cm sensing distance, strong resistance to sunlight interference and a response time of 500ms or less. The transmitter has a 35-40° cone-shaped emission angle and the receiver has a 15-20° receiving angle.
With IP67 protection and a compact housing with mounting holes, the sensor is designed for a variety of indoor and suitable outdoor applications. It can operate across highly light-transmissive containers in appropriate installations. Detection reliability depends on proper transmitter-receiver alignment and the optical properties of the target.
-9%
XKC-KP200A NPN-NC Through-Beam Photoelectric Infrared Sensor – Normally Closed
Available:In Stock
- Product SKU: KG1441
₹ 1,499
₹ 1,648
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
XKC-KP200A NPN-NC Through-Beam Infrared Photoelectric Sensor – DC 5-24V Normally Closed (NC)
The XKC-KP200A NPN-NC Through-Beam Infrared Photoelectric Sensor is a non-contact object detection system consisting of a separate infrared transmitter (TX) and receiver (RX). When an object interrupts the infrared beam between the aligned units, the receiver changes its output state according to its Normally Closed configuration. This NPN Normally Closed (NC) version is suitable for object detection, positioning and automated control applications.Operating on a DC 5-24V power supply, the sensor offers a specified 5-200cm sensing distance, strong resistance to sunlight interference and a response time of 500ms or less. The transmitter has a 35-40° cone-shaped emission angle and the receiver has a 15-20° receiving angle.
With IP67 protection and a compact housing with mounting holes, the sensor is designed for a variety of indoor and suitable outdoor applications. It can operate across highly light-transmissive containers in appropriate installations. Detection reliability depends on proper transmitter-receiver alignment and the optical properties of the target.
Features
- Non-contact through-beam infrared object detection
- Separate transmitter (TX) and receiver (RX) units
- NPN Normally Closed (NC) receiver output
- Wide DC 5-24V operating voltage
- Specified sensing distance of 5-200cm
- Strong resistance to sunlight interference
- Transmitter emission angle of 35-40°
- Receiver sensing angle of 15-20°
- Detects objects with a specified size of Ø12mm or larger
- Response time of 500ms or less
- IP67 protection for demanding environments
- Compact housing with mounting holes for installation
- Suitable for NPN-compatible industrial control systems
Technical Details
- Item Type: Through-Beam Infrared Photoelectric Sensor
- Model No.: XKC-KP200A NPN-NC
- Operating Voltage: DC 5-24V
- Output Type: NPN Normally Closed (NC)
- Sensing Distance: 5-200cm
- Response Time: ≤500ms
- Minimum Specified Detectable Object: Ø12mm
- Transmitter Emission Angle: 35-40° Cone Angle
- Receiver Sensing Angle: 15-20° Cone Angle
- Sensing Method: Active Infrared Through-Beam
- Quiescent Current: <35mA
- Load Current: <100mA
- Operating Temperature: -20°C to 65°C
- Storage Temperature: -20°C to 85°C
- Waterproof Rating: IP67
- Safety Certification: CE
- Environmental Compliance: RoHS 2.0
Applications
- Industrial object detection and positioning
- Conveyor object presence and counting systems
- Automatic machinery and equipment
- Non-contact passage or interruption detection
- Compatible PLC and microcontroller-based projects
- Detection across highly light-transmissive containers where suitable
- NPN Normally Closed industrial control applications
- Indoor and suitable outdoor automation installations
Drawing
Wiring Diagram
Note: The illustrated wiring diagram shows the NPN NO relay connection. The NPN NC version has different output switching behaviour. Confirm the NC output operation before installation.
Wire Connections
- Transmitter (TX) – Brown: DC 5-24V positive supply (VCC)
- Transmitter (TX) – Blue: Power supply negative (GND)
- Receiver (RX) – Brown: DC 5-24V positive supply (VCC)
- Receiver (RX) – Blue: Power supply negative (GND)
- Receiver (RX) – Black: NPN Normally Closed output signal (OUT)
- Use an NPN-compatible controller input or a suitable load within the specified output current rating.
- Confirm the output state of the NC variant before connecting external control equipment.
Installation Notes
- Mount the transmitter and receiver facing each other, with a clear optical path between them.
- Align both units and test detection at the intended installation distance.
- Ensure the controller input and any connected relay are compatible with the NPN NC output and its load rating.
- Highly transparent objects or containers may not reliably interrupt the beam; test the actual material before use.
- Verify the Normally Closed output operation during commissioning.
Physical Attributes
- Housing Type: Compact Rectangular Through-Beam Sensor Housing
- Overall Height (Front View): 36.50mm
- Overall Width (Front View): 13.03mm
- Overall Depth (Side View): 22.00mm
- Body Depth Shown: 19.00mm
- Mounting Hole Diameter: Ø3.20mm
- Mounting Hole Centre Spacing: 24.00mm
- Side-View Housing Height Shown: 35.81mm
- Front Circular Feature Diameter Shown: Ø3.90mm
- Waterproof Rating: IP67
Package Includes
- 1 × XKC-KP200A NPN-NC Through-Beam Infrared Photoelectric Sensor Set (Transmitter and Receiver)
