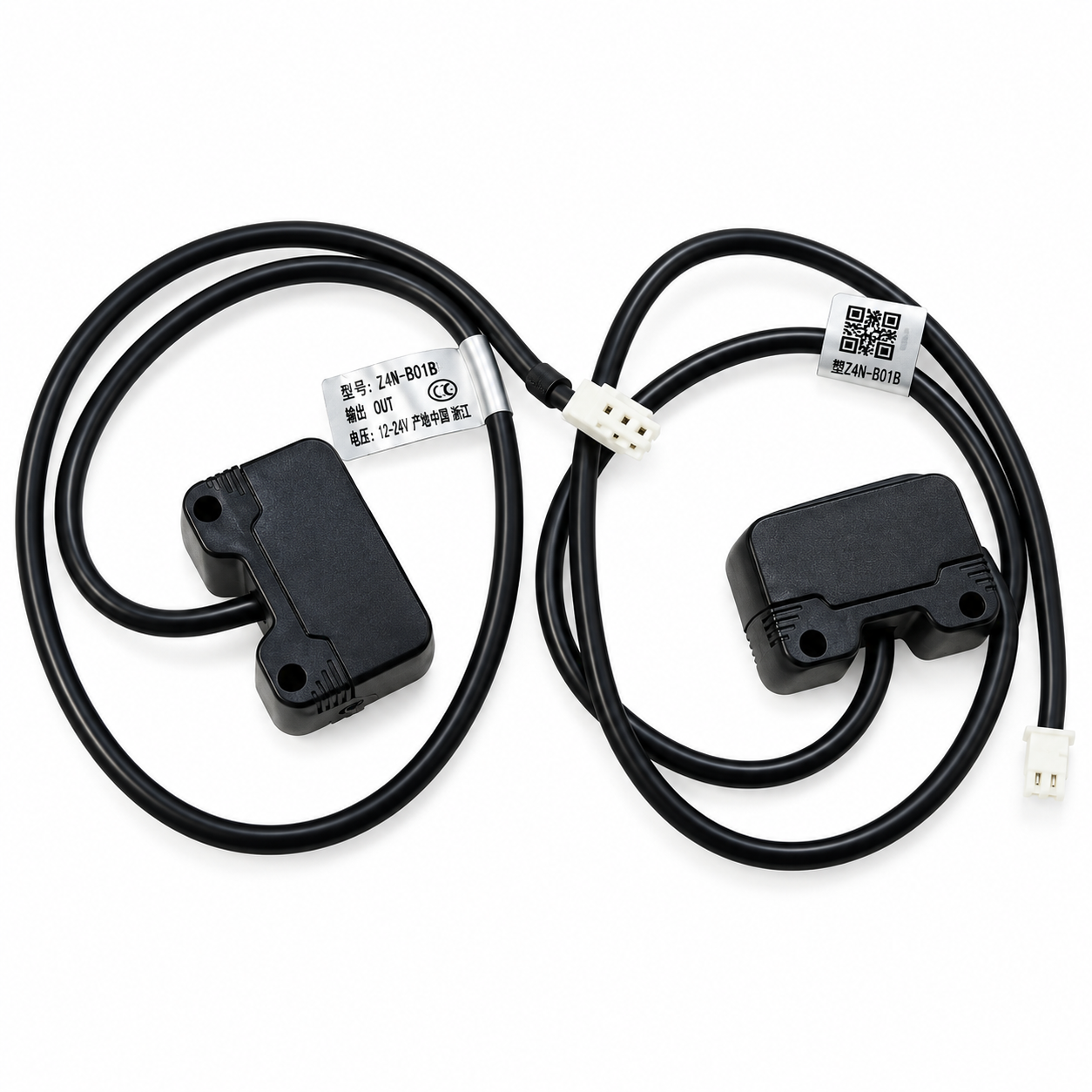

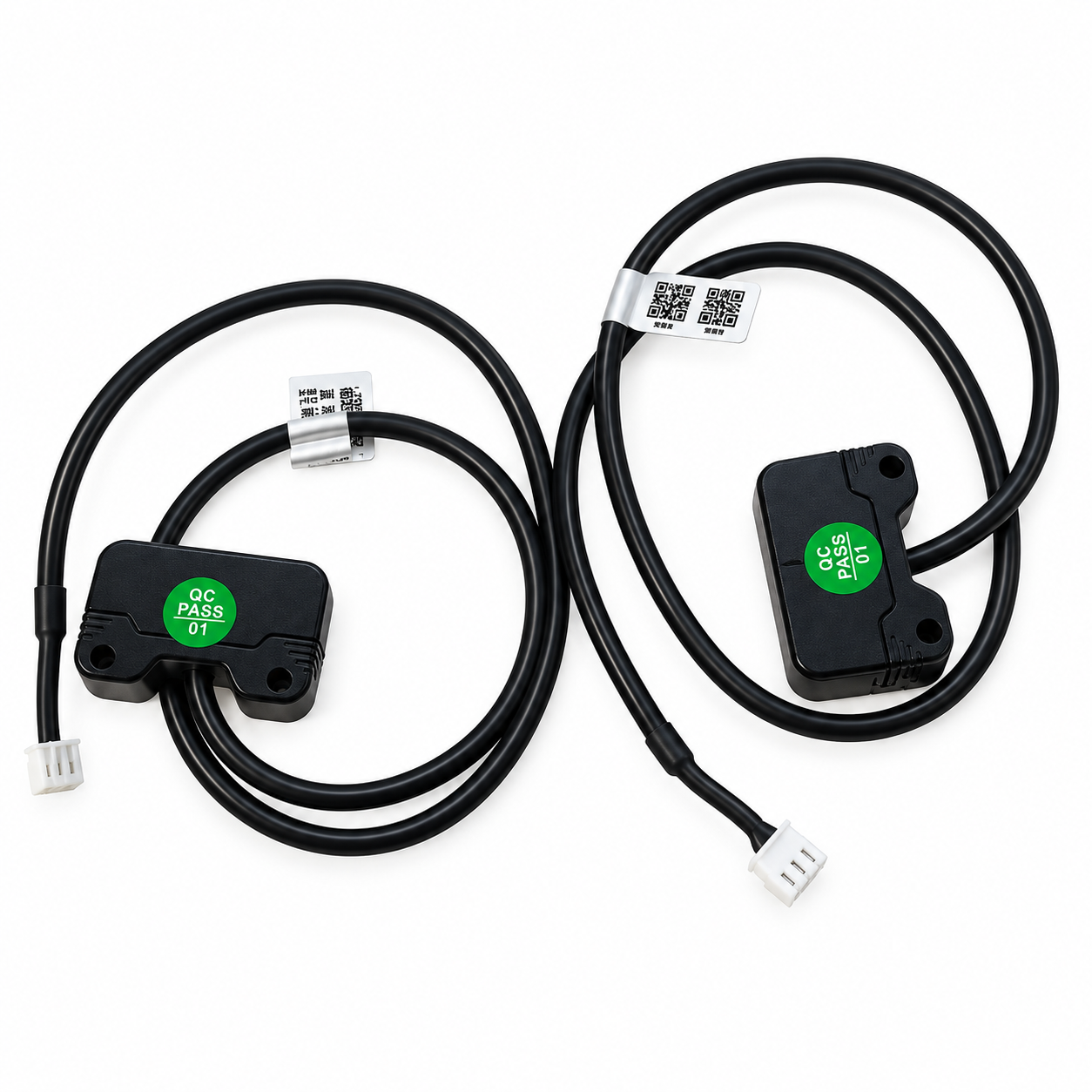

Dual sensor cable with QC stickers
Dual sensor cable rear view

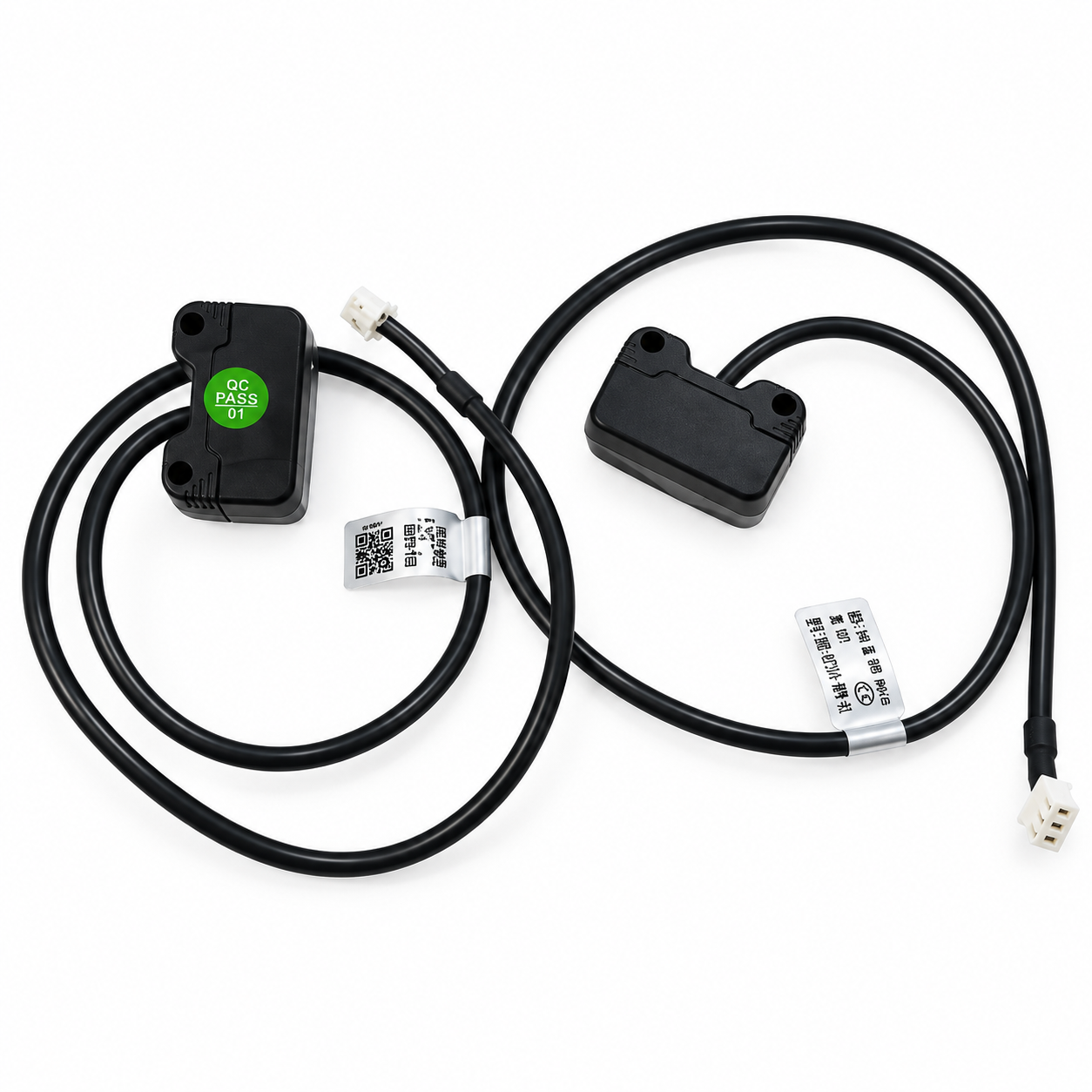

Dual sensor cable with 3-pin connectors
Dual sensor cable with QC stickers
Dual sensor cable rear view
Dual sensor cable with 3-pin connectors

XKC-KP200A Through-Beam Infrared Photoelectric Sensor – NPN Normally Open (NO)

Available:In Stock
  • Product SKU: KG1440
Wishlist
₹ 1,499 ₹ 1,648
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
  • Through-beam infrared detection
  • NPN Normally Open (NO) Output
  • Non-contact object detection
  • Compact and easy to install
  • Ideal for industrial automation
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
How Fast We Ship
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

🏠 Warehouse Details:
24 F - 138 Q
Secure

Specification

Description

XKC-KP200A Through-Beam Infrared Photoelectric Sensor – DC 5-24V NPN Normally Open (NO)

The XKC-KP200A Through-Beam Infrared Photoelectric Sensor is a non-contact object detection system consisting of a separate infrared transmitter (TX) and receiver (RX). When an object interrupts the infrared beam between the aligned units, the receiver changes its output state for use with compatible controllers and automation equipment. This NPN Normally Open (NO) version is suitable for object detection and positioning applications.

Operating on a DC 5-24V power supply, the sensor offers a specified 5-200cm sensing distance, strong resistance to sunlight interference and a response time of 500ms or less. The transmitter has a 35-40° cone-shaped emission angle and the receiver has a 15-20° receiving angle.

With IP67 protection and a compact housing with mounting holes, the sensor is designed for a variety of indoor and suitable outdoor applications. It can operate across highly light-transmissive containers in appropriate installations. Detection reliability depends on proper transmitter-receiver alignment and the optical properties of the target.

Features

  • Non-contact through-beam infrared object detection
  • Separate transmitter (TX) and receiver (RX) units
  • NPN Normally Open (NO) receiver output
  • Wide DC 5-24V operating voltage
  • Specified sensing distance of 5-200cm
  • Strong resistance to sunlight interference
  • Transmitter emission angle of 35-40°
  • Receiver sensing angle of 15-20°
  • Detects objects with a specified size of Ø12mm or larger
  • Response time of 500ms or less
  • IP67 protection for demanding environments
  • Compact housing with mounting holes for installation

Technical Details

  • Item Type: Through-Beam Infrared Photoelectric Sensor
  • Model No.: XKC-KP200A
  • Operating Voltage: DC 5-24V
  • Output Type: NPN Normally Open (NO)
  • Sensing Distance: 5-200cm
  • Response Time: ≤500ms
  • Minimum Specified Detectable Object: Ø12mm
  • Transmitter Emission Angle: 35-40° Cone Angle
  • Receiver Sensing Angle: 15-20° Cone Angle
  • Sensing Method: Active Infrared Through-Beam
  • Quiescent Current: <35mA
  • Load Current: <100mA
  • Operating Temperature: -20°C to 65°C
  • Storage Temperature: -20°C to 85°C
  • Waterproof Rating: IP67
  • Safety Certification: CE
  • Environmental Compliance: RoHS 2.0

Applications

  • Industrial object detection and positioning
  • Conveyor object presence and counting systems
  • Automatic machinery and equipment
  • Non-contact passage or interruption detection
  • Compatible PLC and microcontroller-based projects
  • Detection across highly light-transmissive containers where suitable
  • Indoor and suitable outdoor automation installations

Drawing

Wiring Diagram

Wire Connections

  • Transmitter (TX) – Brown: DC 5-24V positive supply (VCC)
  • Transmitter (TX) – Blue: Power supply negative (GND)
  • Receiver (RX) – Brown: DC 5-24V positive supply (VCC)
  • Receiver (RX) – Blue: Power supply negative (GND)
  • Receiver (RX) – Black: NPN output signal (OUT)
  • The supplied receiver wiring diagram illustrates a relay connected between VCC and OUT with a flyback diode across the relay coil. Keep the connected load within the specified current rating.

Installation Notes

  • Mount the transmitter and receiver facing each other, with a clear optical path between them.
  • Align both units and test detection at the intended installation distance.
  • Ensure the controller input and any connected relay are compatible with the NPN output and its load rating.
  • Highly transparent objects or containers may not reliably interrupt the beam; test the actual material before use.

Physical Attributes

  • Housing Type: Compact Rectangular Through-Beam Sensor Housing
  • Overall Height (Front View): 36.50mm
  • Overall Width (Front View): 13.03mm
  • Overall Depth (Side View): 22.00mm
  • Body Depth Shown: 19.00mm
  • Mounting Hole Diameter: Ø3.20mm
  • Mounting Hole Centre Spacing: 24.00mm
  • Side-View Housing Height Shown: 35.81mm
  • Front Circular Feature Diameter Shown: Ø3.90mm
  • Waterproof Rating: IP67

Package Includes

  • 1 × XKC-KP200A Through-Beam Infrared Photoelectric Sensor Set (Transmitter and Receiver)
