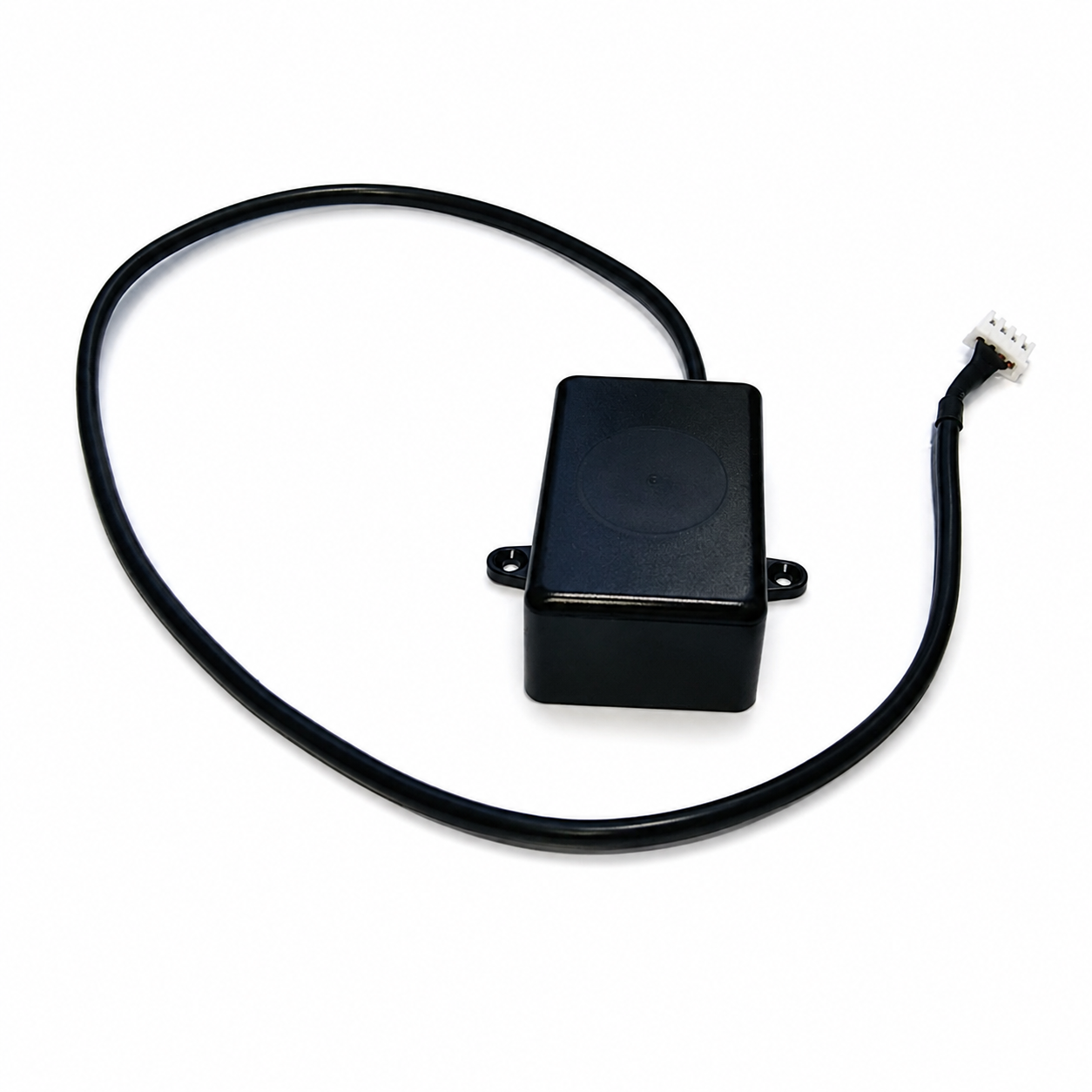

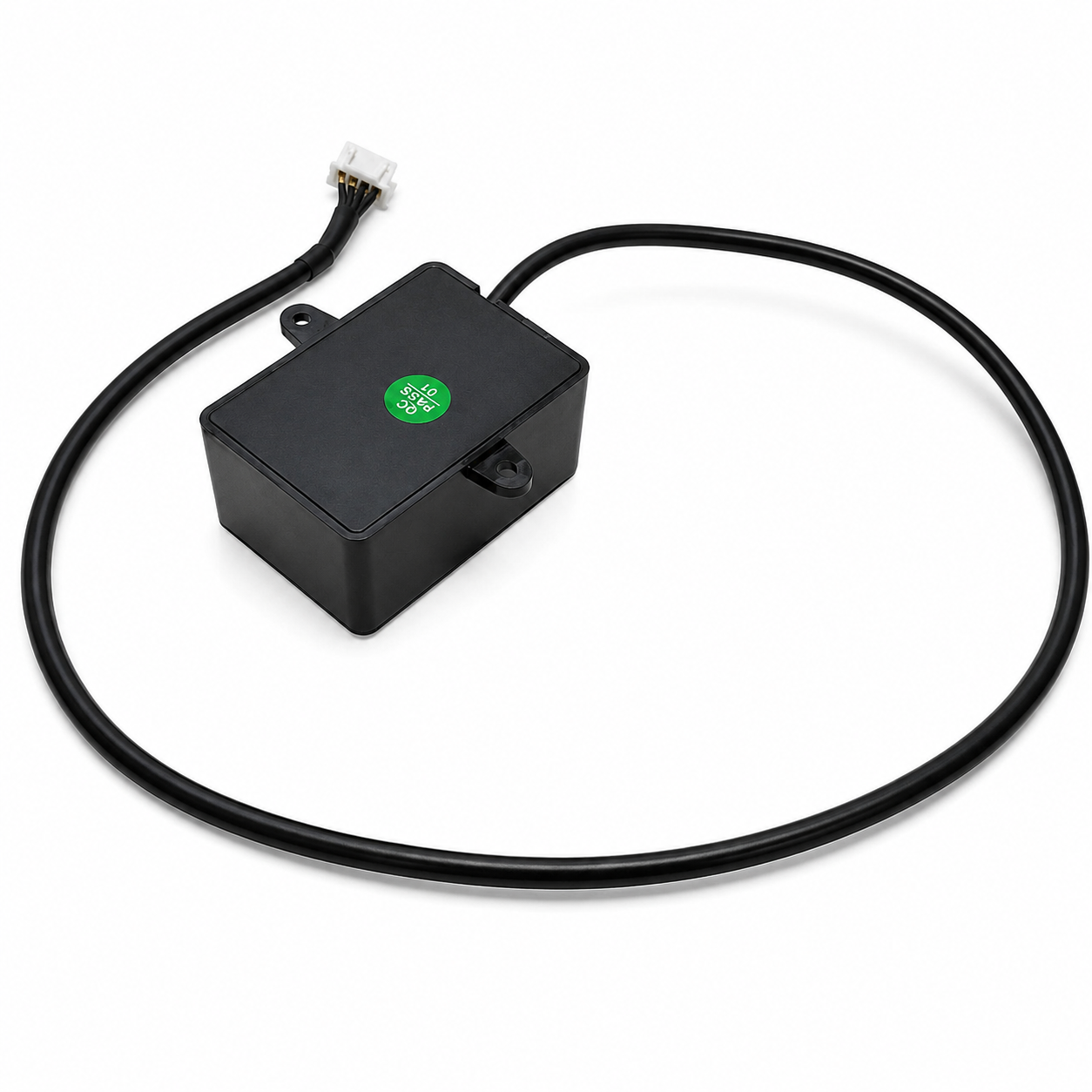

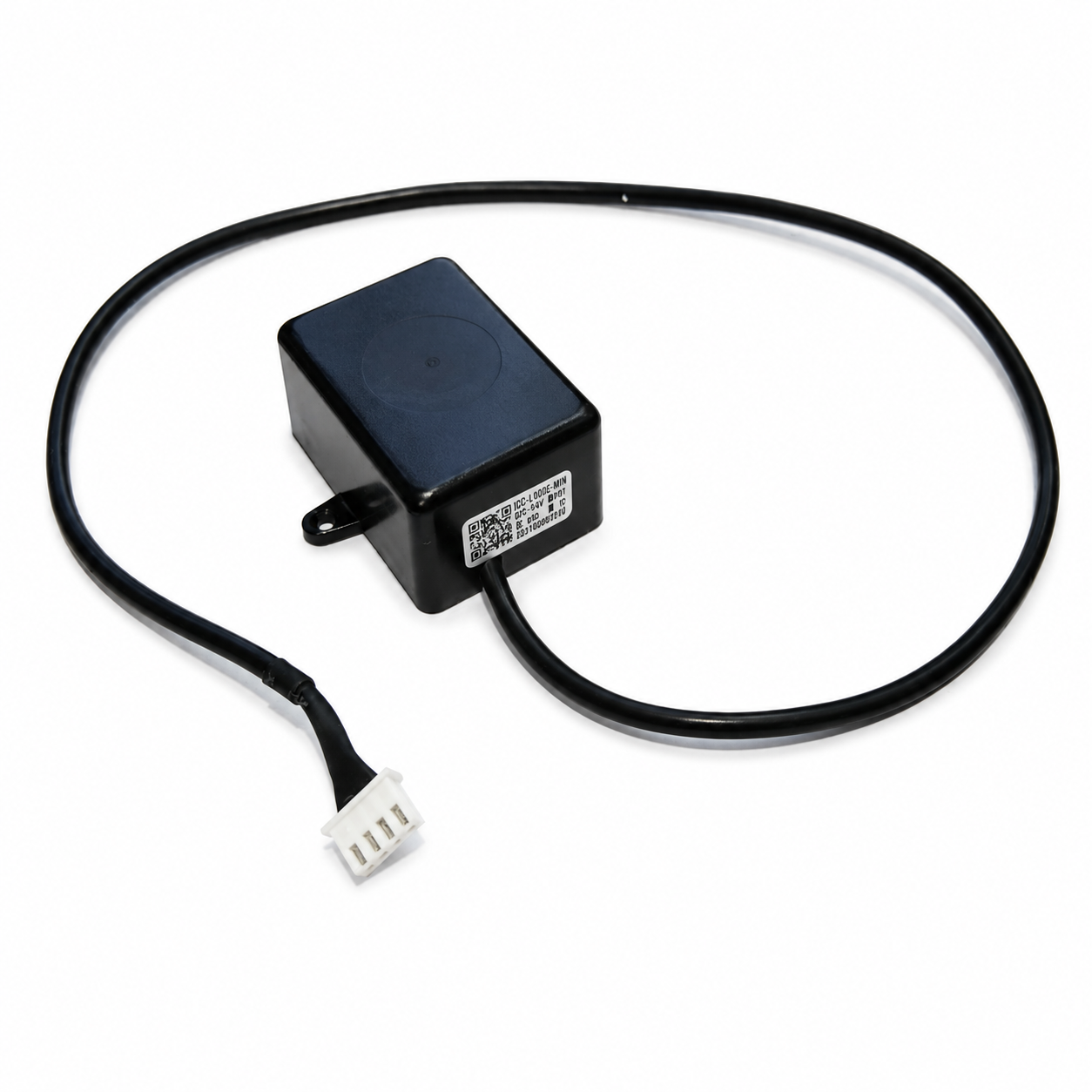

XKC-LD002-NPN 60GHz Millimeter-Wave Static Human Presence Sensor – NPN Output
![60GHz NPN Presence Sensor]()
![Static Human Detector]()
![NPN Presence Detector]()
![60GHz NPN Presence Sensor]()
![Static Human Detector]()
![NPN Presence Detector]()
Powered by a DC 9-24V supply, this sensor features an NPN signal output for integration with compatible controllers and automation systems. It offers a specified 0-3m detection range, 50cm range resolution and a response time of 1500ms or less, supporting reliable human presence detection even when a person remains relatively still.
The sensor uses advanced millimetre-wave radar technology to detect human presence through suitable non-metallic materials, including glass, plastic, ceramic and wood. Its strong environmental adaptability allows operation under varying light, temperature and humidity conditions. With IP67-rated protection, it is suitable for indoor and appropriately protected outdoor automation installations.
-3%
XKC-LD002-NPN 60GHz Millimeter-Wave Static Human Presence Sensor – NPN Output
Available:In Stock
- Product SKU: KG1449
₹ 3,999
₹ 4,148
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
XKC-LD002-NPN 60GHz Millimeter-Wave Static Human Presence Sensor – NPN Output
The XKC-LD002-NPN Static Human Presence Sensor is a non-contact millimetre-wave (mmWave) radar sensor designed to detect human presence, including stationary occupants and small body movements. Operating in the 57-64GHz frequency band, it is suitable for presence-based automatic lighting, occupancy monitoring and industrial automation applications.Powered by a DC 9-24V supply, this sensor features an NPN signal output for integration with compatible controllers and automation systems. It offers a specified 0-3m detection range, 50cm range resolution and a response time of 1500ms or less, supporting reliable human presence detection even when a person remains relatively still.
The sensor uses advanced millimetre-wave radar technology to detect human presence through suitable non-metallic materials, including glass, plastic, ceramic and wood. Its strong environmental adaptability allows operation under varying light, temperature and humidity conditions. With IP67-rated protection, it is suitable for indoor and appropriately protected outdoor automation installations.
Features
- Static human presence and micro-motion detection
- 57-64GHz millimetre-wave radar sensing technology
- NPN signal output for compatible control systems
- Wide DC 9-24V operating voltage
- Specified detection range of 0-3m
- 50cm range resolution
- Response time of 1500ms or less
- Pitch beam width of ±60°
- Detects stationary occupants and subtle human body movements
- Strong resistance to environmental interference
- Designed to operate under varying light, temperature and humidity conditions
- Can sense through suitable glass, plastic, ceramic, wood and other non-metallic materials
- IP67 dust and water ingress protection
- Suitable for automatic occupancy-based control and industrial automation
Technical Details
- Item Type: Static Human Presence Sensor
- Model No.: XKC-LD002-NPN
- Sensing Technology: Millimetre-Wave (mmWave) Radar
- Specified Input Supply: DC 9-24V / 1A
- Output Type: NPN Signal Output
- Frequency Band: 57-64GHz
- Working Current: ≤800mA
- Output Drive Current: ≤200mA
- Detection Range: 0-3m
- Range Resolution: 50cm
- Response Time: ≤1500ms
- Pitch Beam Width: ±60°
- Operating Temperature: -20°C to 60°C
- Storage Temperature: -20°C to 80°C
- Standard Cable Length: 500mm (±10mm)
- Waterproof Rating: IP67
- Safety Certification Listed: CE
- Environmental Compliance Listed: RoHS 2.0
Applications
- Presence-activated lighting and smart-home automation
- Occupancy detection for rooms, corridors and workspaces
- Automatic lighting where people may remain relatively still
- Human presence monitoring in residential and commercial buildings
- Presence detection behind suitable non-metallic covers
- Compatible PLC and industrial automation systems
- NPN-compatible controller applications
- Human presence detection in electronic equipment and enclosures
- Energy-saving lighting and occupancy-based control systems
- Smart building and automated equipment projects
Product Features Image
Technical Parameters Image
Physical Attributes
- Standard Cable Length: 500mm (±10mm)
- Waterproof Rating: IP67
- Installation: Position and orient the sensor to cover the intended 0-3m detection area
Installation and Usage Notes
- Use a regulated DC 9-24V power supply suitable for the specified input requirements.
- Connect the NPN output only to compatible controllers or switching circuits.
- Confirm the actual NPN output configuration and wire connections before installation.
- Keep the connected load within the specified output drive current rating.
- Position the sensor to provide suitable coverage of the required detection area.
- Non-metallic covers may affect detection depending on their thickness and material. Test the sensor in its final installation position.
- Avoid placing metal barriers directly in the intended radar sensing path.
- Verify the detection range and response under actual installation conditions before commissioning.
Package Includes
- 1 × XKC-LD002-NPN 60GHz Millimeter-Wave Static Human Presence Sensor
