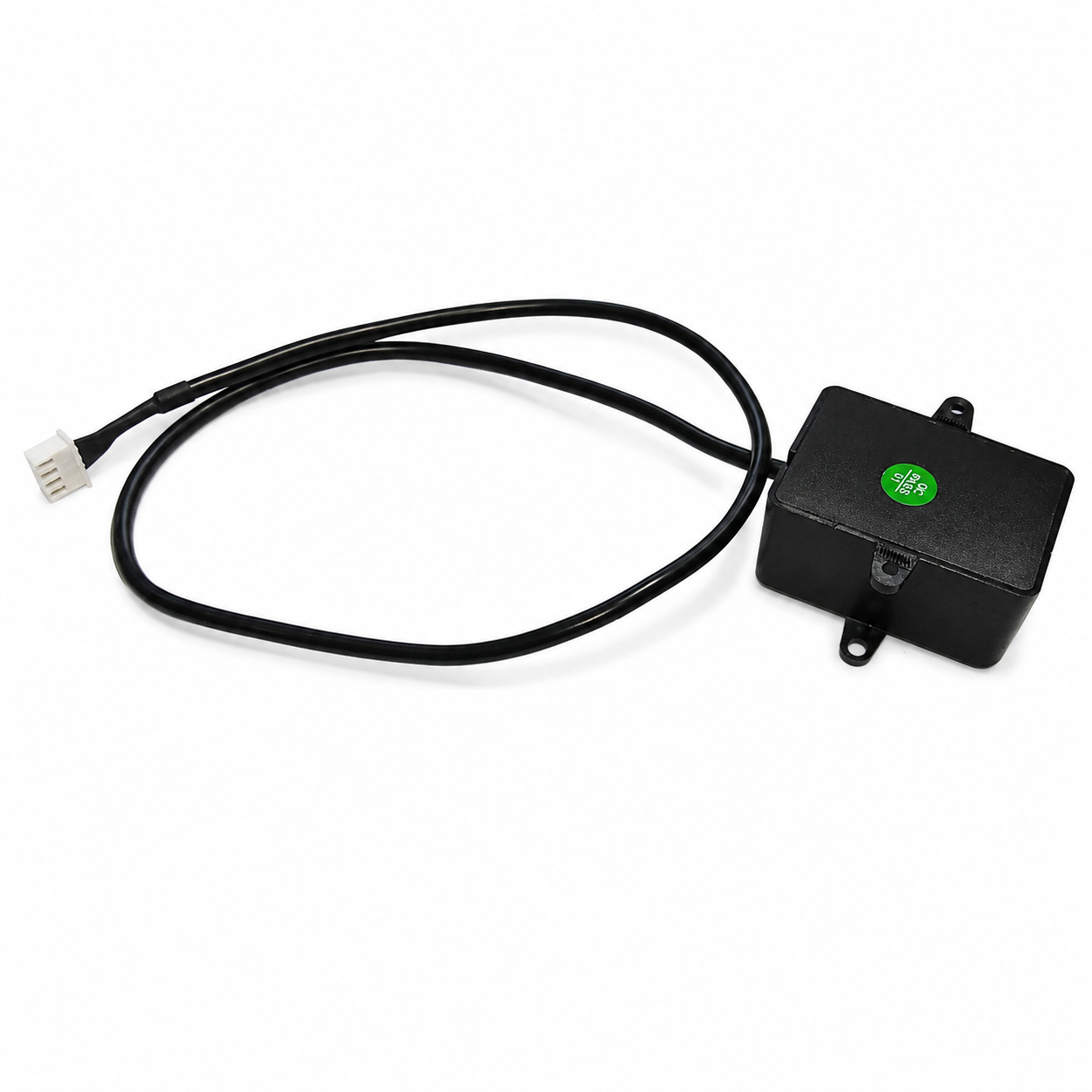

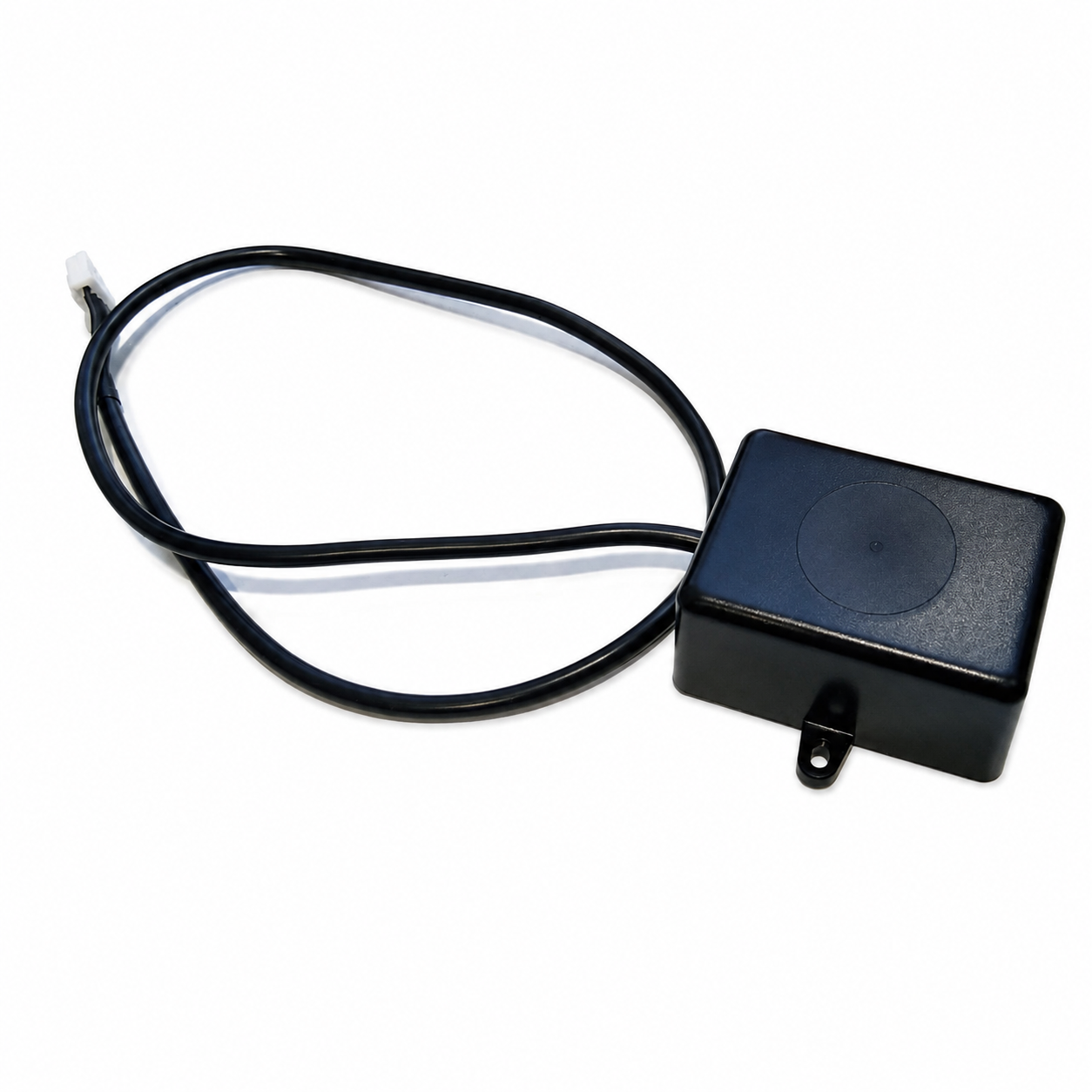

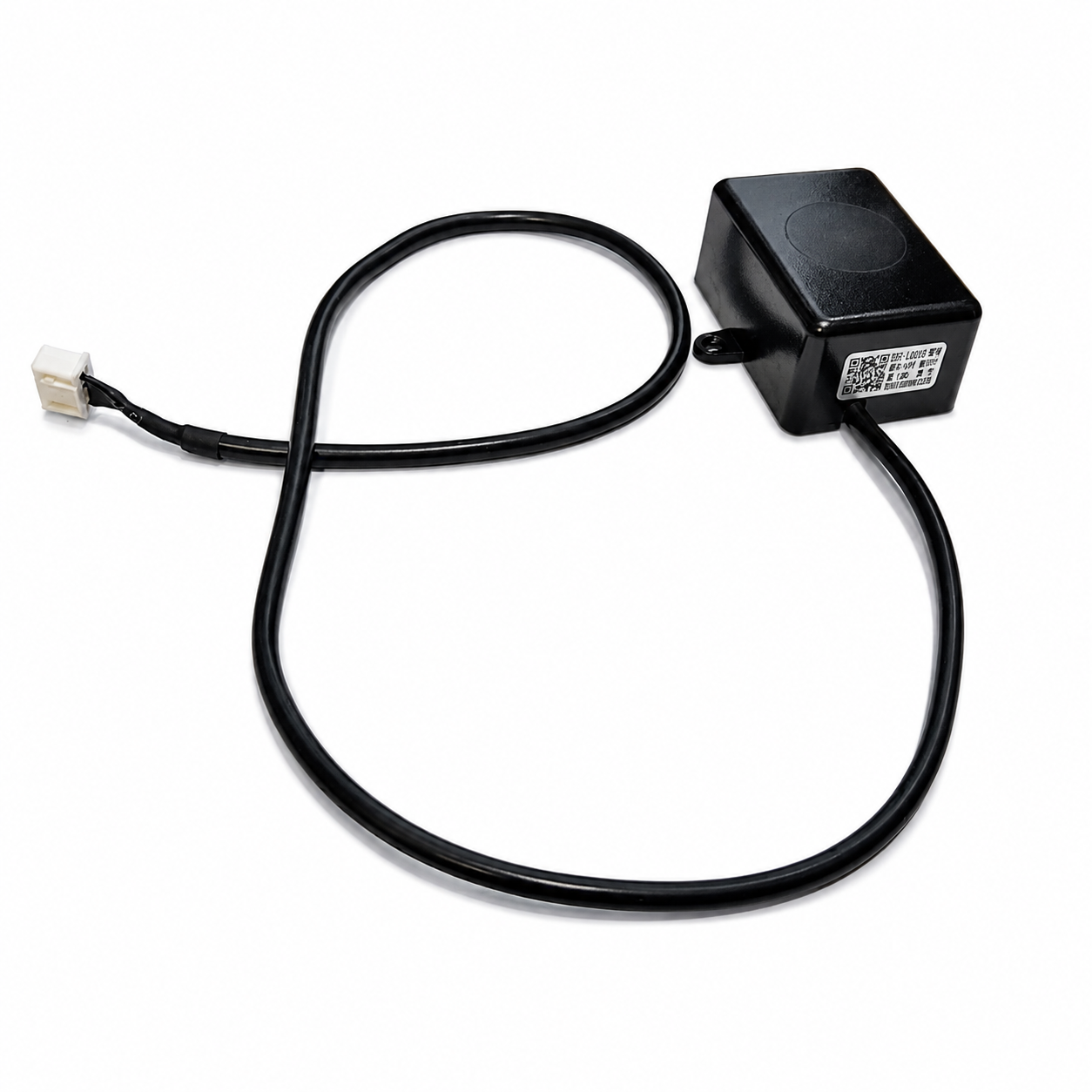

XKC-LD002-V DC 9-24V Static Human Presence Sensor – 60GHz mmWave Radar, High/Low Signal Output

The XKC-LD002-V Static Human Presence Sensor is a non-contact millimetre-wave (mmWave) radar sensor designed to detect human presence, including stationary occupants and small body movements. Operating in the 57-64GHz frequency band, it is suitable for presence-based automatic lighting, occupancy monitoring and compatible electronic control systems.

Powered by a DC 9-24V supply, this V-output variant provides a high and low level signal for compatible control circuits. It has a specified 0-3m detection range, 50cm range resolution and response time of 1500ms or less.

The sensor is designed to operate through suitable non-metallic materials, including glass, plastic, ceramic and wood, and to remain effective under varying light and ambient conditions. Its IP67-rated protection makes it suitable for installations where resistance to dust and water ingress is required.

Features

  • Static human presence and micro-motion detection
  • 57-64GHz millimetre-wave radar sensing
  • V-model high and low level signal output
  • Wide DC 9-24V supply range
  • Specified detection range of 0-3m
  • 50cm range resolution
  • Response time of 1500ms or less
  • Pitch beam width of ±60°
  • Designed to operate under varying light, temperature and humidity conditions
  • Can sense through suitable glass, plastic, ceramic, wood and other non-metallic materials
  • IP67 dust and water ingress protection
  • Suitable for automatic occupancy-based control

Technical Details

  • Item Type: Static Human Presence Sensor
  • Model No.: XKC-LD002-V
  • Sensing Technology: Millimetre-Wave (mmWave) Radar
  • Specified Input Supply: DC 9-24V / 1A
  • Output Type: V (High and Low Level Signal)
  • Frequency Band: 57-64GHz
  • Working Current: ≤800mA
  • Output Drive Current: ≤200mA
  • Detection Range: 0-3m
  • Range Resolution: 50cm
  • Response Time: ≤1500ms
  • Pitch Beam Width: ±60°
  • Operating Temperature: -20°C to 60°C
  • Storage Temperature: -20°C to 80°C
  • Standard Cable Length: 500mm (±10mm)
  • Waterproof Rating: IP67
  • Safety Certification Listed: CE
  • Environmental Compliance Listed: RoHS 2.0

Applications

  • Presence-activated lighting and smart-home automation
  • Occupancy detection for rooms, corridors and workspaces
  • Automatic lighting where people may remain relatively still
  • Presence monitoring behind suitable non-metallic covers
  • Compatible controller and building-automation projects
  • Human presence detection in electronic equipment and enclosures

Product Features Image

Technical Parameters Image

Physical Attributes

  • Standard Cable Length: 500mm (±10mm)
  • Waterproof Rating: IP67
  • Installation: Position and orient the sensor to cover the intended 0-3m detection area

Installation and Usage Notes

  • Use a regulated DC 9-24V power supply suitable for the stated input requirements.
  • Connect the high/low output only to a compatible controller input; exact HIGH and LOW voltages and wire colours were not supplied.
  • Non-metallic covers may affect detection depending on their thickness and material. Test the sensor in its final installation position.
  • Keep metal barriers out of the intended radar sensing path and verify the coverage area before commissioning.

Package Includes

  • 1 × XKC-LD002-V Static Human Presence Sensor
