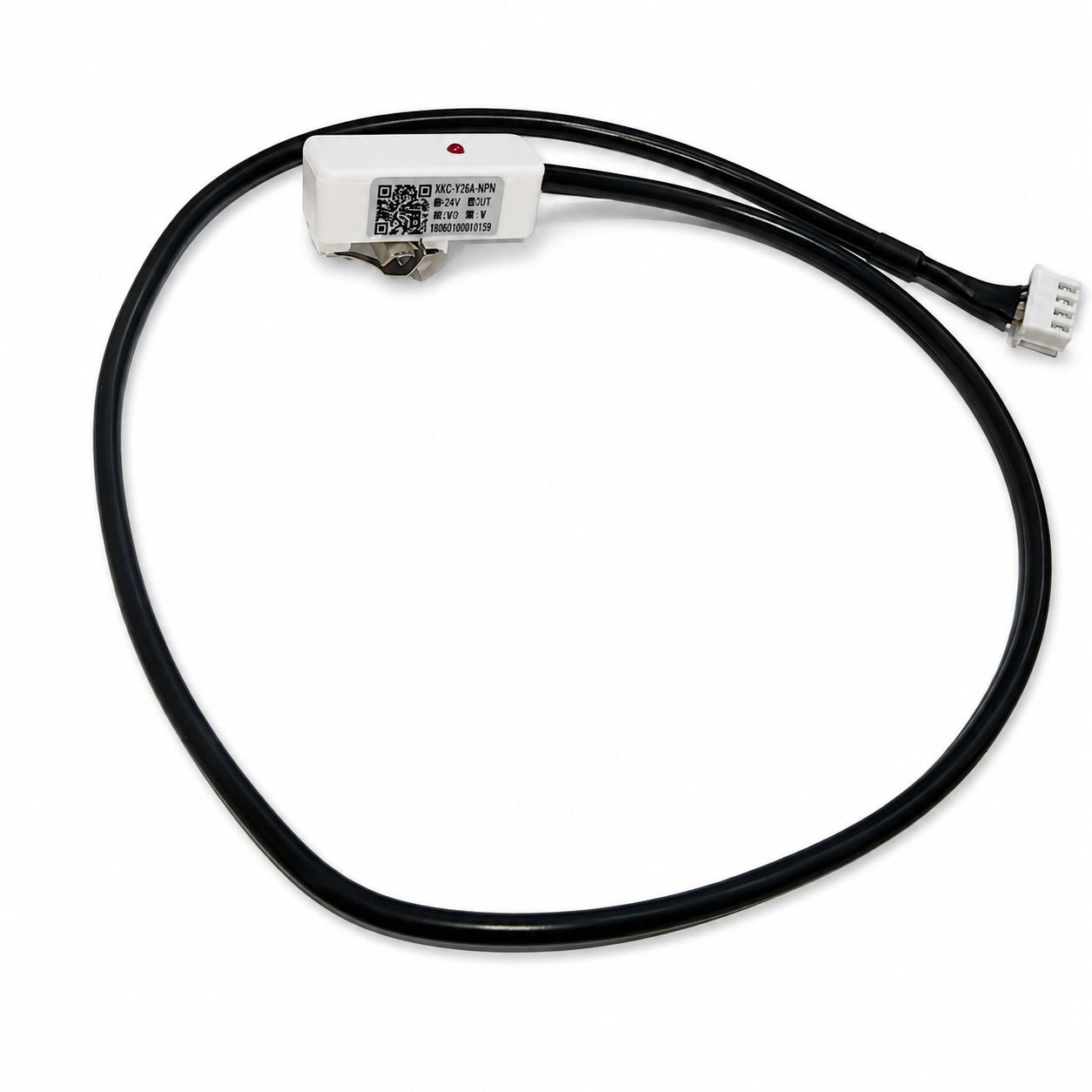

![XKC-Y26A 24V NPN Sensor]()

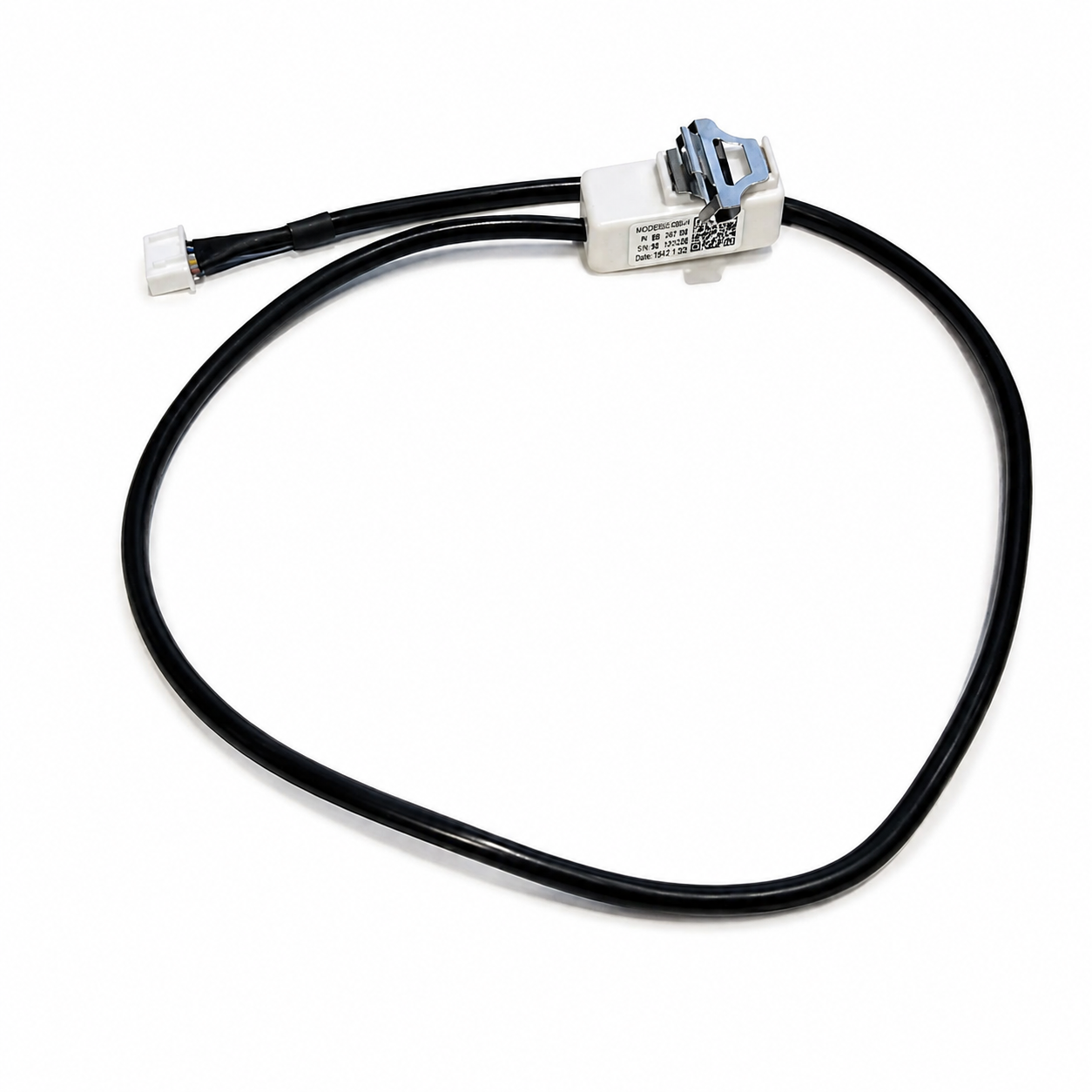

![Thin Tube Water Level Sensor]()

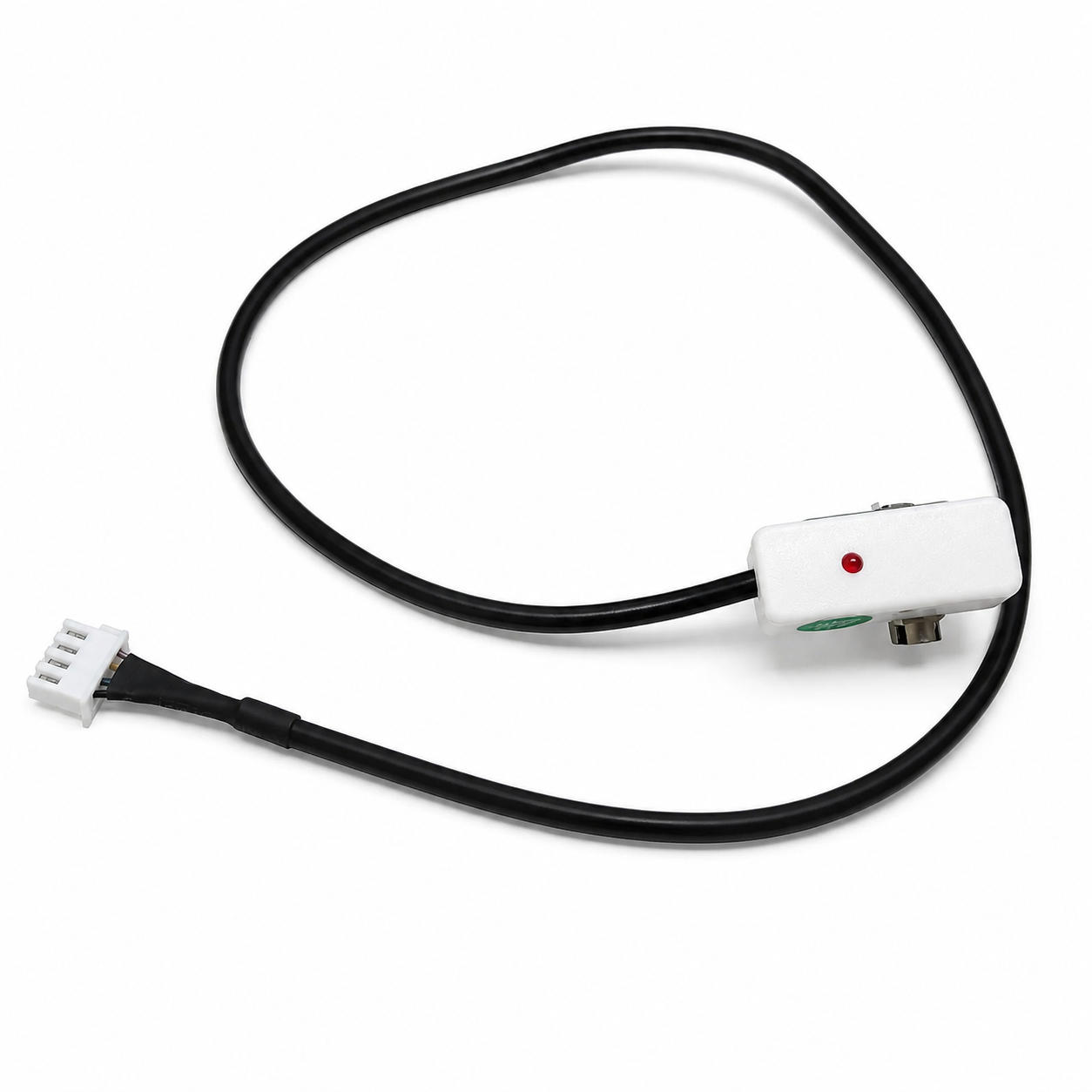

![Non-Contact Liquid Detector]()
![XKC-Y26A 24V NPN Sensor]()
![Thin Tube Water Level Sensor]()
![Non-Contact Liquid Detector]()
This model operates from a 24V DC power supply and provides an NPN transistor output interface. It is suitable for water pipelines, liquid dispensing equipment, automatic filling systems, water purification equipment, industrial automation, PLC systems and liquid-level monitoring applications.
The internal signal-processing circuit detects this capacitance change and converts it into an electrical signal. When the change exceeds the preset threshold, the sensor determines that liquid has reached the detection point and switches the NPN output.
-20%
XKC-Y26A 24V DC Thin-Tube Non-Contact Liquid Level Sensor with NPN Output
Available:In Stock
- Product SKU: KG1394
₹ 569
₹ 718
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
XKC-Y26A 24V DC Thin-Tube Non-Contact Liquid Level Sensor with NPN Output
The XKC-Y26A-NPN 24V is a thin-tube non-contact capacitive liquid level sensor designed for detecting liquid inside small-diameter non-metallic pipes. The sensor is mounted externally around the pipe using its integrated spring-clip mechanism and detects liquid through the pipe wall without requiring direct contact with the liquid.This model operates from a 24V DC power supply and provides an NPN transistor output interface. It is suitable for water pipelines, liquid dispensing equipment, automatic filling systems, water purification equipment, industrial automation, PLC systems and liquid-level monitoring applications.
Features
- Non-contact liquid detection through non-metallic pipe walls
- 24V DC operating voltage
- NPN transistor output interface
- Normally Open / Normally Closed output selection
- Suitable for 5mm to 10mm pipe outer diameter
- Maximum applicable pipe diameter approximately 11mm
- Integrated spring-clip pipe mounting design
- No cutting or drilling of the pipe required
- Low current consumption of ≤ 5mA
- Maximum output current up to 100mA
- 500ms response time
- Liquid level accuracy of ±1.5mm
- Adjustable sensing sensitivity
- Suitable for cold, hot and boiling liquids
- High sensitivity and stable detection
- Strong anti-interference capability
- Pure electronic non-mechanical sensing structure
- PC V0 fire-retardant housing
- IP67 waterproof protection
- CE certified
- RoHS 2.0 compliant
Working Principle
The XKC-Y26A-NPN uses the capacitive sensing principle. When no liquid is present near the sensing section, the sensor maintains its normal static capacitance. As liquid inside the pipe reaches the sensing position, additional parasitic capacitance is introduced.The internal signal-processing circuit detects this capacitance change and converts it into an electrical signal. When the change exceeds the preset threshold, the sensor determines that liquid has reached the detection point and switches the NPN output.
Technical Details
- Item Type: Thin-Tube Non-Contact Liquid Level Sensor
- Series: XKC-Y26A
- Model: XKC-Y26A-NPN
- Sensing Principle: Capacitive sensing
- Supply Voltage: DC 24V
- Output Type: NPN Output Interface
- Output Mode: Switch Quantity, Low Level Effective
- High-Level Output Voltage: Vin
- Low-Level Output Voltage: 0V
- Current Consumption: ≤ 5mA
- Maximum Output Current: ≤ 100mA
- Response Time: 500ms
- Operating Temperature: -20°C to 105°C
- Applicable Pipe Outer Diameter: 5mm to 10mm
- Maximum Pipe Outer Diameter: Approx. 11mm
- Liquid Level Accuracy: ±1.5mm
- Operating Humidity: 5% to 100%
- Housing Material: PC V0 Fire-Retardant Material
- Waterproof Rating: IP67
- Safety Certification: CE
- Environmental Certification: RoHS 2.0
Mechanical Drawing & Dimensions
Mechanical Dimensions
- Sensor Body Length: Approx. 34.4mm
- Sensor Body Width: Approx. 20mm
- Sensor Body Height: Approx. 13.6mm
- Overall Height Including Clip: Approx. 24.9mm
- Cable Length: Approx. 500mm
- Integrated Spring-Clip Pipe Holder
- Built-In Sensitivity Adjustment Control
- Built-In Indicator Light
Installation Method
Installation Procedure
- Carefully pull open the spring clips
- Place the liquid pipe between the two spring clips
- Release the clips so the sensor securely grips the pipe
- Ensure the sensing section remains in close contact with the pipe
- Position the sensor at the required liquid-level detection point
- Suitable for pipe outer diameters from 5mm to 10mm
- Maximum pipe diameter should not exceed approximately 11mm
- Do not open the spring clip beyond approximately 60°
After Installation
Sensitivity Adjustment
- Use a small screwdriver to adjust sensitivity
- Rotate counterclockwise to increase sensitivity
- Rotate clockwise to decrease sensitivity
- Adjust sensitivity after installing the sensor on the actual pipe
Pipe Diameter Requirement
- Recommended Pipe Outer Diameter: 5mm to 10mm
- Maximum Pipe Outer Diameter: Approx. 11mm
- Suitable for thin non-metallic pipes
- Ensure the sensing clip fits tightly around the pipe
- Avoid direct installation on metallic pipes
NPN Wiring Diagram
Wire Connection
- Brown Wire – VCC: Connect to positive 24V DC supply
- Blue Wire – GND: Connect to power supply negative / 0V
- Yellow Wire – OUT: NPN signal output
- Black Wire – MODE: Normally Open / Normally Closed mode selection
Normally Open / Normally Closed Output Selection
- Black MODE wire left disconnected: Normally Open (NO) output
- When liquid is detected in NO mode, the NPN transistor turns ON
- When no liquid is detected in NO mode, the NPN transistor remains OFF
- Black MODE wire connected to GND / 0V: Normally Closed (NC) output
- When liquid is detected in NC mode, the transistor turns OFF
- When no liquid is detected in NC mode, the transistor turns ON
Environmental & Mechanical Specifications
- Operating Temperature Range: -20°C to 105°C
- Operating Humidity Range: 5% to 100%
- Liquid Level Accuracy: ±1.5mm
- Applicable Pipe Outer Diameter: 5mm to 10mm
- Maximum Pipe Outer Diameter: Approx. 11mm
- Housing Material: PC V0 Fire-Retardant Material
- Waterproof Performance: IP67
- Maximum Output Current: ≤ 100mA
- Response Time: 500ms
- Safety Certification: CE
- Environmental Certification: RoHS 2.0
Applications
- Thin water pipes
- Small-diameter liquid pipelines
- Water dispensers
- Water purification systems
- Automatic filling machines
- Liquid dispensing equipment
- Liquid level alarm systems
- Laboratory equipment
- Home appliances
- Industrial liquid monitoring
- PLC automation systems
- Automatic liquid level control systems
- IoT liquid monitoring applications
Troubleshooting
Package Includes
- 1 × XKC-Y26A 24V DC Thin-Tube Non-Contact Liquid Level Sensor with NPN Output
