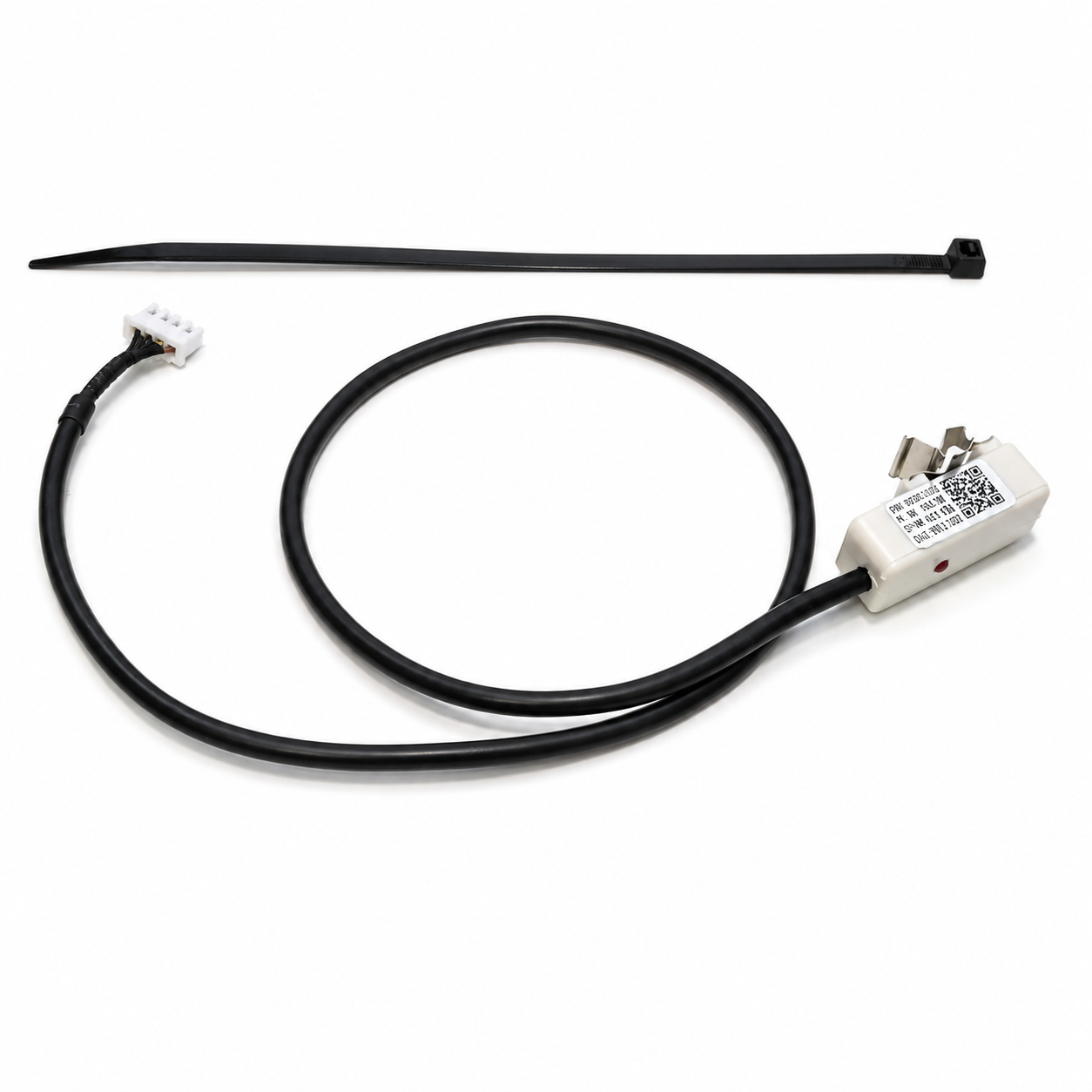

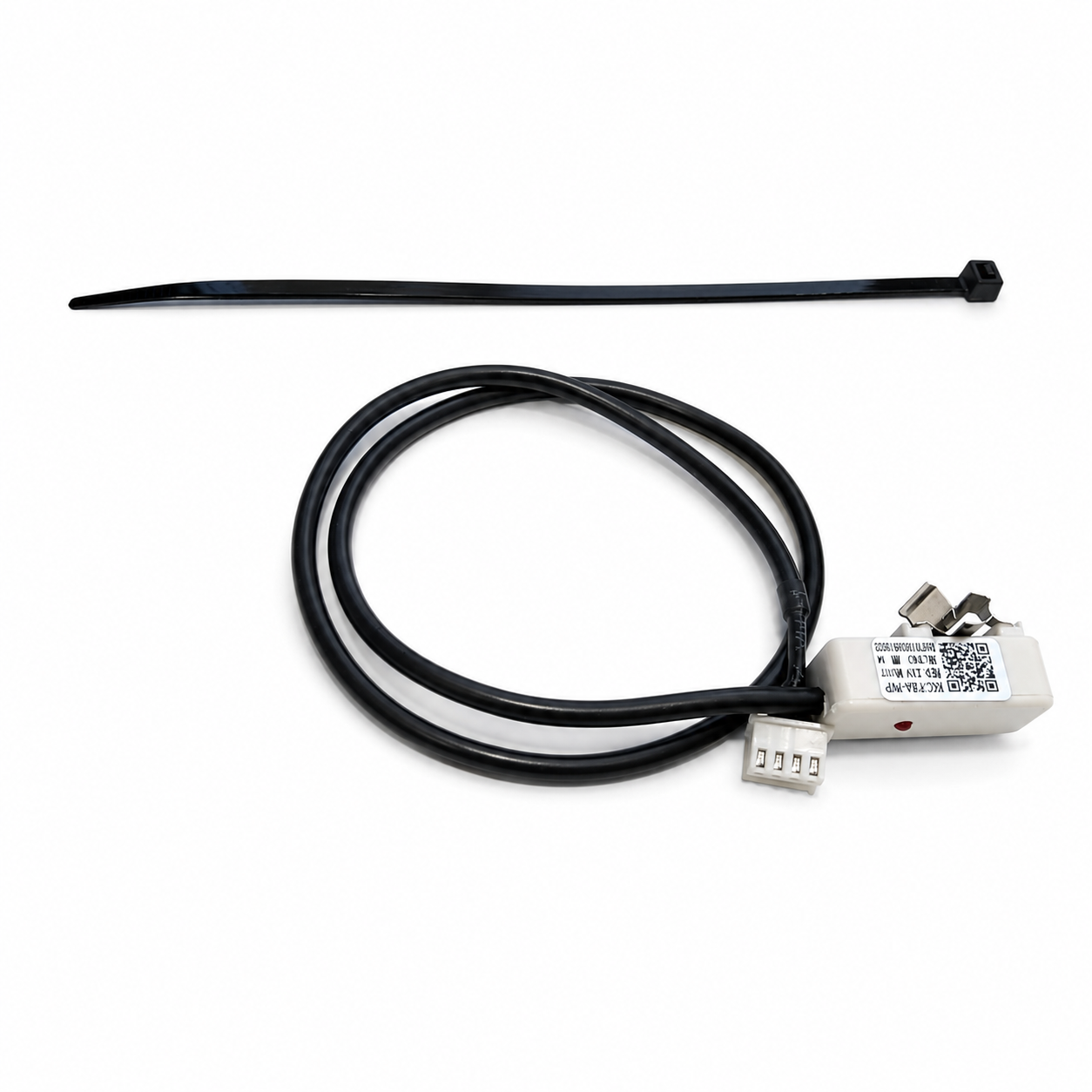

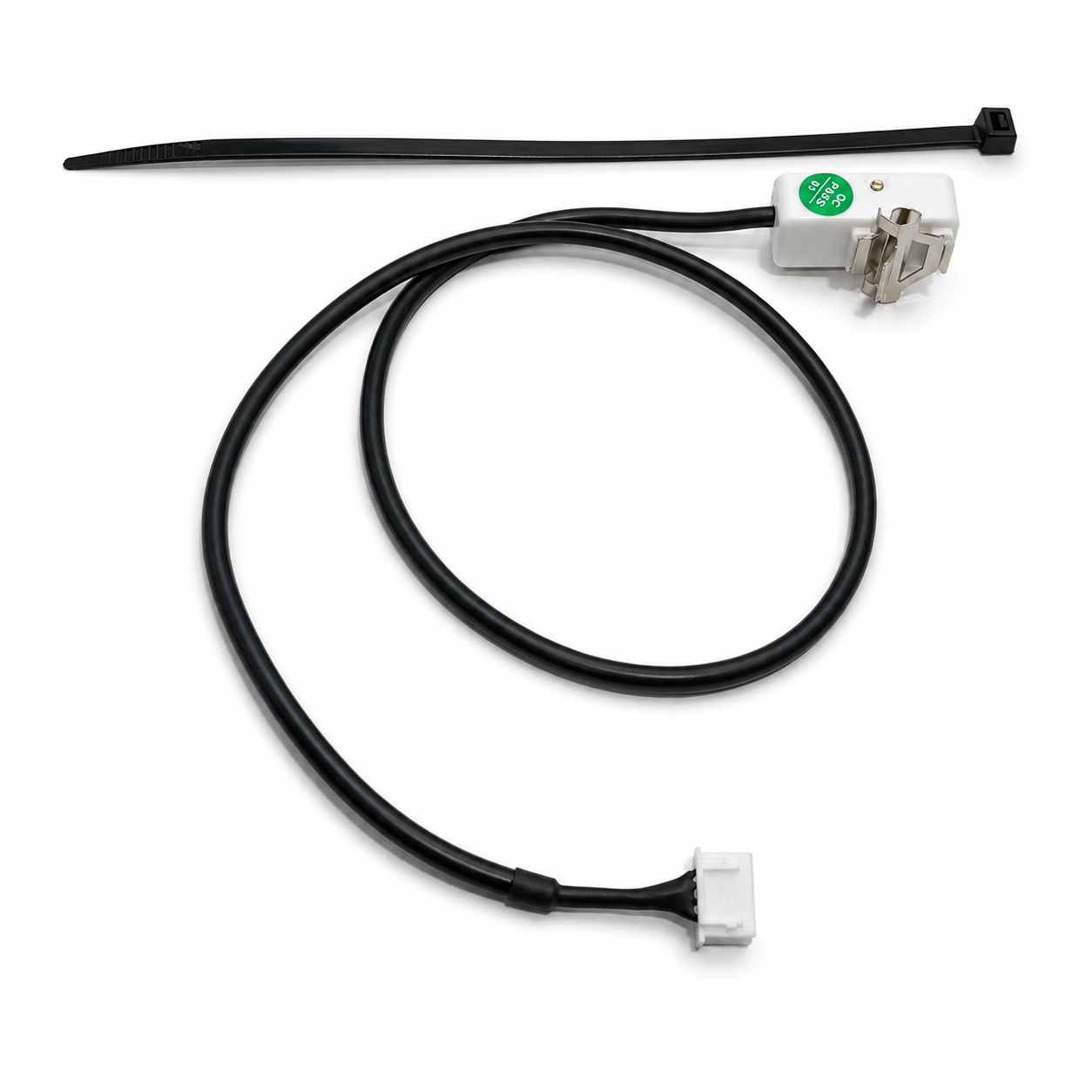

5-12V XKC-Y26A-PNP Thin-Tube Non-Contact Liquid Level Sensor – PNP Output
![XKC-Y26A PNP Tube Sensor]()
![5-12V Liquid Level Sensor]()
![Non-Contact PNP Detector]()
![XKC-Y26A PNP Tube Sensor]()
![5-12V Liquid Level Sensor]()
![Non-Contact PNP Detector]()
This model operates from a DC 5V to 12V power supply and provides a PNP transistor output interface. It is suitable for thin plastic pipes, water pipelines, liquid dispensing systems, automatic filling equipment, water purification systems, industrial automation equipment and liquid-level monitoring applications.
The internal signal-processing circuit detects this capacitance change and converts it into an electrical signal. When the capacitance variation exceeds the preset threshold, the sensor determines that liquid has reached the detection point and switches the PNP output.
A PNP output is generally used with control inputs designed for sourcing-type sensor signals.
Make sure the connected control input is designed to work with a PNP sourcing-type sensor output.
-17%
5-12V XKC-Y26A-PNP Thin-Tube Non-Contact Liquid Level Sensor – PNP Output
Available:In Stock
- Product SKU: KG1390
₹ 699
₹ 848
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
5-12V XKC-Y26A-PNP Thin-Tube Non-Contact Liquid Level Sensor – PNP Output
The XKC-Y26A-PNP 5-12V is a thin-tube non-contact capacitive liquid level sensor designed for detecting liquid inside small-diameter non-metallic pipes. The sensor is installed externally around the pipe using its integrated spring-clip mounting mechanism and detects liquid through the pipe wall without making direct contact with the liquid.This model operates from a DC 5V to 12V power supply and provides a PNP transistor output interface. It is suitable for thin plastic pipes, water pipelines, liquid dispensing systems, automatic filling equipment, water purification systems, industrial automation equipment and liquid-level monitoring applications.
Features
- Non-contact liquid level detection for thin non-metallic pipes
- Suitable for pipes with 5mm to 10mm outer diameter
- Maximum applicable pipe outer diameter approximately 11mm
- No direct contact between sensor and liquid
- DC 5V to 12V operating voltage
- PNP transistor output interface
- Low current consumption of ≤ 5mA
- Maximum output current up to 100mA
- 500ms response time
- Liquid level accuracy of ±1.5mm
- Adjustable sensing sensitivity
- Integrated spring-clip pipe mounting design
- Easy external installation without cutting the pipe
- Suitable for cold, hot and boiling liquid detection
- High sensitivity and stable sensing performance
- Strong anti-interference capability
- Pure electronic non-mechanical sensing structure
- PC V0 fire-retardant housing material
- IP67 waterproof protection
- CE certified
- RoHS 2.0 compliant
Working Principle
The XKC-Y26A-PNP operates using the capacitive sensing principle. When no liquid is present near the sensing section, the sensor maintains a certain static capacitance. When liquid inside the pipe reaches the sensing position, the liquid introduces additional parasitic capacitance.The internal signal-processing circuit detects this capacitance change and converts it into an electrical signal. When the capacitance variation exceeds the preset threshold, the sensor determines that liquid has reached the detection point and switches the PNP output.
Technical Details
- Item Type: Thin-Tube Non-Contact Liquid Level Sensor
- Series: XKC-Y26A
- Model: XKC-Y26A-PNP
- Operating Principle: Capacitive sensing
- Supply Voltage: DC 5V to 12V
- Output Type: PNP Output Interface
- Current Consumption: ≤ 5mA
- Maximum Output Current: ≤ 100mA
- Response Time: 500ms
- Operating Temperature: -20°C to 105°C
- Applicable Pipe Outer Diameter: 5mm to 10mm
- Maximum Pipe Outer Diameter: Approx. 11mm
- Liquid Level Accuracy: ±1.5mm
- Operating Humidity: 5% to 100%
- Housing Material: PC V0 Fire-Retardant Material
- Waterproof Rating: IP67
- Safety Certification: CE
- Environmental Certification: RoHS 2.0
Mechanical Drawing & Dimensions
Mechanical Dimensions
- Sensor Body Length: Approx. 34.4mm
- Sensor Body Width: Approx. 20mm
- Sensor Body Height: Approx. 13.6mm
- Overall Height Including Clip: Approx. 24.9mm
- Cable Length: Approx. 500mm
- Integrated Spring-Clip Pipe Holder
- Built-In Sensitivity Adjustment Control
- Built-In Indicator Light
Installation Method
Installation Procedure
- Carefully pull open the spring clips of the sensor
- Place the water or liquid pipe between the two spring clips
- Release the spring clips so that the sensor securely grips the pipe
- Ensure the sensing section remains in close contact with the pipe surface
- Position the sensor at the required liquid-level detection point
- Suitable for pipe outer diameters from 5mm to 10mm
- Maximum pipe outer diameter should not exceed approximately 11mm
- Do not open the spring clip beyond approximately 60°
After Installation
Sensitivity Adjustment
- Use a small screwdriver to adjust the sensitivity control
- Rotate counterclockwise to increase sensing sensitivity
- Rotate clockwise to decrease sensing sensitivity
- Adjust sensitivity if the liquid is not detected reliably
- Perform final sensitivity adjustment after installing the sensor on the actual pipe
Pipe Diameter Requirement
- Recommended Pipe Outer Diameter: 5mm to 10mm
- Maximum Pipe Outer Diameter: Approx. 11mm
- Designed specifically for thin non-metallic pipelines
- Ensure the sensing clip fits tightly around the pipe
- Ensure proper contact between the sensing section and pipe surface
- Avoid installing the sensing section directly on metallic pipes
PNP Output
The XKC-Y26A-PNP provides a PNP transistor output for use with compatible industrial controllers, PLC inputs and automation systems.A PNP output is generally used with control inputs designed for sourcing-type sensor signals.
PNP Wiring Diagram
PNP Wiring Diagram – Use XKC-Y26A-PNP Specific Diagram
Wire Connection
- Brown Wire – VCC: Power supply positive
- Blue Wire – GND: Power supply negative / 0V
- Yellow Wire – OUT: PNP signal output
- Black Wire – MODE: Output mode selection wire
Connection to PLC / Controller
The yellow OUT wire provides the PNP signal output and can be connected to a compatible PLC input, industrial controller or automation control circuit.Make sure the connected control input is designed to work with a PNP sourcing-type sensor output.
Environmental & Mechanical Specifications
- Operating Temperature Range: -20°C to 105°C
- Operating Humidity Range: 5% to 100%
- Liquid Level Accuracy: ±1.5mm
- Applicable Pipe Outer Diameter: 5mm to 10mm
- Maximum Pipe Outer Diameter: Approx. 11mm
- Housing Material: PC V0 Fire-Retardant Material
- Waterproof Performance: IP67
- Maximum Output Current: ≤ 100mA
- Response Time: 500ms
- Safety Certification: CE
- Environmental Certification: RoHS 2.0
Installation & Usage Notes
- Use the sensor with non-metallic pipes
- Make sure the sensing section fits securely against the pipe
- Do not force the spring clips beyond approximately 60°
- Keep the sensing area clean and free from debris
- Keep nearby metallic objects away from the sensing area where possible
- Avoid strong impacts, collisions or mechanical damage
- Avoid installing the sensor close to excessive heat sources
- For outdoor installation, protect the sensor from prolonged direct sunlight and direct rain
- Adjust the sensitivity if reliable liquid detection is not achieved after installation
Applications
- Thin water pipes
- Small-diameter liquid pipelines
- Water dispensers
- Drinking water equipment
- Water purification equipment
- Automatic filling machines
- Liquid dispensing systems
- Liquid level alarm systems
- Laboratory equipment
- Home appliances
- Industrial liquid level monitoring
- Automatic liquid level control systems
- PLC automation systems
- Industrial control equipment
- IoT liquid monitoring applications
- Non-metallic pipeline liquid detection
Troubleshooting
Package Includes
- 1 × 5-12V XKC-Y26A-PNP Thin-Tube Non-Contact Liquid Level Sensor – PNP Output
