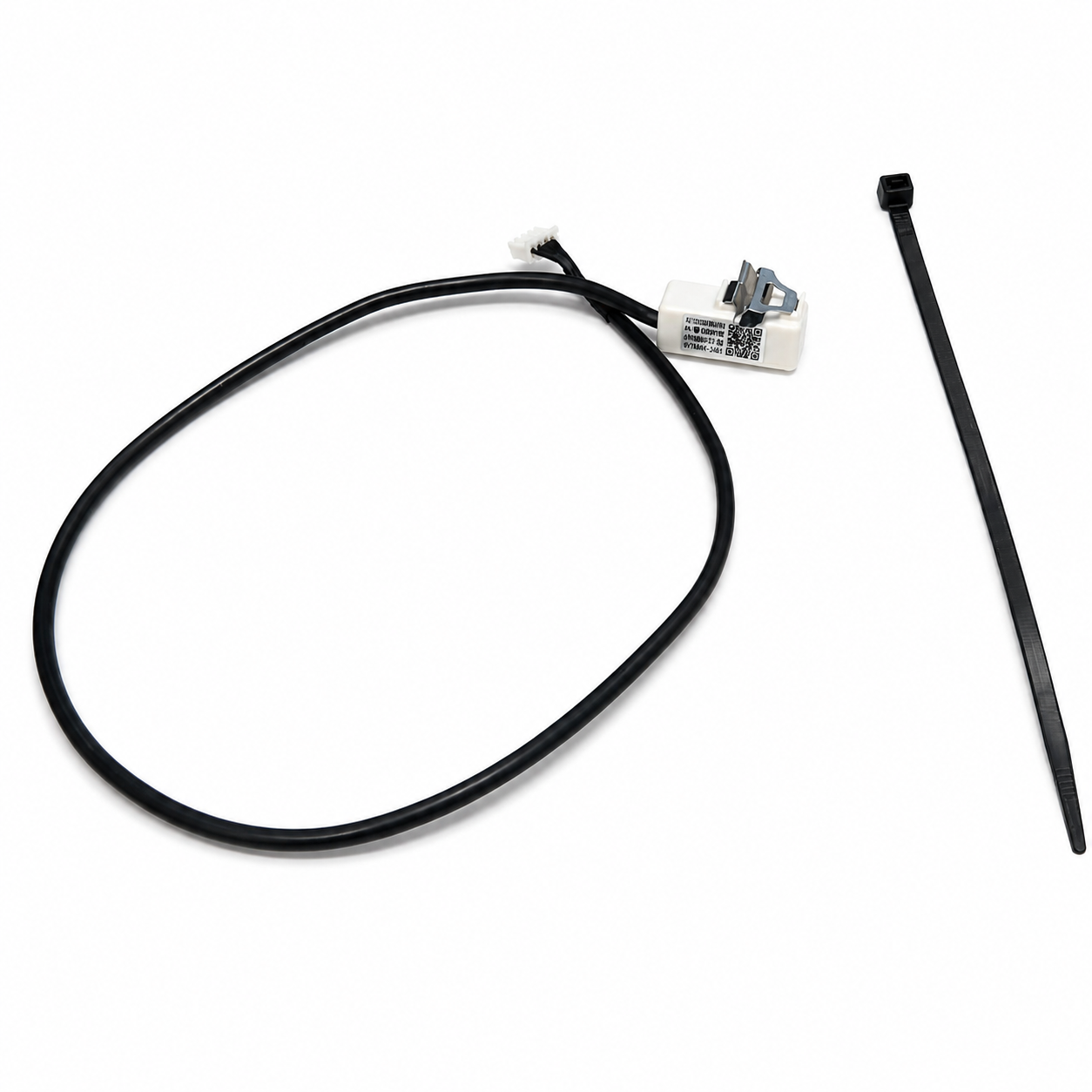

![XKC-Y26A-V Tube Sensor]()

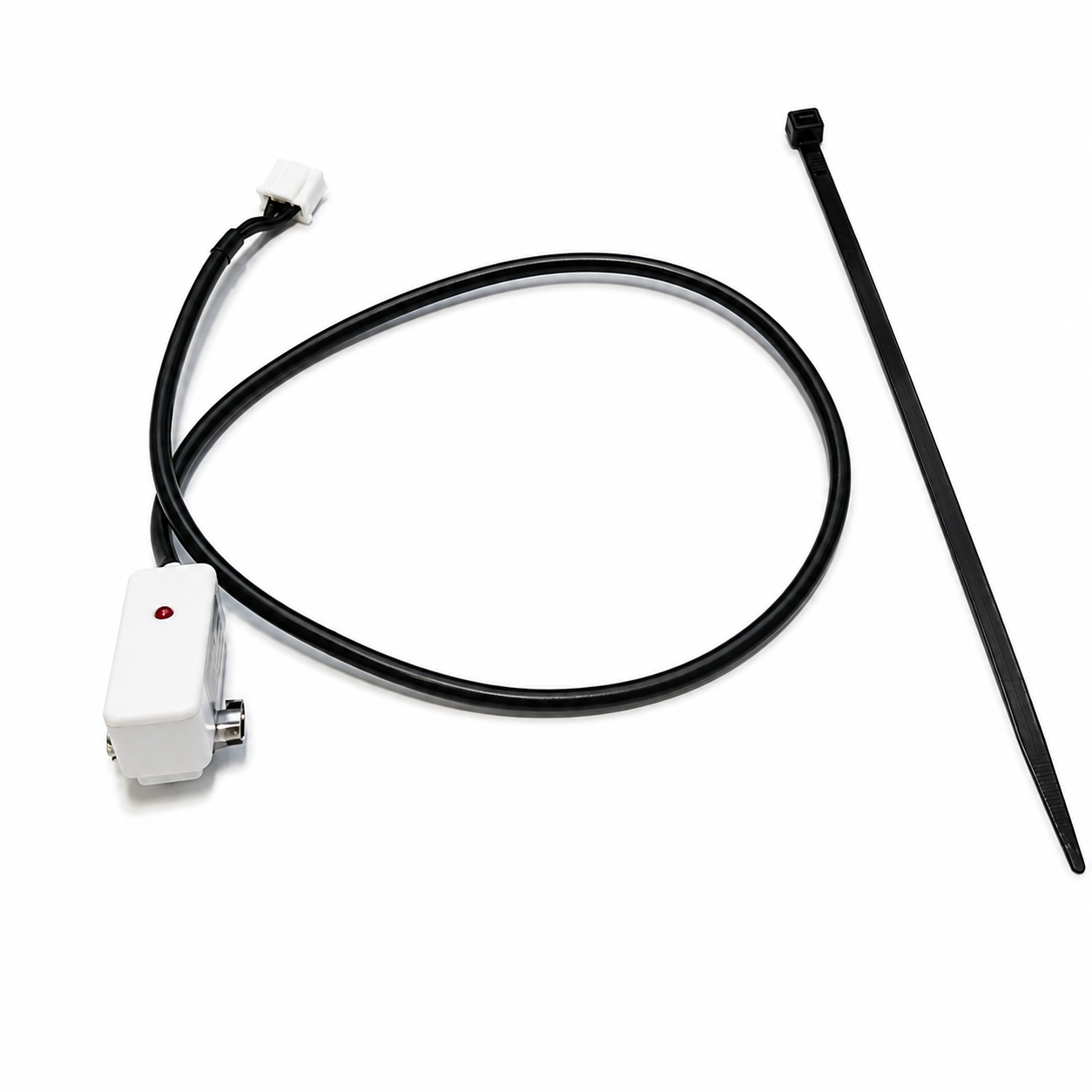

![Thin Pipe Level Sensor]()

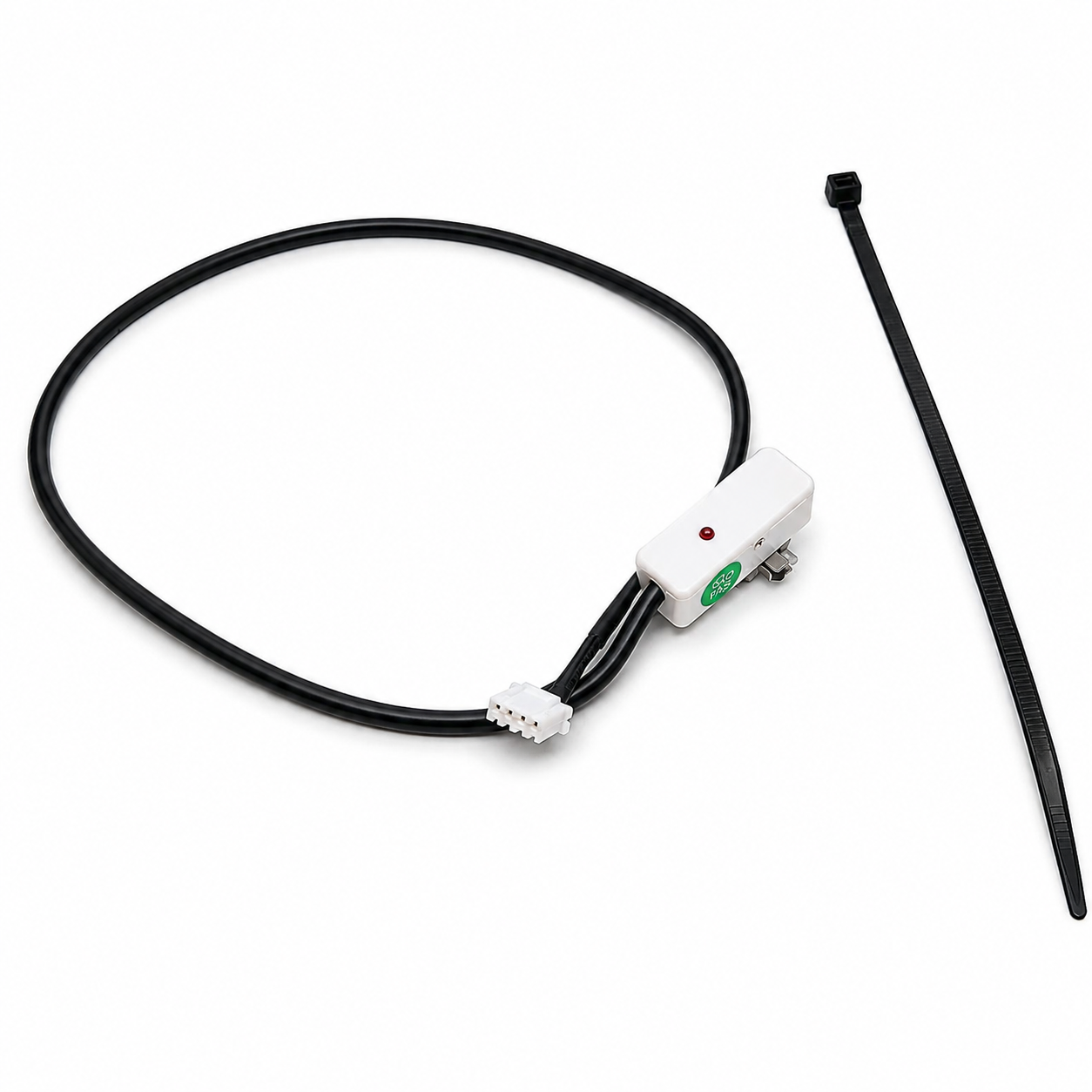

![5-24V Liquid Detector]()
![XKC-Y26A-V Tube Sensor]()
![Thin Pipe Level Sensor]()
![5-24V Liquid Detector]()
This model operates from a wide DC 5V to 24V power supply and provides a high/low-level signal output. It is suitable for small plastic tubes, transparent pipes, water pipelines, liquid dispensing equipment, automatic filling systems, medical equipment, home appliances and industrial automation applications.
The internal signal-processing circuit detects this capacitance change and converts it into an electrical signal. When the capacitance variation exceeds the preset threshold, the sensor determines that liquid has reached the detection point and changes the high/low-level signal output.
The Brown VCC wire connects to the positive supply, the Blue GND wire connects to 0V, and the Black MODE wire is used to select the required output logic.
Always verify the relay operating voltage and current requirements before connecting it directly to the sensor output.
-17%
XKC-Y26A-V Thin-Tube Non-Contact Liquid Level Sensor, 5-24V DC – Signal Output
Available:In Stock
- Product SKU: KG1388
₹ 699
₹ 848
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
XKC-Y26A-V Thin-Tube Non-Contact Liquid Level Sensor, 5-24V DC – Signal Output
The XKC-Y26A-V is a thin-tube non-contact capacitive liquid level sensor specially designed for detecting the presence of liquid inside small-diameter non-metallic pipes. The sensor is mounted externally around the pipe using its integrated spring-clip mechanism and detects liquid through the pipe wall without making direct contact with the liquid.This model operates from a wide DC 5V to 24V power supply and provides a high/low-level signal output. It is suitable for small plastic tubes, transparent pipes, water pipelines, liquid dispensing equipment, automatic filling systems, medical equipment, home appliances and industrial automation applications.
Features
- Non-contact liquid level detection for thin non-metallic pipes
- Suitable for pipes with 5mm to 10mm outer diameter
- Maximum applicable pipe outer diameter up to approximately 11mm
- No direct contact between sensor and liquid
- Wide DC 5V to 24V operating voltage
- High and low level signal output interface
- Low current consumption of ≤ 5mA
- Maximum output current up to 100mA
- 500ms response time
- Liquid level accuracy of ±1.5mm
- Adjustable sensing sensitivity
- Integrated spring-clip pipe mounting design
- Easy external installation without cutting the pipe
- Suitable for cold, hot and boiling liquid detection
- High sensitivity and stable sensing performance
- Strong anti-interference capability
- Pure electronic non-mechanical sensing system
- PC V0 fire-retardant housing material
- IP67 waterproof protection
- CE certified
- RoHS 2.0 compliant
Working Principle
The XKC-Y26A-V operates using the capacitive sensing principle. When no liquid is close to the sensing area, the sensor maintains a certain static capacitance. When liquid inside the pipe reaches the sensing position, the liquid introduces additional parasitic capacitance.The internal signal-processing circuit detects this capacitance change and converts it into an electrical signal. When the capacitance variation exceeds the preset threshold, the sensor determines that liquid has reached the detection point and changes the high/low-level signal output.
Technical Details
- Item Type: Thin-Tube Non-Contact Liquid Level Sensor
- Model: XKC-Y26A-V
- Series: XKC-Y26A
- Sensing Principle: Capacitive sensing
- Supply Voltage: DC 5V to 24V
- Output Mode: High / Low Level Signal Output
- High-Level Output Voltage: Vin
- Low-Level Output Voltage: 0V
- Current Consumption: ≤ 5mA
- Maximum Output Current: ≤ 100mA
- Response Time: 500ms
- Operating Temperature: -20°C to 105°C
- Applicable Pipe Outer Diameter: 5mm to 10mm
- Maximum Pipe Outer Diameter: Approx. 11mm
- Liquid Level Accuracy: ±1.5mm
- Operating Humidity: 5% to 100%
- Housing Material: PC V0 Fire-Retardant Material
- Waterproof Rating: IP67
- Safety Certification: CE
- Environmental Certification: RoHS 2.0
Mechanical Drawing & Dimensions
Mechanical Dimensions
- Sensor Body Length: Approx. 34.4mm
- Sensor Body Width: Approx. 20mm
- Sensor Body Height: Approx. 13.6mm
- Overall Height Including Clip: Approx. 24.9mm
- Cable Length: Approx. 500mm
- Integrated Spring-Clip Pipe Holder
- Built-In Sensitivity Adjustment Control
- Built-In Indicator Light
Installation Method
Installation Procedure
- Pull open the spring clips of the sensor carefully
- Place the water or liquid pipe between the two spring clips
- Release the spring clips so that the sensor securely grips the pipe
- Ensure that the sensing section remains in close contact with the pipe surface
- Position the sensor at the required liquid-level detection point
- Suitable for pipe outer diameters from 5mm to 10mm
- The maximum pipe diameter should not exceed approximately 11mm
- Do not open the spring clip beyond approximately 60°
After Installation
Sensitivity Adjustment
- Use a small screwdriver to adjust the sensitivity control
- Rotate counterclockwise to increase sensing sensitivity
- Rotate clockwise to decrease sensing sensitivity
- Adjust sensitivity if the liquid is not detected reliably
- Perform final sensitivity adjustment after installing the sensor on the actual pipe
Pipe Diameter Requirement
- Recommended Pipe Outer Diameter: 5mm to 10mm
- Maximum Pipe Outer Diameter: Approx. 11mm
- Sensor is specially designed for thin non-metallic pipelines
- Ensure the sensing clip fits tightly around the pipe
- Avoid installing the sensor directly on metallic pipes
Signal Output Wiring Diagram
Wire Connection
- Brown Wire – VCC: Connect to positive DC 5V to 24V power supply
- Blue Wire – GND: Connect to power supply negative / 0V
- Yellow Wire – OUT: High / Low level signal output
- Black Wire – MODE: Used to select normal or reverse output logic
Output Logic Selection
- Black MODE wire left disconnected: Positive output mode
- In positive output mode, when liquid is detected, the output changes to a high level
- When no liquid is detected in positive output mode, the output is low level
- Black MODE wire connected to GND / 0V: Reverse output mode
- In reverse output mode, when liquid is detected, the output changes to a low level
- When no liquid is detected in reverse output mode, the output is high level
Connection to Controller / MCU
The yellow OUT wire provides the high/low-level signal that can be connected to a compatible controller, microcontroller, PLC input or other control circuit.The Brown VCC wire connects to the positive supply, the Blue GND wire connects to 0V, and the Black MODE wire is used to select the required output logic.
Relay Connection
The high/low-level output can be used to drive a suitable small electric relay, provided that the relay coil current does not exceed the sensor's maximum output-current specification of 100mA.Always verify the relay operating voltage and current requirements before connecting it directly to the sensor output.
Environmental & Mechanical Specifications
- Operating Temperature Range: -20°C to 105°C
- Operating Humidity Range: 5% to 100%
- Liquid Level Accuracy: ±1.5mm
- Applicable Pipe Outer Diameter: 5mm to 10mm
- Maximum Pipe Outer Diameter: Approx. 11mm
- Housing Material: PC V0 fire-retardant material
- Waterproof Performance: IP67
- Maximum Output Current: ≤ 100mA
- Response Time: 500ms
- Safety Certification: CE
- Environmental Certification: RoHS 2.0
Installation & Usage Notes
- Use the sensor with non-metallic pipes
- Make sure the sensing section fits securely against the pipe
- Do not force the spring clips beyond approximately 60°
- Keep the sensor clean and free from metal debris around the sensing area
- Avoid strong impacts or mechanical damage
- Avoid installing the main sensor body close to excessive heat sources
- For outdoor applications, protect the sensor from prolonged direct sunlight and direct rain exposure
- Adjust the sensitivity if reliable liquid detection is not achieved after installation
Applications
- Thin water pipes
- Small-diameter liquid pipelines
- Water dispensers
- Drinking water equipment
- Automatic filling machines
- Liquid dispensing systems
- Water purification equipment
- Laboratory equipment
- Home appliances
- Industrial liquid monitoring systems
- Automatic liquid level control systems
- PLC control systems
- Microcontroller-based projects
- IoT liquid monitoring applications
- Non-metallic pipeline liquid detection
Troubleshooting
Package Includes
- 1 × XKC-Y26A-V Thin-Tube Non-Contact Liquid Level Sensor, 5-24V DC – Signal Output
