XKC-Y26S 24V DC Non-Contact Liquid Level Sensor with NPN Output

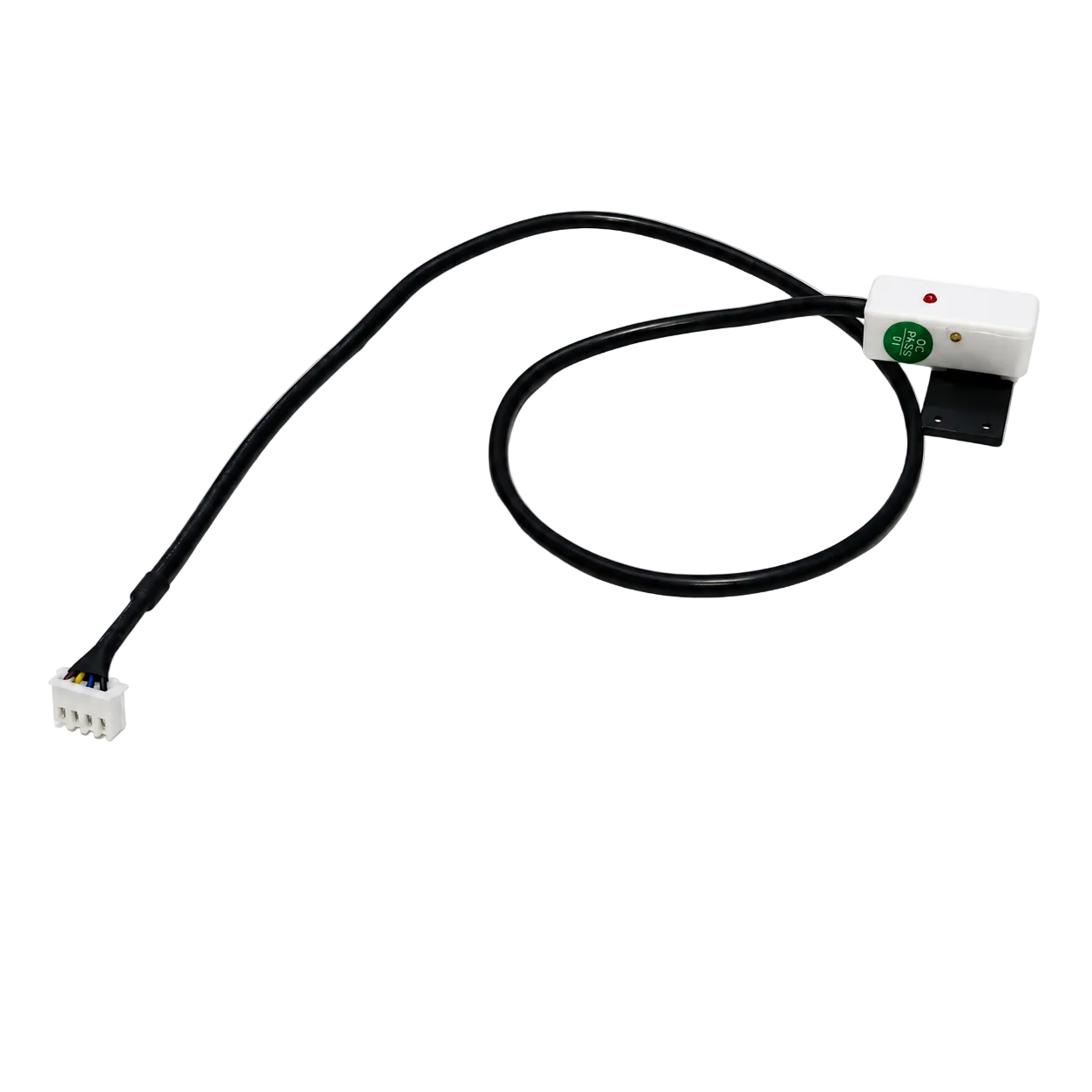

![XKC-Y26S 24V NPN Sensor]()

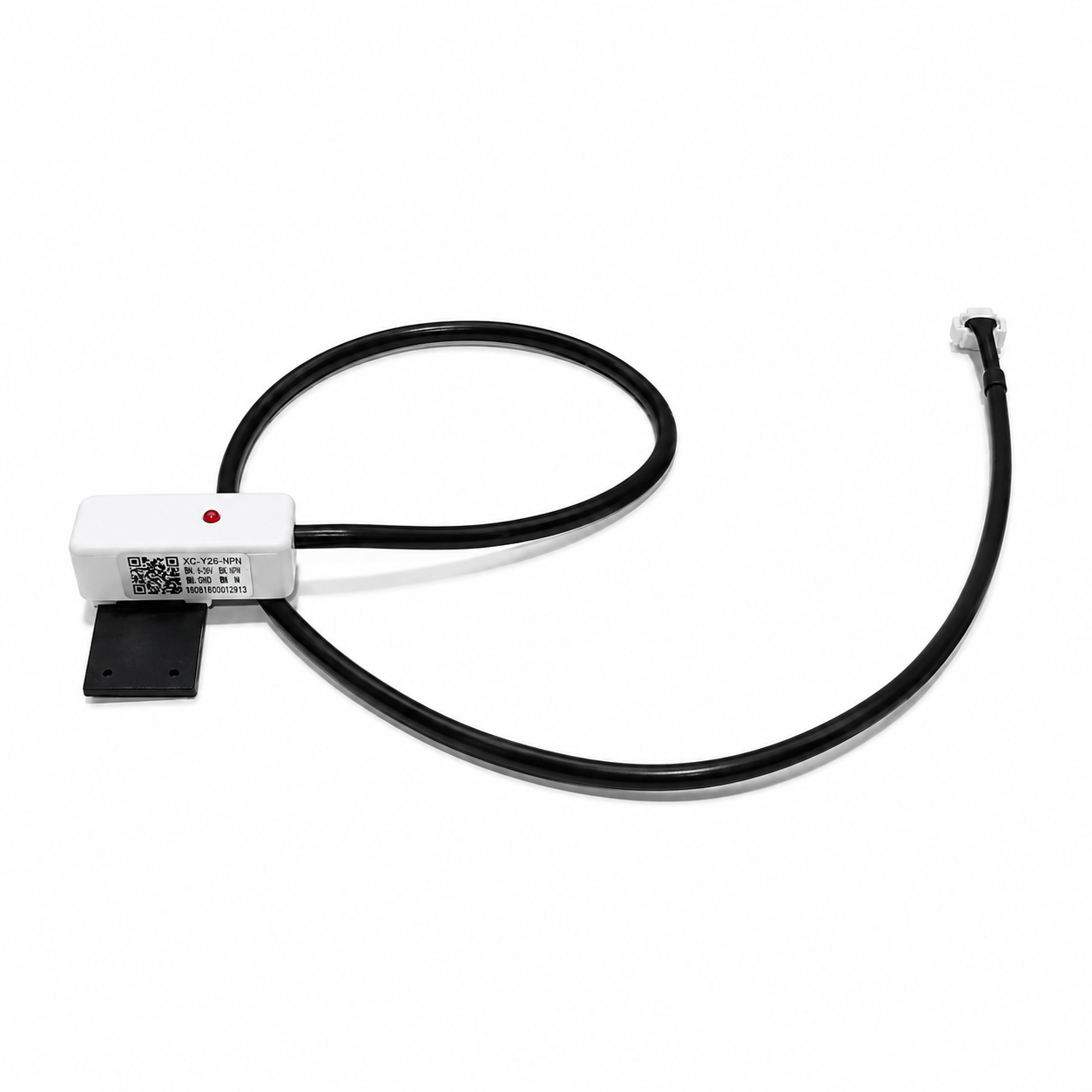

![Non-Contact Liquid Level Sensor]()

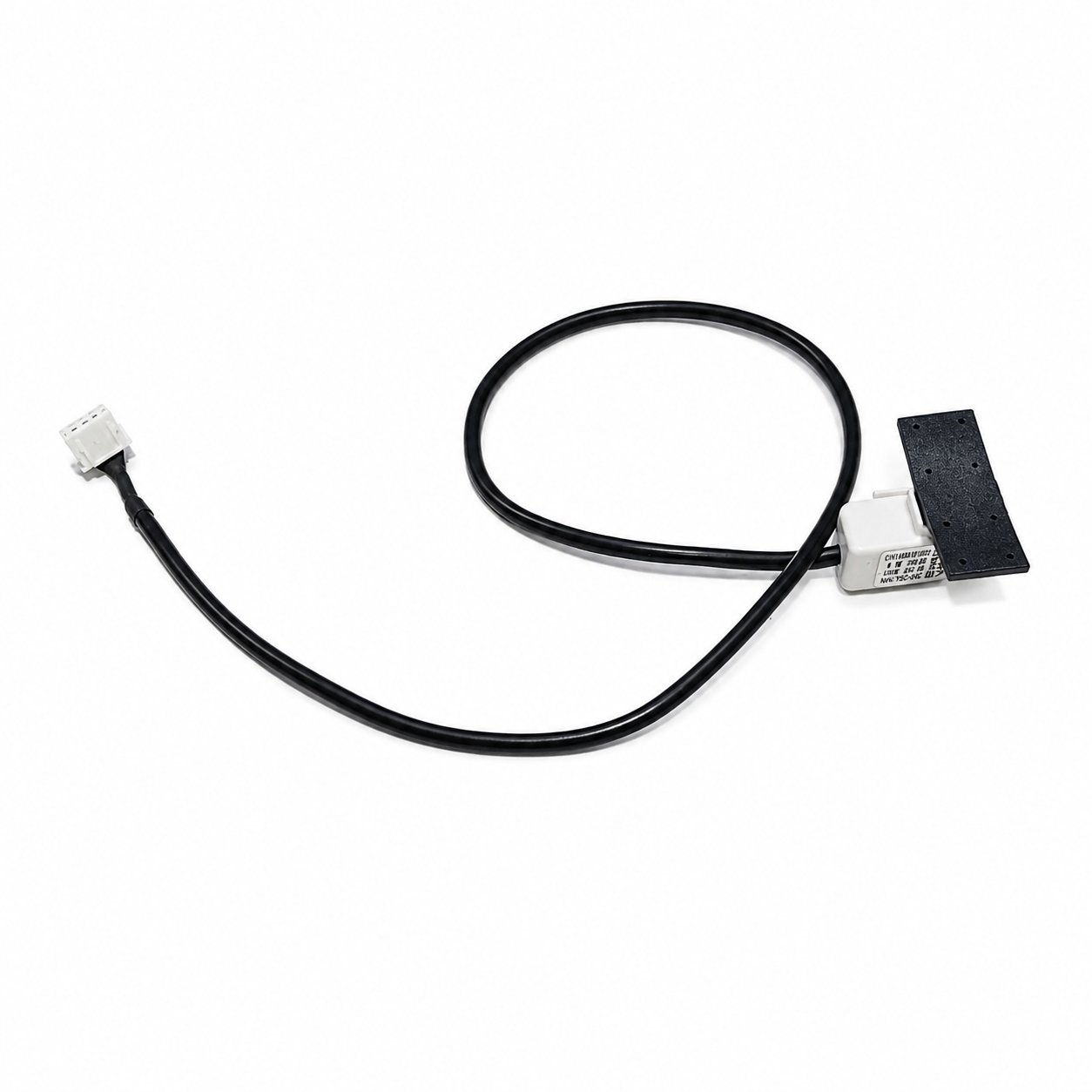

![24V NPN Level Detector]()
![XKC-Y26S 24V NPN Sensor]()
![Non-Contact Liquid Level Sensor]()
![24V NPN Level Detector]()
This model operates from a DC 24V power supply and provides an NPN output interface. The sensor provides reliable liquid-level detection while remaining completely outside the container, helping reduce contamination, corrosion, and leakage risks.
The internal control circuit detects this capacitance change and converts it into an electrical output signal. When the detected change reaches the set threshold, the sensor determines that liquid is present and switches the NPN output.
The gap between the sensor sensing surface and the container wall should be less than 0.5mm. For optimum liquid detection accuracy and sensitivity, no gap is recommended between the sensing surface and container wall.
-17%
XKC-Y26S 24V DC Non-Contact Liquid Level Sensor with NPN Output
Available:In Stock
- Product SKU: KG1384
₹ 699
₹ 848
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
XKC-Y26S 24V DC Non-Contact Liquid Level Sensor with NPN Output
The XKC-Y26S-NPN-DC 24V is a non-contact capacitive liquid level sensor designed for accurate liquid detection through the outer wall of non-metallic containers and pipes. It detects the presence of liquid without direct contact with the medium, making it suitable for sealed containers, water tanks, pipelines, automatic filling systems, industrial equipment, and automation applications.This model operates from a DC 24V power supply and provides an NPN output interface. The sensor provides reliable liquid-level detection while remaining completely outside the container, helping reduce contamination, corrosion, and leakage risks.
Features
- Non-contact liquid level detection through non-metallic walls
- No direct contact between the sensor and liquid
- 24V DC operating voltage
- NPN transistor output interface
- Suitable for plastic and other non-metallic containers and pipes
- High sensitivity and stable sensing performance
- Adjustable sensing sensitivity
- Normally Open and Normally Closed output selection
- Low current consumption of ≤ 5mA
- Maximum output current up to 100mA
- 500ms response time
- Level accuracy of ±1.5mm
- Applicable for pipe diameters of 10mm and above
- PC + ABS V0 fire-retardant housing
- IP67 waterproof protection
- Wide operating temperature range
- No drilling of the container is required
- CE certified
- RoHS 2.0 compliant
Working Principle
The sensor works using the capacitive sensing principle. When no liquid is present near the sensing surface, the sensor maintains its normal capacitance level. When liquid reaches the sensing position, the electrical capacitance detected through the non-metallic container wall changes.The internal control circuit detects this capacitance change and converts it into an electrical output signal. When the detected change reaches the set threshold, the sensor determines that liquid is present and switches the NPN output.
Technical Details
- Item Type: Non-Contact Liquid Level Sensor
- Series: XKC-Y26S
- Model Name: XKC-Y26S-NPN-DC 24V
- Operating Principle: Capacitive sensing
- Input Voltage: DC 24V
- Output Mode: NPN output interface
- Current Consumption: ≤ 5mA
- Maximum Output Current: ≤ 100mA
- Response Time: 500ms
- Operating Temperature Range: -20°C to 105°C
- Operating Humidity Range: 5% to 100%
- Level Accuracy: ±1.5mm
- Applicable Pipe Diameter: ≥ 10mm
- Housing Material: PC + ABS V0 fire-retardant material
- Waterproof Rating: IP67
- Safety Certification: CE
- Environmental Certification: RoHS 2.0
Mechanical Drawing & Dimensions
Gap Requirement Between Sensor and Container Wall
The sensing surface should be attached tightly to the outer wall of the container. Use AB glue or another durable and strong adhesive to secure the sensor firmly to the container surface.The gap between the sensor sensing surface and the container wall should be less than 0.5mm. For optimum liquid detection accuracy and sensitivity, no gap is recommended between the sensing surface and container wall.
Gap Requirement Between Sensor and Container Wall Drawing
Flat Container Installation
Pipe Installation
Sensitivity Adjustment
- Use a small screwdriver to adjust the sensing sensitivity
- Rotate counterclockwise to increase sensitivity
- Rotate clockwise to decrease sensitivity
- Adjust the sensitivity after installing the sensor on the actual container or pipe
Wall Thickness & Pipe Diameter Selection
Wall Thickness Selection Guide
- Pipe Diameter D ≥ 100mm: Recommended Wall Thickness 20 ± 2mm
- Pipe Diameter 100mm > D ≥ 80mm: Recommended Wall Thickness 15 ± 2mm
- Pipe Diameter 80mm > D ≥ 60mm: Recommended Wall Thickness 12 ± 1.5mm
- Pipe Diameter 60mm > D ≥ 40mm: Recommended Wall Thickness 7 ± 1.0mm
- Pipe Diameter 40mm > D ≥ 30mm: Recommended Wall Thickness 5 ± 1.0mm
- Pipe Diameter 30mm > D ≥ 20mm: Recommended Wall Thickness 3 ± 1.0mm
- Pipe Diameter 20mm > D ≥ 10mm: Recommended Wall Thickness 1.5 ± 0.5mm
NPN Wiring Diagram
Wire Connection
- Brown Wire – VCC: Connect to positive DC 24V power supply
- Blue Wire – GND: Connect to power supply negative / 0V
- Yellow Wire – OUT: NPN signal output
- Black Wire – MODE: Used for Normally Open / Normally Closed output selection
Normally Open / Normally Closed Output Selection
- Connect the Black MODE wire to 0V / GND for Normally Open (NO) operation
- Connect the Black MODE wire to VCC for Normally Closed (NC) operation
Environmental & Mechanical Specifications
- Operating Temperature Range: -20°C to 105°C
- Operating Humidity Range: 5% to 100%
- Level Accuracy: ±1.5mm
- Minimum Applicable Pipe Diameter: 10mm
- Maximum Recommended Wall Thickness: Up to 20 ± 2mm depending on pipe diameter
- Housing Material: PC + ABS V0 fire-retardant material
- Waterproof Performance: IP67
- Safety Certification: CE
- Environmental Certification: RoHS 2.0
Installation Instructions
- Install the sensor on the outside of a non-metallic container or pipe
- Position the sensing surface at the required liquid detection level
- Ensure the sensing surface has full contact with the container or pipe wall
- For flat containers, keep the gap below 0.5mm
- For best sensing performance, installation without any gap is recommended
- Use strong adhesive for flat containers
- Use suitable plastic cable ties when installing on pipes
- Adjust the sensitivity after installation if required
- Select NO or NC operation using the black MODE wire
Applications
- Water tanks and reservoirs
- Liquid storage containers
- Plastic water tanks
- Water dispensers
- Industrial liquid level monitoring
- Non-metallic pipelines
- Automatic filling systems
- Liquid level alarm systems
- Water treatment equipment
- Home appliances
- Industrial automation equipment
- PLC control systems
- Automation projects
- IoT liquid level monitoring systems
Package Includes
- 1 × XKC-Y26S-NPN-DC 24V Non-Contact Liquid Level Sensor with NPN Output
