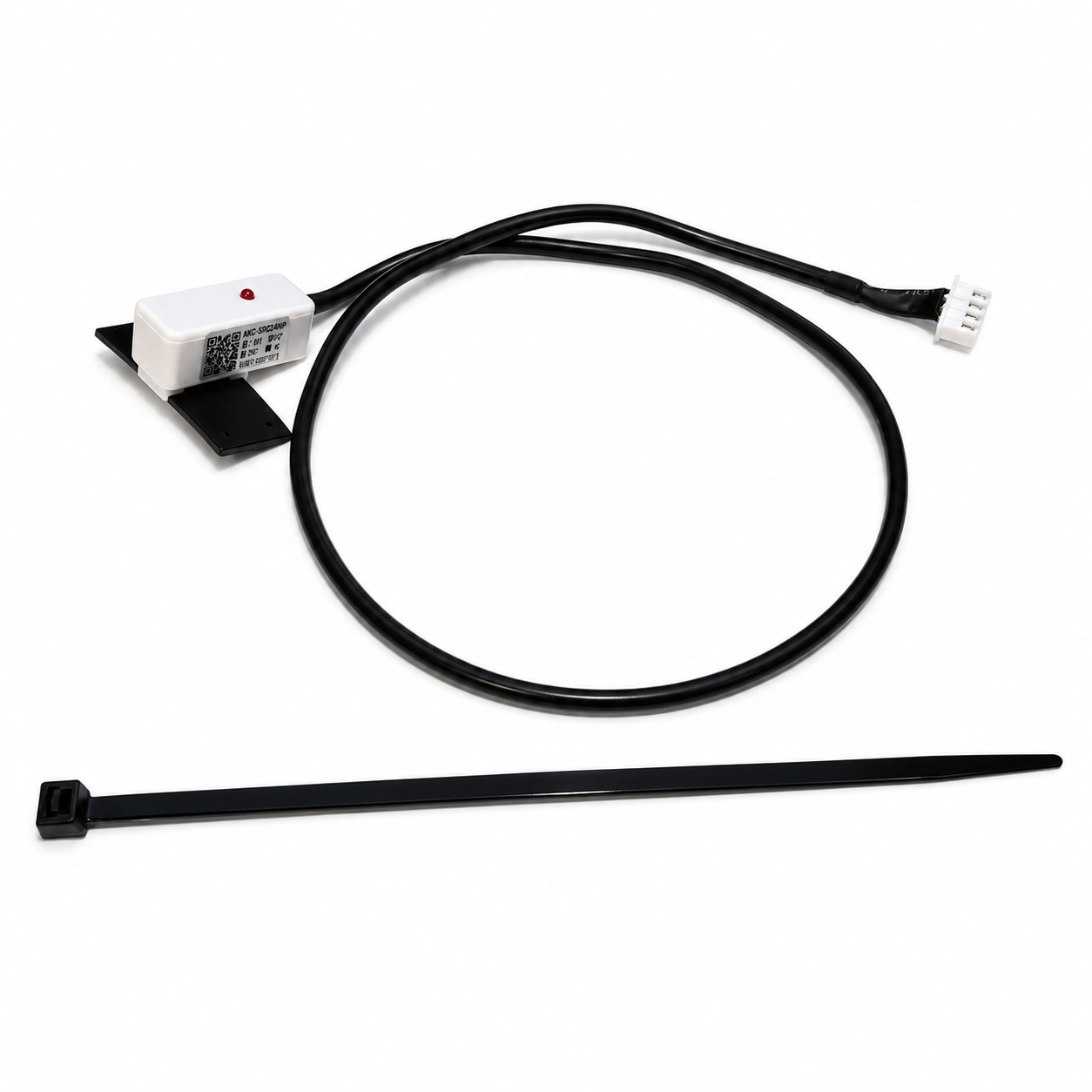

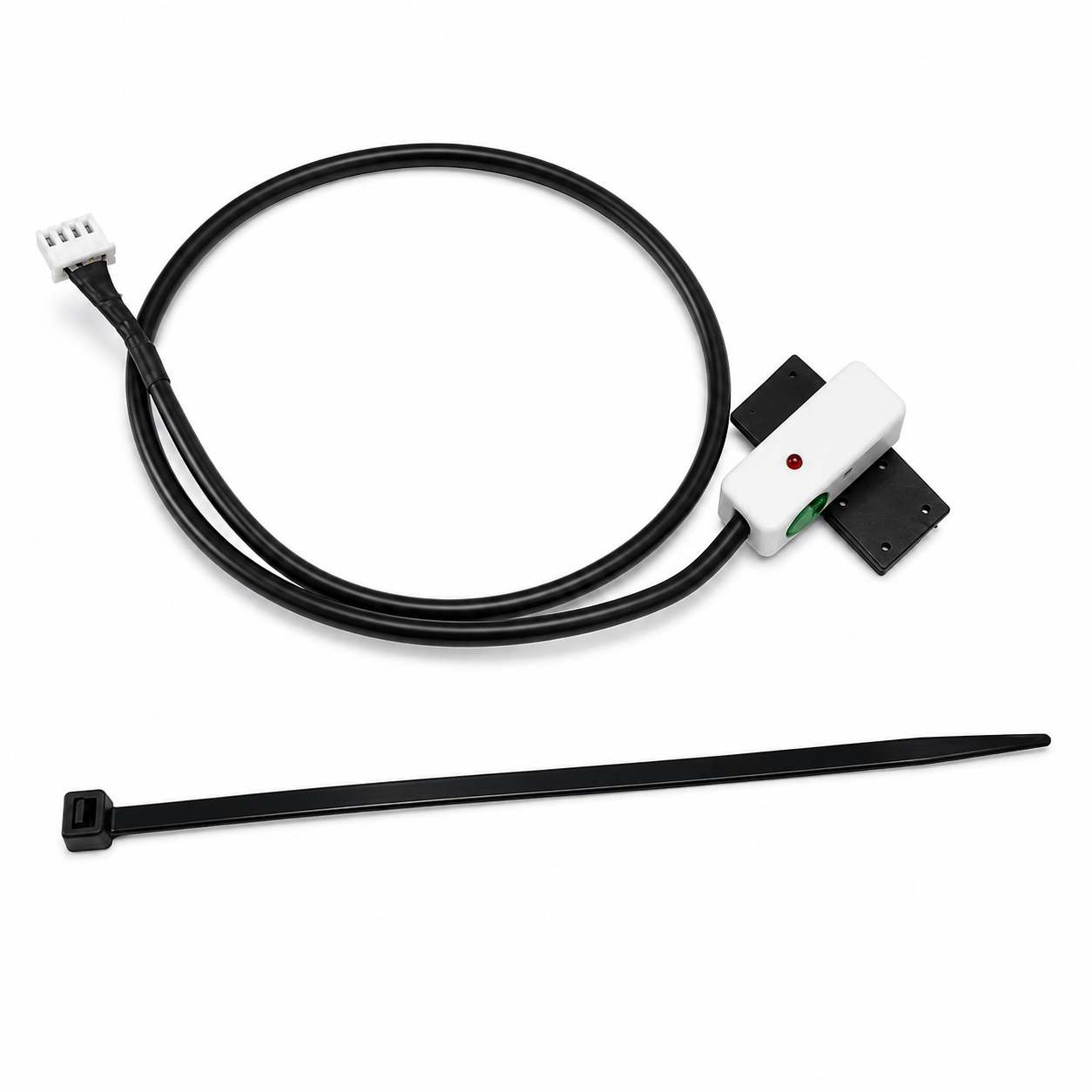

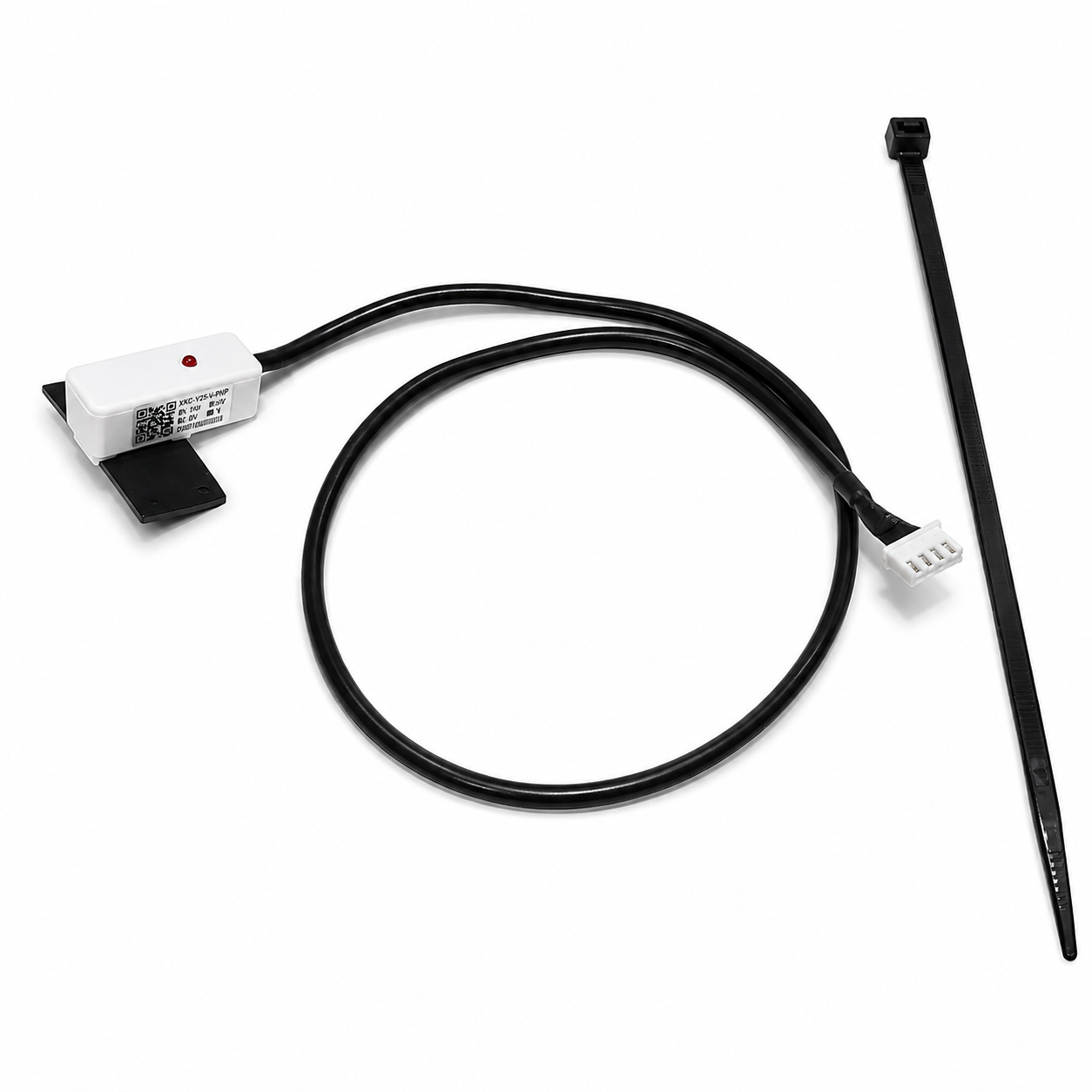

XKC-Y26S-PNP 24V Non-Contact Water/Liquid Level Sensor – PNP Output
![XKC-Y26S 24V PNP Sensor]()
![PNP Non-Contact Level Switch]()
![Capacitive Liquid Detection Sensor]()
![XKC-Y26S 24V PNP Sensor]()
![PNP Non-Contact Level Switch]()
![Capacitive Liquid Detection Sensor]()
This model operates from a 24V DC power supply and provides a PNP output interface. Its non-contact sensing design helps reduce contamination, corrosion, leakage, and maintenance issues associated with conventional contact-type liquid level sensors.
The internal control circuit detects this capacitance variation and converts it into an electrical signal. When the detected change reaches the set threshold, the sensor determines that liquid is present and switches the PNP output.
The gap between the sensor sensing surface and the container wall should be less than 0.5mm. For optimum sensing sensitivity and reliable liquid detection, no gap is recommended between the sensor and container wall.
Always connect the sensor according to the dedicated XKC-Y26S-PNP 24V wiring diagram supplied with the product.
-17%
XKC-Y26S-PNP 24V Non-Contact Water/Liquid Level Sensor – PNP Output
Available:In Stock
- Product SKU: KG1385
₹ 699
₹ 848
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
XKC-Y26S-PNP 24V Non-Contact Water/Liquid Level Sensor – PNP Output
The XKC-Y26S-PNP 24V is a non-contact capacitive water and liquid level sensor designed to detect liquid through the outer wall of non-metallic containers and pipes. It is installed externally and detects the presence of liquid without requiring direct contact with the medium, making it suitable for sealed tanks, water containers, non-metallic pipes, liquid storage systems, industrial equipment, and automation applications.This model operates from a 24V DC power supply and provides a PNP output interface. Its non-contact sensing design helps reduce contamination, corrosion, leakage, and maintenance issues associated with conventional contact-type liquid level sensors.
Features
- Non-contact water and liquid level detection
- Detects liquid through non-metallic container walls
- No direct contact between sensor and liquid
- 24V DC operating voltage
- PNP transistor output interface
- Low current consumption of ≤ 5mA
- Maximum output current up to 100mA
- 500ms response time
- Level accuracy of ±1.5mm
- Adjustable sensing sensitivity
- Suitable for non-metallic tanks, containers and pipes
- Suitable for pipe diameters of 10mm and above
- External mounting – no drilling of the container required
- PC + ABS V0 fire-retardant housing
- IP67 waterproof protection
- Wide operating temperature range
- CE certified
- RoHS 2.0 compliant
Working Principle
The sensor operates using the capacitive sensing principle. When no liquid is present near the sensing surface, the sensor maintains its normal capacitance level. When the liquid reaches the sensing position, the electrical capacitance detected through the non-metallic container wall changes.The internal control circuit detects this capacitance variation and converts it into an electrical signal. When the detected change reaches the set threshold, the sensor determines that liquid is present and switches the PNP output.
Technical Details
- Item Type: Non-Contact Water / Liquid Level Sensor
- Series: XKC-Y26S
- Model: XKC-Y26S-PNP 24V
- Operating Principle: Capacitive sensing
- Input Voltage: DC 24V
- Output Type: PNP output interface
- Current Consumption: ≤ 5mA
- Maximum Output Current: ≤ 100mA
- Response Time: 500ms
- Operating Temperature Range: -20°C to 105°C
- Operating Humidity Range: 5% to 100%
- Level Accuracy: ±1.5mm
- Applicable Pipe Diameter: ≥ 10mm
- Housing Material: PC + ABS V0 fire-retardant material
- Waterproof Rating: IP67
- Safety Certification: CE
- Environmental Certification: RoHS 2.0
Mechanical Drawing & Dimensions
Gap Requirement Between Sensor and Container Wall
The sensing surface should be attached tightly to the outer wall of the container. Use AB glue or another durable adhesive to securely attach the sensor to the container wall.The gap between the sensor sensing surface and the container wall should be less than 0.5mm. For optimum sensing sensitivity and reliable liquid detection, no gap is recommended between the sensor and container wall.
Gap Requirement Between Sensor and Container Wall Drawing
Flat Container Installation
Pipe Installation
Sensitivity Adjustment
- Use a small screwdriver to adjust the sensing sensitivity
- Rotate counterclockwise to increase sensitivity
- Rotate clockwise to decrease sensitivity
- Adjust sensitivity after installing the sensor on the actual tank, container or pipe
Wall Thickness & Pipe Diameter Selection
Wall Thickness Selection Guide
- Pipe Diameter D ≥ 100mm: Wall Thickness 20 ± 2mm
- Pipe Diameter 100mm > D ≥ 80mm: Wall Thickness 15 ± 2mm
- Pipe Diameter 80mm > D ≥ 60mm: Wall Thickness 12 ± 1.5mm
- Pipe Diameter 60mm > D ≥ 40mm: Wall Thickness 7 ± 1.0mm
- Pipe Diameter 40mm > D ≥ 30mm: Wall Thickness 5 ± 1.0mm
- Pipe Diameter 30mm > D ≥ 20mm: Wall Thickness 3 ± 1.0mm
- Pipe Diameter 20mm > D ≥ 10mm: Wall Thickness 1.5 ± 0.5mm
PNP Output & Wiring
The XKC-Y26S-PNP 24V uses a PNP transistor output. In a PNP configuration, the sensor provides a positive output signal when the output transistor is switched.Always connect the sensor according to the dedicated XKC-Y26S-PNP 24V wiring diagram supplied with the product.
Environmental & Mechanical Specifications
- Operating Temperature Range: -20°C to 105°C
- Operating Humidity Range: 5% to 100%
- Level Accuracy: ±1.5mm
- Minimum Applicable Pipe Diameter: 10mm
- Maximum Recommended Wall Thickness: Up to 20 ± 2mm depending on pipe diameter
- Housing Material: PC + ABS V0 fire-retardant material
- Waterproof Performance: IP67
- Safety Certification: CE
- Environmental Certification: RoHS 2.0
Installation Instructions
- Install the sensor externally on a non-metallic container or pipe
- Position the sensing surface at the required liquid level detection point
- Ensure the sensing surface has full contact with the container or pipe wall
- Keep the installation gap below 0.5mm
- For optimum performance, installation without any gap is recommended
- Use a durable adhesive for installation on flat container surfaces
- Use suitable plastic cable ties for installation on pipes
- Adjust the sensitivity after final installation if required
- Do not install the sensing surface on a metallic container wall
Applications
- Water tanks and reservoirs
- Liquid storage containers
- Plastic water tanks
- Water dispensers
- Industrial liquid level monitoring
- Non-metallic pipelines
- Automatic filling systems
- Liquid level alarm systems
- Water treatment equipment
- Home appliances
- Industrial automation equipment
- PLC control systems
- Factory automation systems
- IoT liquid level monitoring projects
Package Includes
- 1 × XKC-Y26S-PNP 24V Non-Contact Water/Liquid Level Sensor – PNP Output
