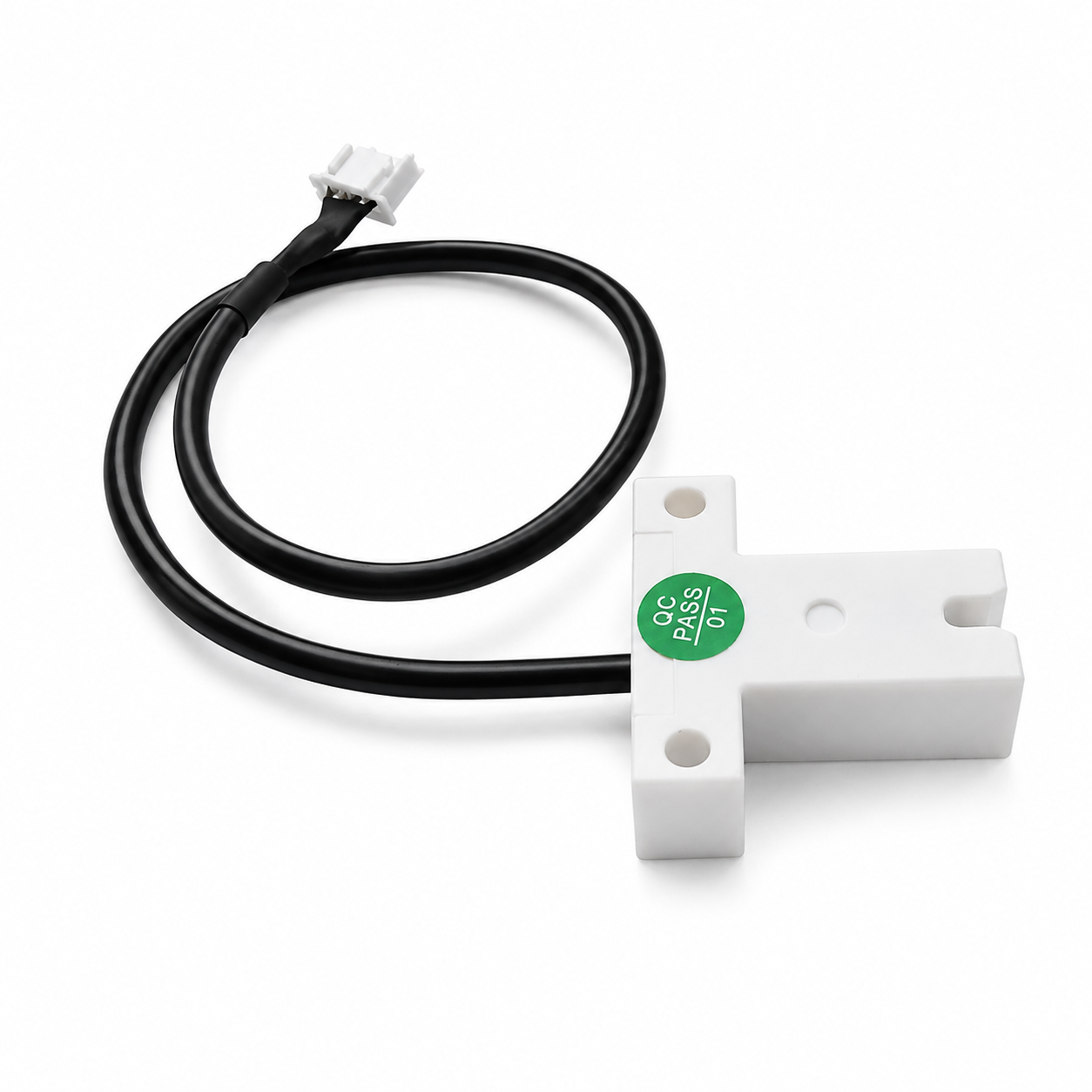

Y27C-NPN Level Sensor - Main

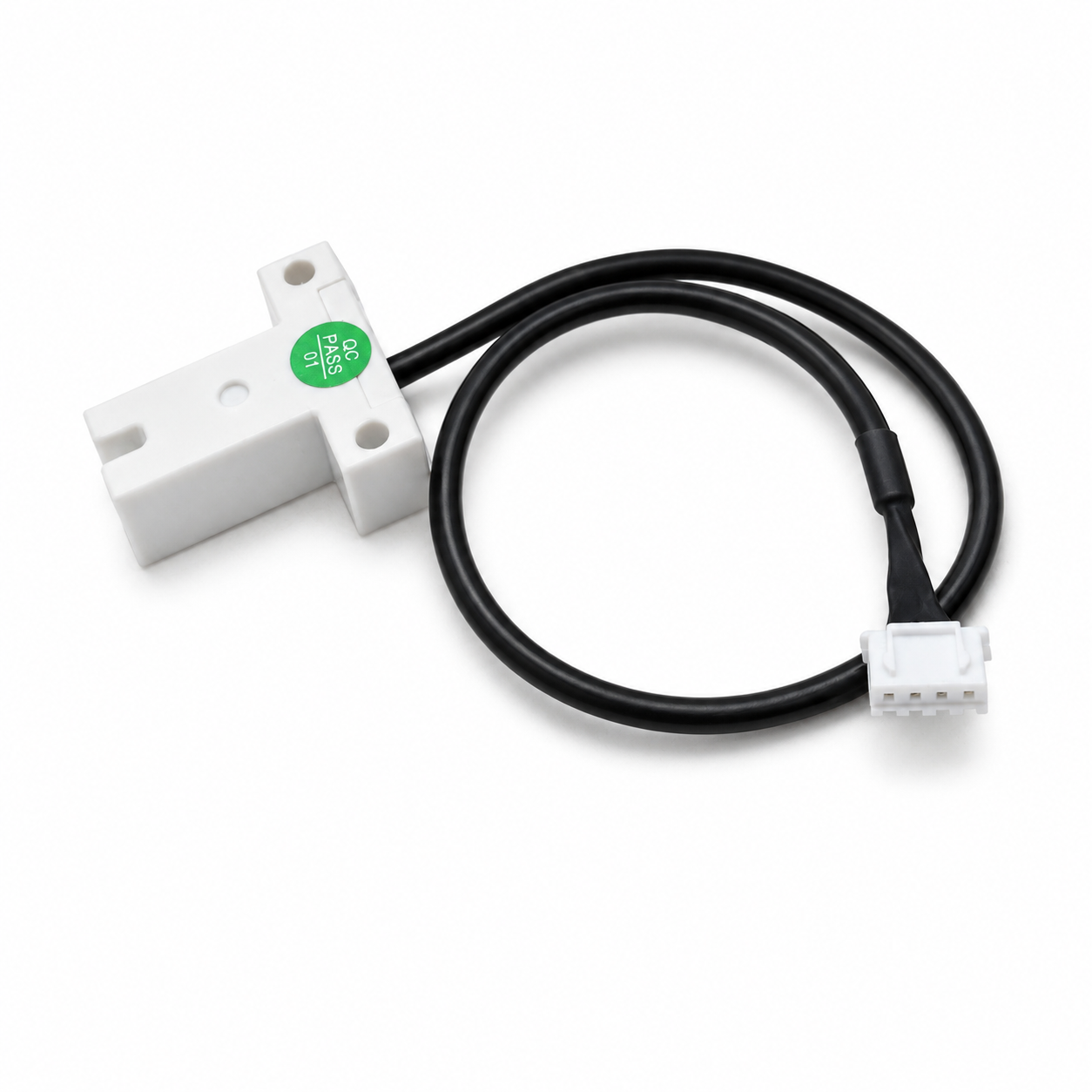

Y27C-NPN Level Sensor - Side
Y27C-NPN Level Sensor - Detail
Y27C-NPN Level Sensor - Main
Y27C-NPN Level Sensor - Side
Y27C-NPN Level Sensor - Detail

XKC-Y27C-NPN 5-24V Non-Contact Tube Liquid Level Sensor – 3mm, NPN Output

Available:In Stock
  • Product SKU: KG1411
Wishlist
₹ 639 ₹ 788
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
  • Non-contact liquid detection
  • Operating Voltage: DC 5–24V
  • NPN Output
  • Suitable for 3mm tubes
  • Compact and easy to install
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
How Fast We Ship
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

🏠 Warehouse Details:
24 H - 170 Q
Secure

Specification

Description

XKC-Y27C-NPN-DC 5-24V-D3mm Non-Contact Liquid Level Sensor

The XKC-Y27C-NPN-DC 5-24V-D3mm Non-Contact Liquid Level Sensor is designed for non-contact liquid level detection in small-diameter tubes. The clip-type sensing body installs around a suitable 3mm outer diameter tube without ties or contact with the liquid.

Operating on a DC 5-24V power supply, this variant has an NPN output and is designed to fit a 3mm outer diameter tube. It can be connected to a suitably rated relay or compatible control input using the NPN wiring arrangement.

With 3.5mA current consumption and a 500ms response time, the sensor is suited to compact fluid monitoring. Its PC V0 fireproof housing and IP67 waterproof rating support use in demanding environments.

Features

  • Non-contact liquid detection without exposing the sensor to the liquid
  • Tube-type clip design for quick installation without ties
  • Designed for 3mm outer diameter tubes
  • Wide DC 5-24V operating range
  • NPN switching output for compatible control and relay applications
  • NPN wiring arrangement shown in the included diagram
  • Low current consumption: 3.5mA
  • 500ms response time
  • IP67 waterproof rating
  • PC V0 fireproof housing

Technical Details

  • Item Type: Thin Tube Non-Contact Liquid Level Sensor
  • Model No.: XKC-Y27C-NPN
  • Operating Voltage: DC 5-24V
  • Operating Current: 3.5mA
  • Output Type: NPN
  • Rated Output Current: ≤1A
  • Response Time: 500ms
  • Operating Temperature: -20°C to 85°C
  • Suitable Tube Diameter: 3mm OD
  • Operating Humidity: 5%-80% (non-condensing)
  • Housing Material: PC V0 fireproof
  • Waterproof Rating: IP67
  • Safety Certification: CE
  • Environmental Compliance: RoHS 2.0
  • Standard Cable Length: 300mm

Applications

  • Thin-tube liquid level monitoring
  • Small liquid dispensing systems
  • Fluid handling and water monitoring equipment
  • Compatible relay and automation control systems
  • Laboratory liquid handling setups

Drawing

Wiring Diagram

Physical Attributes

  • Clip Opening Diameter: 3mm
  • Sensor Body Thickness: 13mm
  • Mounting Section Length: 40.24mm
  • Mounting Section Height: 35mm
  • Mounting Hole Spacing: 28mm
  • Mounting Hole Diameter: Ø4.1mm
  • Standard Cable Length: 300mm

Package Includes

  • 1 × XKC-Y27C-NPN-DC 5-24V-D3mm Non-Contact Liquid Level Sensor
