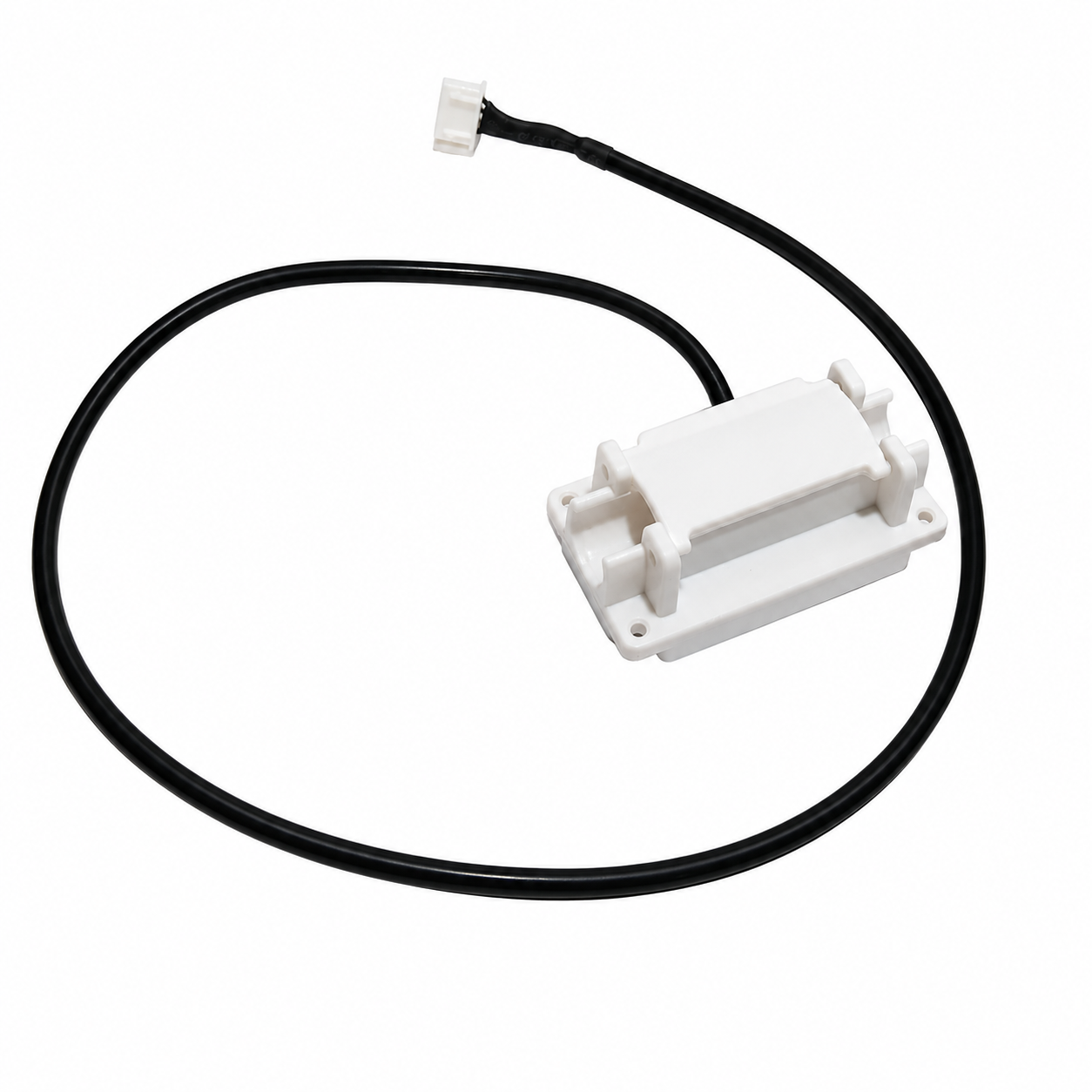

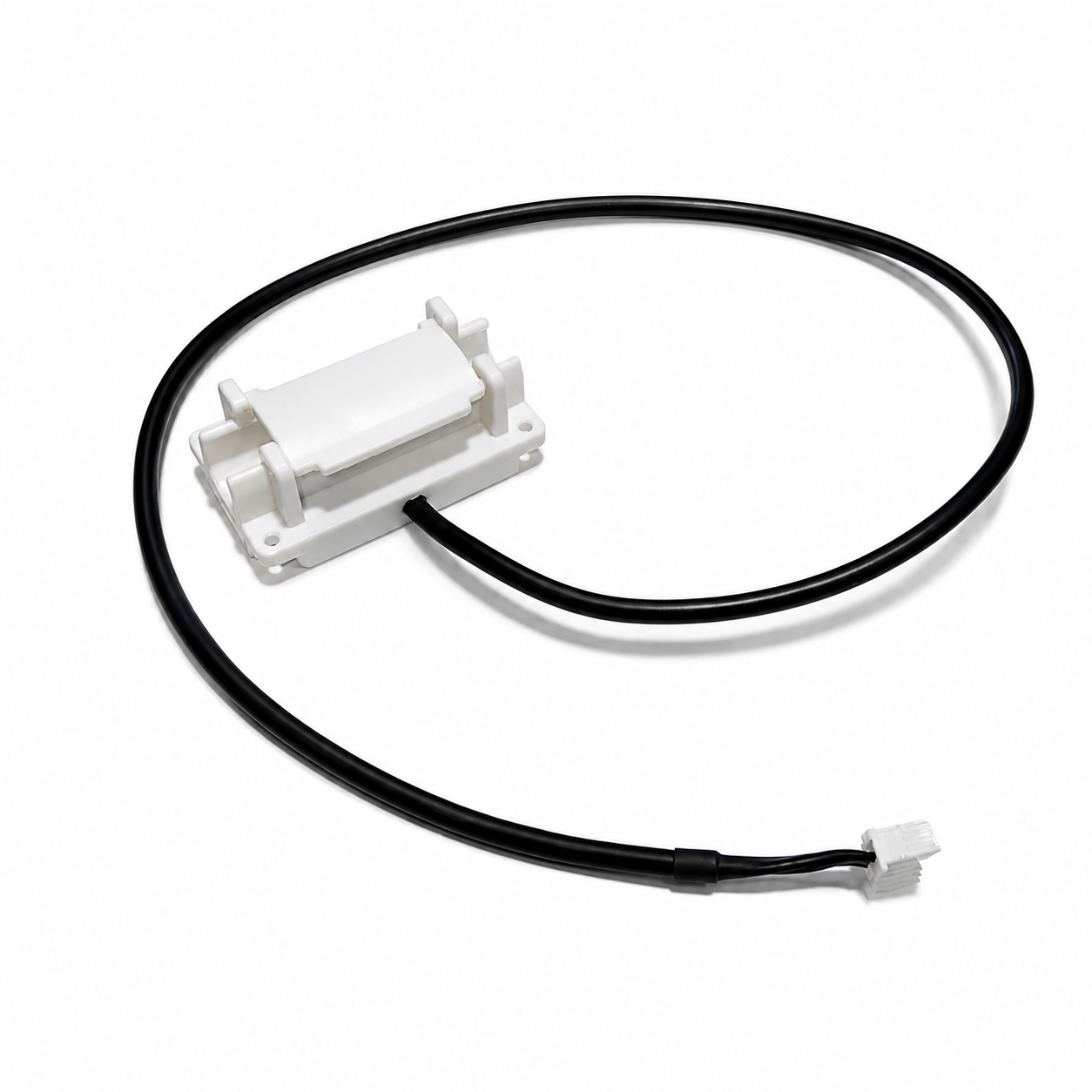

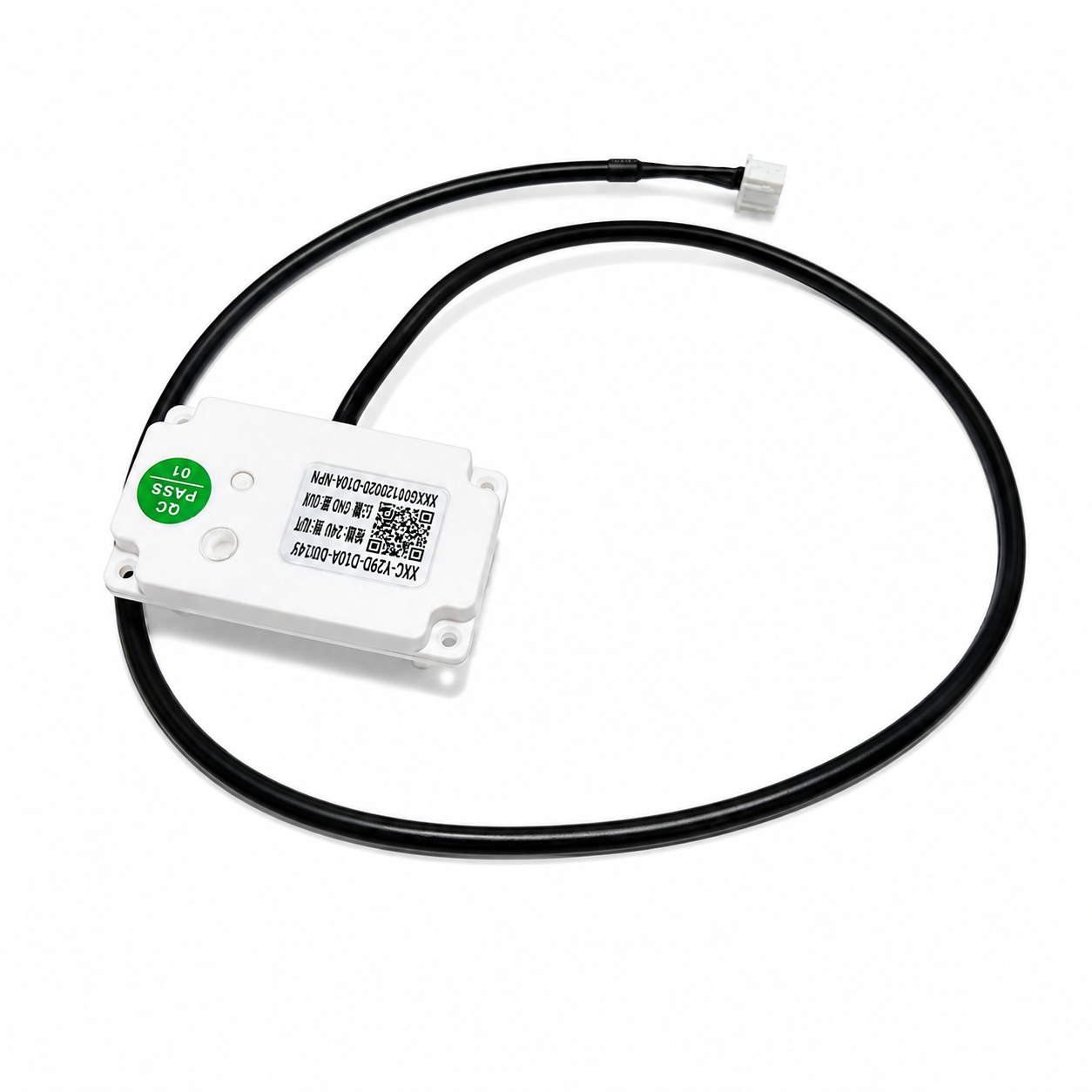

10mm XKC-Y29D-D10-NPN Clip-On Pipeline Liquid Level Sensor – 12-24V DC
![10mm Pipeline Sensor]()
![Clip-On Liquid Sensor]()
![12-24V Tube Sensor]()
![10mm Pipeline Sensor]()
![Clip-On Liquid Sensor]()
![12-24V Tube Sensor]()
The sensor incorporates environmental temperature drift compensation to maintain stable sensitivity under changing temperature conditions. It can also detect a small amount of residual or wall-hanging liquid inside the pipe. With an NPN output, fast response and IP67 waterproof protection, it is suitable for industrial automation, liquid monitoring and fluid handling equipment.
-11%
10mm XKC-Y29D-D10-NPN Clip-On Pipeline Liquid Level Sensor – 12-24V DC
Available:In Stock
- Product SKU: KG1460
₹ 1,099
₹ 1,248
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
Pro-Range XKC-Y29D-D10-NPN DC 12–24V 10mm Clip-On Non-Contact Pipeline Liquid Level Sensor
The Pro-Range XKC-Y29D-D10-NPN Clip-On Non-Contact Pipeline Liquid Level Sensor is designed for reliable liquid detection in 10mm diameter pipelines without direct contact with the liquid. Its compact clip-on structure provides secure installation around the pipe and helps reduce pipe displacement caused by equipment vibration or pulling.The sensor incorporates environmental temperature drift compensation to maintain stable sensitivity under changing temperature conditions. It can also detect a small amount of residual or wall-hanging liquid inside the pipe. With an NPN output, fast response and IP67 waterproof protection, it is suitable for industrial automation, liquid monitoring and fluid handling equipment.
Features
- Non-contact liquid detection for 10mm diameter pipelines
- Clip-on structure for quick and secure installation
- Helps prevent pipe displacement caused by vibration or pulling
- Environmental temperature drift compensation for stable sensitivity
- Capable of detecting small amounts of wall-hanging liquid
- NPN output for connection with compatible controllers and PLC systems
- Fast response time of ≤100ms
- Wide operating voltage range of DC 12–24V
- Low power consumption of ≤10mA
- IP67 waterproof protection
Technical Details
- Item Type: Non-Contact Pipeline Liquid Level Sensor
- Model No.: XKC-Y29D-D10-NPN
- Pipe Diameter: D10 / 10mm
- Output Type: NPN
- Operating Voltage: DC 12–24V
- Power Ripple Requirement: ≤10%V
- Power Consumption: ≤10mA
- Power-On Delay: ≤500ms
- Response Time: ≤100ms
- Operating Temperature: -25°C to +85°C
- Operating Humidity: 0%–90% RH, No Condensation
- Temperature Drift: ≤20% (-25°C to +60°C)
- Liquid Conductivity: ≤25000µS/cm
- Repeatability Precision: <3mm
- Wire Length: 500mm ±10mm
- Waterproof Rating: IP67
- Safety Certification: CE
- Environmental Certification: RoHS 2.0
Applications
- Pipeline liquid level monitoring
- Automatic filling and dispensing equipment
- Water treatment systems
- Laboratory and testing equipment
- Industrial automation systems
- PLC-based liquid detection systems
- Fluid handling and control equipment
Drawing
Wiring Diagram
Wiring Connection
- Brown Wire: VCC / DC 12–24V
- Yellow Wire: NPN Signal Output
- Blue Wire: GND
- Black Wire: MARK
Physical Attributes
- Suitable Pipe Diameter: 10mm
- Body Width: Approx. 29.50mm
- Body Height: Approx. 51.40mm
- Body Thickness: Approx. 7.80mm
- Wire Length: Approx. 500mm
- Compact clip-on sensor housing
Package Includes
- 1 × XKC-Y29D-D10-NPN DC 12–24V 10mm Clip-On Non-Contact Pipeline Liquid Level Sensor
