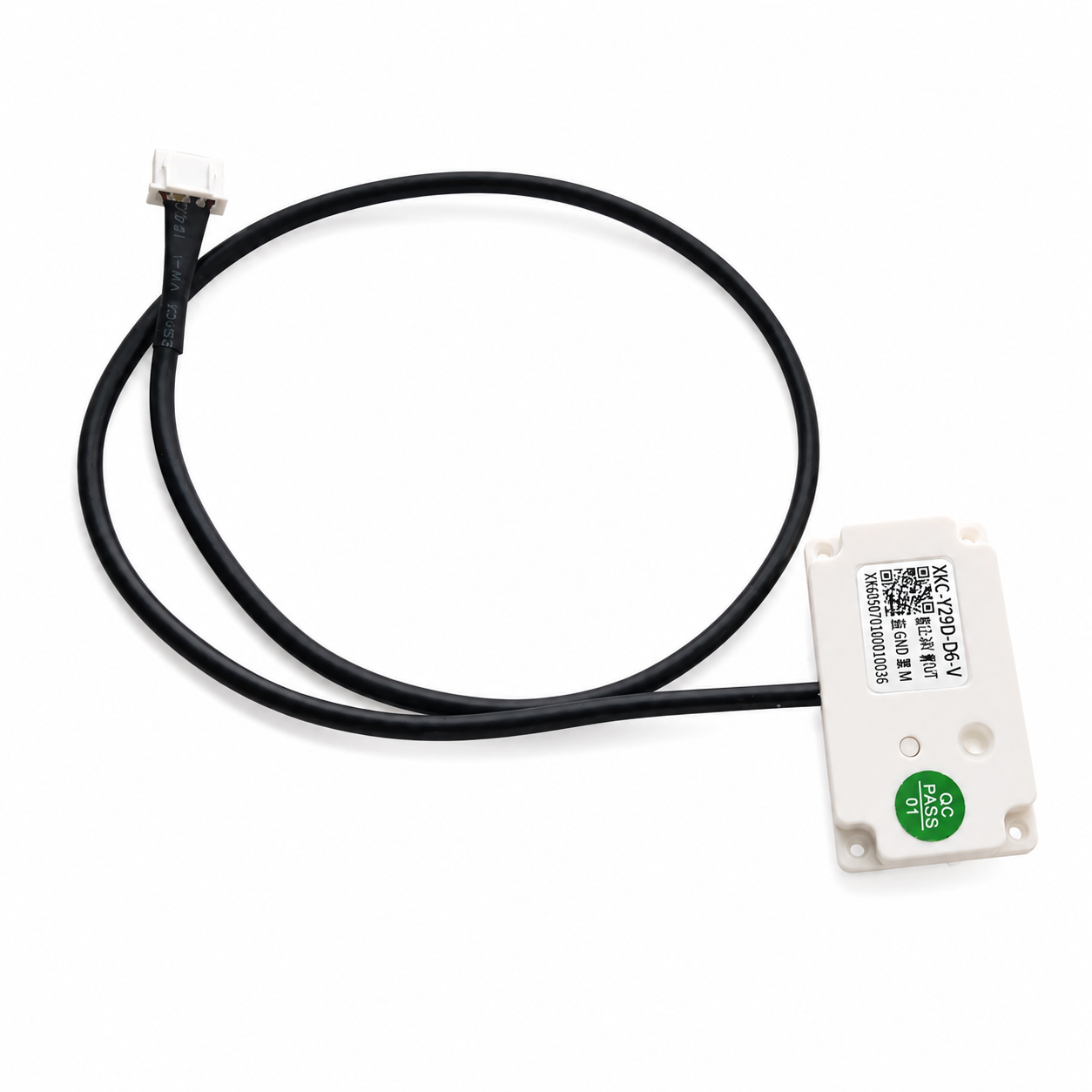

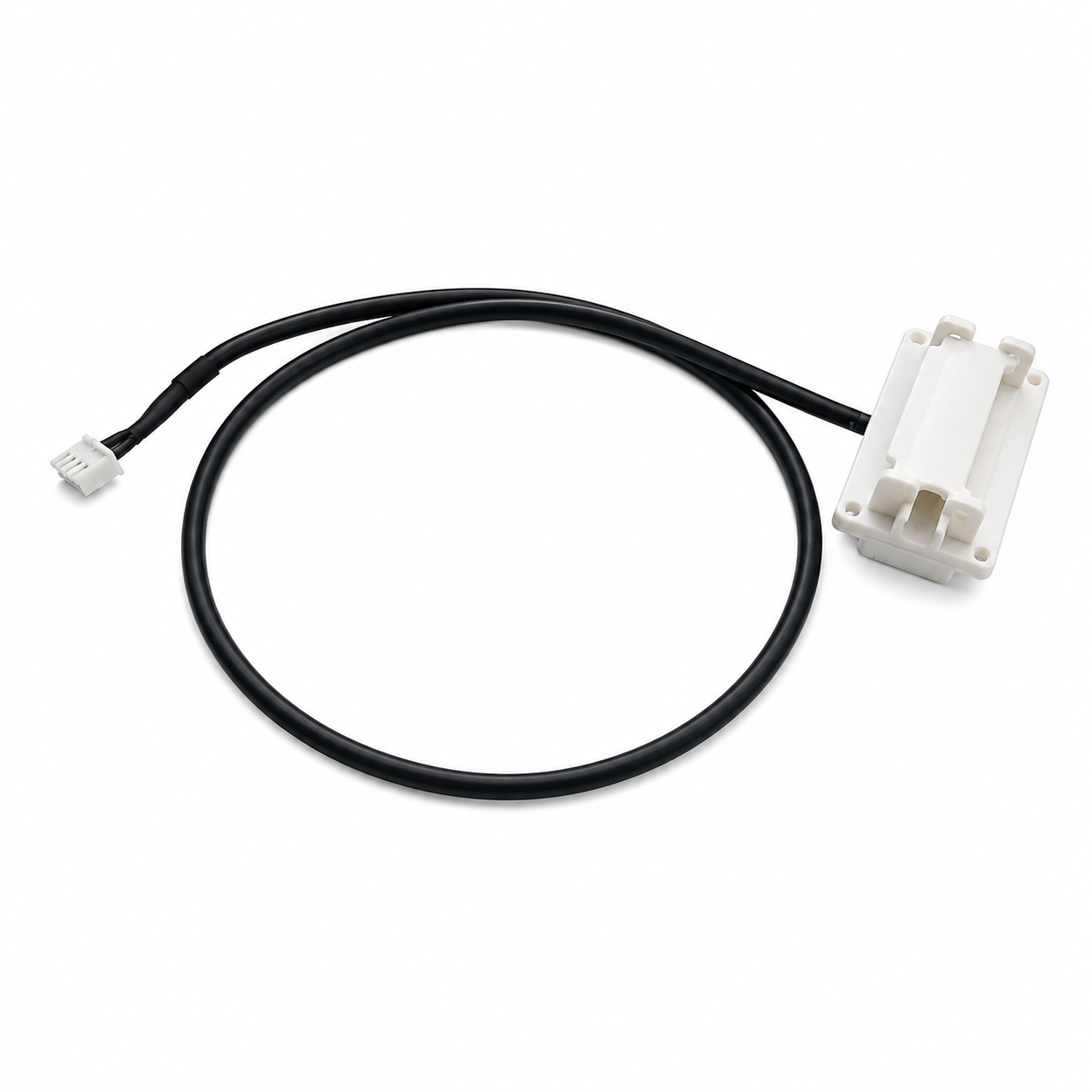

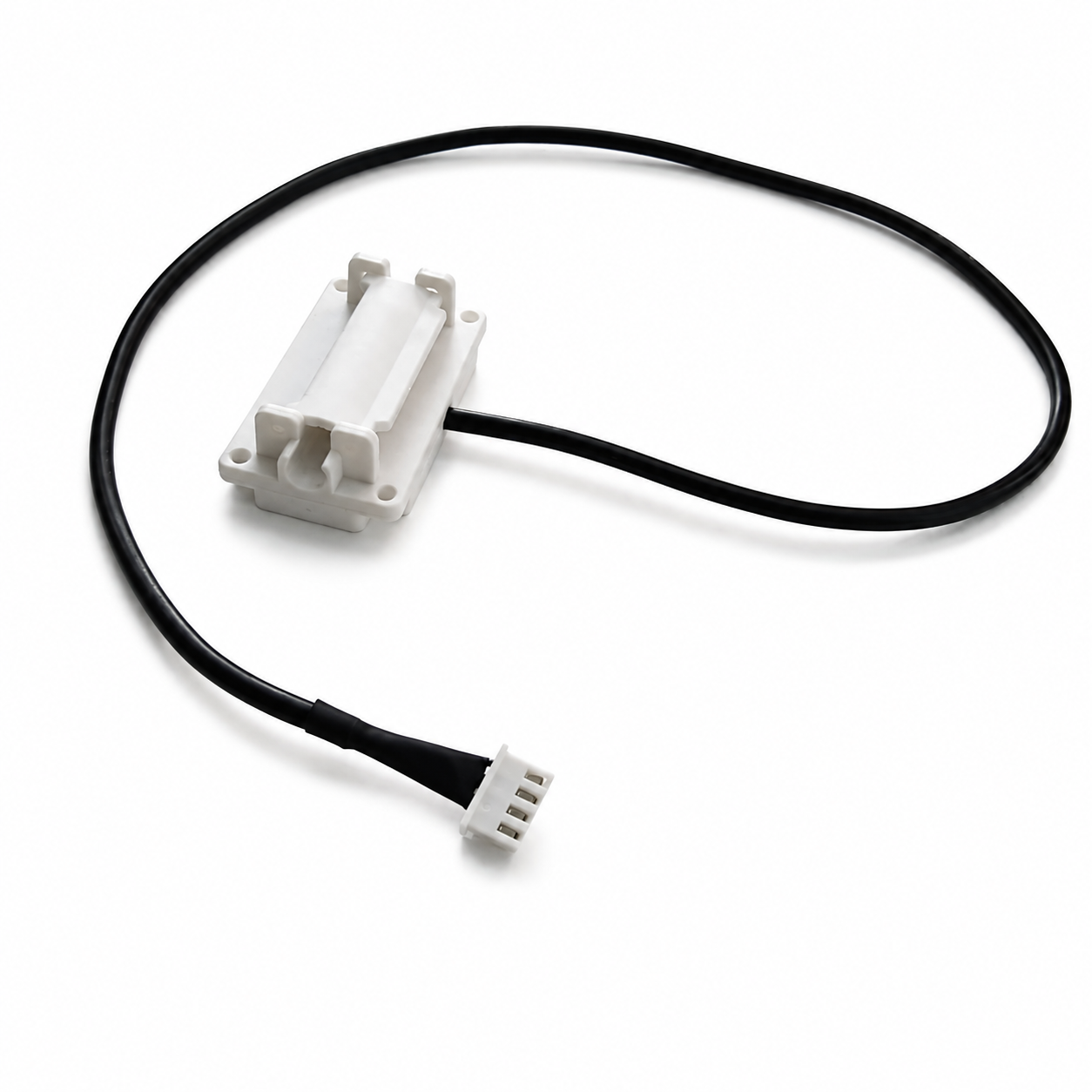

Pro-Range XKC-Y29D-D6-V DC 12–24V 6mm Clip-On Non-Contact Pipeline Liquid Level Sensor

The Pro-Range XKC-Y29D-D6-V Clip-On Non-Contact Pipeline Liquid Level Sensor is designed for reliable liquid detection in 6mm diameter pipelines without direct contact with the liquid. Its compact clip-on structure provides secure installation around the pipe and helps reduce pipe displacement caused by equipment vibration or pulling.

The sensor incorporates temperature drift compensation to maintain stable sensitivity under changing environmental conditions. It can also detect a small amount of residual liquid attached to the inner pipe wall, making it suitable for precise liquid monitoring in automation, fluid handling, laboratory, and industrial equipment.

Features

  • Non-contact liquid detection for 6mm diameter pipelines
  • Clip-on structure for quick and secure installation
  • Helps prevent pipe displacement caused by vibration or pulling
  • Environmental temperature drift compensation for stable sensitivity
  • Capable of detecting small amounts of wall-hanging liquid
  • Fast response time of ≤100ms
  • Wide operating voltage range of DC 12–24V
  • Low power consumption of ≤10mA
  • IP67 waterproof protection
  • Suitable for industrial automation and liquid monitoring applications

Technical Details

  • Item Type: Non-Contact Pipeline Liquid Level Sensor
  • Model No.: XKC-Y29D-D6-V
  • Pipe Diameter: D6 / 6mm
  • Output Type: V Output (High / Low Level Signal)
  • Operating Voltage: DC 12–24V
  • Power Ripple Requirement: ≤10%V
  • Power Consumption: ≤10mA
  • Power-On Delay: ≤500ms
  • Response Time: ≤100ms
  • Operating Temperature: -25°C to +85°C
  • Operating Humidity: 0%–90% RH, No Condensation
  • Temperature Drift: ≤20% (-25°C to +60°C)
  • Liquid Conductivity: ≤25000µS/cm
  • Repeatability Precision: <3mm
  • Wire Length: 500mm ±10mm
  • Waterproof Rating: IP67
  • Safety Certification: CE
  • Environmental Certification: RoHS 2.0

Applications

  • Pipeline liquid level monitoring
  • Automatic filling and dispensing equipment
  • Water treatment systems
  • Laboratory and testing equipment
  • Industrial automation systems
  • Fluid handling and control equipment

Drawing

Wiring Diagram

Physical Attributes

  • Suitable Pipe Diameter: 6mm
  • Body Width: Approx. 29.50mm
  • Body Height: Approx. 51.40mm
  • Body Thickness: Approx. 7.80mm
  • Wire Length: Approx. 500mm
  • Compact clip-on sensor housing

Package Includes

  • 1 × Pro-Range XKC-Y29D-D6-V DC 12–24V 6mm Clip-On Non-Contact Pipeline Liquid Level Sensor
