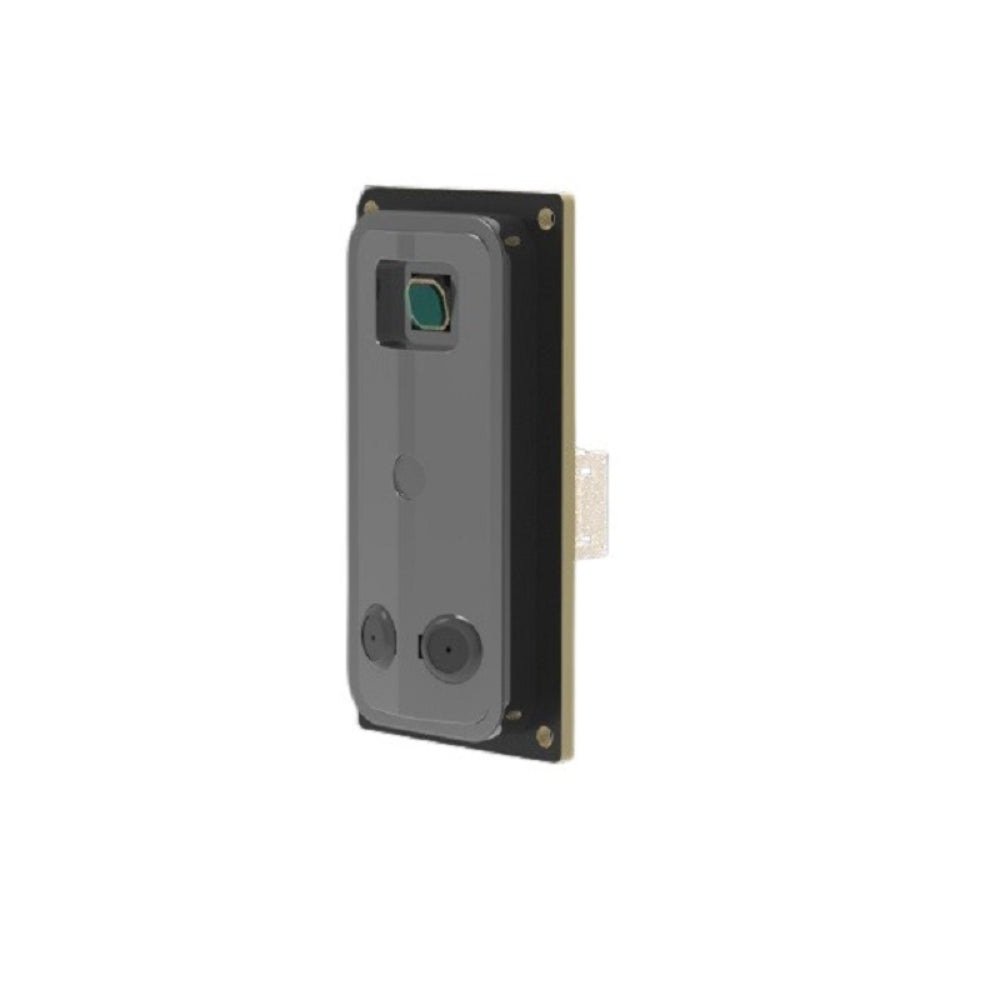

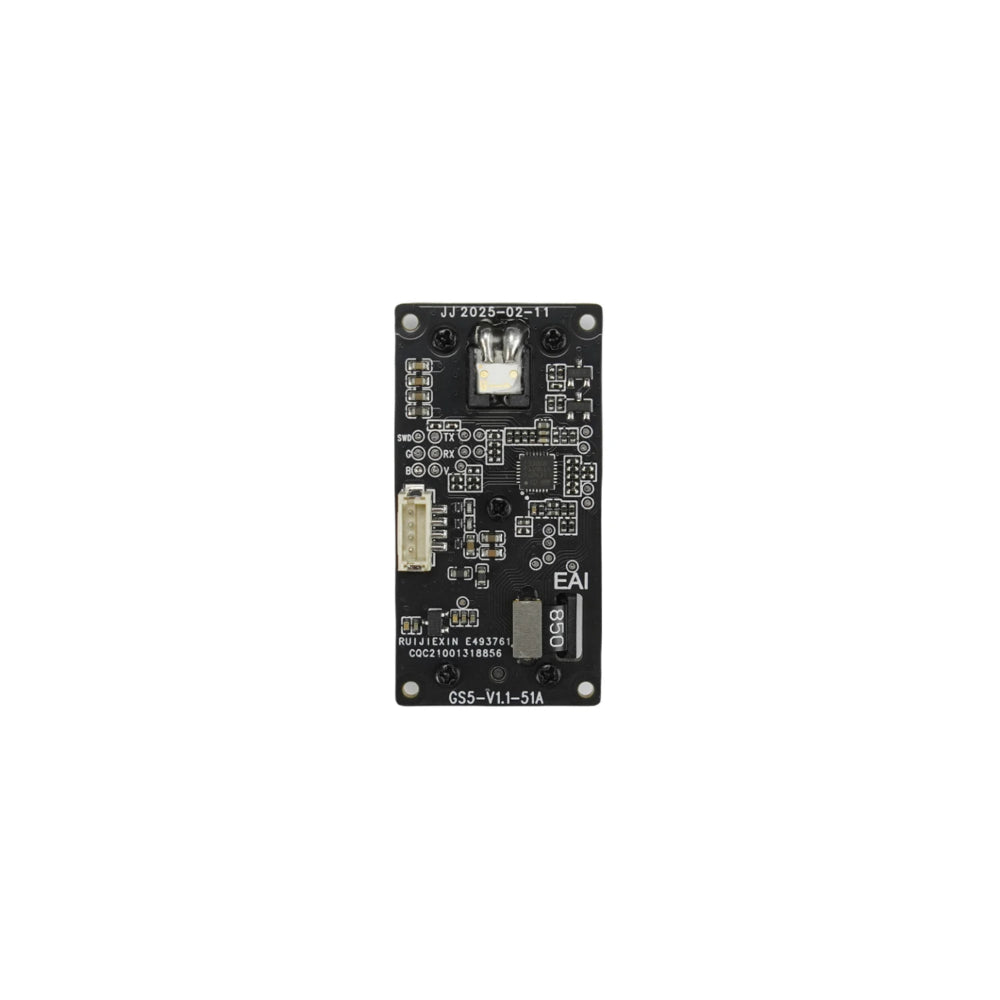

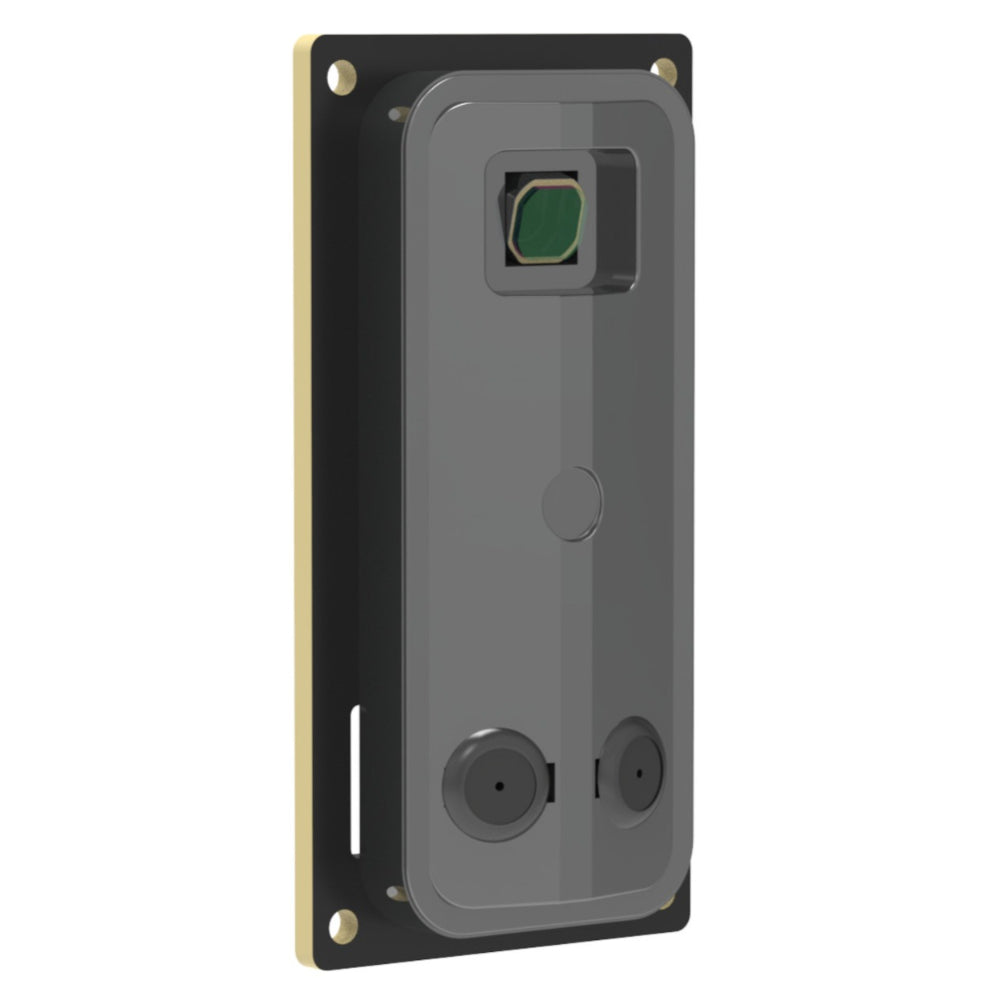

YDLIDAR GS5 Linear array solid LiDAR

YDLIDAR GS5 is a Linear array solid LiDAR (hereinafter referred to as GS5) developed by EAI team. Based on the principle of Triangulation, it is equipped with related optics, electricity, and algorithm design, to achieve 60 degrees high-precision laser distance measurement, and output point cloud data of the scanning environment. YDLIDAR GS5 Linear array solid LiDAR can be used for robot obstacle avoidance, path planning, etc

Features

  • High accuracy and stable performance
  • High ranging angle resolution – up to 0.54°
  • Effective obstacle avoidance – detects objects as small as 6mm in diameter
  • Wide detection range with no blind zones – FOV up to 85°
  • Minimal blind area – detectable distance from 70mm to 100mm
  • Long service life – up to 10,000 hours

Applications

  • Robot obstacle avoidance
  • Obstacle avoidance for smart equipment
  • Navigation and obstacle avoidance for home service robots and vacuum cleaning robots

Drawing

DRAWING

Technical Details

  • Item Type: LiDAR
  • Power Supply: 3.3V
  • Baud Rate: 921600
  • Range Frequency: 7.5–28Hz
  • Range Distance: 70–1000mm
  • Scan Angle: 85°
  • Angular Resolution: 0.54°
  • Dimensions: 48mm × 25mm × 13mm (L × W × H)

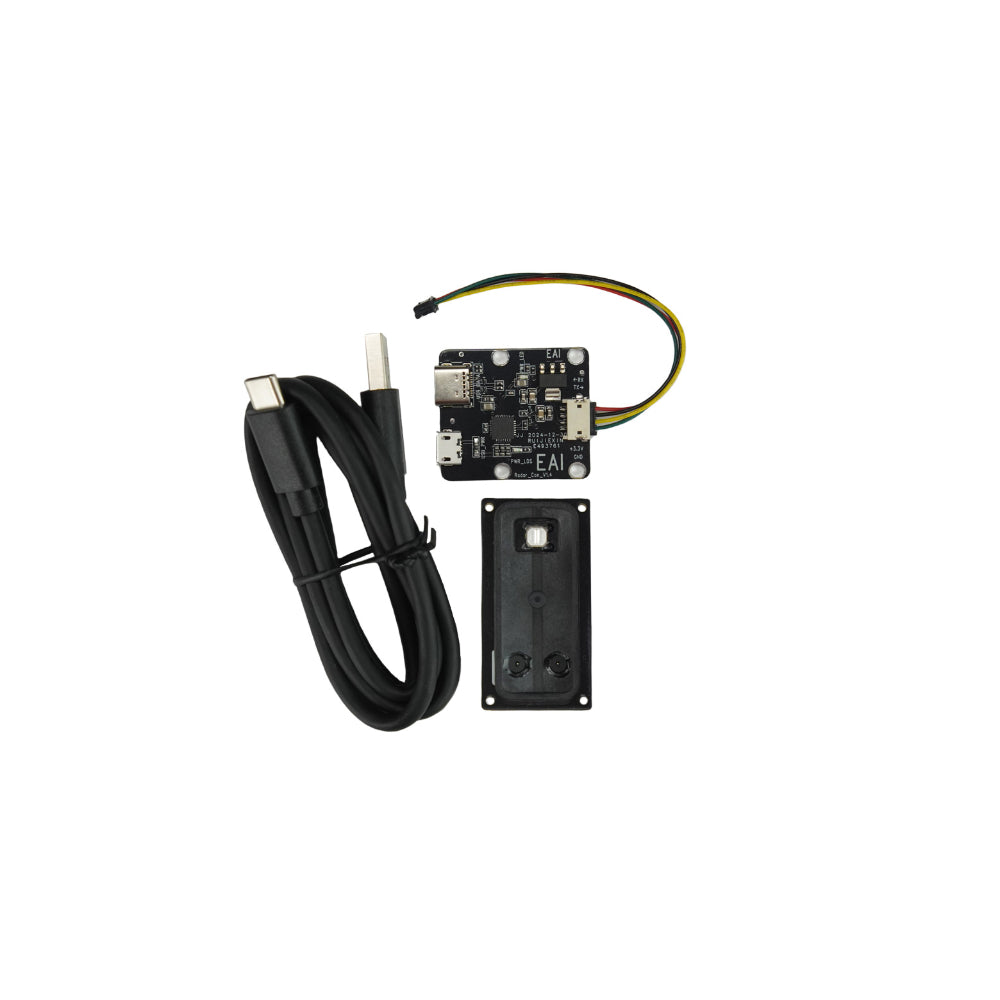

Package Includes

  • 1 × YDLIDAR GS5 Linear array solid LiDAR
