YDLIDAR X2 LiDAR 360 Degree ROS Scanner for Navigation, Collision Avoidance – 8M
Review: 5 - "A masterpiece of literature" by John Doe, written onMay 4, 20020
Great
-25%
YDLIDAR X2 360 Degree ROS Scanner for Navigation, Collision Avoidance – 8M
YDLIDAR X2 360 Degree ROS Scanner for Navigation, Collision Avoidance – 8M _1
YDLIDAR X2 360 Degree ROS Scanner for Navigation, Collision Avoidance – 8M
YDLIDAR X2 360 Degree ROS Scanner for Navigation, Collision Avoidance – 8M
YDLIDAR X2 360 Degree ROS Scanner for Navigation, Collision Avoidance – 8M _1
YDLIDAR X2 360 Degree ROS Scanner for Navigation, Collision Avoidance – 8M

YDLIDAR X2 LiDAR 360 Degree ROS Scanner for Navigation, Collision Avoidance – 8M

Available:In Stock
  • Product SKU: KG1213
Wishlist
₹ 5,230 ₹ 6,999
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
  • 360° 2D LiDAR
  • 8m range
  • 3000Hz ranging rate
  • 7Hz scan speed (adjustable)
  • Compact: 60×47×96mm
  • UART, Class I laser
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
Shipping Details
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

Warehouse Details   35J-182

Secure

Specification

Description

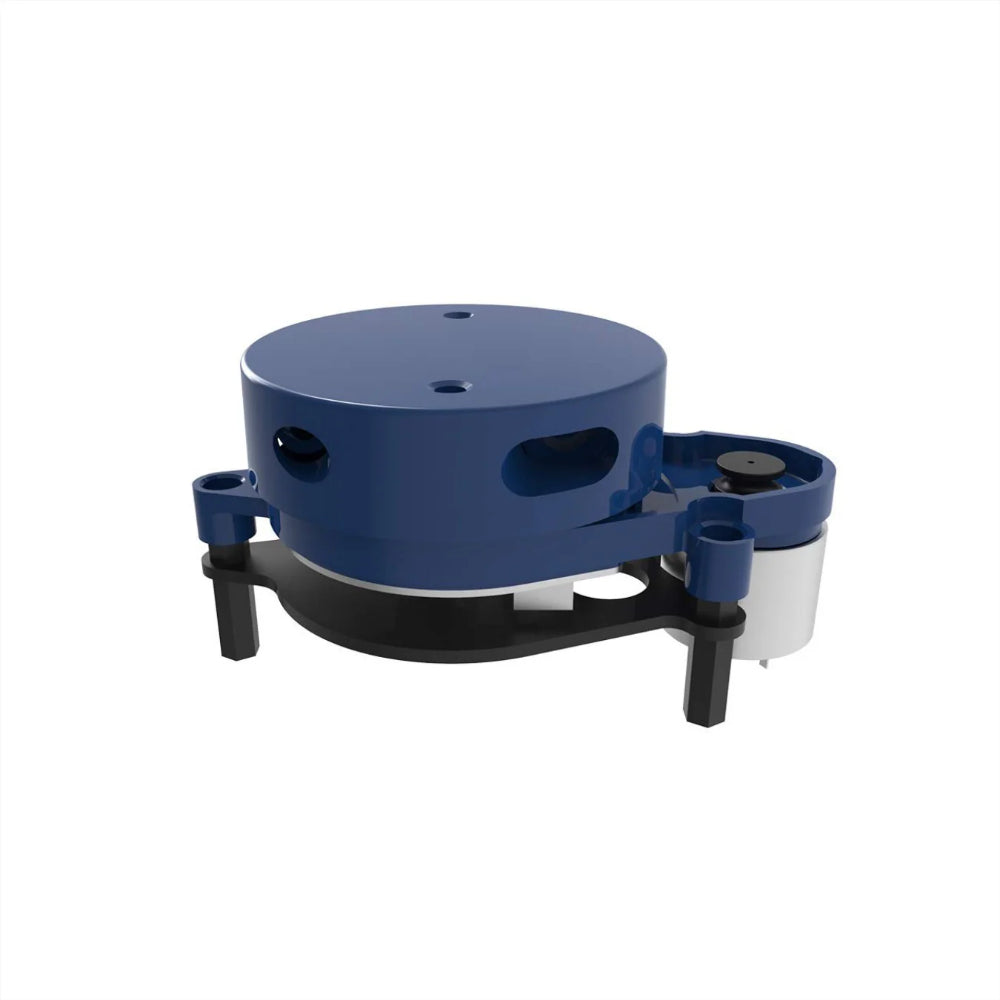

YDLIDAR X2L 360° ROS LiDAR Scanner – 8m Range for Navigation & Obstacle Avoidance

The YDLIDAR X2L is a high-performance 360-degree 2D LiDAR rangefinder designed for ROS-based applications. Developed by the YDLIDAR team, this scanner uses the triangulation principle, integrating optimized optics and electronic design to deliver high-frequency, high-precision distance measurements.

With its rotating mechanical structure, the X2L continuously outputs angle data and point cloud information of the surrounding environment. It is ideally suited for robotics, navigation, environmental mapping, and collision avoidance tasks.

Drawing

DRAWING

Key Features

  • 360° continuous scanning and environmental mapping
  • High-precision distance measurements up to 8 meters
  • Fast ranging frequency: 3000Hz
  • Adjustable motor speed (default: 7Hz)
  • Compact design with low power consumption
  • UART communication interface (3.3V logic)
  • Complies with Class I laser safety standards

Typical Applications

  • Robot navigation and obstacle avoidance
  • Robot operating system (ROS) teaching and research
  • Regional security systems
  • Environmental scanning and mapping
  • 3D reconstruction
  • Commercial robots and robot vacuum cleaners

Technical Details

  • Model: YDLIDAR X2L
  • Scan Angle: 360°
  • Resolution: 0.82° – 0.86°
  • Scanning Frequency: 7Hz (adjustable)
  • Ranging Frequency: 3000Hz
  • Distance Range: 0.1m – 8m (depending on object reflectivity)
  • Communication Interface: UART (3.3V)
  • Laser Class: Class I (safe for human eyes)
  • Dimensions (L×W×H): 136mm × 103mm × 90mm

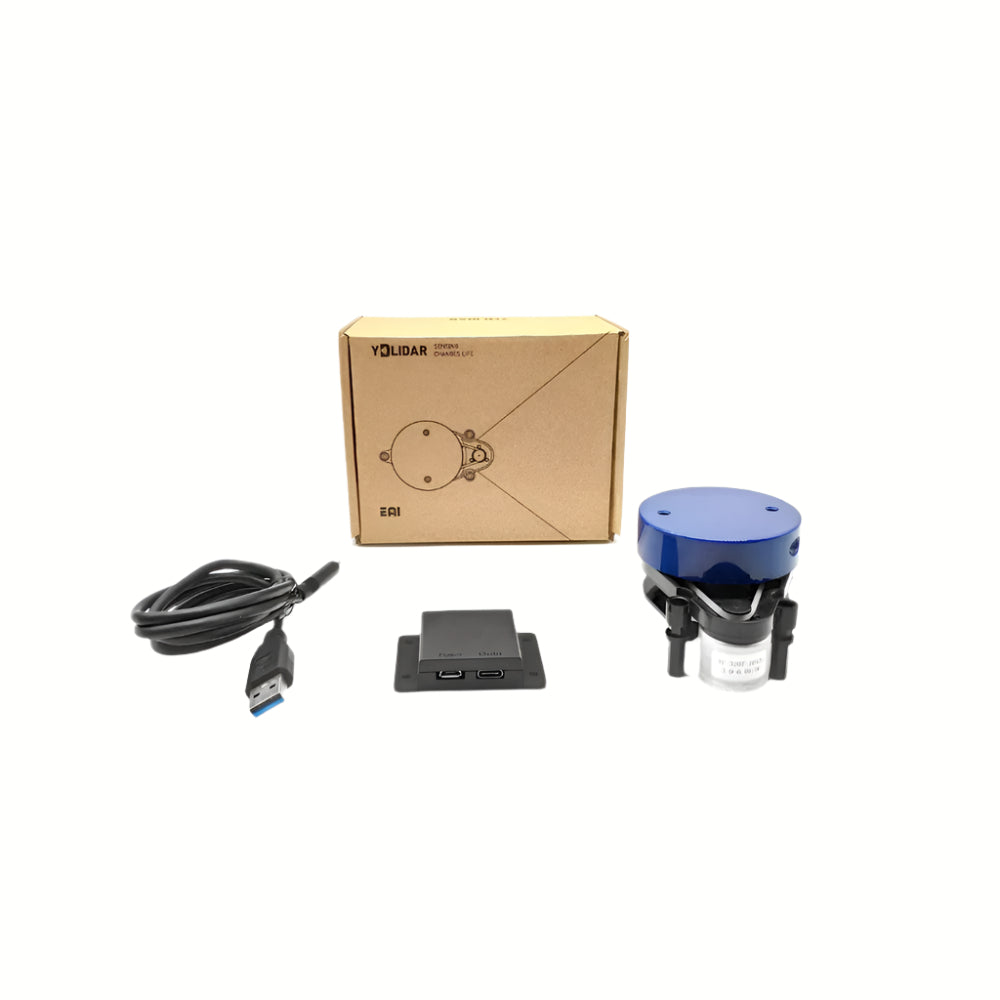

Package Includes

  • 1 × YDLIDAR X2L 360° ROS LiDAR Scanner
  • 1 × Communication Cable Set
  • 1 × Mounting Bracket (if provided by manufacturer)
