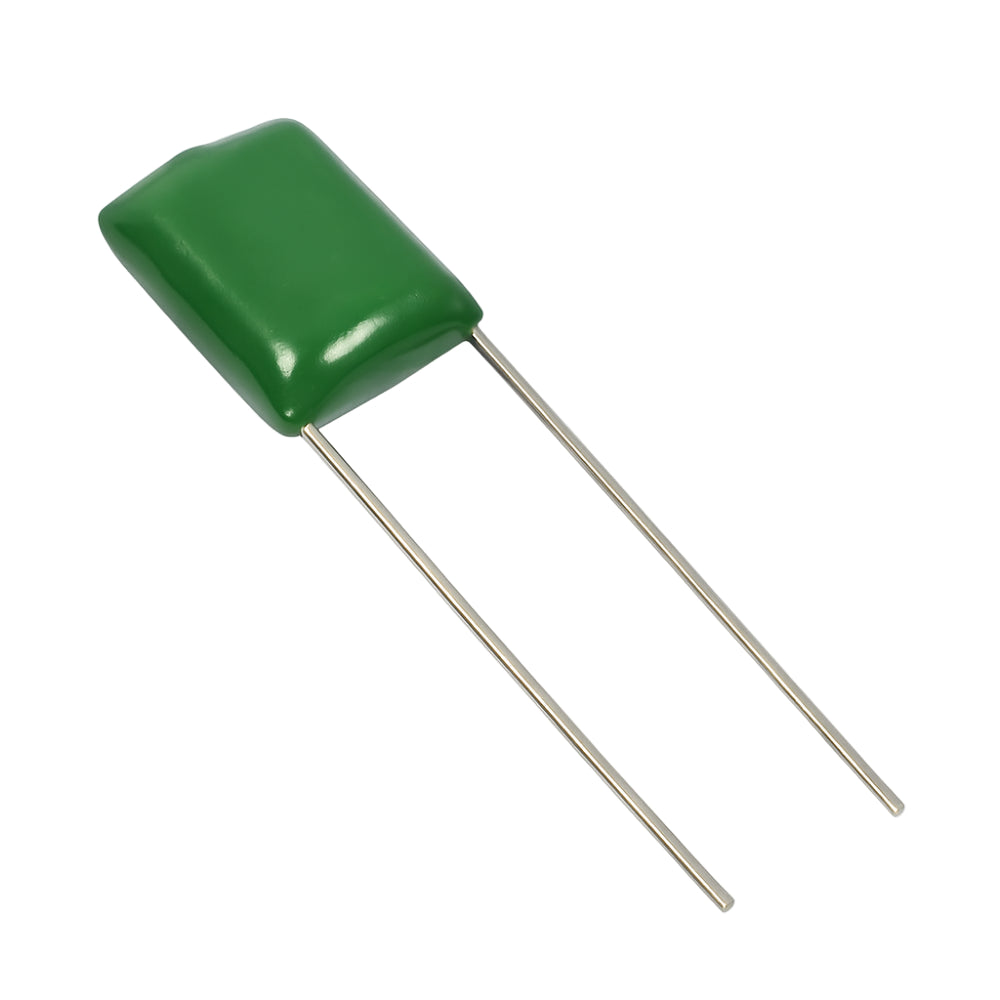

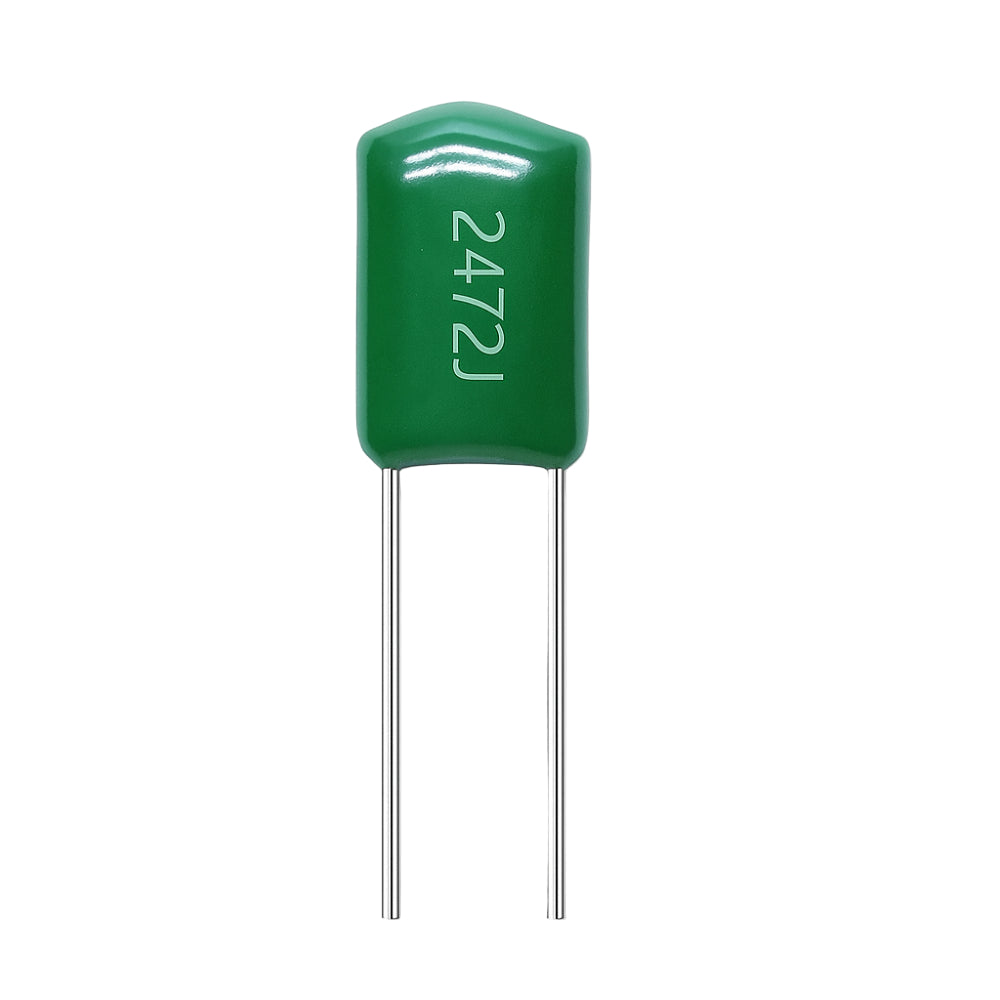

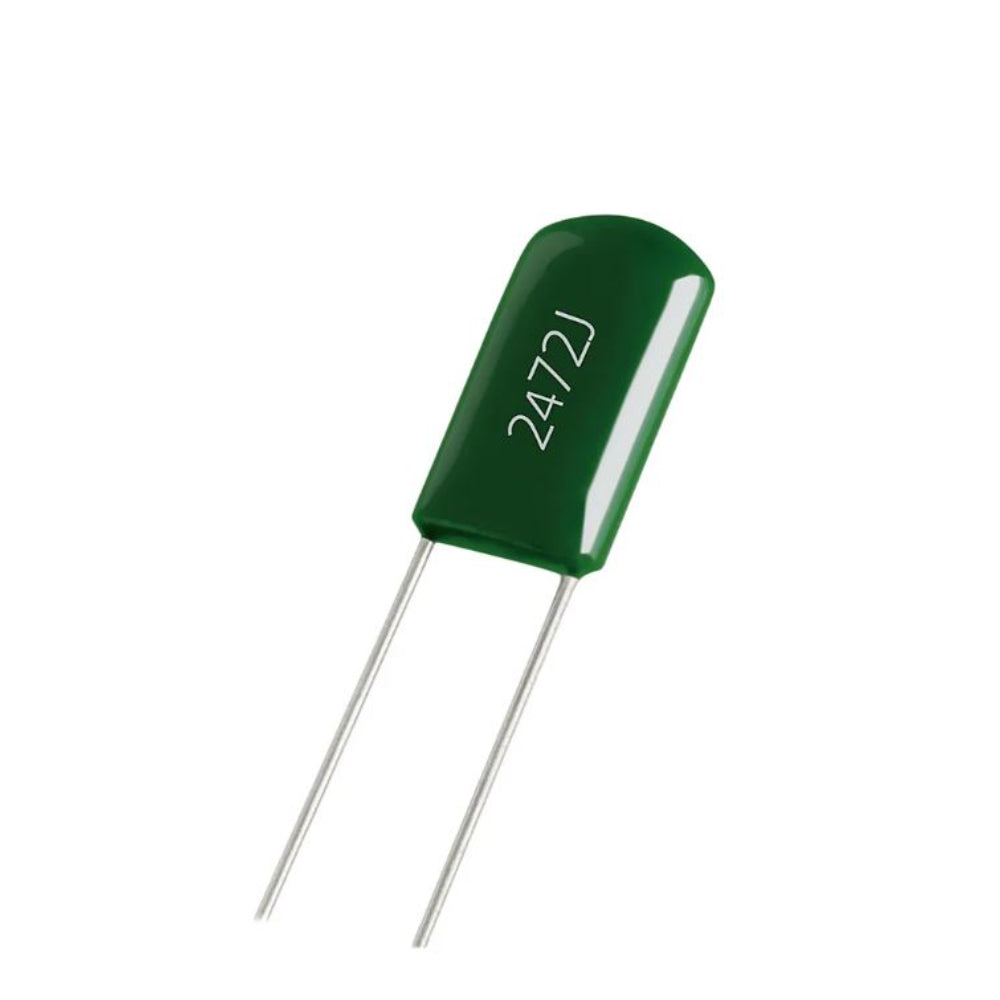

CL11 4.7nF 630V, 0.0047uF – 2J472J Polyester Film Capacitor
Review: 5 - "A masterpiece of literature" by John Doe, written onMay 4, 20020
Great
-33%
CL11 Polyester Film Polyester Capacitor 2J472J 0.0047µF 4nF 630V 2J
CL11 Polyester Film Polyester Capacitor 2J472J 0.0047µF 4nF 630V 2J_1
CL11 Polyester Film Polyester Capacitor 2J472J 0.0047µF 4nF 630V 2J_2
CL11 Polyester Film Polyester Capacitor 2J472J 0.0047µF 4nF 630V 2J
CL11 Polyester Film Polyester Capacitor 2J472J 0.0047µF 4nF 630V 2J_1
CL11 Polyester Film Polyester Capacitor 2J472J 0.0047µF 4nF 630V 2J_2

CL11 4.7nF 630V, 0.0047uF – 2J472J Polyester Film Capacitor

Available:In Stock
  • Product SKU: CAPAC125
Wishlist
₹ 6 ₹ 9
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
  • 0.0047µF (4nF), ±5% J
  • 630V DC high-voltage
  • Low loss, high insulation
  • 6 mm lead pitch, THT
  • Compact 10×6×3 mm
  • −40°C to +85°C
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
How Fast We Ship
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

🏠 Warehouse Details:
33 G - 158 G
Secure

Specification

Description

CL11 Polyester Film Capacitor 2J472J – 0.0047µF 4nF 630V

The CL11 Polyester Film Capacitor 2J472J is a high-quality metallized polyester film capacitor with a capacitance value of 0.0047µF (4nF) and a rated voltage of 630V.

This capacitor is ideal for DC filtering, coupling, bypassing, and energy storage applications in electronic circuits. Its stable performance, low loss, and high insulation resistance make it a reliable choice for both hobby and industrial use.

Features

  • High-quality metallized polyester film construction
  • Excellent stability and low dielectric loss
  • High insulation resistance and reliable performance
  • Suitable for high-voltage DC circuits
  • Compact and durable design

Technical Details

  • Capacitance: 0.0047µF (4nF)
  • Rated Voltage: 630V DC
  • Tolerance: ±5% (J)
  • Dielectric: Metallized Polyester Film
  • Lead Pitch: 6 mm
  • Operating Temperature: −40°C to +85°C

Physical Attributes

  • Body Shape: Rectangular, radial leads
  • Body Length: 10 mm
  • Body Height: 6 mm
  • Body Thickness: 3 mm
  • Lead Diameter: 0.6 mm (approx.)
  • Lead Length: 22 mm
  • Mounting Type: Through-hole
  • Weight: 1 g

Applications

  • DC filtering and decoupling in power supplies
  • Coupling and bypassing in signal circuits
  • Energy storage and pulse discharge circuits
  • Timing circuits and waveform shaping
  • General-purpose electronic equipment

Package Includes

  • 1 × CL11 4.7nF 630V, 0.0047uF – 2J472J Polyester Film Capacitor
