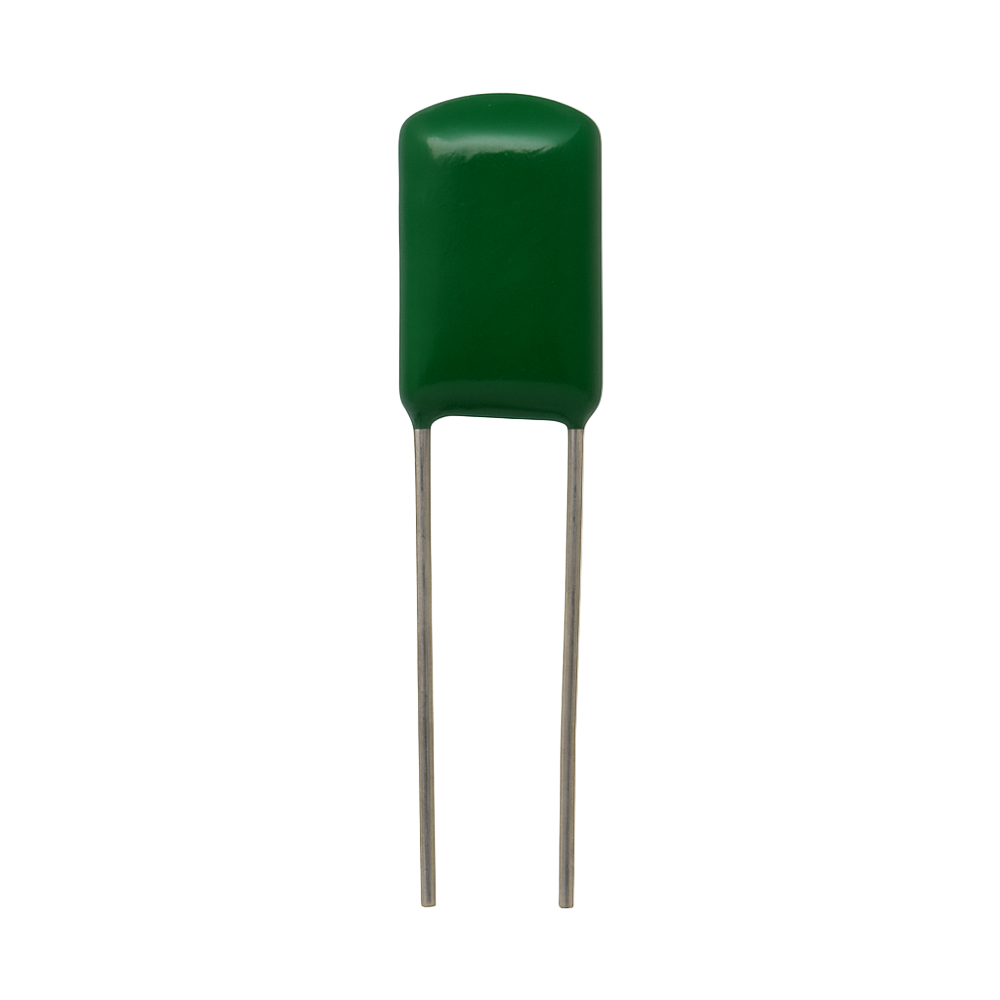

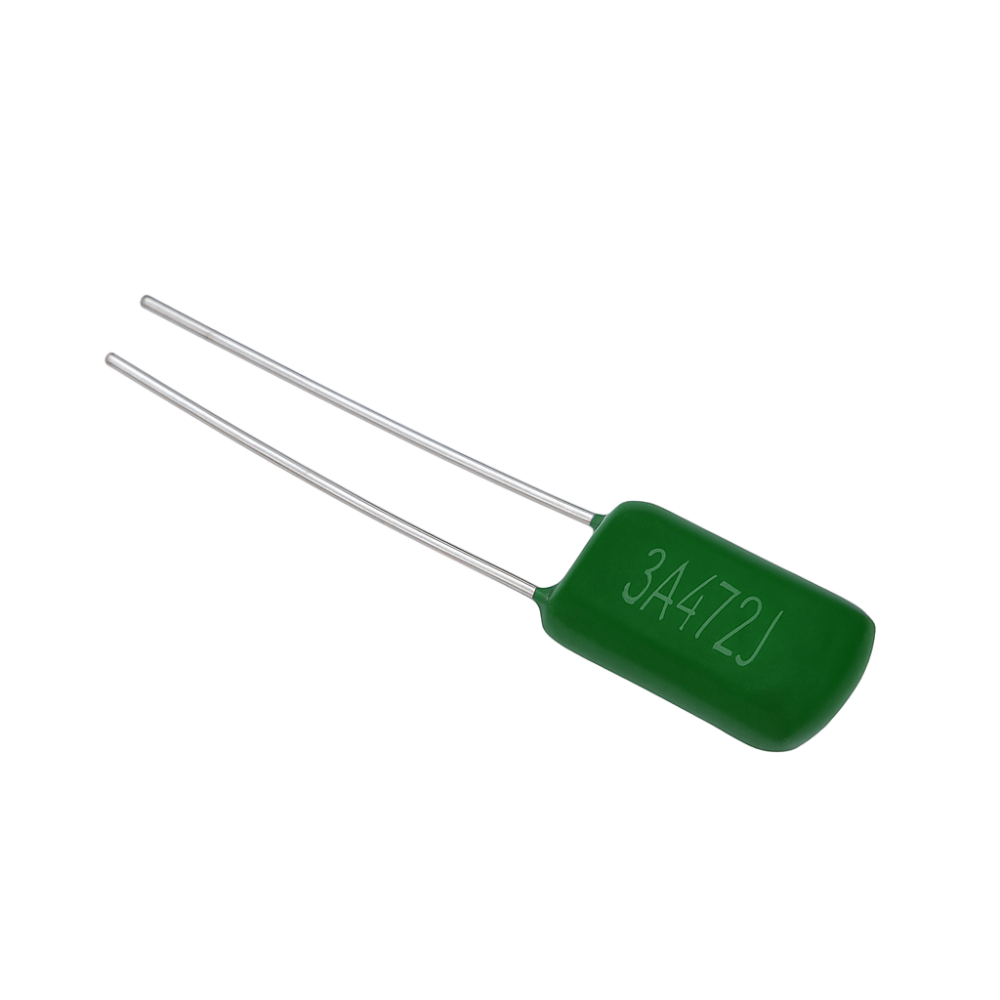

CL11 Polyester Capacitor 1200V472J 4.7nF, 4700pF 5% Error 5mm Pitch Pen-Hold
![CL11 Polyester Capacitor 1200V-1]()
![CL11 Polyester Capacitor 1200V-2]()
![CL11 Polyester Capacitor 1200V-3]()
![CL11 Polyester Capacitor 1200V-1]()
![CL11 Polyester Capacitor 1200V-2]()
![CL11 Polyester Capacitor 1200V-3]()
It is ideal for high-voltage coupling, filtering, snubber, and pulse circuits where stable capacitance and reliability are critical. Its low dielectric loss, high insulation resistance, and 5 mm lead pitch (Pen-Hold) make it suitable for power electronics, SMPS, and industrial applications.
-33%
CL11 Polyester Capacitor 1200V472J 4.7nF, 4700pF 5% Error 5mm Pitch Pen-Hold
Available:In Stock
- Product SKU: CAPAC098
₹ 6
₹ 9
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
CL11 Polyester Film Capacitor 1200V 472J – 4.7nF 4700pF ±5%
The CL11 Polyester Film Capacitor 1200V 472J is a high-voltage metallized polyester film capacitor with a capacitance of 4.7nF (4700pF) and a rated voltage of 1200V.It is ideal for high-voltage coupling, filtering, snubber, and pulse circuits where stable capacitance and reliability are critical. Its low dielectric loss, high insulation resistance, and 5 mm lead pitch (Pen-Hold) make it suitable for power electronics, SMPS, and industrial applications.
Features
- High-voltage metallized polyester film construction
- Excellent dielectric strength and low dissipation factor
- High insulation resistance for dependable performance
- 5 mm lead pitch, through-hole Pen-Hold type
- Compact and lightweight design
Technical Details
- Capacitance: 4.7nF (4700pF)
- Rated Voltage: 1200V DC
- Tolerance: ±5% (J)
- Dielectric: Metallized Polyester Film
- Lead Pitch: 5 mm (Pen-Hold)
- Operating Temperature: −40°C to +85°C
Physical Attributes
- Body Shape: Rectangular, radial leads
- Body Length: ~8 mm
- Body Height: ~6 mm
- Body Thickness: ~3 mm
- Lead Diameter: 0.5 mm
- Lead Length: 22 mm
- Mounting Type: Through-hole (Pen-Hold)
- Weight: 0.42 g
Applications
- High-voltage coupling and decoupling circuits
- Filtering in SMPS and power electronics
- Snubber and pulse circuits
- Energy storage in high-voltage systems
- Industrial and general-purpose electronics
Package Includes
- 1 × CL11 Polyester Film Capacitor 1200V 472J – 4.7nF ±5%
