CL11 Polyester Film Capacitor 2A103J 103K 100V 0.01µF 10nF 2A
Review: 5 - "A masterpiece of literature" by John Doe, written onMay 4, 20020
Great
-33%
CL11 Polyester Film Capacitor 2A103J 103K 100V 0.01µF 10nF 2A
CL11 Polyester Film Capacitor 2A103J 103K 100V 0.01µF 10nF 2A_1
CL11 Polyester Film Capacitor 2A103J 103K 100V 0.01µF 10nF 2A_2
CL11 Polyester Film Capacitor 2A103J 103K 100V 0.01µF 10nF 2A
CL11 Polyester Film Capacitor 2A103J 103K 100V 0.01µF 10nF 2A_1
CL11 Polyester Film Capacitor 2A103J 103K 100V 0.01µF 10nF 2A_2

CL11 Polyester Film Capacitor 2A103J 103K 100V 0.01µF 10nF 2A

Available:In Stock
  • Product SKU: CAPAC126
Wishlist
₹ 6 ₹ 9
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
  • 0.01µF (10nF), ±5% J
  • 100V DC rated
  • Low loss, high insulation
  • 4 mm lead pitch, THT
  • Compact 10×5×2.5 mm
  • −40°C to +85°C
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
How Fast We Ship
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

🏠 Warehouse Details:
33 G - 158 H
Secure

Specification

Description

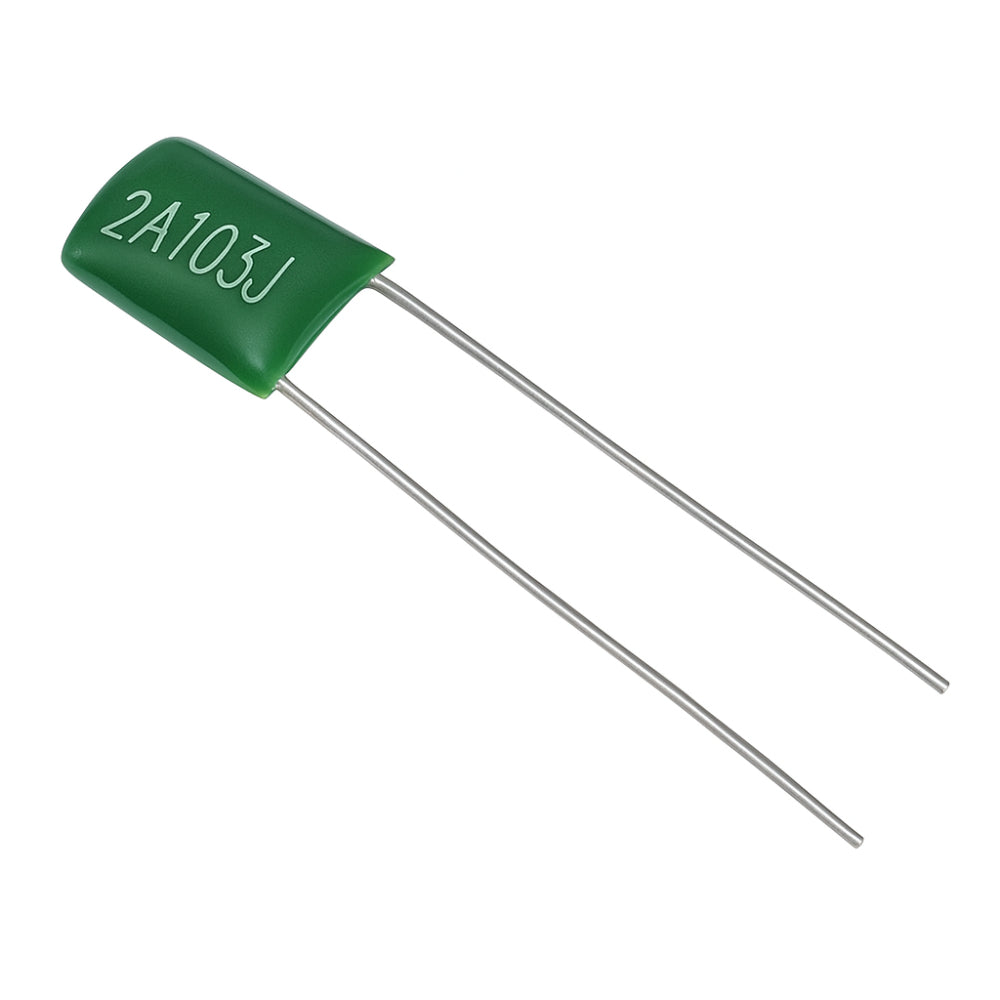

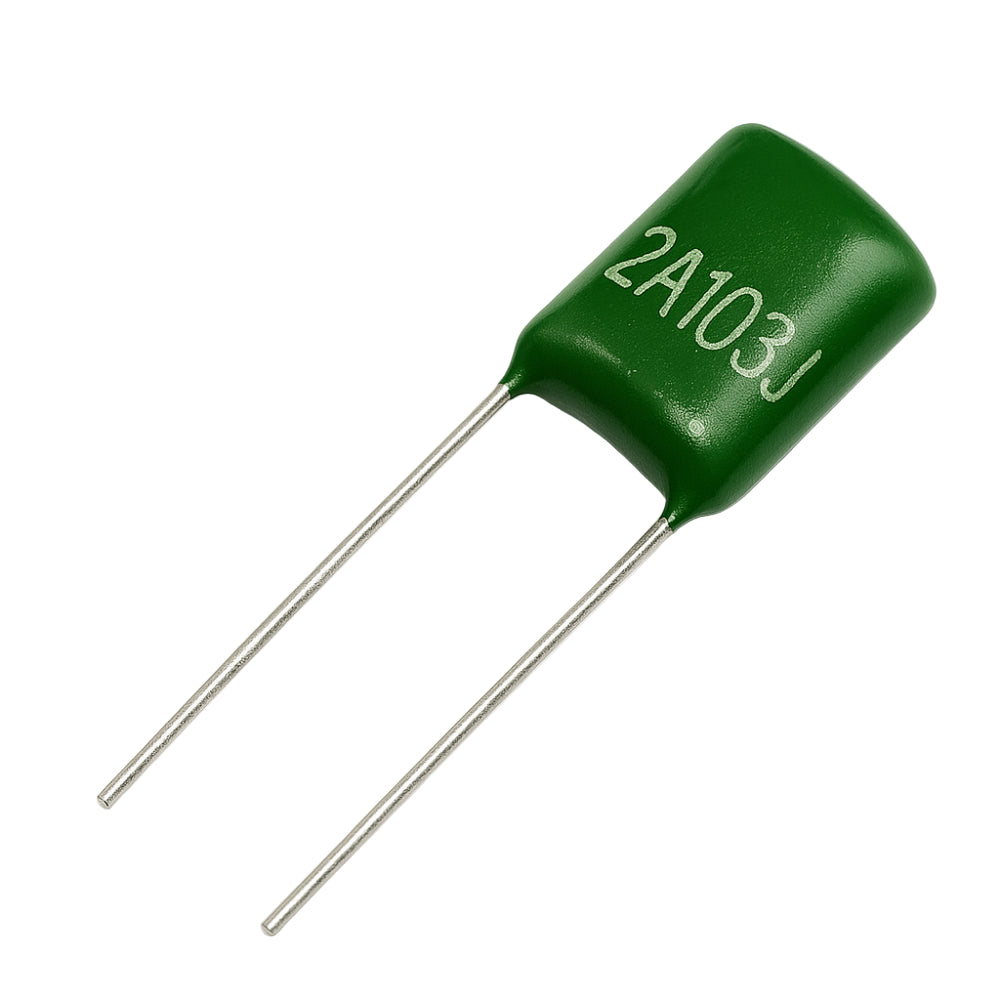

CL11 Polyester Film Capacitor 2A103J – 0.01µF 10nF 100V

The CL11 Polyester Film Capacitor 2A103J is a high-quality metallized polyester film capacitor with a capacitance value of 0.01µF (10nF) and a rated voltage of 100V.

This capacitor is ideal for DC filtering, coupling, bypassing, and timing applications in low- to medium-voltage circuits. Its stable performance, low loss, and high insulation resistance make it a preferred choice for both hobby and professional electronic projects.

Features

  • High-quality metallized polyester film construction
  • Excellent stability and low dielectric loss
  • High insulation resistance for reliable operation
  • Compact size and easy through-hole mounting
  • Economical and long-lasting design

Technical Details

  • Capacitance: 0.01µF (10nF)
  • Rated Voltage: 100V DC
  • Tolerance: ±5% (J)
  • Dielectric: Metallized Polyester Film
  • Lead Pitch: 4 mm
  • Operating Temperature: −40°C to +85°C

Physical Attributes

  • Body Shape: Rectangular, radial leads
  • Body Length: 10 mm
  • Body Height: 5 mm
  • Body Thickness: 2.5 mm
  • Lead Diameter: 0.5 mm (approx.)
  • Lead Length: 20 mm
  • Mounting Type: Through-hole
  • Weight: 0.7 g

Applications

  • Coupling and bypassing in signal circuits
  • DC filtering in low-voltage power supplies
  • Timing and waveform shaping circuits
  • Noise suppression in small electronics
  • General-purpose electronic equipment

Package Includes

  • 1 × CL11 Polyester Film Capacitor 2A103J – 0.01µF 100V
