CL11 Polyester Film Capacitor 250V 102J – 1nF (1000pF) ±5%
Review: 5 - "A masterpiece of literature" by John Doe, written onMay 4, 20020
Great
-33%
CL11 Polyester Film Capacitor 250V 102J – 1nF (1000pF) ±5%
CL11 Polyester Film Capacitor 250V 102J – 1nF (1000pF) ±5%_1
CL11 Polyester Film Capacitor 250V 102J – 1nF (1000pF) ±5%
CL11 Polyester Film Capacitor 250V 102J – 1nF (1000pF) ±5%
CL11 Polyester Film Capacitor 250V 102J – 1nF (1000pF) ±5%_1
CL11 Polyester Film Capacitor 250V 102J – 1nF (1000pF) ±5%

CL11 Polyester Film Capacitor 250V 102J – 1nF (1000pF) ±5%

Available:In Stock
  • Product SKU: CAPAC127
Wishlist
₹ 6 ₹ 9
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
  • 1nF (1000pF), ±5% J
  • 250V DC rated
  • Low loss, high insulation
  • 4 mm lead pitch, THT
  • Compact 9×5×2.5 mm
  • −40°C to +85°C
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
How Fast We Ship
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

🏠 Warehouse Details:
33 G - 158 I
Secure

Specification

Description

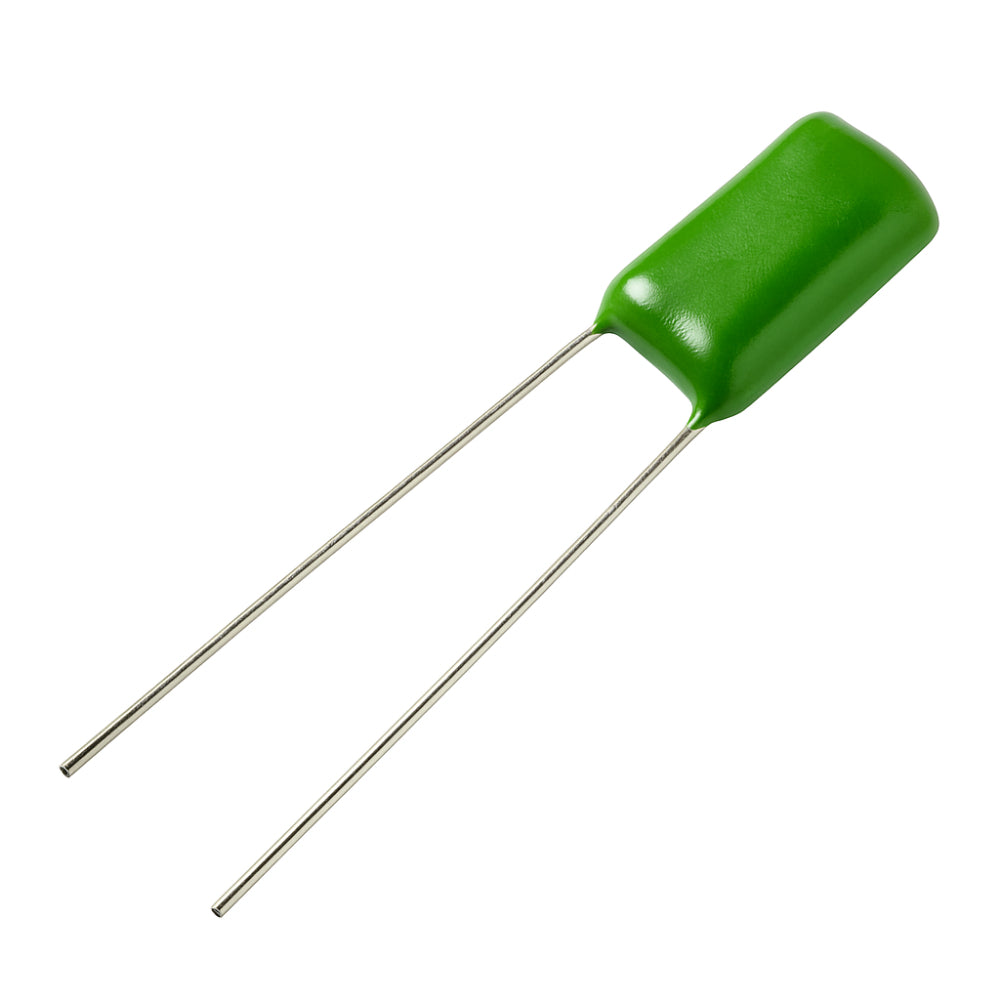

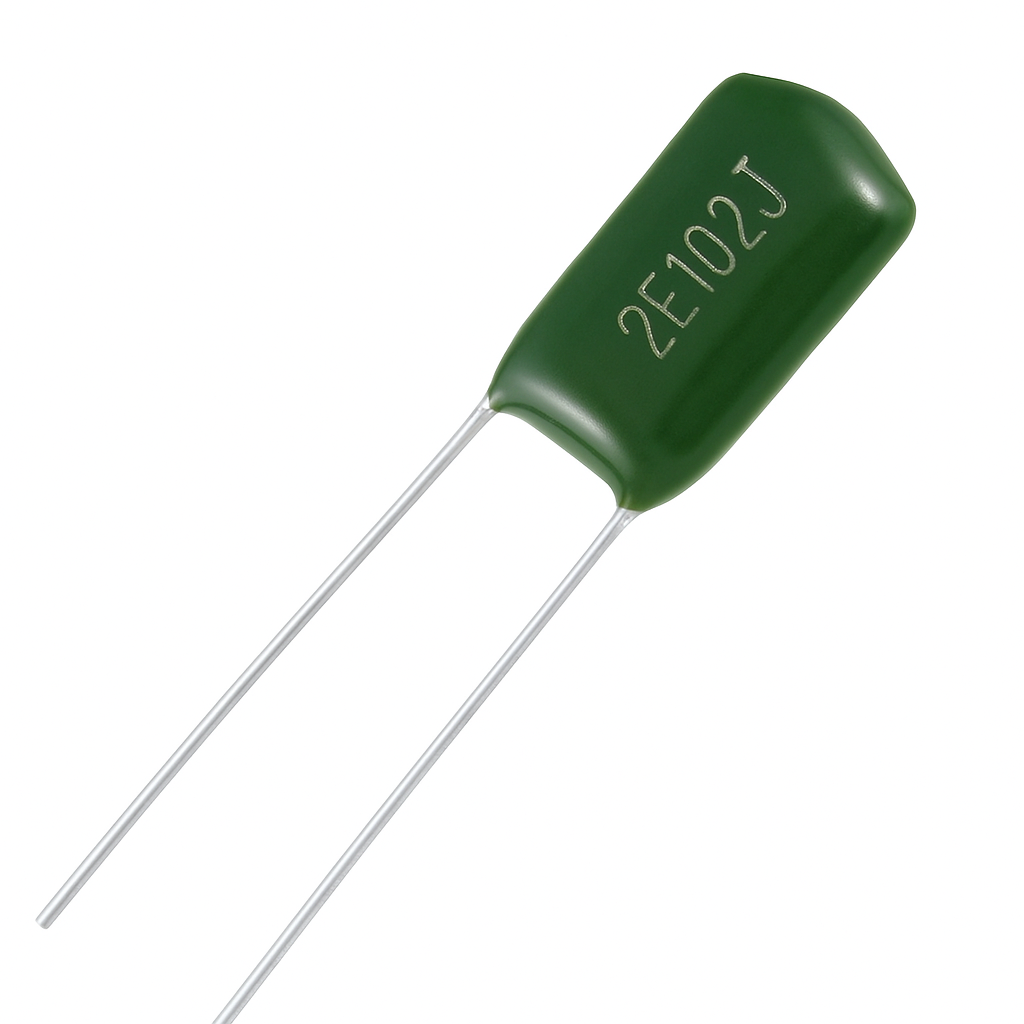

CL11 Polyester Film Capacitor 250V 102J – 1nF 1000pF ±5%

The CL11 Polyester Film Capacitor 250V 102J is a precision metallized polyester film capacitor with a capacitance value of 1nF (1000pF) and a rated voltage of 250V.

Designed for signal coupling, filtering, and bypass applications, this capacitor provides excellent electrical stability, low loss, and high insulation resistance, making it suitable for both professional and hobby electronic circuits.

Features

  • Metallized polyester film construction for reliable performance
  • Low dielectric loss and excellent stability
  • High insulation resistance for dependable operation
  • Rated for 250V DC applications
  • Compact and lightweight design

Technical Details

  • Capacitance: 1nF (1000pF)
  • Rated Voltage: 250V DC
  • Tolerance: ±5% (J)
  • Dielectric: Metallized Polyester Film
  • Lead Pitch: 4 mm
  • Operating Temperature: −40°C to +85°C

Physical Attributes

  • Body Shape: Rectangular, radial leads
  • Body Length: 9 mm
  • Body Height: 5 mm
  • Body Thickness: 2.5 mm
  • Lead Diameter: 0.5 mm (approx.)
  • Lead Length: 22 mm
  • Mounting Type: Through-hole
  • Weight: 0.7 g

Applications

  • Signal coupling and noise suppression
  • DC filtering in low-voltage power supplies
  • Timing and waveform shaping circuits
  • Audio and RF circuit applications
  • General-purpose electronic projects

Package Includes

  • 1 × CL11 Polyester Film Capacitor 250V 102J – 1nF ±5%
