It is widely used in signal coupling, decoupling, filtering, and timing applications where medium-voltage stability is required. Its low dielectric loss, high insulation resistance, and stable capacitance make it ideal for hobby and professional electronic designs.
-33%
CL11 Polyester Film Capacitor 250V 333J – 33nF 0.033µF ±5%
Available:Out of Stock
- Product SKU: CAPAC130
₹ 6
₹ 9
Specification
Description

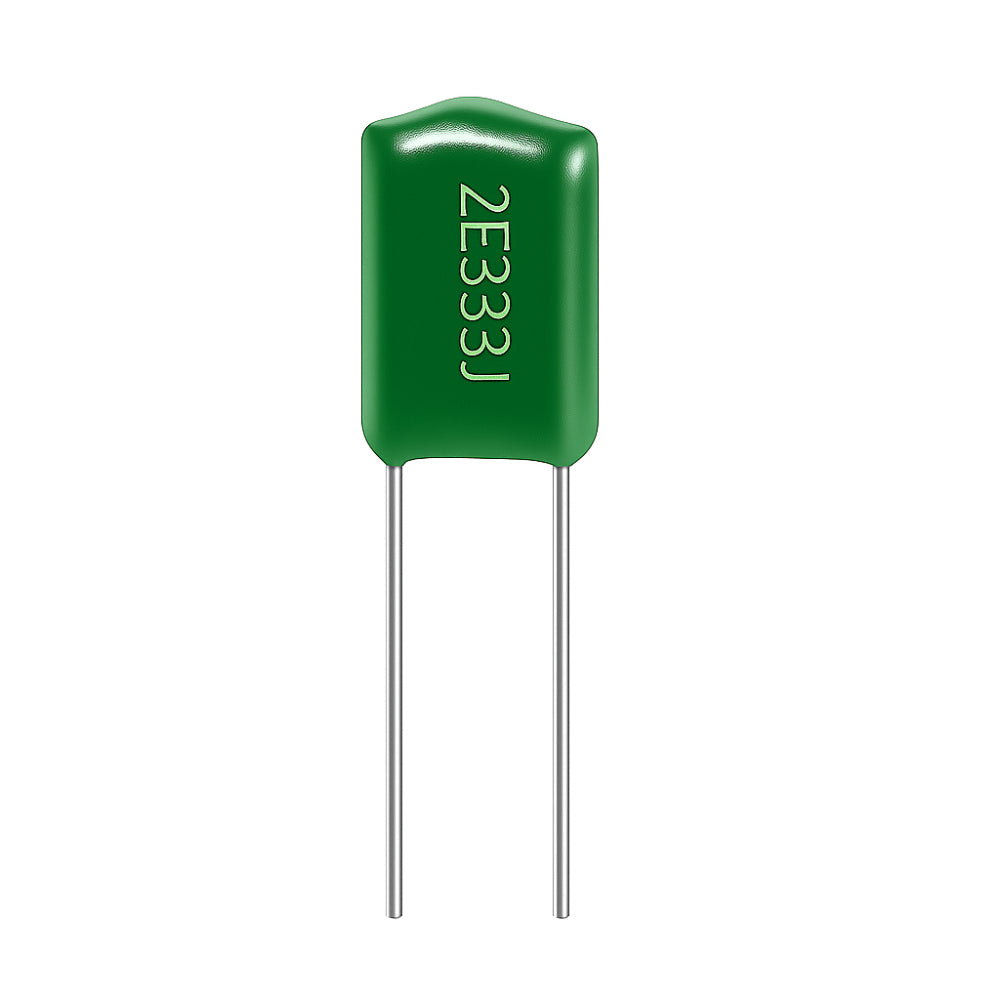

CL11 Polyester Film Capacitor 250V 333J – 0.033µF 33nF ±5%
The CL11 Polyester Film Capacitor 250V 333J is a reliable metallized polyester film capacitor with a capacitance value of 0.033µF (33nF) and a rated voltage of 250V.It is widely used in signal coupling, decoupling, filtering, and timing applications where medium-voltage stability is required. Its low dielectric loss, high insulation resistance, and stable capacitance make it ideal for hobby and professional electronic designs.
Features
- Metallized polyester film construction for reliable operation
- Excellent stability and low dielectric absorption
- High insulation resistance and long service life
- Rated for 250V DC applications
- Compact through-hole package, easy to mount
Technical Details
- Capacitance: 0.033µF (33nF)
- Rated Voltage: 250V DC
- Tolerance: ±5% (J)
- Dielectric: Metallized Polyester Film
- Lead Pitch: 7.5 mm (typical)
- Operating Temperature: −40°C to +85°C
Physical Attributes
- Body Shape: Rectangular, radial leads
- Body Length: 9 mm
- Body Height: 6.5 mm
- Body Thickness: 4 mm
- Lead Diameter: 0.5 mm (approx.)
- Lead Length: 22 mm
- Mounting Type: Through-hole
- Weight: 0.8 g
Applications
- Coupling and decoupling in amplifier and signal circuits
- Filtering in medium-voltage power supplies
- Timing and waveform shaping circuits
- Energy storage and pulse applications
- General-purpose electronic equipment
Package Includes
- 1 × CL11 Polyester Film Capacitor 250V 333J – 0.033µF ±5%
