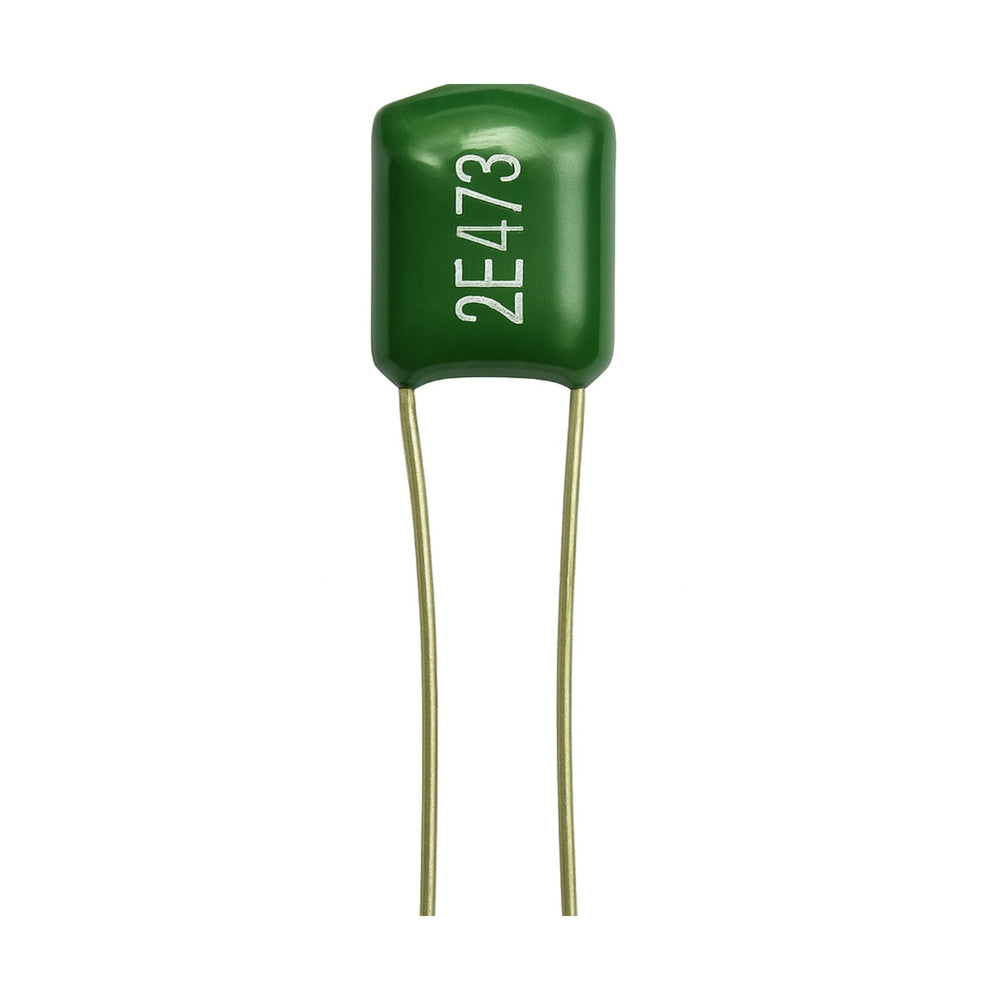

CL11 Polyester Film Capacitor 250V 473J – 47nF 0.047µF ±5%
![CL11 Polyester Film Capacitor 250V 473J – 47nF 0.047µF ±5%]()
![CL11 Polyester Film Capacitor 250V 102J – 1nF (1000pF) ±5%_1]()
![CL11 Polyester Film Capacitor 2A103J 103K 100V 0.01µF 10nF 2A_1]()
![CL11 Polyester Film Capacitor 250V 473J – 47nF 0.047µF ±5%]()
![CL11 Polyester Film Capacitor 250V 102J – 1nF (1000pF) ±5%_1]()
![CL11 Polyester Film Capacitor 2A103J 103K 100V 0.01µF 10nF 2A_1]()
It is widely used in signal coupling, filtering, decoupling, and timing applications where a medium voltage rating is required. Its stable capacitance, low dielectric loss, and high insulation resistance make it ideal for both professional and hobby electronic circuits.
-33%
CL11 Polyester Film Capacitor 250V 473J – 47nF 0.047µF ±5%
Available:In Stock
- Product SKU: CAPAC132
₹ 6
₹ 9
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
CL11 Polyester Film Capacitor 250V 473J – 0.047µF 47nF ±5%
The CL11 Polyester Film Capacitor 250V 473J is a reliable metallized polyester film capacitor with a capacitance value of 0.047µF (47nF) and a rated voltage of 250V.It is widely used in signal coupling, filtering, decoupling, and timing applications where a medium voltage rating is required. Its stable capacitance, low dielectric loss, and high insulation resistance make it ideal for both professional and hobby electronic circuits.
Features
- High-quality metallized polyester film construction
- Excellent electrical stability and low dielectric loss
- High insulation resistance for dependable performance
- Rated for 250V DC applications
- Compact, lightweight, through-hole design
Technical Details
- Capacitance: 0.047µF (47nF)
- Rated Voltage: 250V DC
- Tolerance: ±5% (J)
- Dielectric: Metallized Polyester Film
- Lead Pitch: 6.5 mm (typical)
- Operating Temperature: −40°C to +85°C
Physical Attributes
- Body Shape: Rectangular, radial leads
- Body Length: 12 mm
- Body Height: 8 mm
- Body Thickness: 4 mm
- Lead Diameter: 0.5 mm (approx.)
- Lead Length: 22 mm
- Mounting Type: Through-hole
- Weight: 1 g
Applications
- Coupling and decoupling in signal processing circuits
- Filtering in medium-voltage power supplies
- Timing and oscillator circuits
- Energy storage and pulse circuits
- General-purpose electronic equipment
Package Includes
- 1 × CL11 Polyester Film Capacitor 250V 473J – 0.047µF ±5%
