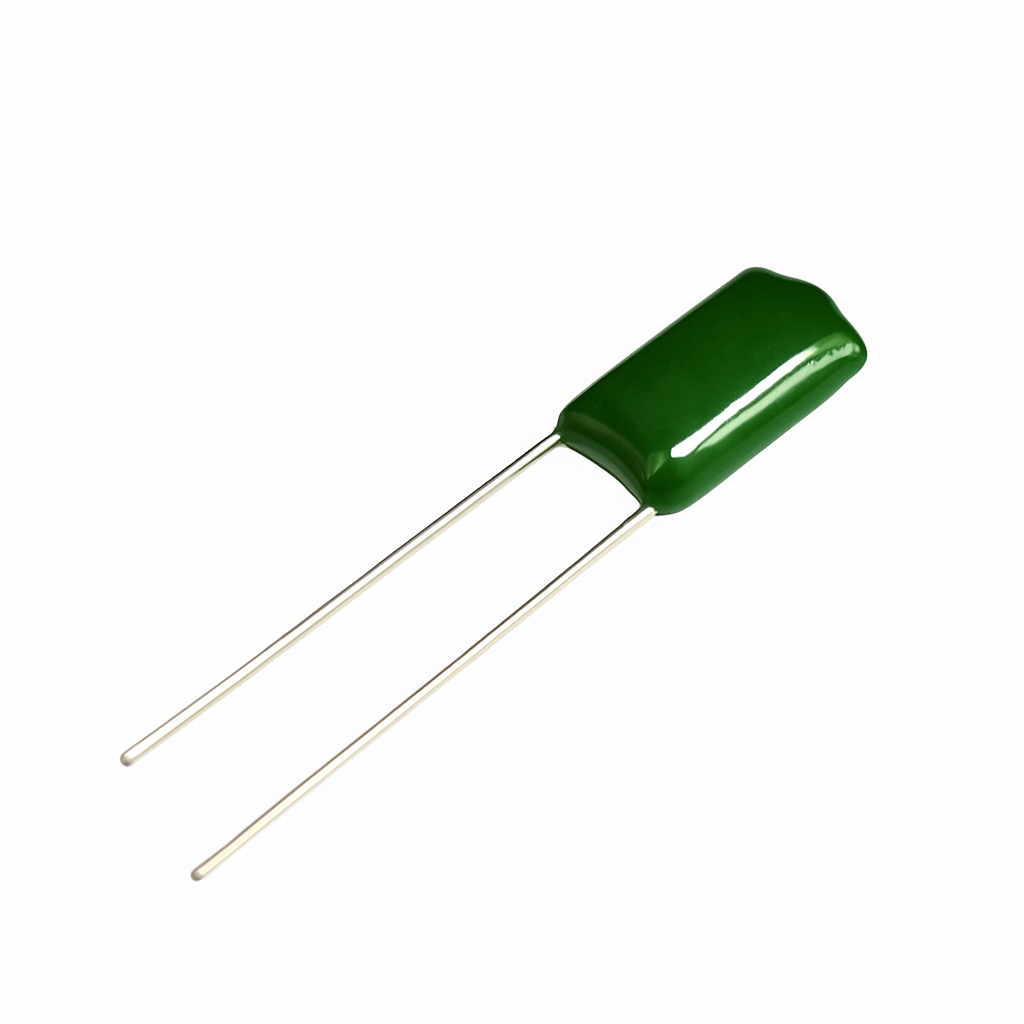

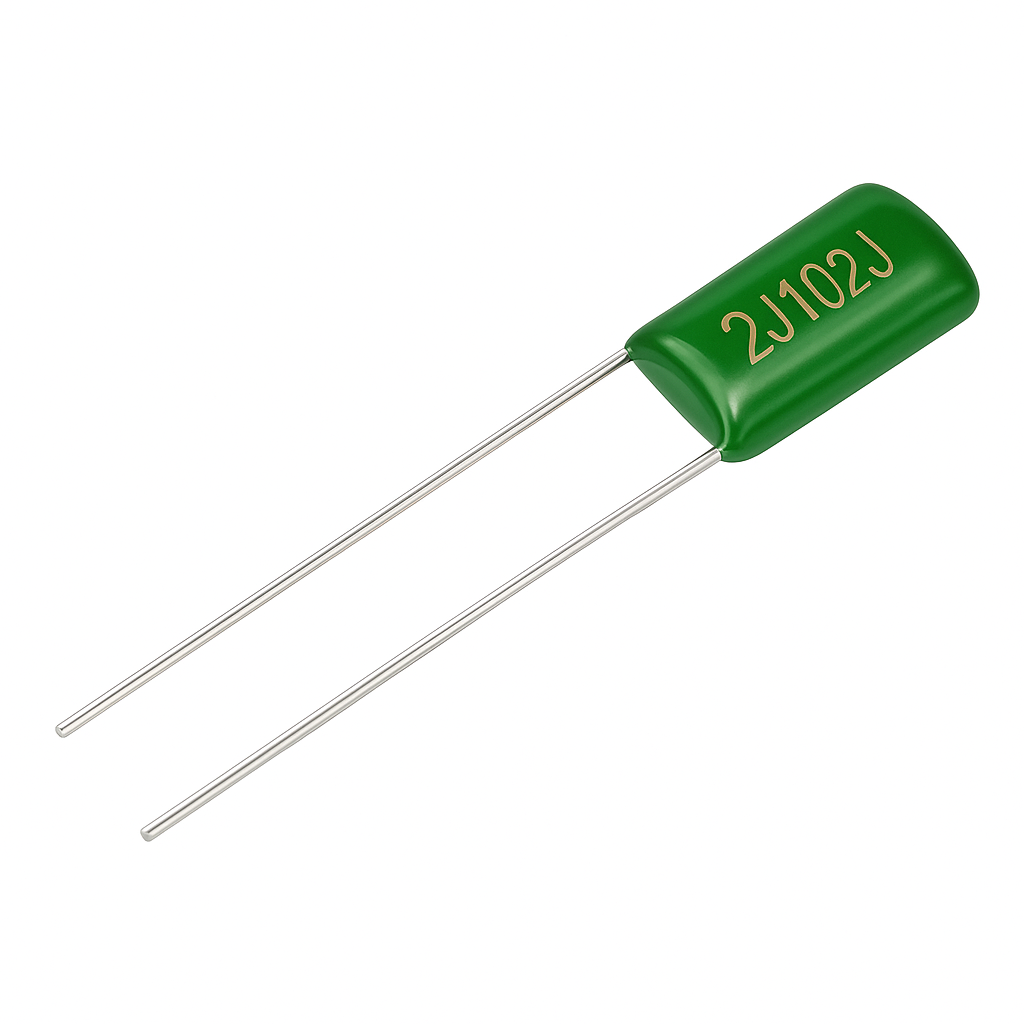

CL11 Polyester Film Capacitor 2J102J – 1nF 1000pF 630V ±5%
![CL11 Polyester Film Capacitor 2J102J – 1nF 1000pF 630V ±5%]()
![CL11 Polyester Film Capacitor 250V 102J – 1nF (1000pF) ±5%_1]()

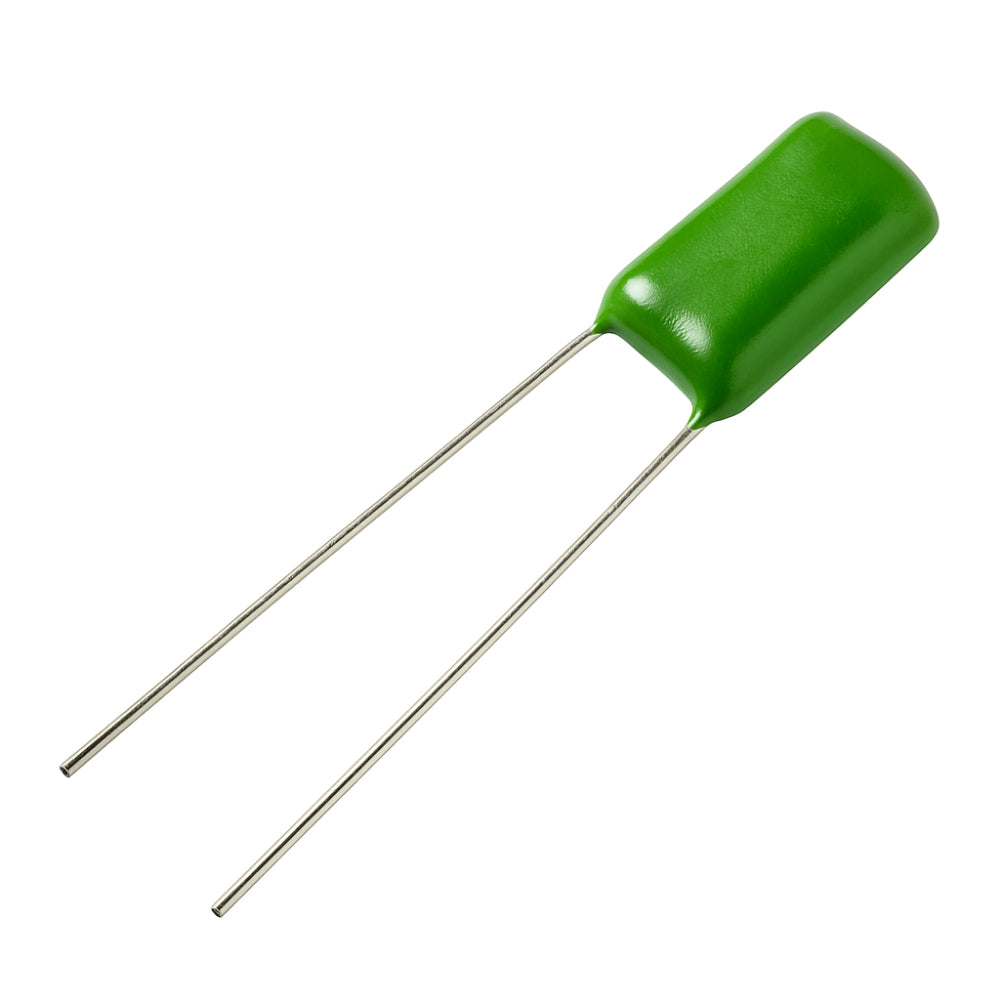

![CL11 Polyester Film Capacitor 2A103J 103K 100V 0.01µF 10nF 2A_1]()
![CL11 Polyester Film Capacitor 2J102J – 1nF 1000pF 630V ±5%]()
![CL11 Polyester Film Capacitor 250V 102J – 1nF (1000pF) ±5%_1]()
![CL11 Polyester Film Capacitor 2A103J 103K 100V 0.01µF 10nF 2A_1]()
This capacitor is widely used for signal coupling, bypassing, filtering, and timing applications where high-voltage stability is required. It offers excellent insulation resistance, low dielectric loss, and reliable performance for both hobby and professional electronic circuits.
-33%
CL11 Polyester Film Capacitor 2J102J – 1nF 1000pF 630V ±5%
Available:Out of Stock
- Product SKU: CAPAC129
₹ 6
₹ 9
Specification
Description
CL11 Polyester Film Capacitor 2J102J – 1nF 1000pF 630V ±5%
The CL11 Polyester Film Capacitor 2J102J is a high-quality metallized polyester film capacitor with a capacitance of 1nF (1000pF) and a rated voltage of 630V.This capacitor is widely used for signal coupling, bypassing, filtering, and timing applications where high-voltage stability is required. It offers excellent insulation resistance, low dielectric loss, and reliable performance for both hobby and professional electronic circuits.
Features
- Metallized polyester film construction with high reliability
- Excellent electrical stability and low dielectric loss
- High insulation resistance, suitable for high-voltage circuits
- Long life and consistent performance
- Compact through-hole package for easy mounting
Technical Details
- Capacitance: 1nF (1000pF)
- Rated Voltage: 630V DC
- Tolerance: ±5% (J)
- Dielectric: Metallized Polyester Film
- Lead Pitch: 5 mm (typical)
- Operating Temperature: −40°C to +85°C
Physical Attributes
- Body Shape: Rectangular, radial leads
- Body Length: 9 mm
- Body Height: 6 mm
- Body Thickness: 3 mm
- Lead Diameter: 0.5 mm (approx.)
- Lead Length: 22 mm
- Mounting Type: Through-hole
- Weight: 0.8 g
Applications
- Signal coupling and noise suppression
- DC filtering in high-voltage power circuits
- Timing and waveform shaping applications
- Energy storage and discharge circuits
- General-purpose electronic equipment
Package Includes
- 1 × CL11 Polyester Film Capacitor 2J102J – 1nF 630V ±5%
