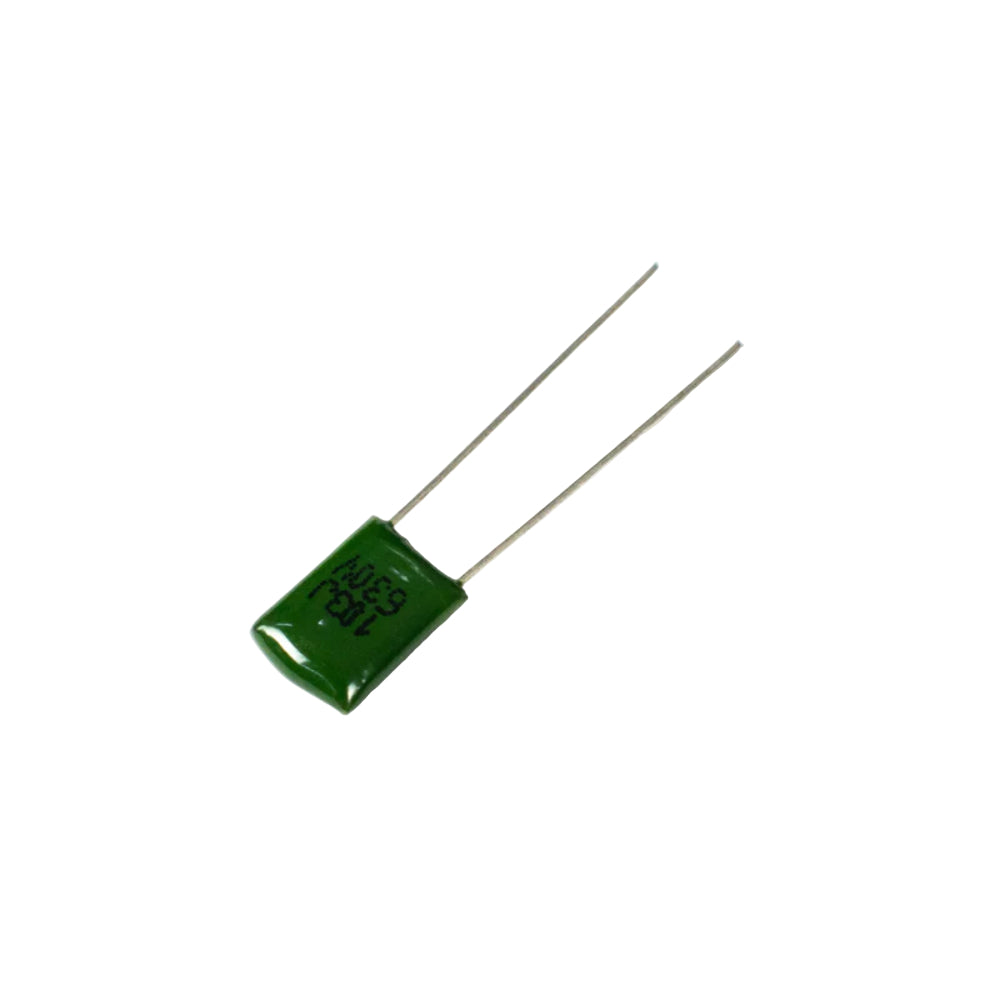

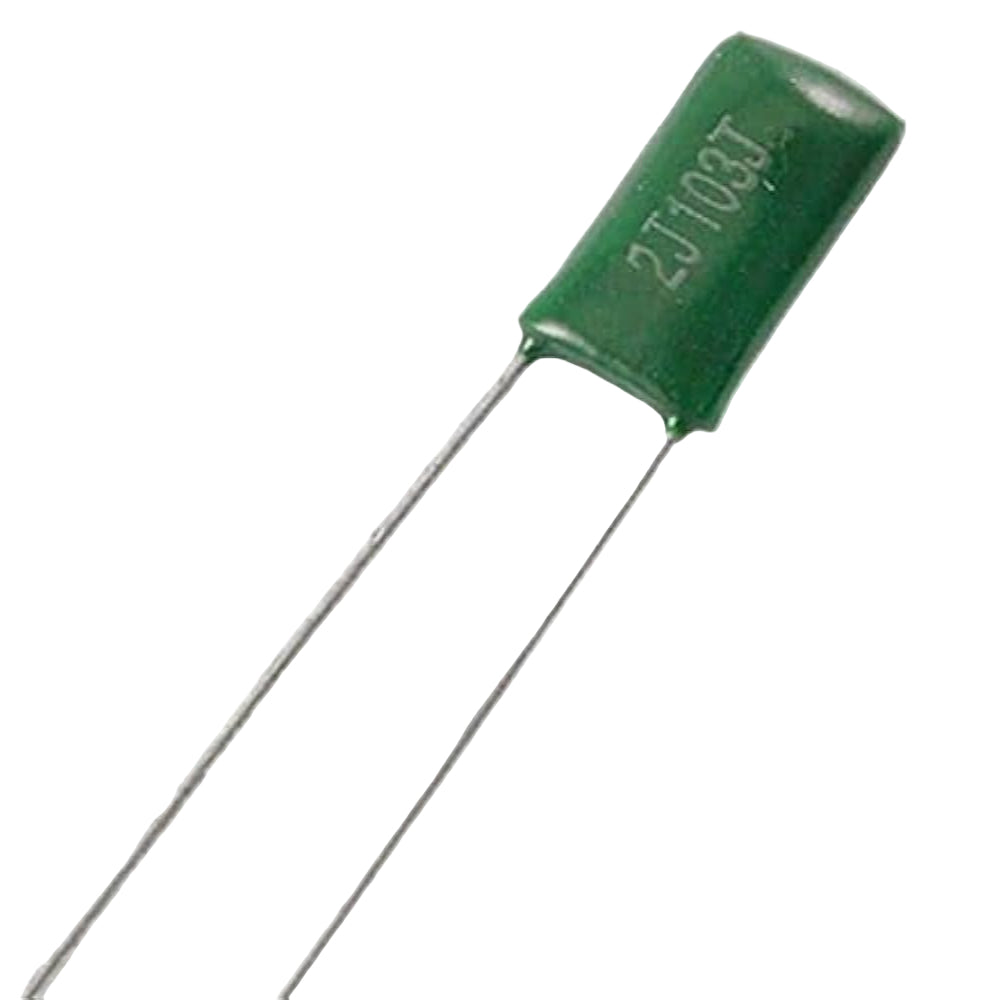

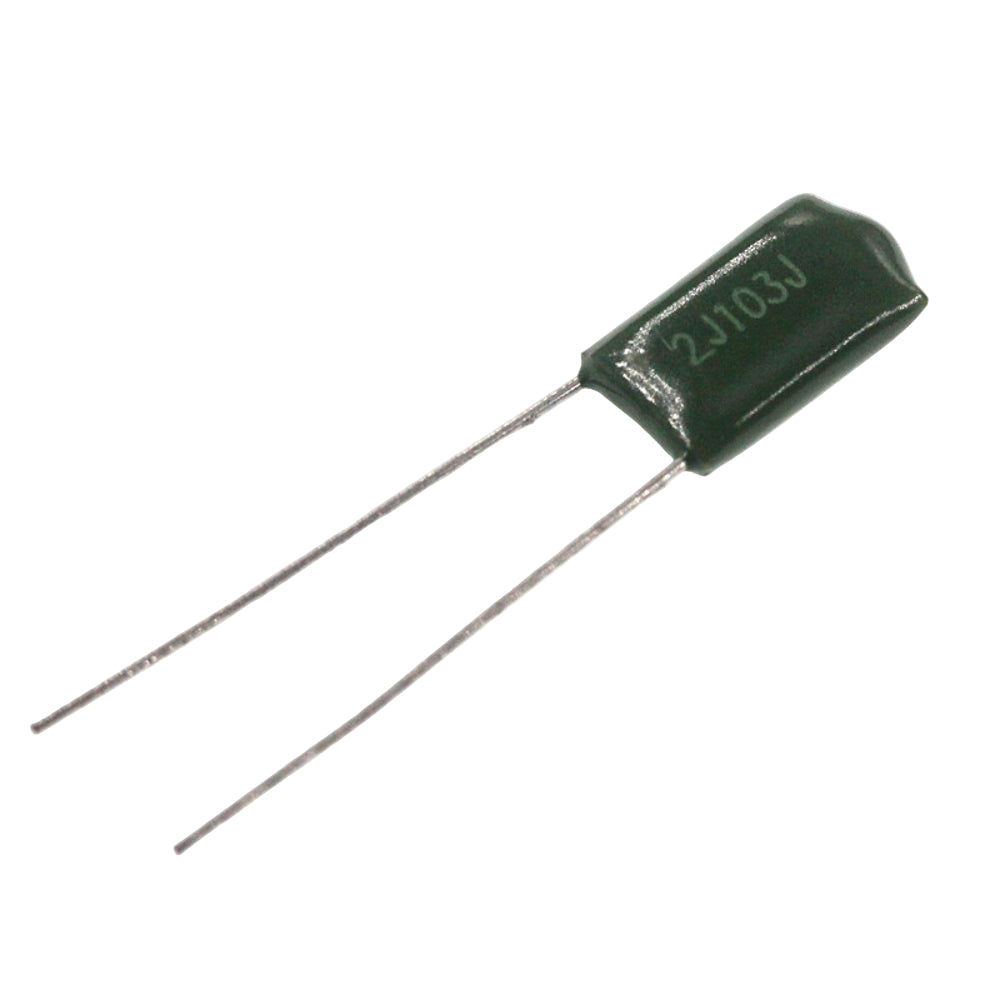

CL11 Polyester Film Capacitor 2J103J 0.01µF 10nF 630V Accuracy ±5%
![Polyester Film Capacitor 2J103J 0.01µF 10nF 630V -2]()
![Polyester Film Capacitor 2J103J 0.01µF 10nF 630V -1]()
![Polyester Film Capacitor 2J103J 0.01µF 10nF 630V -3]()
![Polyester Film Capacitor 2J103J 0.01µF 10nF 630V -2]()
![Polyester Film Capacitor 2J103J 0.01µF 10nF 630V -1]()
![Polyester Film Capacitor 2J103J 0.01µF 10nF 630V -3]()
It is widely used in medium-to-high voltage coupling, filtering, timing, and snubber circuits. With its ±5% accuracy, stable capacitance, low dielectric loss, and high insulation resistance, it is well-suited for both industrial and hobbyist electronic applications.
-33%
CL11 Polyester Film Capacitor 2J103J 0.01µF 10nF 630V Accuracy ±5%
Available:In Stock
- Product SKU: CAPAC107
₹ 6
₹ 9
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
CL11 Polyester Film Capacitor 630V 2J103J – 0.01µF 10nF ±5%
The CL11 Polyester Film Capacitor 630V 2J103J is a reliable metallized polyester film capacitor with a capacitance value of 0.01µF (10nF) and a rated voltage of 630V.It is widely used in medium-to-high voltage coupling, filtering, timing, and snubber circuits. With its ±5% accuracy, stable capacitance, low dielectric loss, and high insulation resistance, it is well-suited for both industrial and hobbyist electronic applications.
Features
- High-quality metallized polyester film construction
- Stable capacitance with ±5% accuracy
- Excellent insulation resistance and low loss
- Rated for 630V DC circuits
- Compact, through-hole design for easy PCB mounting
Technical Details
- Capacitance: 0.01µF (10nF)
- Rated Voltage: 630V DC
- Tolerance: ±5% (J)
- Dielectric: Metallized Polyester Film
- Lead Pitch: 7.5 – 10 mm (typical)
- Operating Temperature: −40°C to +85°C
Physical Attributes
- Body Shape: Rectangular, radial leads
- Body Length: ~10 mm
- Body Height: ~7 mm
- Body Thickness: ~4 mm
- Lead Diameter: 0.5 – 0.6 mm
- Lead Length: 22 mm
- Mounting Type: Through-hole
- Weight: < 1 g
Applications
- Coupling and decoupling in high-voltage circuits
- Filtering in SMPS and power supplies
- Snubber and pulse circuits
- RC timing and oscillator networks
- General-purpose medium/high-voltage electronics
Package Includes
- 1 × CL11 Polyester Film Capacitor 630V 2J103J – 0.01µF ±5%
