TowarPro MG996R Digital High Torque Servo Motor Plastic Gear 360°
Available:In Stock
- Product SKU: LGSV011
₹ 269
₹ 430
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
TowarPro MG996R Digital High Torque Servo Motor Plastic Gear (360°)
The MG996R is a TowerPro digital plastic gear servo motor with high torque and can be used for a wide range of applications. It is an upgraded version of the MG995 servo with an improved control system that makes the servo more accurate.
This servo supports 360° rotation and can be controlled using standard servo code, hardware, or libraries. It comes with various horns (arms) and mounting accessories.
This servo supports 360° rotation and can be controlled using standard servo code, hardware, or libraries. It comes with various horns (arms) and mounting accessories.
Key Highlights
- High torque performance for demanding projects
- Upgraded control system for improved accuracy
- Durable plastic gear design (lightweight)
- 360° rotation support
- Compatible with standard servo controllers
Technical Details
- Operating Voltage: 4.8V – 7.2V
- Running Current: 500 mA – 900 mA @ 6V
- Stall Current: 2.5 A @ 6V
- Operating Temperature: 0°C – 55°C
- Control System: Analog
- Operating Angle: 360°
- Required Pulse Width: 900 µs – 2100 µs
- Direction: CCW
- Operating Speed: 0.17 sec/60° @ 4.8V, 0.14 sec/60° @ 6V
- Dead Band Width: 5 µs
- Wire Length: 30 cm
- Connector Type: 3-pin “S” type female header
- Stall Torque: 9.8 kgf·cm @ 4.8V, 11 kgf·cm @ 6V
- Stable and shockproof double ball bearing design
Wire Description
- Red – Positive (VCC)
- Brown – Negative (GND)
- Orange – Signal (PWM)
Product Parameter
Physical Attributes
- Dimensions (L × W × H): 53.6 × 20 × 47.6 mm
- Weight: 62 g
Integration with Arduino
Sample Code
Features
- High resolution
- Accurate positioning
- Fast control response
Applications
- Used as actuators in robots such as biped robots, hexapods, and robotic arms
- Commonly used in steering systems for RC toys
- Robots where motion control is required without feedback
- Lightweight design suitable for multi-DOF and humanoid robots

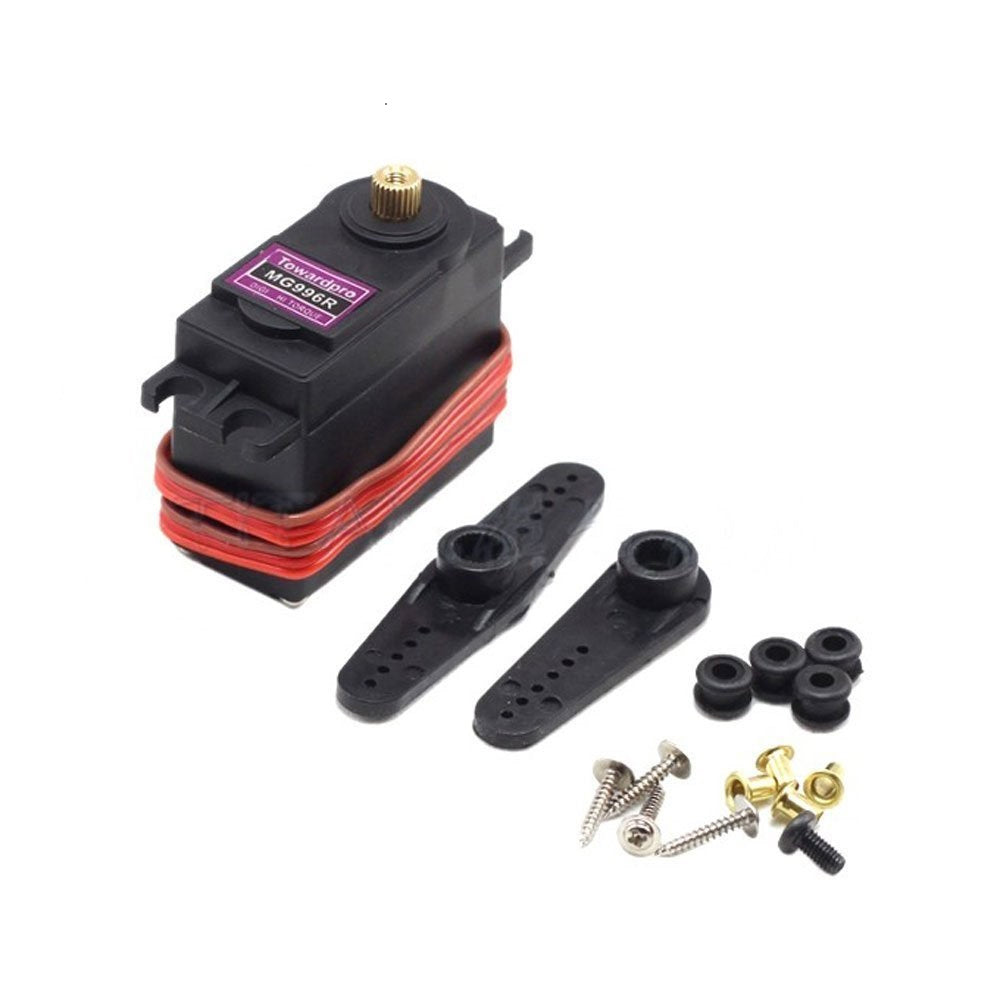

Package Includes
- 1 × TowarPro MG996R Digital High Torque Servo Motor Plastic Gear (360°)
- 1 × Set of Servo Horns (Arms)
- 1 × Set of Mounting Screws
