TEC1-12704 40x40mm Thermoelectric Cooler 4A Peltier Module

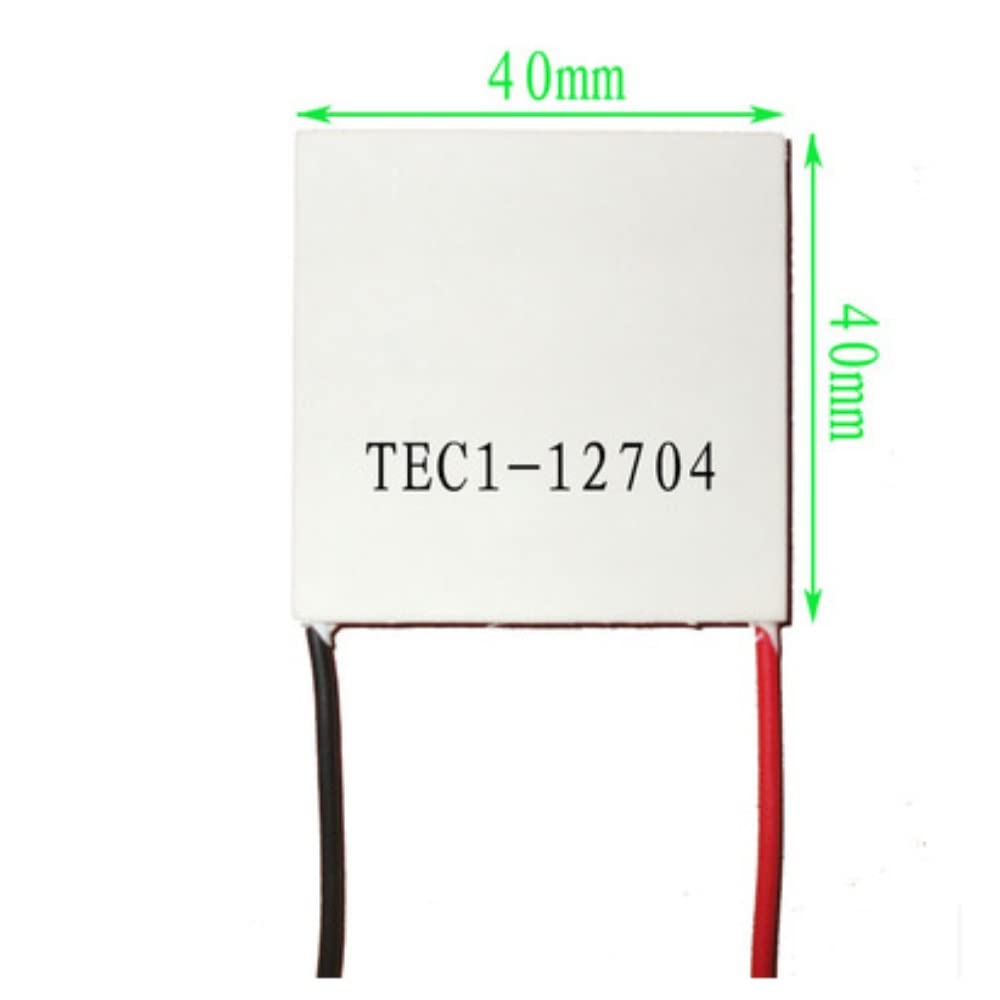

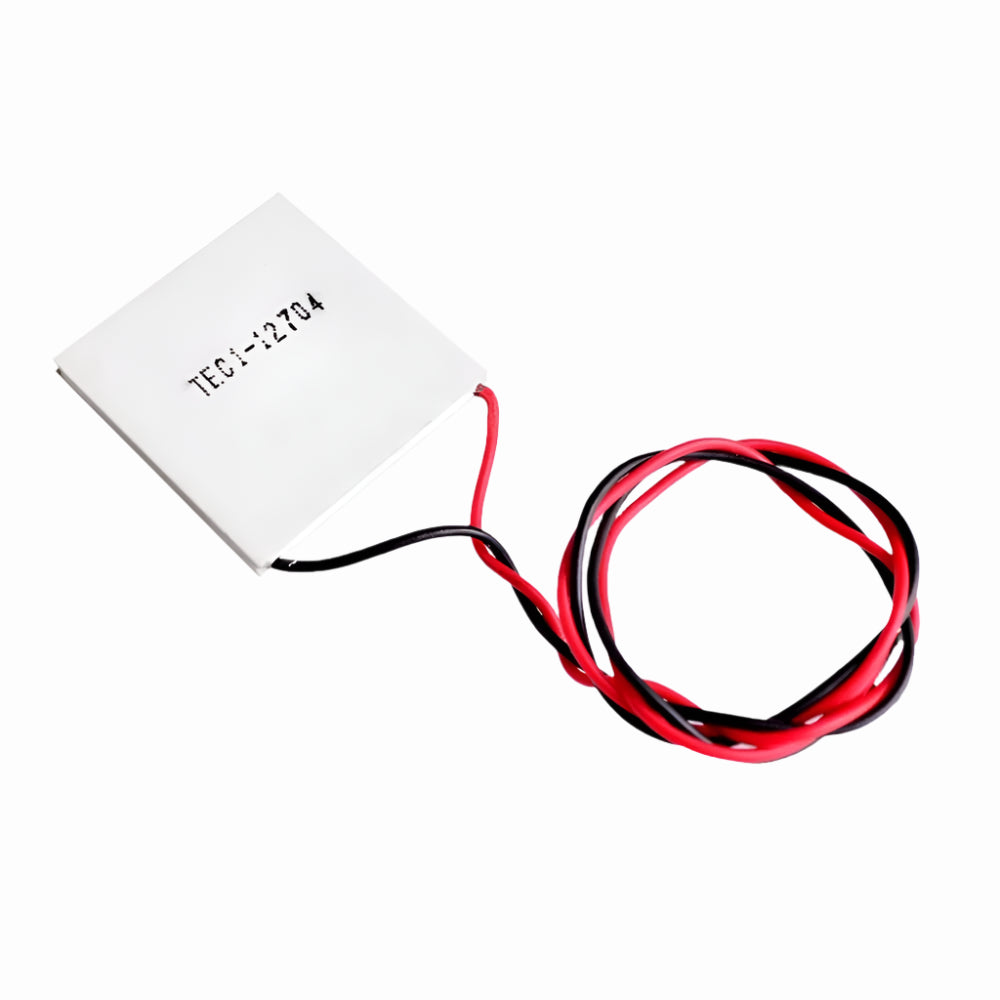

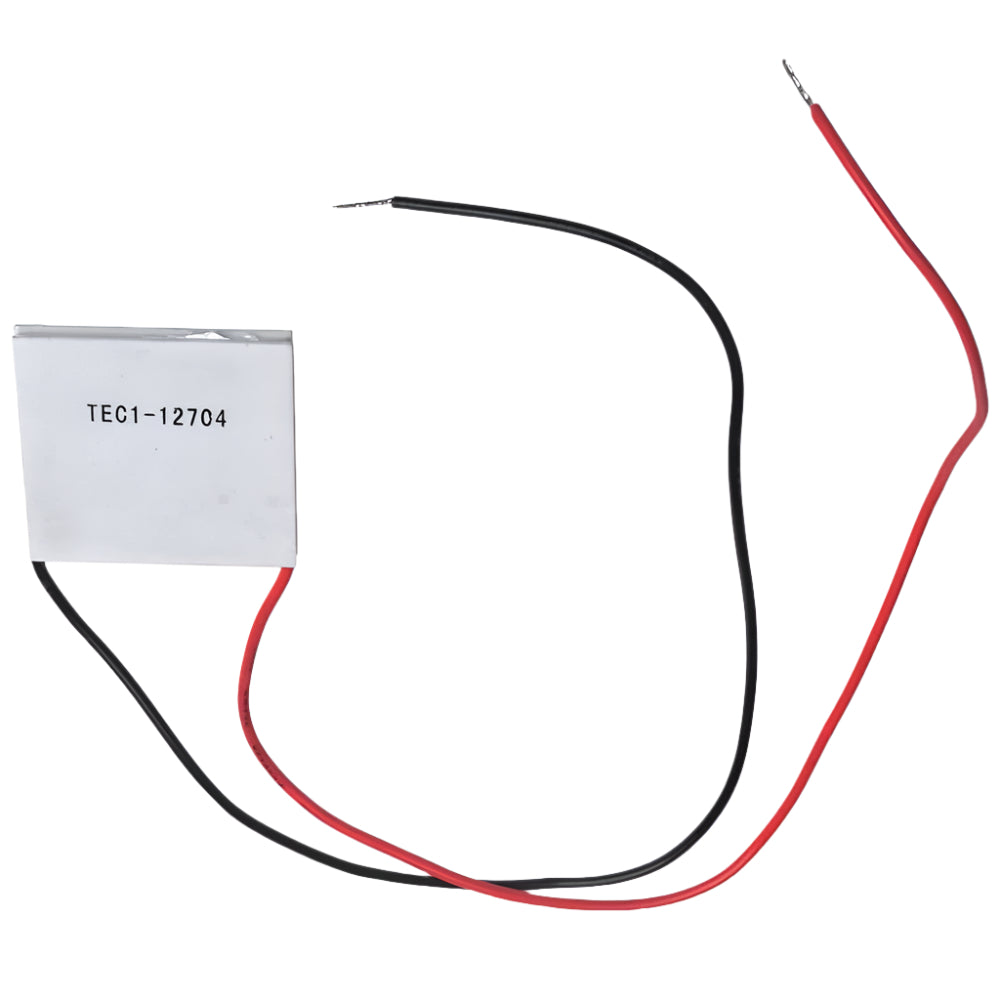

Peltier Cell Cooling Module TEC1-12704 40x40 mm 4A

The TEC1-12704 40x40 mm peltier cell cooling module is a compact, high-efficiency small peltier module that uses the Peltier thermoelectric effect for reliable cooling or heating. This cooler module Kit features 127 semiconductor couples across the full 40mm × 40mm area, capable of effectively cooling and heating up to 70 °C.

With this peltier cell cooling system, one side becomes hot while the other becomes cold — allowing you to either cool down or warm up components simply by supplying power. Additionally, if properly set up, the temperature differential can be used to generate electricity.

This Peltier module performs best when the hot side is actively cooled. Once powered, the hot side warms up quickly while the cold side becomes cold fast. Without a heatsink or similar heat-dissipating solution, the unit will soon reach equilibrium and lose effectiveness. For optimal results, we recommend using a CPU heatsink or a metal block to draw away heat. In our tests, a PSU plus CPU-heatsink setup made the cold side drop so low that touching it became uncomfortable.

A small peltier module such as this acts as a compact semiconductor-based heat pump. When supplied with 12 V DC (or up to 15 V), the module transfers heat from one side to the other, creating a cold side and a hot side. Such cooler module Kit units are widely used for electronics cooling, portable refrigerators, medical instruments, and compact thermal management applications.

Also known as: Thermoelectric cooling modules, Peltier modules, TEC modules.

Operating Tips: Do not exceed rated Imax or Vmax. Ensure proper moisture protection (sealing) if used in final application. Life expectancy: approx. 200,000 hours. Failure rate: ~0.2%.

Important Note: The hot side must always have a heatsink attached. Running this peltier cell cooling module for even a few seconds without a heatsink may damage it.

Technical Details

Features

Applications :

• Electronic Cooling: Suitable for cooling CPUs, GPUs, sensors and other heat-sensitive electronics.
• Mini Refrigeration: Works well in compact refrigerators, beverage coolers, or portable cooling boxes.
• Medical & Laboratory Cooling: Useful for portable medical cooling devices like vaccine storage units.
• Laser & Optical Equipment: Helps maintain stable temperatures for laser diodes or optical sensors.
• DIY & Custom Projects: Great for experimental thermal management setups and custom cooling/heating projects.
• Industrial Temperature Control: Effective for maintaining stable temperatures in enclosures or machinery.

Physical Attributes

Package Includes
