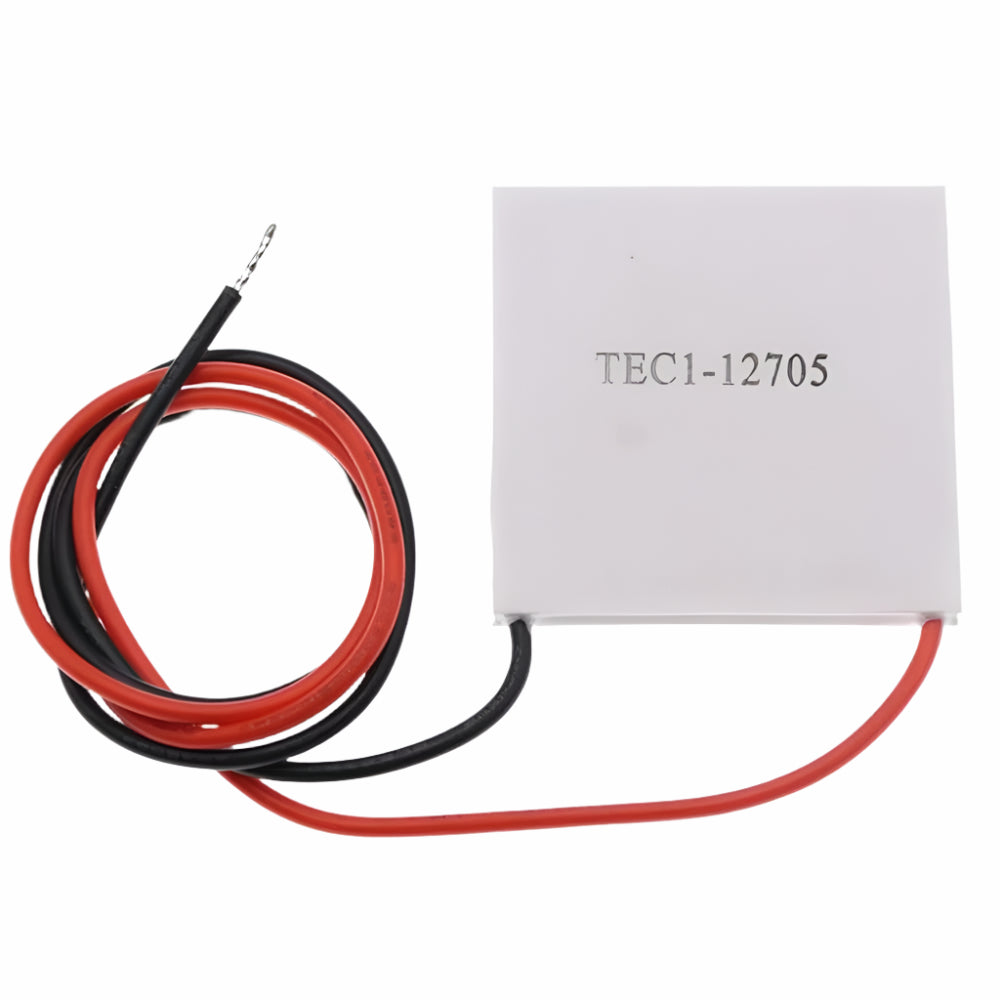

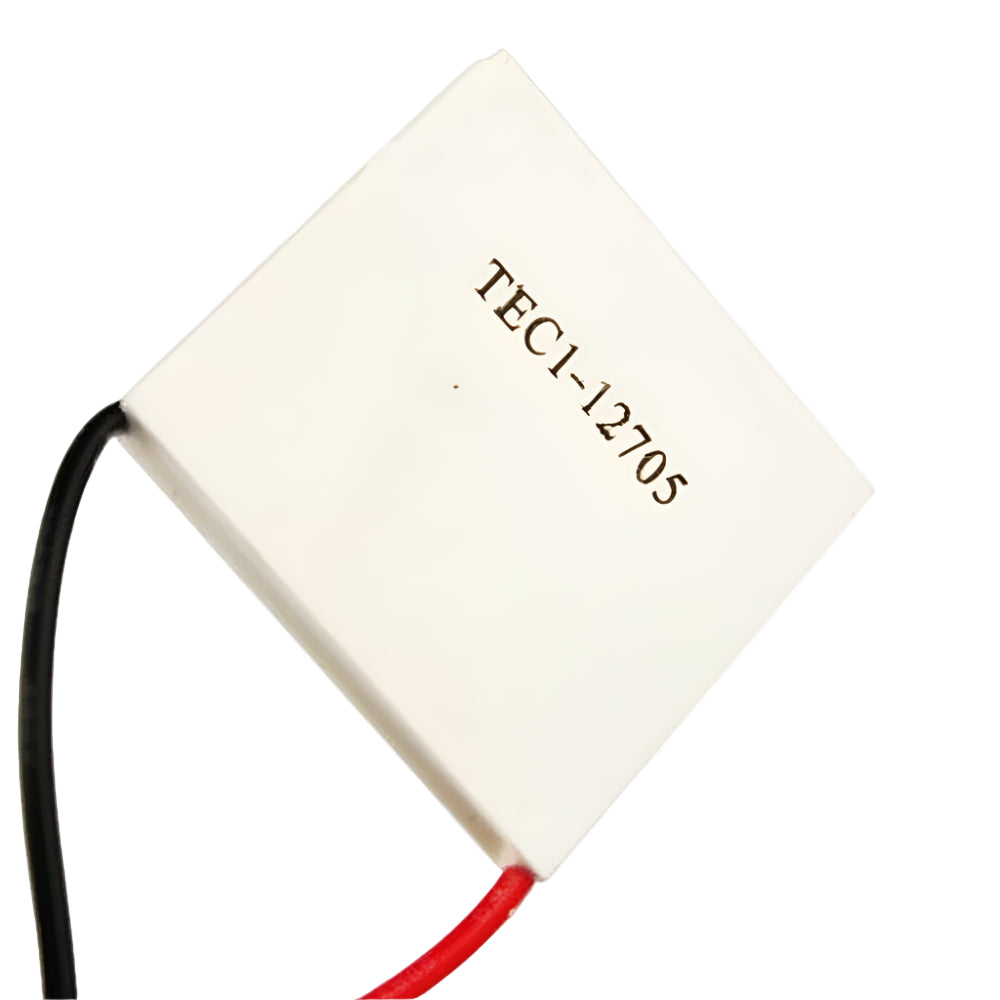

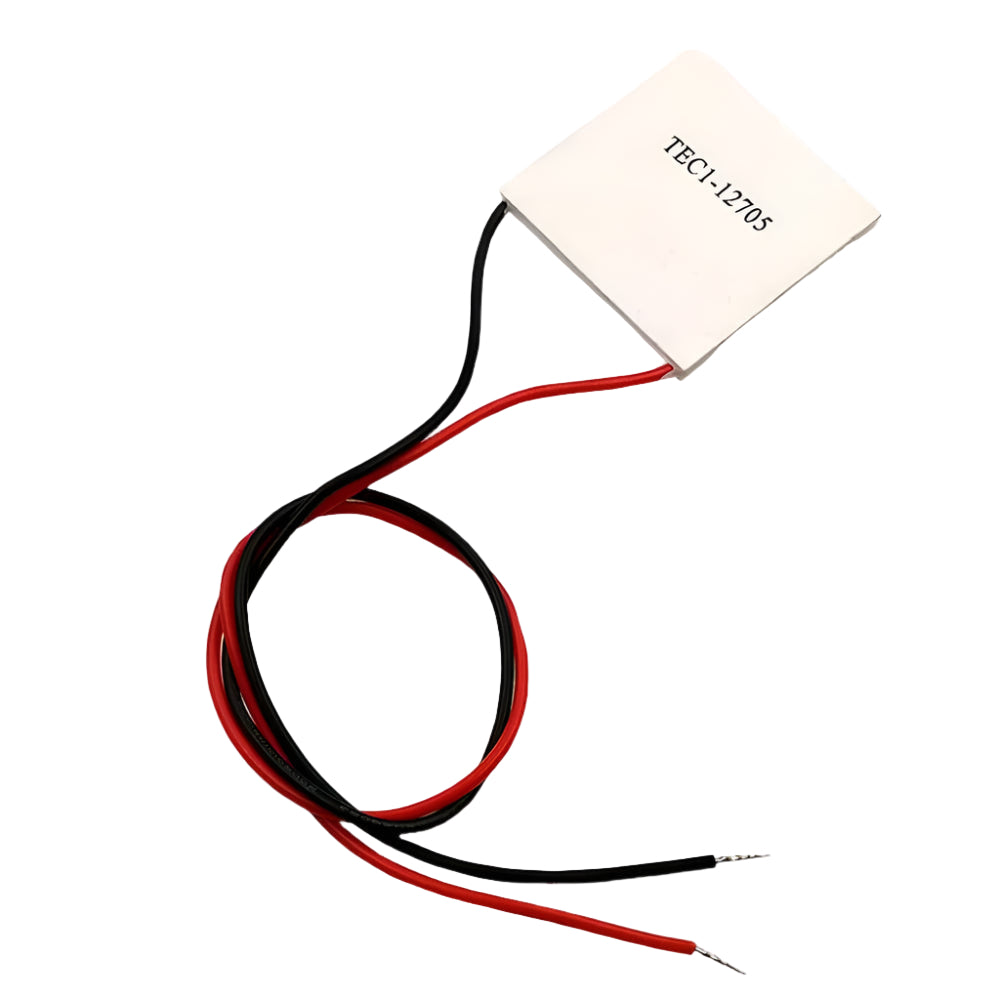

TEC1-12705 40x40mm Thermoelectric Cooler 5A Peltier Module

Peltier Module Cooler TEC1-12705 40x40 mm 5A

The TEC1-12705 40x40 mm peltier module cooler is a compact yet powerful peltier element optimized for efficient cooling or heating. This thermoelectric cooler peltier 12v module uses 127 semiconductor couples across its full 40 mm × 40 mm area and can effectively cool or heat up to 80 °C.

When powered, the module creates a temperature differential: one side becomes hot while the other turns cold. This enables you to cool or warm components simply by switching polarity. Moreover, under optimal conditions, you can even exploit the thermal difference to recover energy.

To ensure peak performance, the hot side must be actively cooled. Without a heatsink or similar heat-dissipating solution, the module will quickly reach equilibrium and lose effectiveness. Therefore, pairing this peltier module cooler with a good CPU heatsink or metal block is highly recommended. In tests, a PSU with heatsink setup made the cold side so chilly that maintaining a finger on it became difficult.

As a quality peltier element, this module functions as a solid-state heat pump. When supplied with 12 V DC (up to 15 V), the module transfers heat from one side to the other — forming a cold side and a hot side. Such thermoelectric cooler peltier 12v modules are ideal for electronics cooling, portable refrigeration units, medical devices, and custom thermal control applications.

Also known as: Thermoelectric cooling modules, TEC modules, Peltier plates, semiconductor coolers.

Operating Tips: Do not exceed the rated Imax or Vmax. Ensure moisture protection (sealing) when used in final applications. Life expectancy: approx. 200,000 hours. Failure rate (after long-term testing): approx. 0.2%.

Important Note: The hot side MUST always have a heatsink. Running this peltier module cooler even for a few seconds without a heatsink attached may damage the module.

Technical Details

Features

Applications :

• Electronics Cooling: Ideal for cooling CPUs, GPUs, sensors, and other heat-sensitive components.
• Mini Refrigeration Systems: Suitable for portable coolers, small refrigerators, and beverage chillers.
• Medical & Lab Devices: Useful for temperature-controlled medical storage (e.g. vaccines, samples).
• Laser & Optical Equipment: Maintains stable temperature for laser diodes and optical sensors.
• DIY Cooling Projects: Great for custom thermal management, experimental cooling setups, or hobbyist builds.
• Industrial Temperature Control: Helpful for regulating temperatures in machinery enclosures and thermal systems.

Physical Attributes

Package Includes
