TEC1-12712 40x40MM Thermoelectric Cooler 12A Peltier Module

Peltier Module 12V TEC1-12712 40x40MM 12A Thermoelectric Cooler

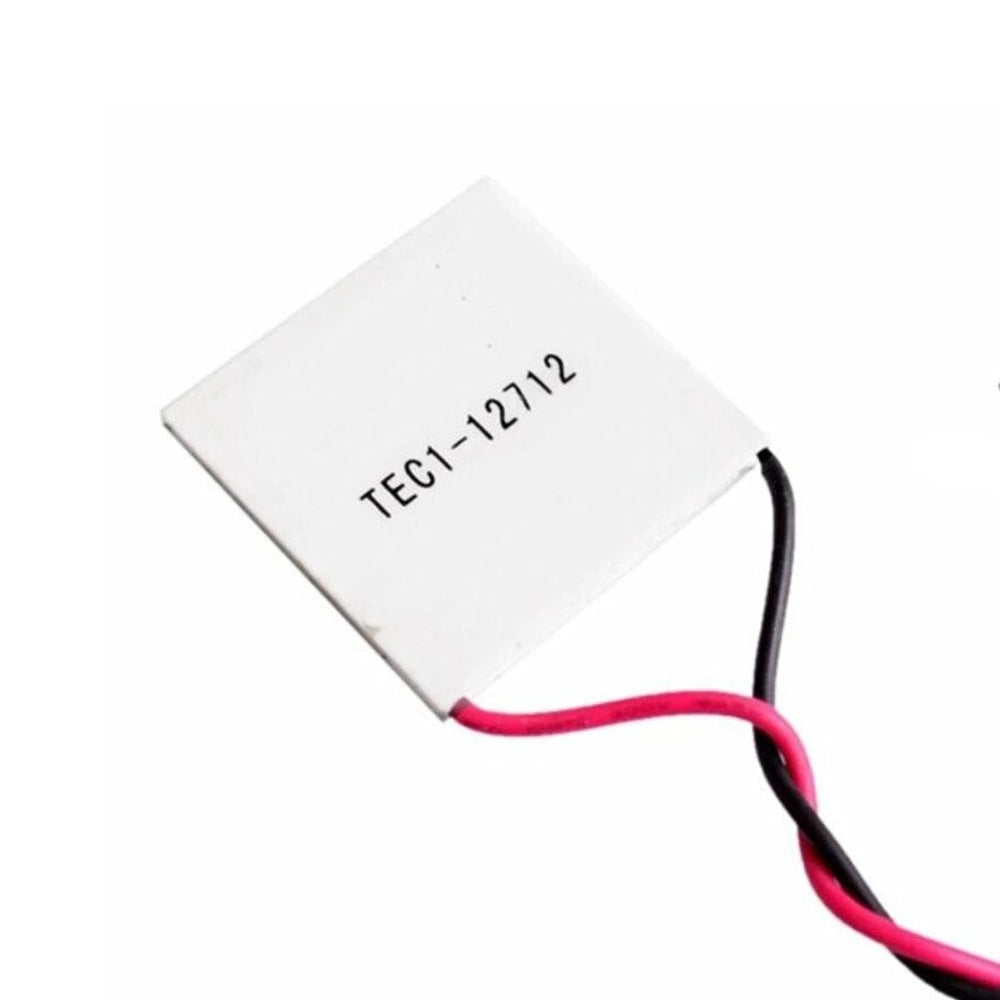

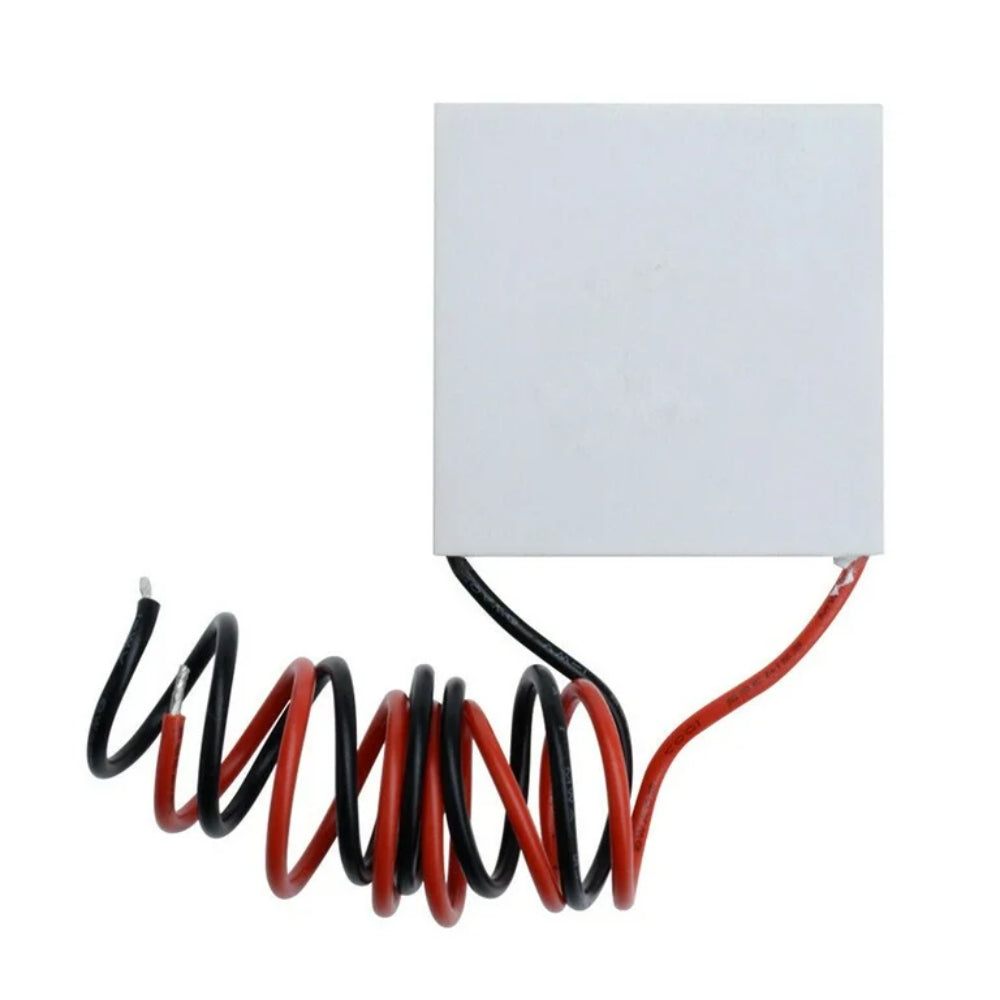

The TEC1-12712 40x40mm peltier module 12v is a high-power thermoelectric plate designed for strong cooling performance. It features 127 semiconductor couples and supports multiple types of peltier module applications — ranging from DIY cooling experiments to industrial heat-management systems.

This peltier module 12v creates a fast temperature differential: one side becomes cold while the other becomes hot. You can reverse polarity for heating or cooling, and in some cases, use the temperature gradient to generate electricity. This flexibility makes it one of the most efficient types of peltier module in its power class.

To perform effectively, heat must be removed from the hot side using a heatsink. Without proper dissipation, the peltier module 12v will quickly reach thermal equilibrium and stop cooling. A CPU heatsink works exceptionally well, as proven in testing where the cold side dropped so rapidly that it became uncomfortable to touch.

As a dependable thermoelectric plate, it operates silently with no moving parts — ideal for CPUs, sensors, portable refrigerators, laser systems, and laboratory cooling builds. Offering powerful performance across many types of peltier module tasks, it remains a trusted choice for creators and engineers.

Also known as: TEC modules, Peltier coolers, semiconductor cooling modules.

Operating Tips: Do not exceed rated voltage/current; ensure moisture sealing when required. Life expectancy: ~200,000 hours Failure rate: ~0.2%

Important: The hot side always requires a heatsink. Operating this peltier module 12v without one — even briefly — may cause damage.

Technical Details

Features

Applications :

• Electronic Cooling: CPUs, GPUs, and critical components.
• Mini Refrigeration: DIY beverage coolers and mini-fridges.
• Laser & Optical: Stable temperature for sensors and laser diodes.
• Medical & Lab: Portable temperature-controlled devices.
• DIY & Experiments: Testing different types of peltier module designs.
• Industrial Temperature Control: Heat regulation in electronics and enclosures.

Physical Attributes

Package Includes
