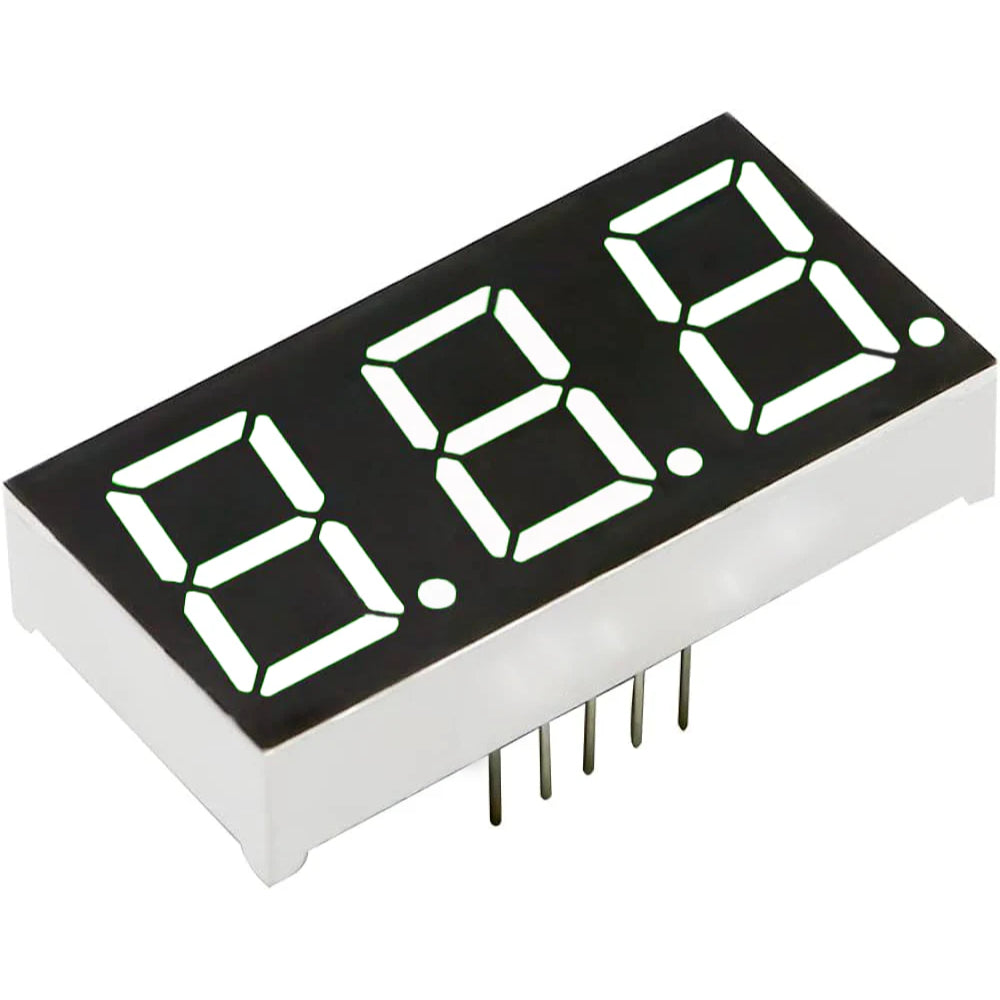

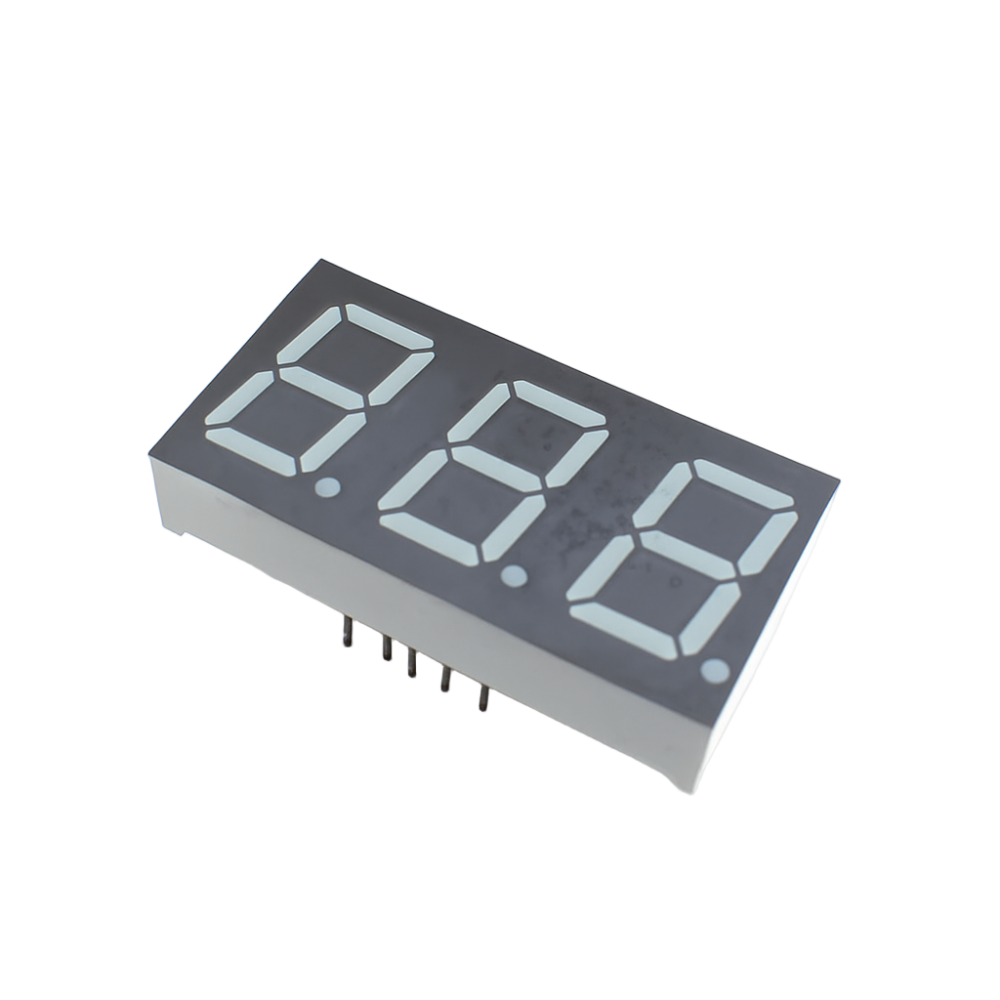

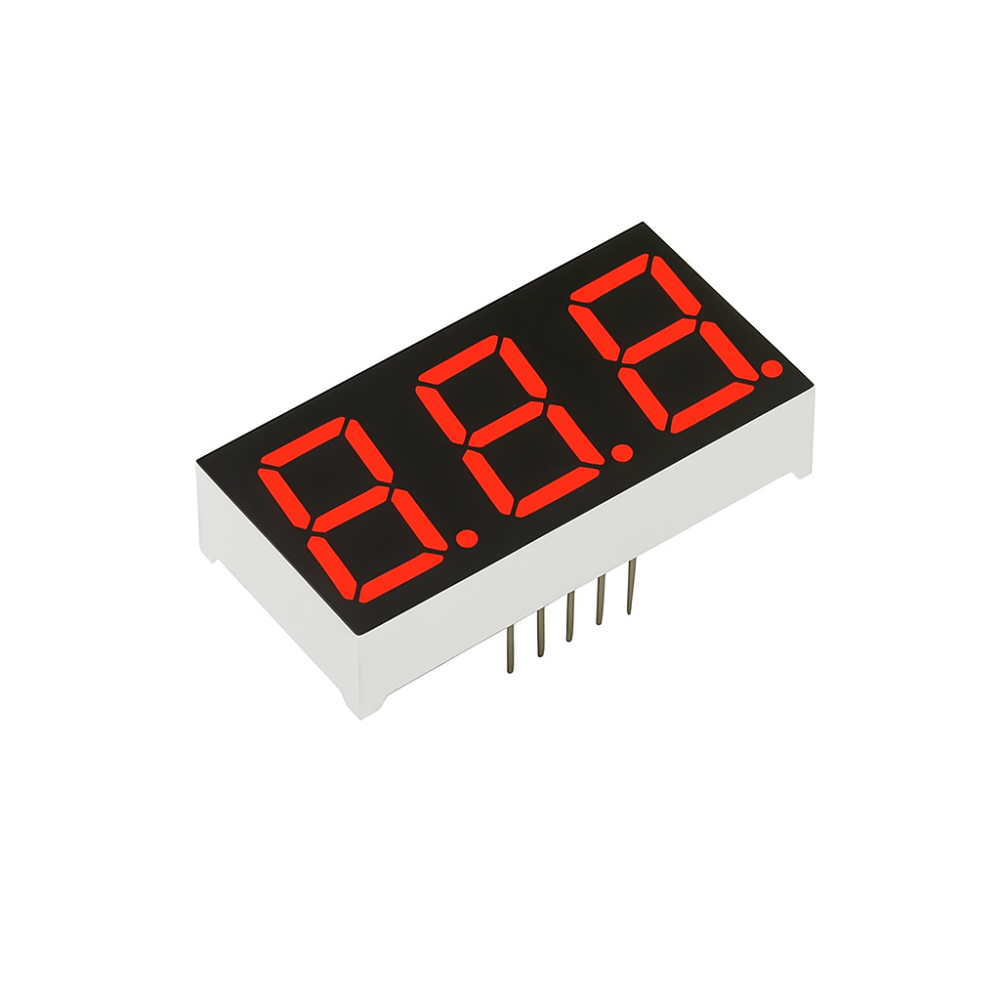

0.56 Inch 3-Digit Common Anode Red 7-Segment Display
Available:In Stock
- Product SKU: DISPL014
₹ 19
₹ 29
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description
0.56 Inch 3-Digit Common Anode Red 7-Segment Display
The 0.56 Inch 3-Digit Common Anode Red 7-Segment Display is a robust, high-visibility solution for numeric indication in electronic circuits. With bright red LED segments and a larger 0.56-inch digit height, it offers excellent readability at a distance. The common anode configuration enables simple interfacing with popular driver ICs and microcontrollers, making it ideal for prototypes and production designs.Built for reliability and low power consumption, this module is widely used in timers, counters, measurement panels, and other instruments. Its standardized pin layout supports quick wiring and multiplexed driving, while the sturdy package is suitable for panel mounting and space-conscious designs.
Technical Details
- Display Type: 3-Digit 7-Segment LED
- Configuration: Common Anode
- Digit Height: 0.56 inch (≈14.2 mm)
- Color: Red
- Segments per digit: 7 + decimal point (DP)
- Forward Voltage (per segment): 1.8V – 2.2V (typical)
- Forward Current (per segment): 10mA – 20mA
- Peak Current (per segment): 30mA (max)
- Recommended Drive: Multiplexed (three commons), duty ≈ 1/3
- Operating Voltage: 5V (typical with series resistors/driver IC)
- Operating Temperature: -25°C to +85°C
- Pin Count: 11 (shared segments + 3 commons)
Features
- Large 0.56" digits for high readability
- Bright, uniform red LED segments
- Low power consumption, long service life
- Easy MCU/driver interfacing (multiplexed)
- Ideal for counters, timers, and panel meters
Applications
- Electronic instruments requiring 3-digit numeric display
- Digital clocks, counters, and measurement panels
- Battery/voltage meters and embedded UIs
- General purpose DIY and educational electronics
Drawing

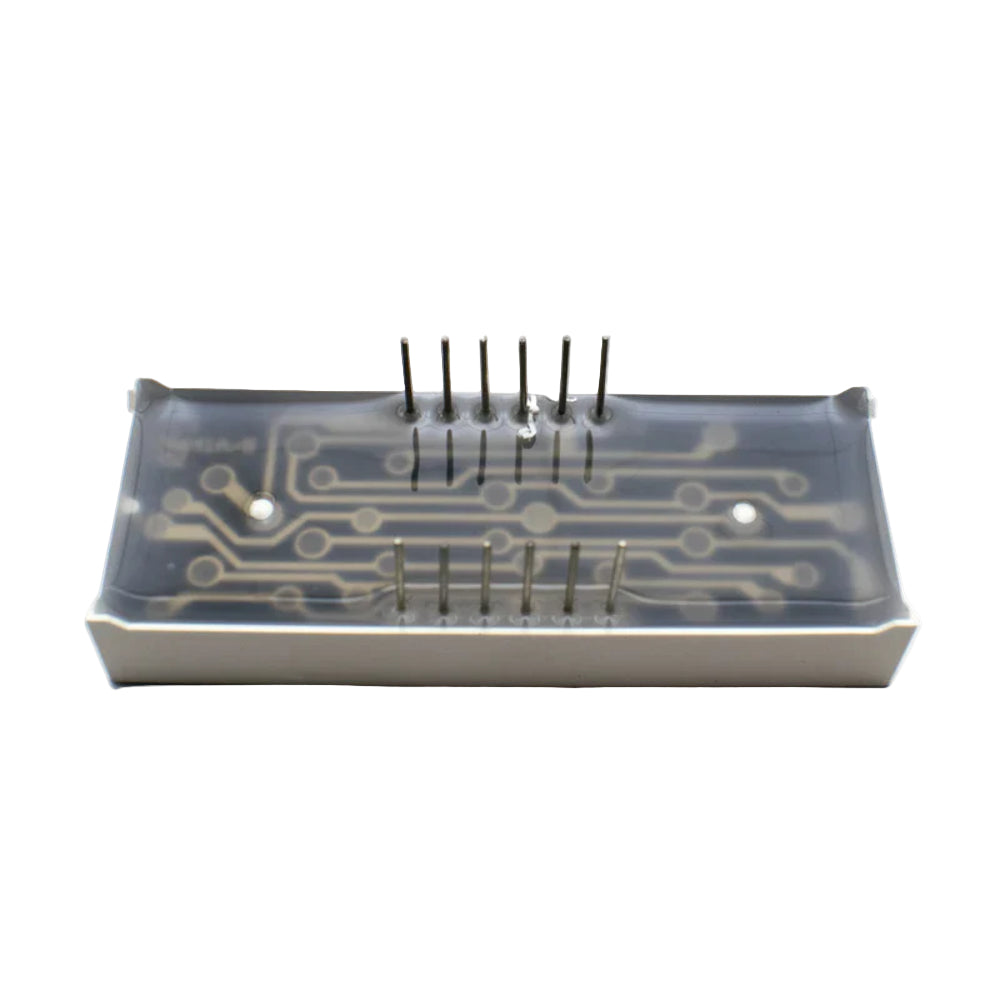

Pin Configuration
| S.No. | Pin No. | Symbol | Description |
|---|---|---|---|
| 1 | 1 | E | Segment E (shared) |
| 2 | 2 | D | Segment D (shared) |
| 3 | 3 | CA1 | Common Anode (Digit 1) |
| 4 | 4 | C | Segment C (shared) |
| 5 | 5 | DP | Decimal Point (shared) |
| 6 | 6 | B | Segment B (shared) |
| 7 | 7 | CA2 | Common Anode (Digit 2) |
| 8 | 8 | A | Segment A (shared) |
| 9 | 9 | F | Segment F (shared) |
| 10 | 10 | CA3 | Common Anode (Digit 3) |
| 11 | 11 | G | Segment G (shared) |
Physical Attributes
- Digit Height: 14.2 mm (0.56")
- Body size: ~38 x 19 x 8 mm (approx.)
- Pin pitch: 2.54 mm (typ.)
- Weight: ~5.0 gm (approx.)
Package Includes
- 1 x 0.56 Inch 3-Digit Common Anode Red 7-Segment Display
