Digital Light Sensor Photosensitive Resistor LDR Module

Digital Light Sensor Photosensitive Resistor LDR Module

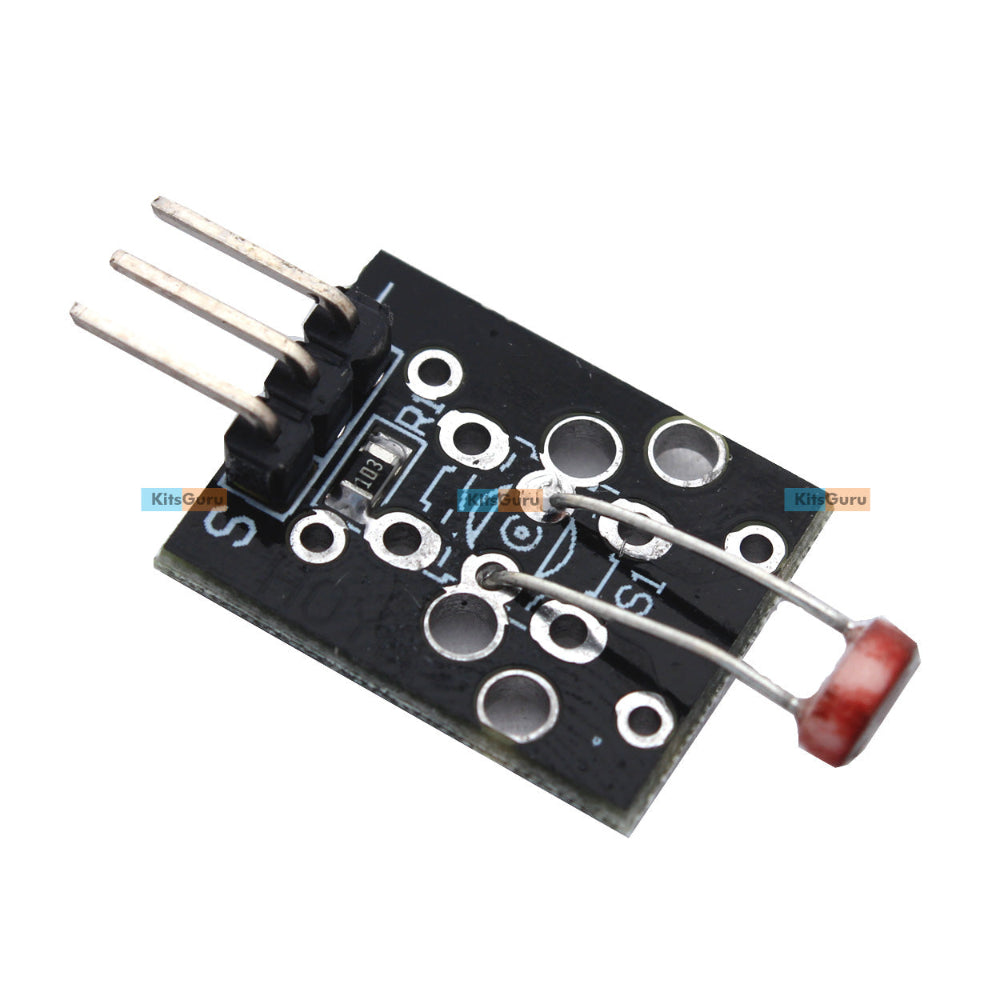

This high-quality Arduino ldr module is a reliable ldr light sensor designed for Arduino and other microcontrollers. It efficiently detects and measures ambient light intensity using a photosensitive resistor. As the intensity of light increases, the resistance of the photoresistor decreases—allowing accurate detection of brightness levels. Additionally, a built-in 10k resistor helps form a voltage divider circuit to measure real-time variations. Therefore, an Arduino ldr module can easily read the signal using an analog input pin to perform automatic brightness control or light-based automation tasks. When configured properly, it can behave like ldr as a switch in several smart circuits.
Photo Resistor Module Connections to Arduino: Pin 1 (S) of the module connects to an Arduino analog input pin (A0 is used in the sample code, but any analog pin can be configured). Pin 2 connects to the Arduino GND pin, while Pin 3 (-) connects to the Arduino 5V pin. Consequently, this simple wiring ensures quick setup and reliable operation for your projects involving an ldr module.

Technical Details

Features of the LDR Module

Applications Using LDR Module :

• Light Level Detection: Ideal for automatic lighting systems that adjust brightness according to ambient light, often acting like ldr as a switch.
• Solar Tracking: Used in solar panels to follow the sun’s position and maximize power output when paired with an ldr module.
• Automatic Brightness Control: Perfect for smartphones, laptops, or digital displays that need adaptive screen brightness controlled by an ldr light sensor.
• Light-Based Alarm Systems: Detects sudden light changes to trigger alarms in security setups, functioning similarly to ldr as a switch.
• Photography and Camera Systems: Helps control exposure by monitoring environmental light conditions using an ldr light sensor.
• Consumer Electronics: Integrated in smart home devices, lamps, and lighting control modules to automate operation based on surroundings.

Integration with Arduino

Sample Code

Physical Attributes

Package Includes
