20mm LDR Sensor Photoresistor Photo Cell 20528 GL20528

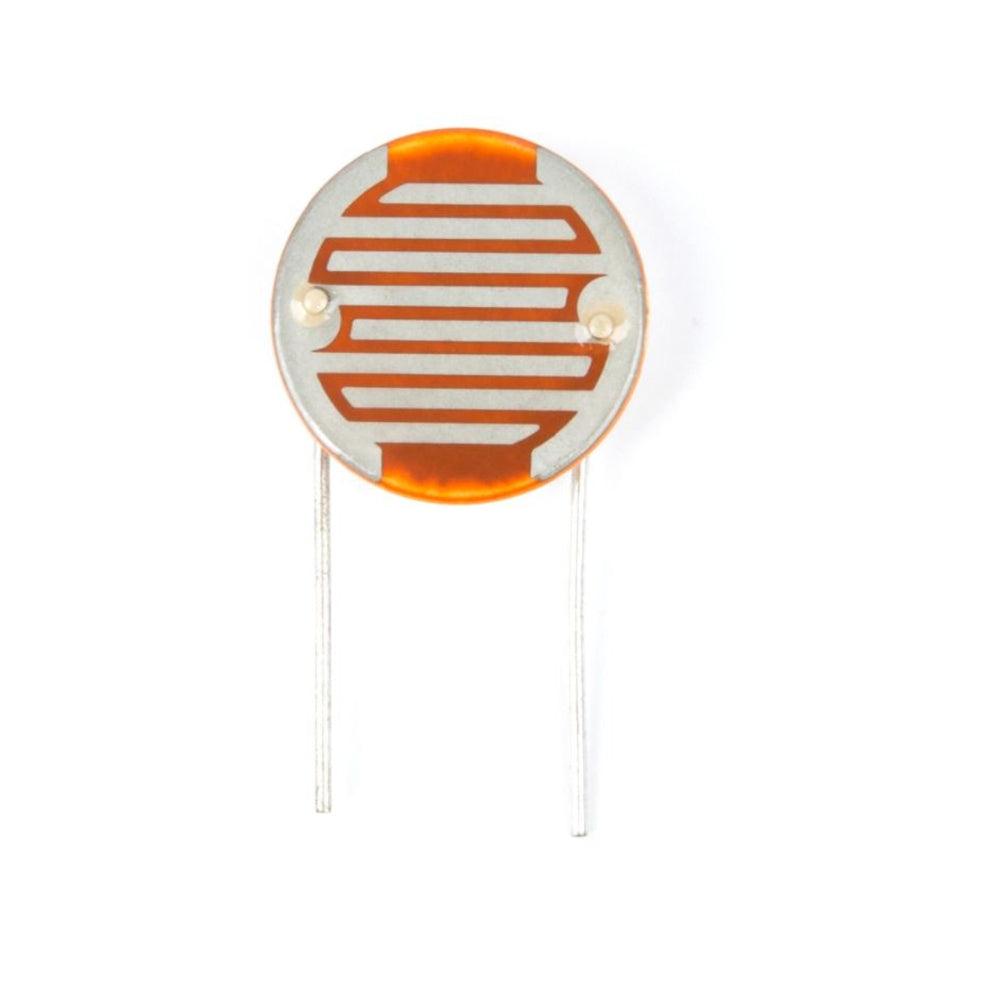

![Front view of 20mm light dependant resistor LDR GL20528]()
![Closeup of GL20528 LDR photo cell sensing surface]()
![Side angle of 20mm photoresistor showing light window]()
![Front view of 20mm light dependant resistor LDR GL20528]()
![Closeup of GL20528 LDR photo cell sensing surface]()
![Side angle of 20mm photoresistor showing light window]()
Two Cadmium Sulphide photo-conductive cells provide eye-like spectral response, and resistance falls steadily with increased illumination. Common applications include batch counting, automatic lighting, smoke detection, and burglar alarms.
-45%
20mm LDR Sensor Photoresistor Photo Cell 20528 GL20528
Available:In Stock
- Product SKU: KG1053
₹ 59
₹ 109
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
20mm LDR Sensor Photoresistor Photo Cell 20528 GL20528 – ldr light dependent resistor
The resistance of the 20mm GL20528 Light Sensitive Photoresistor LDR changes with ambient brightness and helps automate lighting functions. As intensity increases, resistance drops, making this ldr light dependent resistor ideal for smart switches and sensing projects. Additionally, makers evaluating the cost of ldr sensor appreciate that it integrates cleanly with a reliable light dependant resistor circuit. If you need to measure ambient light with minimal complexity, this solution works effectively in both bright and dark environments.Two Cadmium Sulphide photo-conductive cells provide eye-like spectral response, and resistance falls steadily with increased illumination. Common applications include batch counting, automatic lighting, smoke detection, and burglar alarms.
Technical details – light dependant resistor circuit integration
- Diameter: 20mm
- Spectral Peak: 560nm
- Pins: 2
- Dark Resistance: 2kΩ
- Light Resistance: 10-20kΩ
- Max Voltage: 500VDC
- Max Power: 0.5W
- Response Time: 30μS
- Additional: Dark Resistance Max 2kΩ
Analog Applications – cost of ldr sensor value
- Camera Exposure Control
- Auto Slide Focus – Dual Cell
- Photocopy Machines – Toner Density
- Colorimetric Test Equipment
- Densitometer
- Electronic Scales – Dual Cell
- Automatic Gain Control – Modulated Light Source
- Automated Rear View Mirror
Digital Applications – dependable designs
- Automatic Headlight Dimmer
- Nightlight Control
- Oil Burner Flame Out
- Streetlight Control
- Absence / Presence (Beam Breaker)
- Position Sensor
Other applications
- Annunciator
- Camera automatic photometry
- Electronic toy
- Industrial control
- Light control
- Light control lamp
- Photoelectric control
- Switch
Features – optimized for stable performance
This ldr light dependent resistor delivers fast response, eye-matched spectral precision, and flexible mounting options, ensuring dependable output across nearly any light dependant resistor circuit. In addition, planning for the overall cost of ldr sensor helps when scaling batches for labs and production.
- Coated with epoxy
- Good reliability
- High sensitivity
- Small volume
- Fast response
- Good spectrum characteristic
- Model: GL20528 (GM20528)
- Size: 20mm
- Max. Voltage: 500 VDC
- Max. Power: 500 mW
- Spectrum Peak: 560 nm
- Light Resistance: 10–20 kΩ
- Dark Resistance: 2 kΩ
- Υ Value: 0.6
- Increase Response Time: 30 ms
- Decrease Response Time: 30 ms
Applications – scalable with cost of ldr sensor planning
- Automatic streetlight control
- Camera exposure control
- Nightlight automation
- Flame detection
- Position and presence detection
- Light-sensitive alarms
- Electronic toy applications
- Solar-powered lighting systems
- Industrial light control systems
- Brightness adjustment in displays
Specifications
| Model | Max Pressure(VDC) | Max Pwr(MW) | Ambient temp(°C) | Spectral Peak (Nm) | Bright Resistor (Ω) | Dark Resistor (MΩ) | Response Time (ms) |
|---|---|---|---|---|---|---|---|
| 5506 | 150 | 100 | -30~+70 | 540 | 4-7 | 0.5 | Rise:30 Fall:30 |
| 5516 | 150 | 100 | -30~+70 | 540 | 5-10 | 0.5 | Rise:30 Fall:30 |
| 5528 | 150 | 100 | -30~+70 | 540 | 10-20 | 1 | Rise:20 Fall:30 |
| 5537 | 150 | 100 | -30~+70 | 540 | 20-30 | 2 | Rise:20 Fall:30 |
| 5549 | 150 | 100 | -30~+70 | 540 | 100-200 | 10 | Rise:20 Fall:30 |
Package Includes
- 1 x 20mm LDR Sensor Photoresistor Photo Cell 20528 GL20528
